Triplex House Plan with Full Floor Units - 3 Beds - 1 Bath - 1255 Square Feet

Heated S.F.
3,765
Units
3
Width
Depth

Floor Plan

Plan 80585PM

Basement
Basement
Main Level
Main Level
2nd Floor
2nd Floor

Plan 80585PM

M-F 9am-5pm EST |

1-203-761-8500

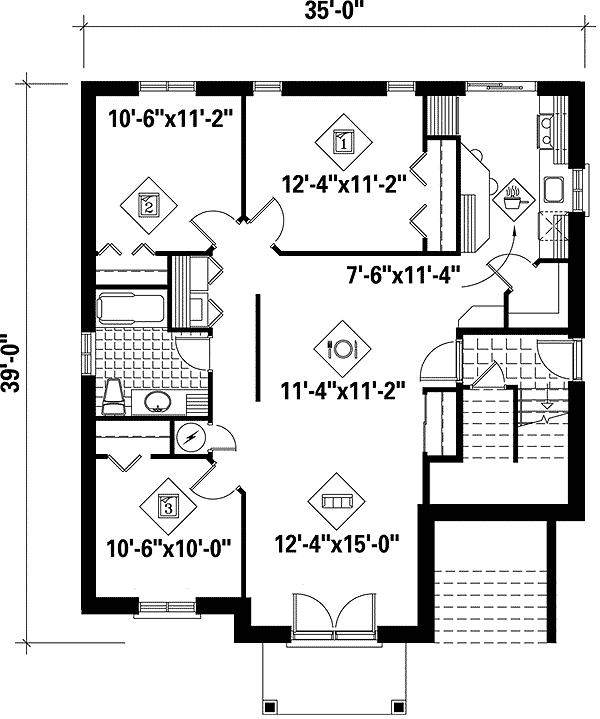

Basement

Plan 80585PM: Triplex House Plan with Full Floor Units - 3 Beds - 1 Bath - 1255 Square Feet - Floor Plan - Basement - European

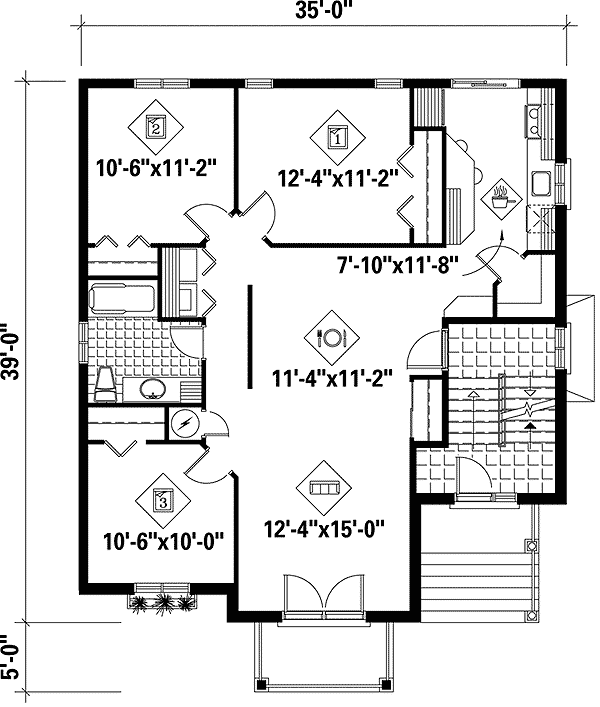

Main Level

Plan 80585PM: Triplex House Plan with Full Floor Units - 3 Beds - 1 Bath - 1255 Square Feet - Floor Plan - Main Level - European

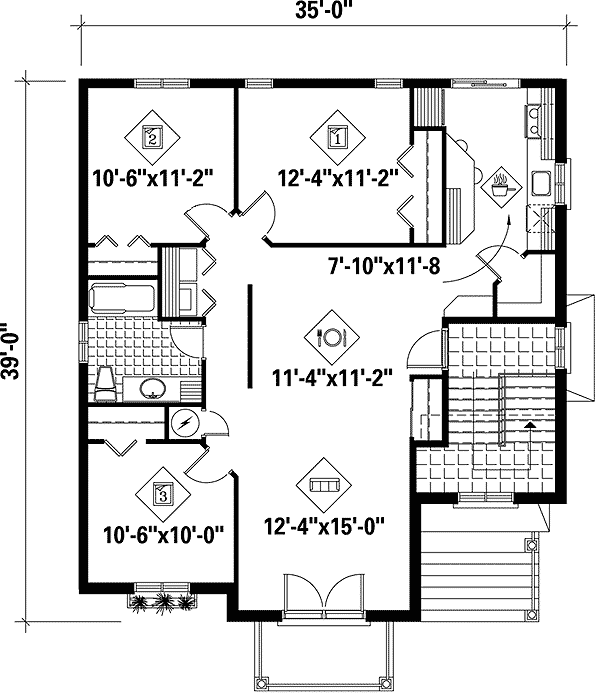

2nd Floor

Plan 80585PM: Triplex House Plan with Full Floor Units - 3 Beds - 1 Bath - 1255 Square Feet - Floor Plan - 2nd Floor - European

Plan Details

  • This triplex house plan gives you full-floor units, each with 3 beds, 1 bath and 1,255 square feet of heated living space.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Get an alternate exterior with house plan 80588PM.
Unit A
Heated Area
1,255Sq. Ft.
1255 Sq. Ft. 1st
Beds
3Beds
Baths
1Full Bath
Dimensions
35'width
39'depth
44'height
Unit B
Heated Area
1,255Sq. Ft.
1255 Sq. Ft. 2nd
Beds
3Beds
Baths
1Full Bath
Dimensions
35'width
39'depth
44'height
Unit C
Heated Area
1,255Sq. Ft.
1255 Sq. Ft. LL
Beds
3Beds
Baths
1Full Bath
Dimensions
35'width
39'depth
44'height

What's Included

Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,765 sq. ft.

Lower Level

1,255 sq. ft.

1st Floor

1,255 sq. ft.

2nd Floor

1,255 sq. ft.

Beds/Baths

Bedrooms

9

Full bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

35' 0"

Depth

39' 0"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

European

Special Features

Laundry - Lower Level

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Lower Level

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Metric

Square Footage Breakdown

Total Heated Area

3,765 sq. ft.

Lower Level

1,255 sq. ft.

1st Floor

1,255 sq. ft.

2nd Floor

1,255 sq. ft.

Beds/Baths

Bedrooms

9

Full bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

35' 0"

Depth

39' 0"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

European

Special Features

Laundry - Lower Level

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Lower Level

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Metric
