Triplex with 2-Bed Units Under 1000 Square Feet Each

Heated S.F.
2,907
Units
3
Width
Depth

Floor Plan

Plan 801132PM

Main Level
Main Level
2nd Floor
2nd Floor
Lower Level
Lower Level

Plan 801132PM

M-F 9am-5pm EST |

1-203-761-8500

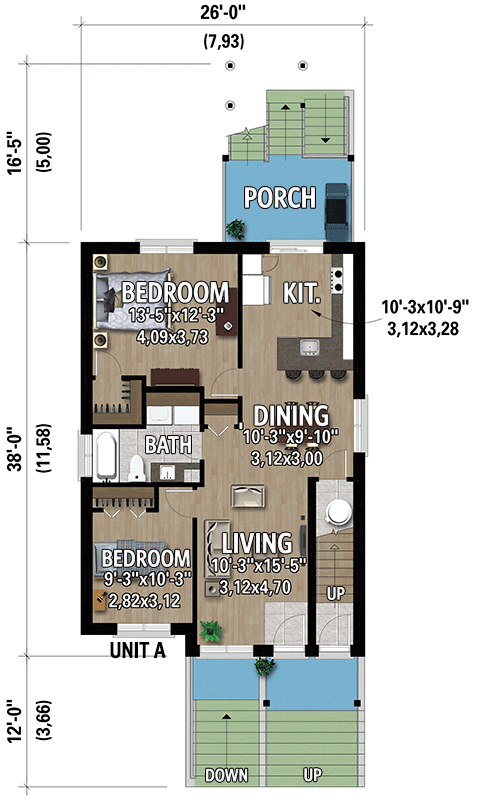

Main Level

Plan 801132PM: Triplex with 2-Bed Units Under 1000 Square Feet Each - Floor Plan - Main Level - Contemporary, New American

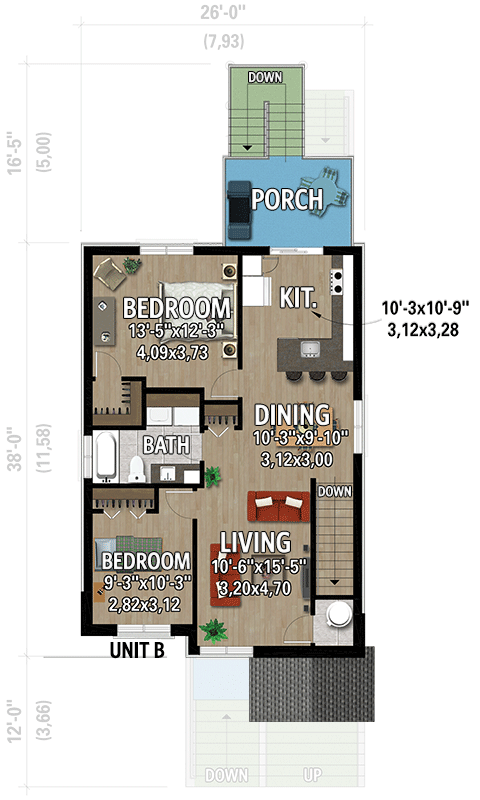

2nd Floor

Plan 801132PM: Triplex with 2-Bed Units Under 1000 Square Feet Each - Floor Plan - 2nd Floor - Contemporary, New American

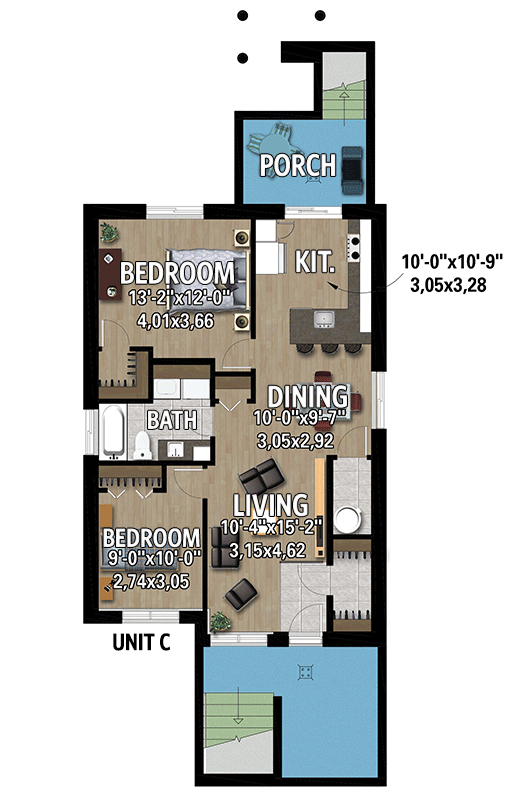

Lower Level

Plan 801132PM: Triplex with 2-Bed Units Under 1000 Square Feet Each - Floor Plan - Lower Level - Contemporary, New American

Plan Details

  • This beautiful triplex house plan gives you three units - each with their own entrance - and two bedrooms and a bathroom.
  • Each units gives you 969 square feet of heated living space.
  • The units are all open-concept with a dining room, a kitchen, a living room, a bathroom as well as an area for a washer and dryer.
  • NOTE: Please allow 15 to 20 business days for plan delivery.
Unit A
Heated Area
969Sq. Ft.
969 Sq. Ft. 1st
Beds
2Beds
Baths
1Full Bath
Dimensions
26'width
38'depth
36'height
Unit B
Heated Area
969Sq. Ft.
969 Sq. Ft. 2nd
Beds
2Beds
Baths
1Full Bath
Dimensions
26'width
38'depth
36'height
Unit C
Heated Area
969Sq. Ft.
969 Sq. Ft. LL
969 Sq. Ft. 1st
969 Sq. Ft. 2nd
Beds
2Beds
Baths
1Full Bath
Dimensions
26'width
38'depth
36'height

What's Included

Please note this plan is designed to the National Building Code of Canada.

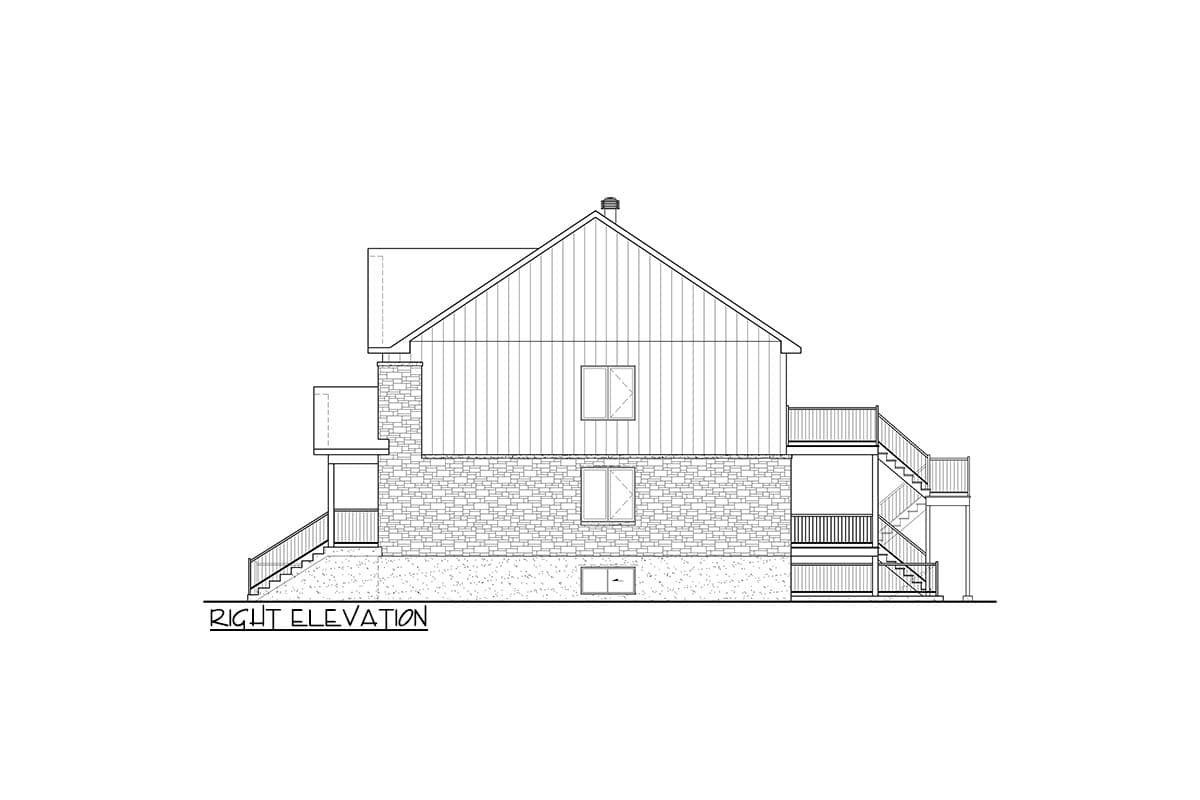

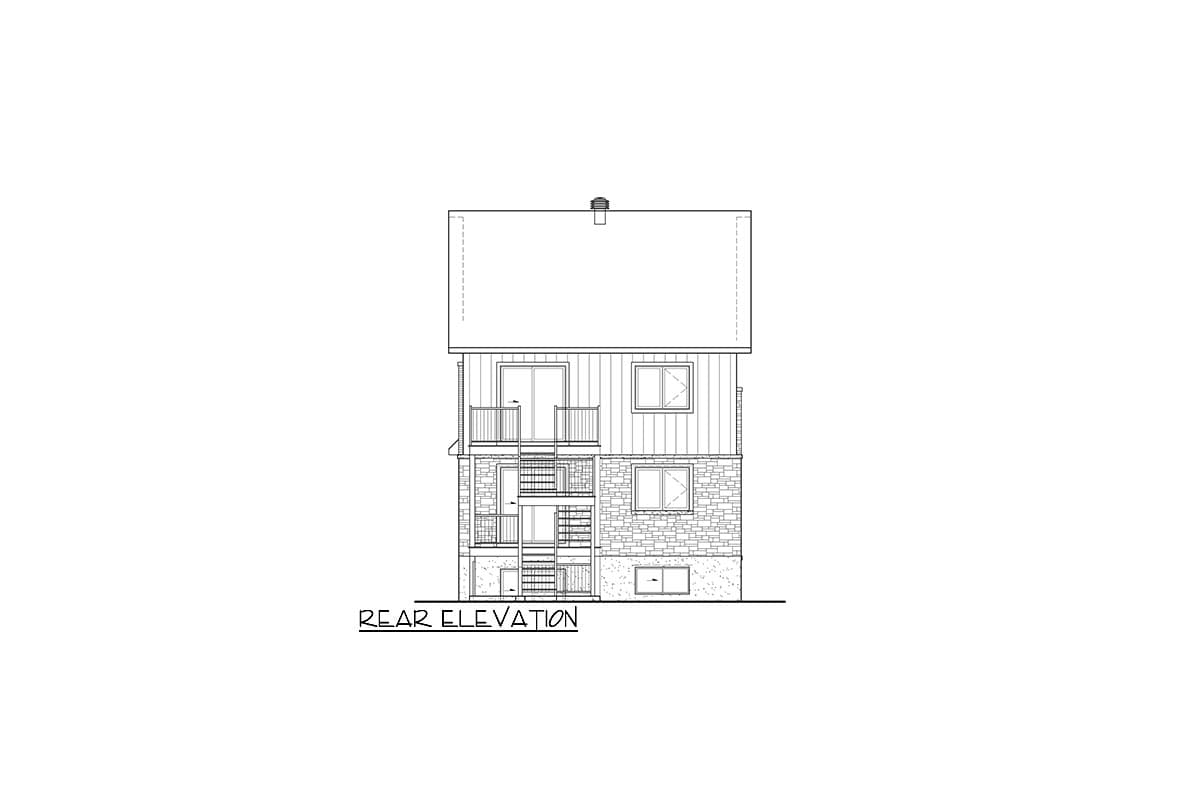

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
