Plan 21487DR

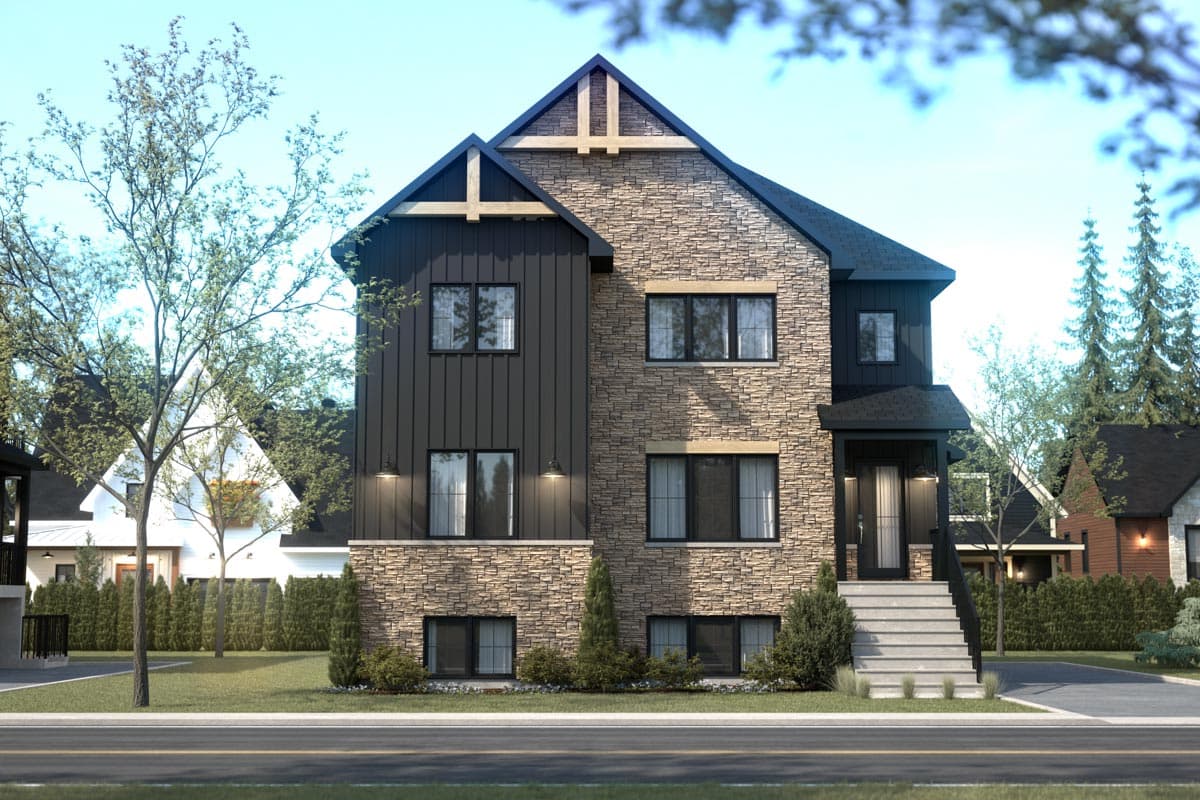

Triplex with 3 Full-Floor 2 Bed Units - Architectural Designs

Heated S.F.
3,011
Units
3
Width
Depth

Floor Plan

Plan 21487DR

Main Level - Unit A
Main Level - Unit A
Second Level - Unit B
Second Level - Unit B
Lower Level - Unit C
Lower Level - Unit C

Plan 21487DR

M-F 9am-5pm EST |

1-203-761-8500

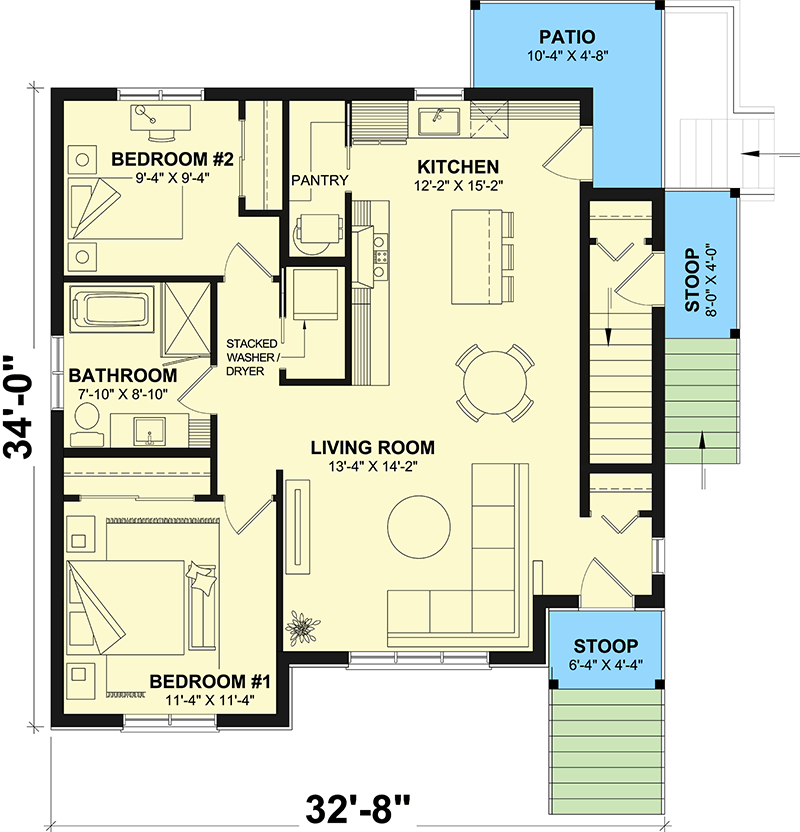

Main Level - Unit A

Plan 21487DR: Triplex with 3 Full-Floor 2 Bed Units - Architectural Designs - Floor Plan - Main Level - Unit A - Traditional

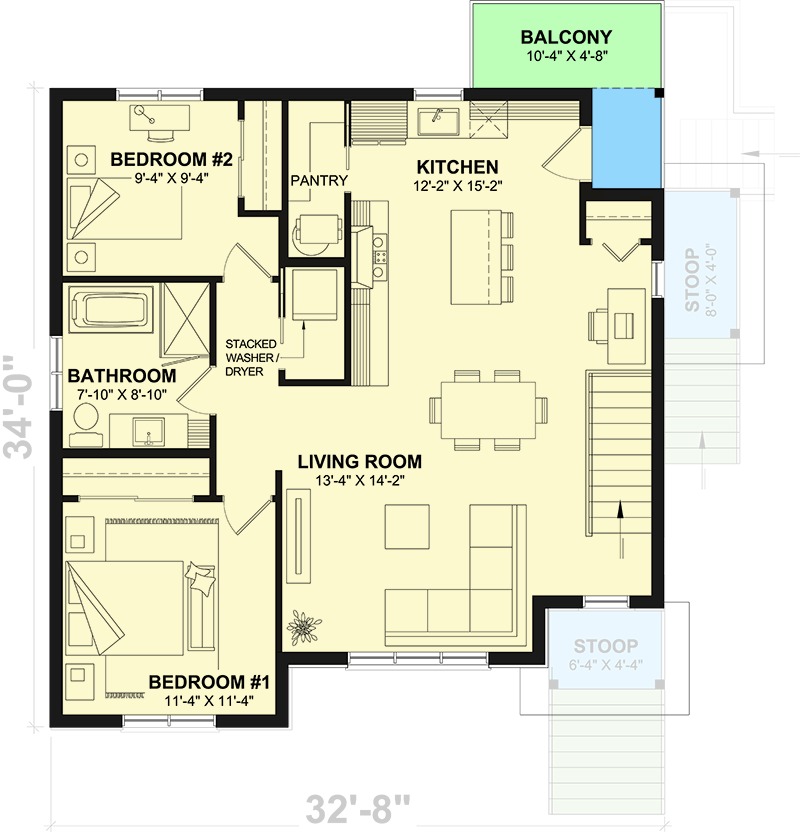

Second Level - Unit B

Plan 21487DR: Triplex with 3 Full-Floor 2 Bed Units - Architectural Designs - Floor Plan - Second Level - Unit B - Traditional

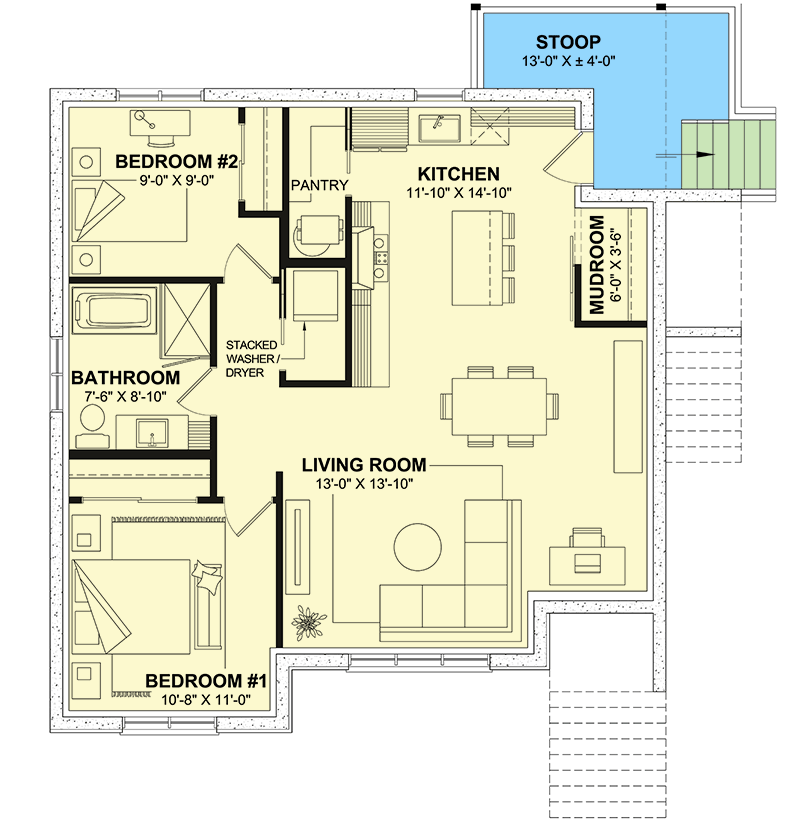

Lower Level - Unit C

Plan 21487DR: Triplex with 3 Full-Floor 2 Bed Units - Architectural Designs - Floor Plan - Lower Level - Unit C - Traditional

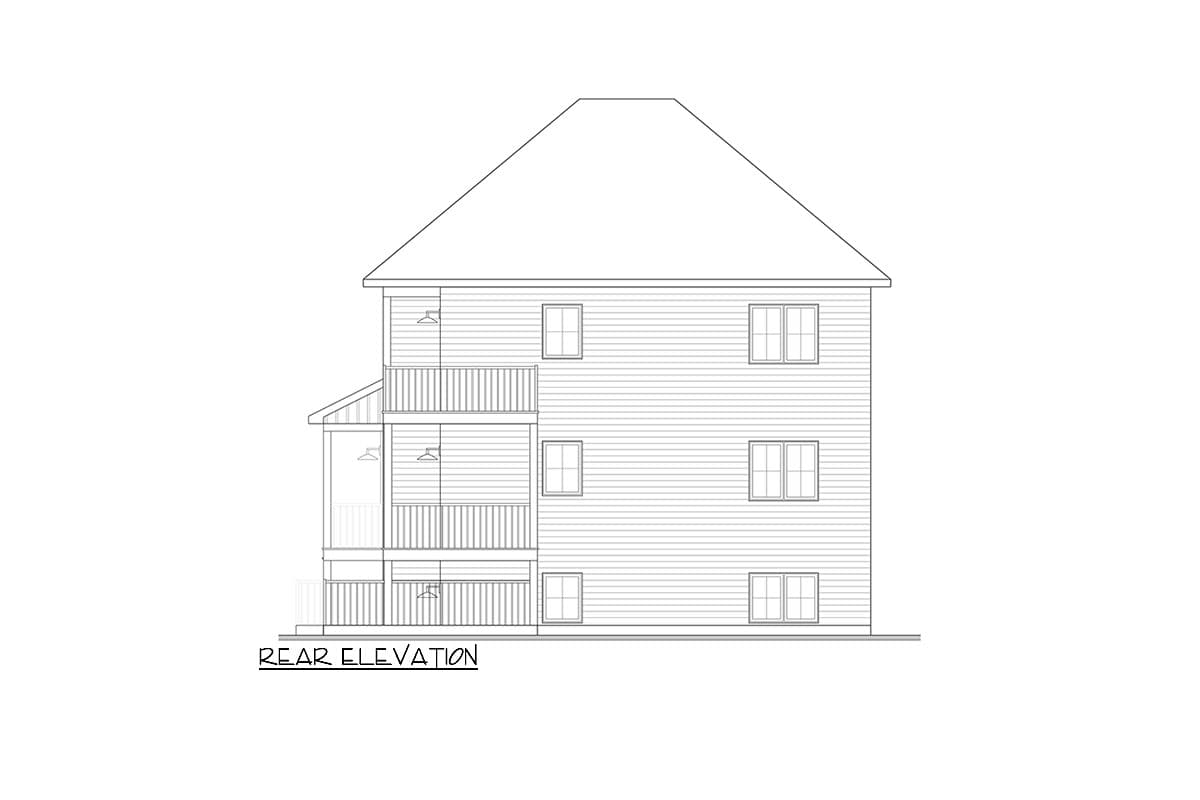

Plan Details

  • This triplex house plan gives you three 2-bed, 1 bath units each with full-floor living. The main and lower level units give you 1,010 square feet of heated living space and the top floor gives you 991 square feet of heated living.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
Heated Area
1,010Sq. Ft.
1010 Sq. Ft. 1st
Beds
2Beds
Baths
1Full Bath
Dimensions
32' 8"width
35' 10"depth
34' 8"height
Unit B
Heated Area
991Sq. Ft.
991 Sq. Ft. 1st
Beds
2Beds
Baths
1Full Bath
Dimensions
32' 8"width
35' 10"depth
34' 8"height
Unit C
Heated Area
1,010Sq. Ft.
1010 Sq. Ft. LL
Beds
2Beds
Baths
1Full Bath
Dimensions
32' 8"width
34'depth
34' 8"height

What's Included

  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,011 sq. ft.

Lower Level

1,010 sq. ft.

1st Floor

1,010 sq. ft.

2nd Floor

991 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 8"

Depth

34' 0"

Max Ridge Height

35' 3"

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Bedrooms - Split

Laundry - Lower Level

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Upstairs

Mudroom

Walk-in Pantry

Plan Collections

Canadian House Plans

Metric

Sloping Lot

Square Footage Breakdown

Total Heated Area

3,011 sq. ft.

Lower Level

1,010 sq. ft.

1st Floor

1,010 sq. ft.

2nd Floor

991 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 8"

Depth

34' 0"

Max Ridge Height

35' 3"

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Bedrooms - Split

Laundry - Lower Level

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Upstairs

Mudroom

Walk-in Pantry

Plan Collections

Canadian House Plans

Metric

Sloping Lot
