Tudor with Bonus Room

Plan 93026EL

  • 2,899

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This striking Tudor home comes complete with a bonus room over the garage.
  • An open floor plan in the rear creates a feeling of spaciousness.
  • A first floor master suite is much in demand and this home delivers.
  • With a spa bath and a huge walk-in closet, you won't want to leave your retreat!
  • A balcony on the second floor overlooks the great room below and separates the bedrooms.
  • Two of the bedrooms have their own walk-in closet for excellent storage.
  • The bonus room can be used as a playroom or an extra bedroom.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

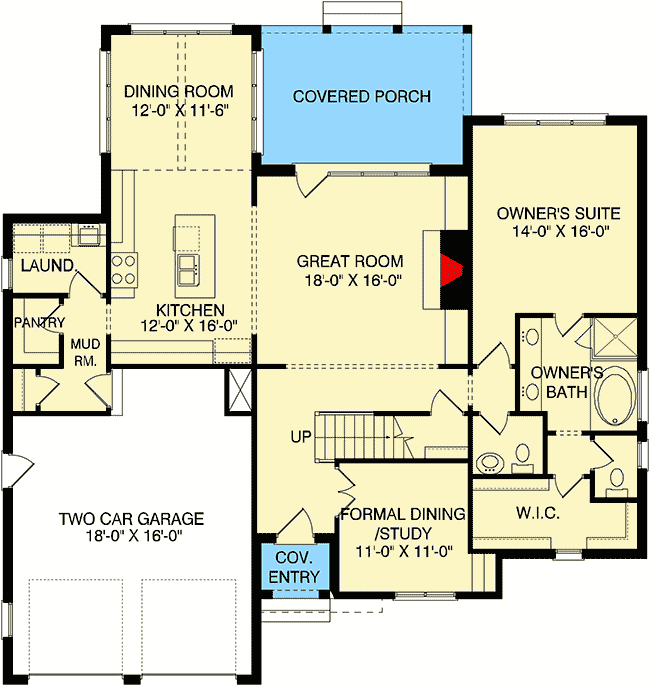

Tudor with Bonus Room - 93026EL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

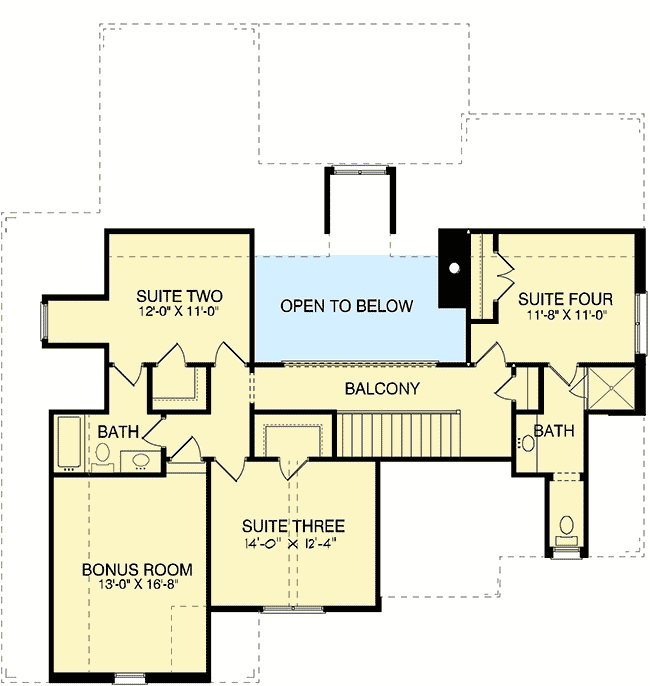

Tudor with Bonus Room - 93026EL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,899 sq. ft.
  • 1st Floor: 1,745 sq. ft.
  • 2nd Floor: 1,154 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Slab, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4 or 2x6

Dimensions

  • Width: 54' 6"
  • Depth: 55' 10"

Garage

  • Type: Attached
  • Area: 290 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style

Special features

Plan Collections

Tudor with Bonus Room

  • 2,899

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,895
  • CAD+PDF - Single-Build $2,395
  • PDF - Unlimited Build $2,745
  • CAD - Unlimited Build $3,245
  • View all purchase option online

About This Plan

  • This striking Tudor home comes complete with a bonus room over the garage.
  • An open floor plan in the rear creates a feeling of spaciousness.
  • A first floor master suite is much in demand and this home delivers.
  • With a spa bath and a huge walk-in closet, you won't want to leave your retreat!
  • A balcony on the second floor overlooks the great room below and separates the bedrooms.
  • Two of the bedrooms have their own walk-in closet for excellent storage.
  • The bonus room can be used as a playroom or an extra bedroom.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,899 sq. ft.
  • 1st Floor: 1,745 sq. ft.
  • 2nd Floor: 1,154 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4 or 2x6

Dimensions

  • Width: 54' 6"
  • Depth: 55' 10"

Garage

  • Type: Attached
  • Area: 290 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
