Plan 17537LV
Turreted Luxury Manor
Heated S.F.
6,366
Beds
4
Baths
4.5+
Stories
2
Cars
3
What's Included
Plan Details

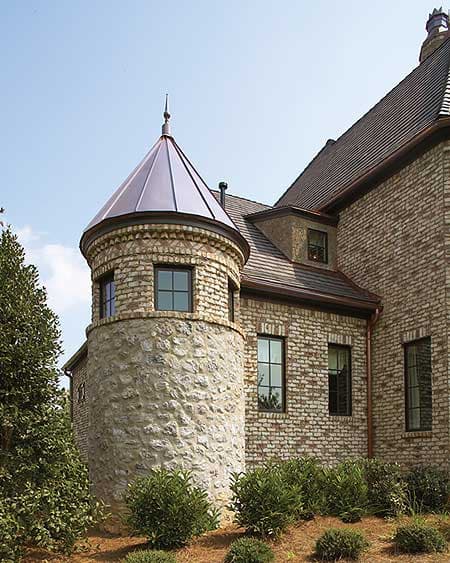

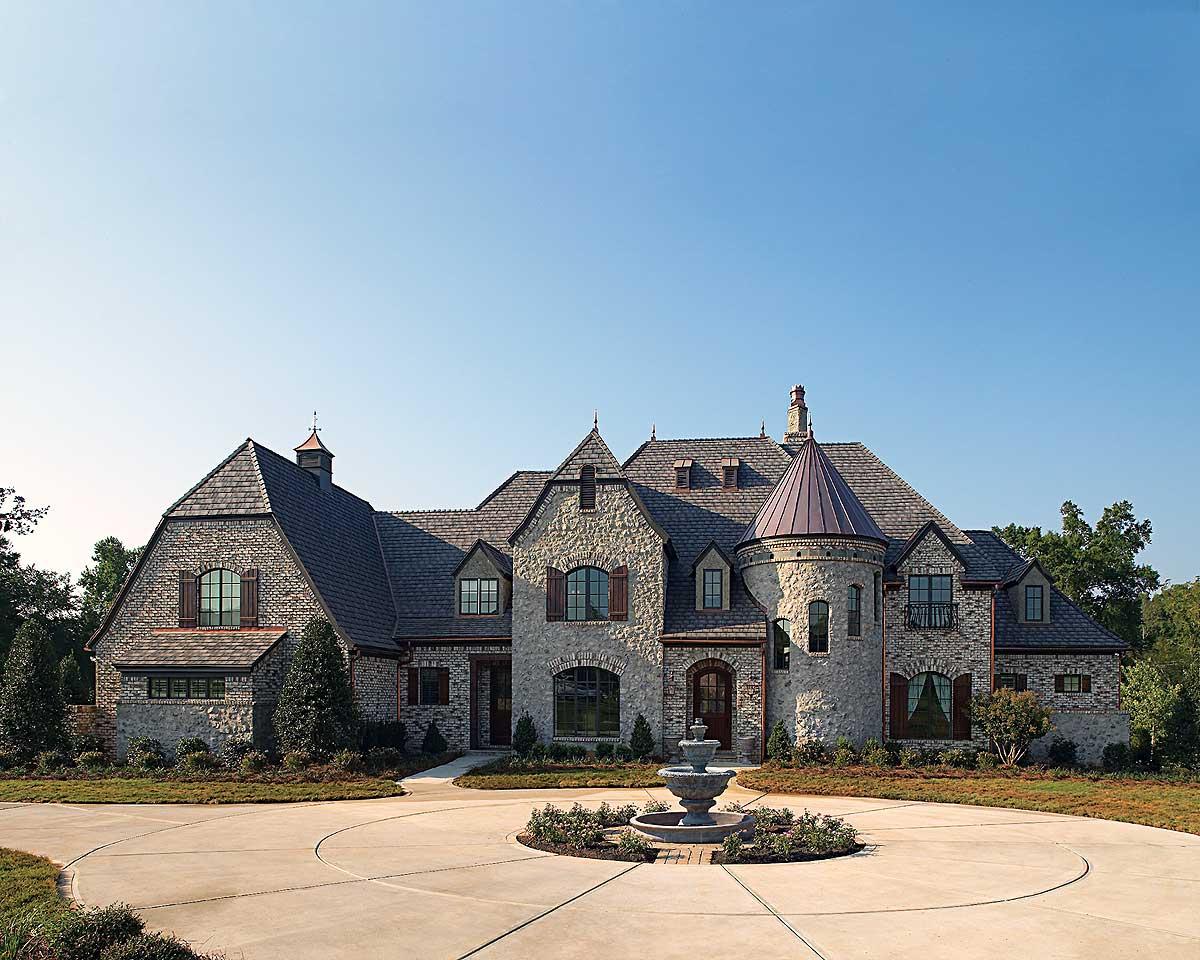

  • Brick with stone accents and false balconies give an enchanting look and feel. The front turret houses the spiral staircase while the circular master shower sits within the rear turret.

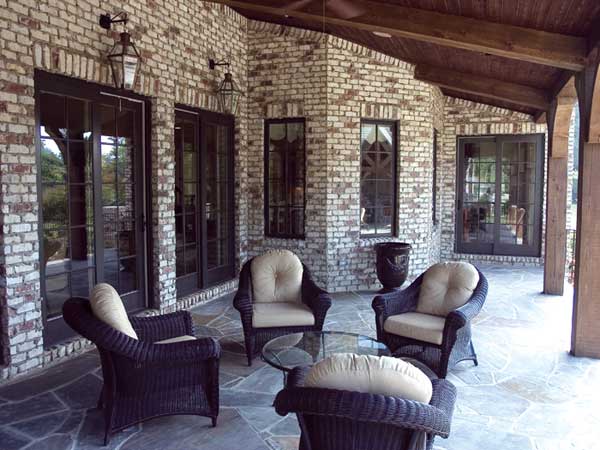

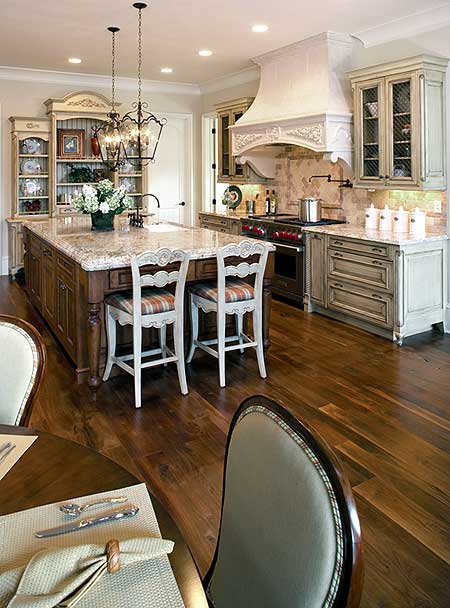

  • Through the gallery, the great room beckons. Views and access to the covered lanai along with ties to the kitchen make this an impressive space.

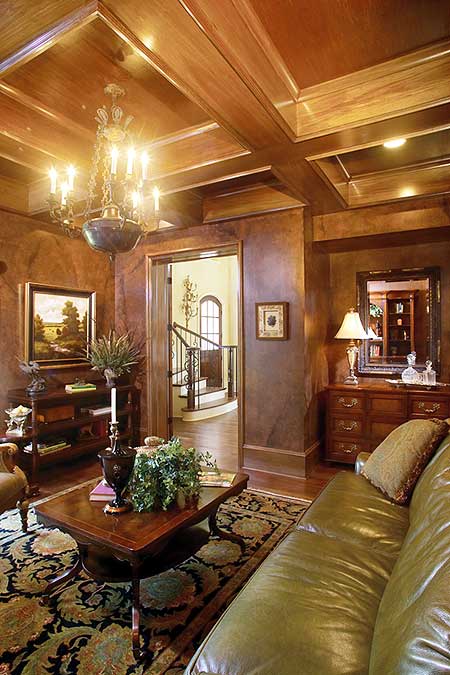

  • Quiet reflection can be had in your private study and fine dining in your formal dining room.

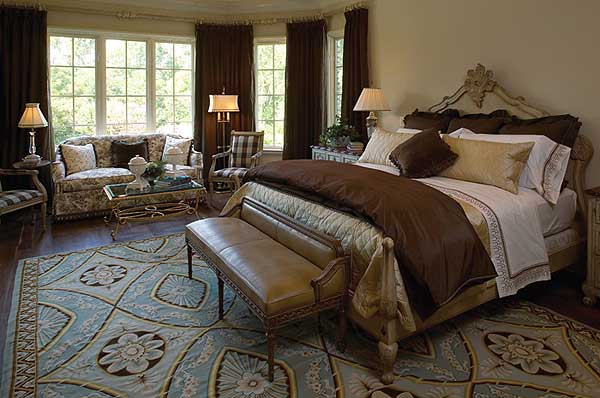

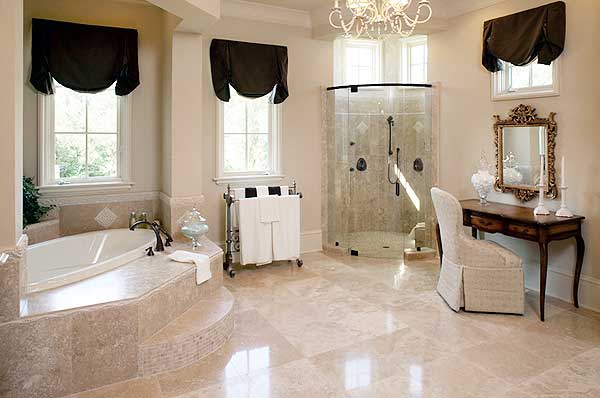

  • As enchanting as the home itself, is the master retreat. Features include a separate sitting area in the master suite, a gracious walk-in closet divided by a dressing table, large spa tub and spacious morning kitchen.

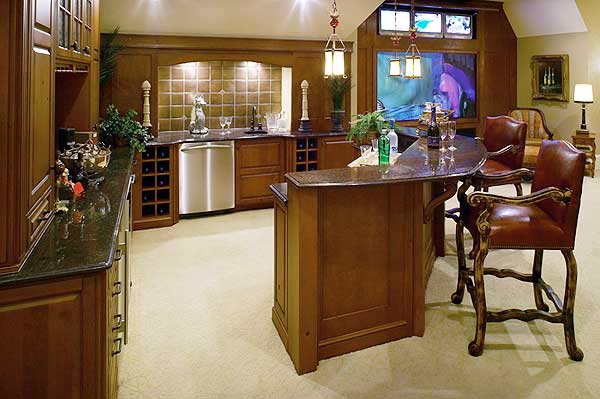

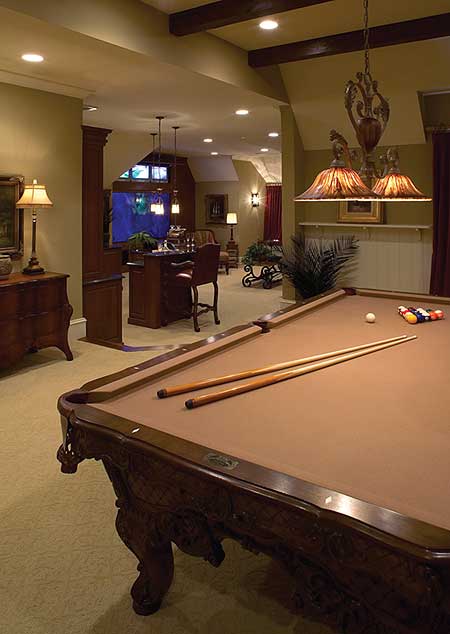

  • Upstairs you'll find three suites, a rec room and sitting loft, and no home this nice would be complete without your own media room with bar.
  • Related Plans: Gain more room with house plans 17538LV (6,812 sq. ft.) and 17751LV (8,566 sq. ft.).
What's Included
  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Turreted Luxury Manor

  • 6,366

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

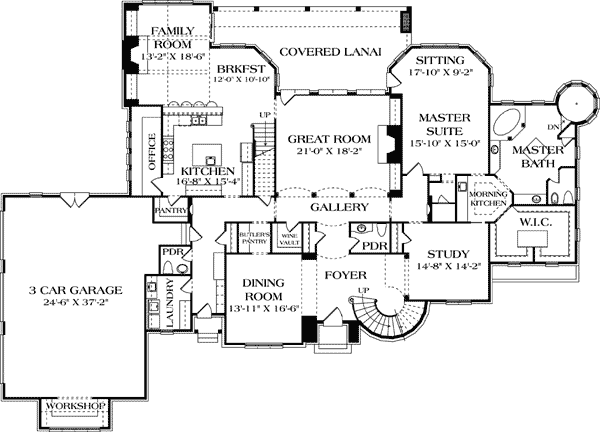

  • Main Level

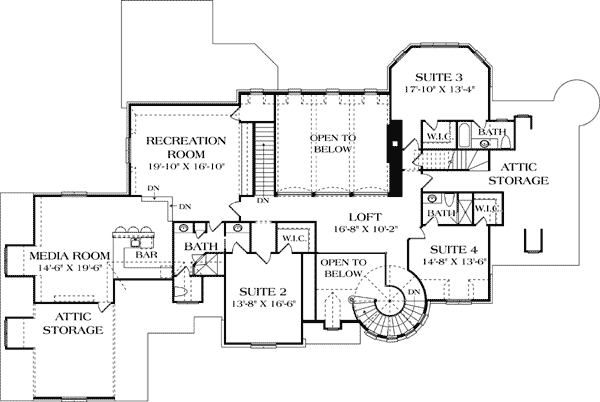

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 6,366 sq. ft.
  • 1st Floor: 3,763 sq. ft.
  • 2nd Floor: 2,603 sq. ft.

Dimensions

  • Width: 110' 6"
  • Depth: 79' 5"
  • Max ridge height: 40' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 1104 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
