Plan 54062LK

Tuscan 4-Bedroom House Plan with First-Floor Master Suite

Heated S.F.
3,261
Beds
4
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 54062LK

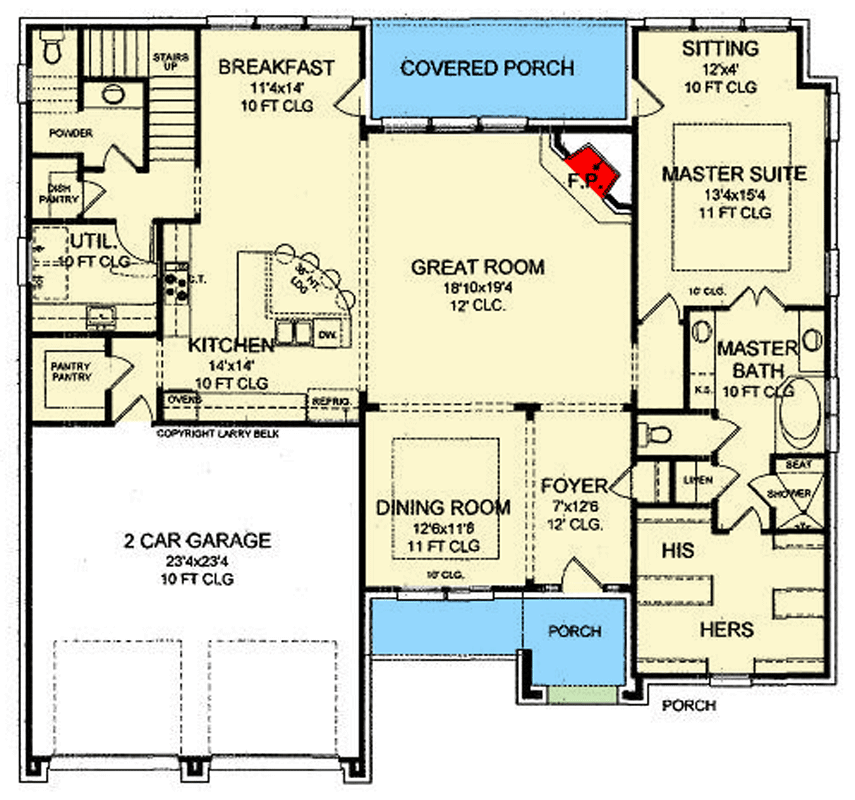

Floor Plan 1

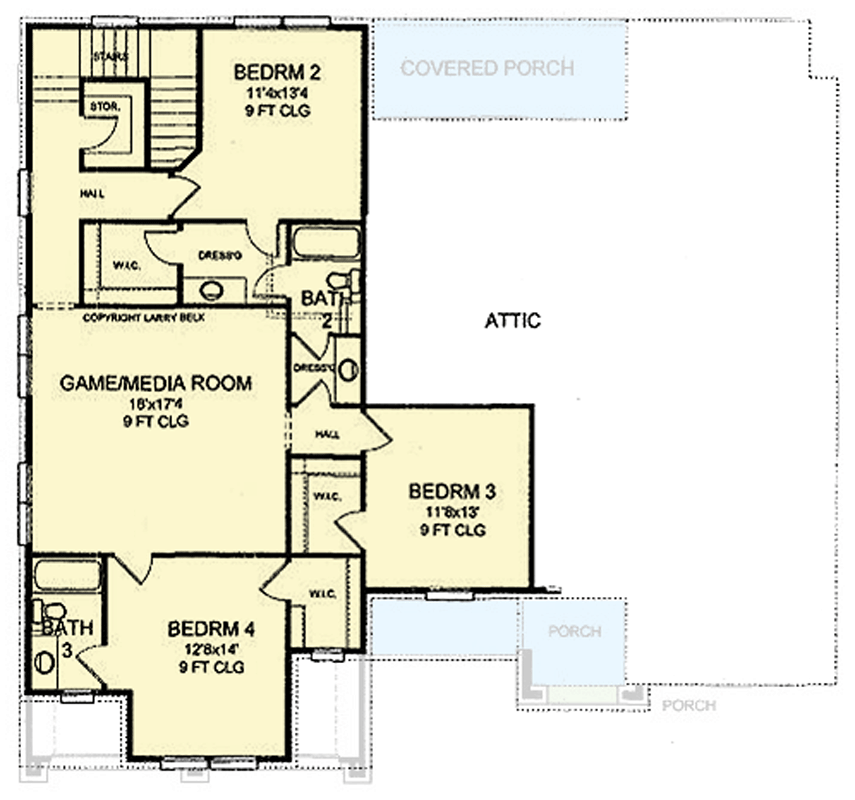

Floor Plan 2

Plan 54062LK

M-F 9am-5pm EST |

1-203-761-8500

Plan 54062LK: Tuscan 4-Bedroom House Plan with First-Floor Master Suite - Floor Plan - - Mediterranean, Rustic, Tuscan

Plan 54062LK: Tuscan 4-Bedroom House Plan with First-Floor Master Suite - Floor Plan - - Mediterranean, Rustic, Tuscan

Plan Details

  • Boasting 3,261 finished sq ft, this Mediterranean Rustic House Plan features 4 bedrooms, 3.5 baths, and a 592 sq ft 2-car attached garage.
  • Enter through an inviting arched doorway into a layout designed for comfortable living, featuring a convenient main-level laundry and a formal dining area.
  • The main level flows seamlessly between living spaces, including a functional kitchen with a walk-in pantry and a cozy breakfast nook for casual meals.
  • The luxurious first-floor master suite provides a private retreat, thoughtfully separated from the secondary bedrooms located on the upper level for ultimate tranquility.
  • A dedicated game or recreation room upstairs offers versatile space for entertainment or a flexible family gathering area.
  • Enjoy outdoor moments on the generous 258 sq ft combined porch space, perfect for relaxing or welcoming guests.

What's Included

  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches and outlets.

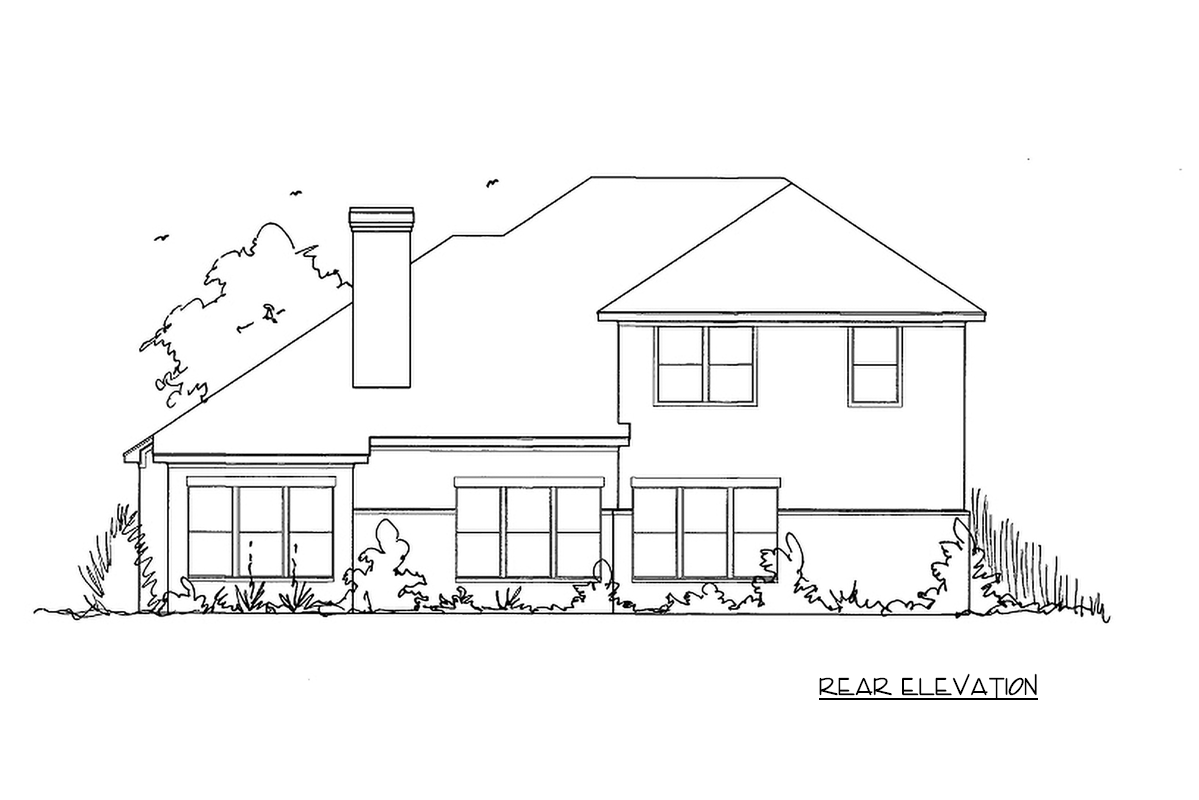

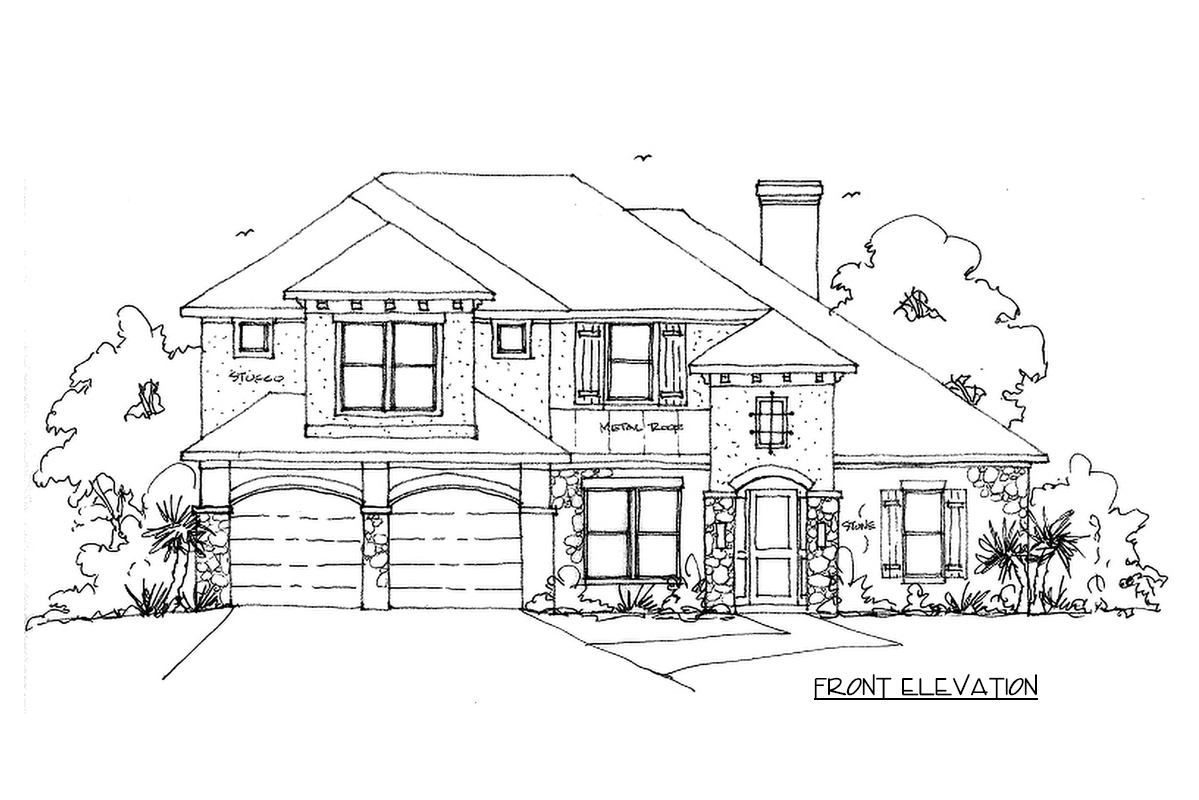

  • ELEVATIONS: The front, rear and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • ROOF PLANS: Provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable
  • BUILDING CROSS SECTION: Shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.
  • INTERIOR ELEVATIONS: Show's how the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.
  • NOTES AND DETAILS: Provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,261 sq. ft.

1st Floor

2,002 sq. ft.

2nd Floor

1,259 sq. ft.

Porch, Combined

258 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

57' 11"

Depth

53' 11"

Garage

Type

Attached

Area

592 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Framing Type

Stick

Architectural Style

Mediterranean

Rustic

Tuscan

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Game/Rec Room

Laundry - Main Level

Loft

Master Suite - 1st Floor

Walk-in Pantry
