Plan 9518RW

Tuscan Beauty

Heated S.F.
6,041
Beds
5
Baths
4.5+
Stories
2
Cars
4

Floor Plan

Plan 9518RW

Main Level
Main Level
2nd Floor
2nd Floor
Basement
Basement

Plan 9518RW

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 9518RW: Tuscan Beauty - Floor Plan - Main Level - European, Mediterranean, Rustic, Tuscan

2nd Floor

Plan 9518RW: Tuscan Beauty - Floor Plan - 2nd Floor - European, Mediterranean, Rustic, Tuscan

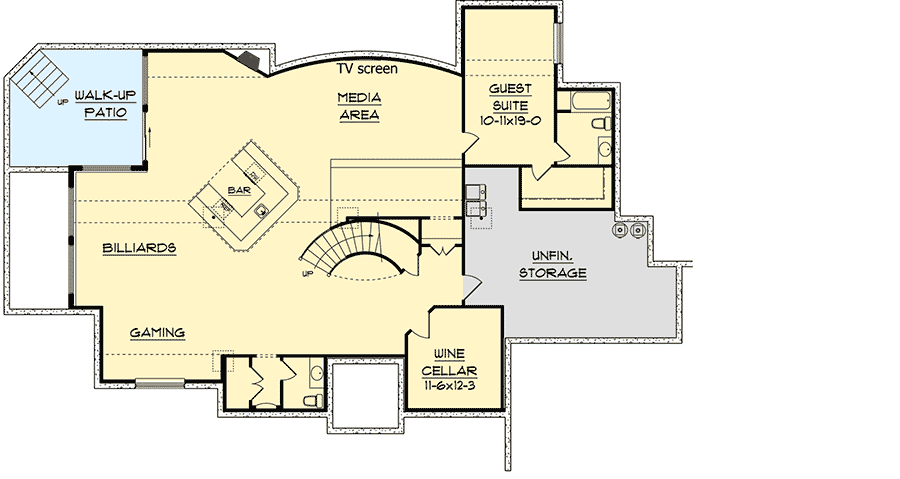

Basement

Plan 9518RW: Tuscan Beauty - Floor Plan - Basement - European, Mediterranean, Rustic, Tuscan

Plan Details

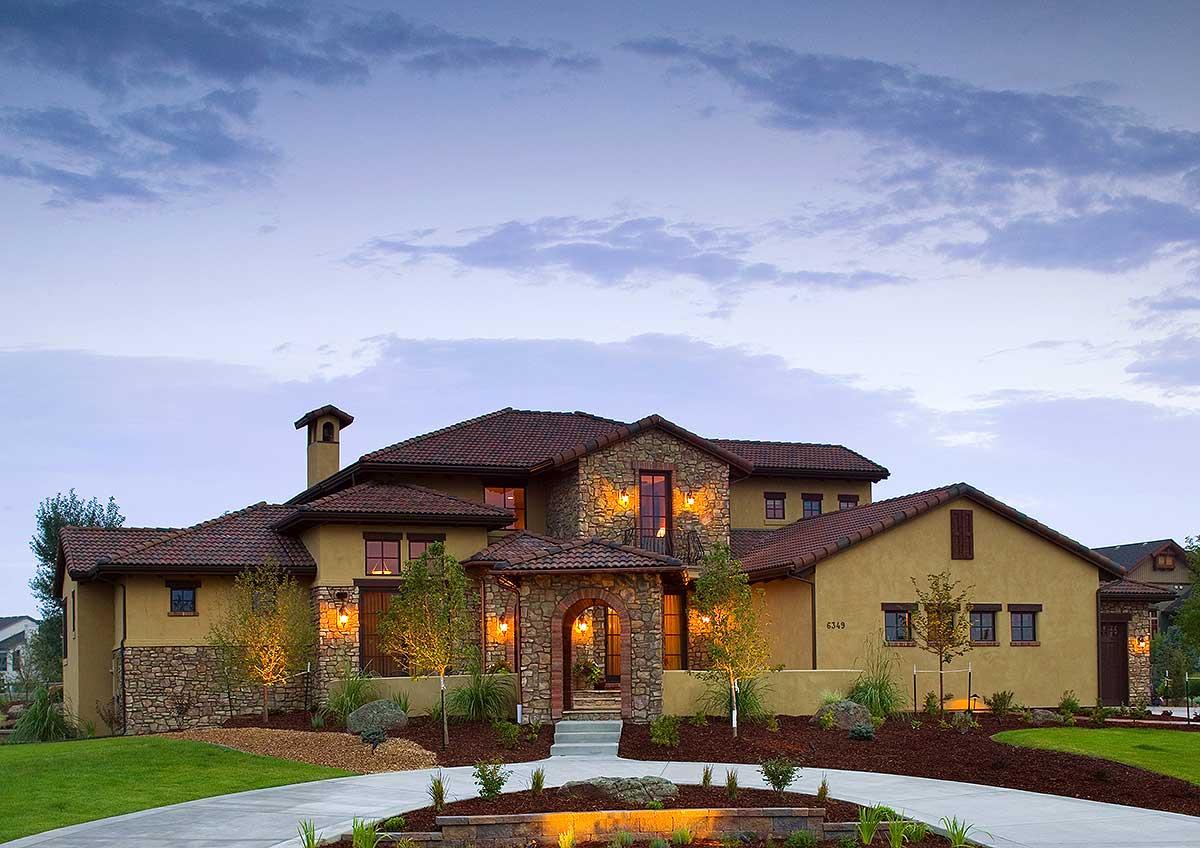

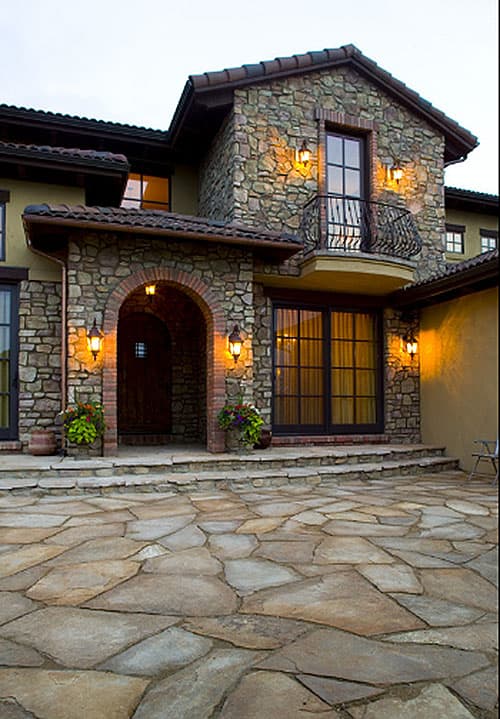

  • This Tuscan style luxury home plan is magnificiently grand. The front courtyard is inviting and a great introduction to the home.
  • The stairs in the foyer make a great statement and rise from the left and right.

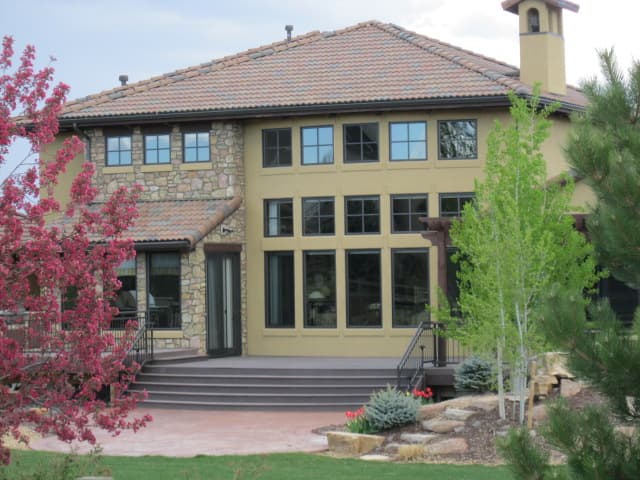

  • Beyond, the voluminous 2-story great room is perfect for entertaining and has commanding views out the rear wall of glass.
  • The kitchen offers a huge island and an oversized built-in cooking surface. It has a large walk-in pantry and views across the great room.
  • The master suite has outdoor access and a luxury bath.
  • The upstairs features three bedrooms and a great room overlook.
  • The finished basement is included with the plans and offers lots of room to expand.

What's Included

  • Cover Page
  • All Four Exterior Elevations (front, left, rear and right)
  • Dimensioned Floor Plans
  • Foundation Plan (with no specifications of structural elements)
  • Roof Plan (with no specifications of structural elements)
  • Typical Wall Sections
  • Electrical plan
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

6,041 sq. ft.

Lower Level

2,241 sq. ft.

1st Floor

2,777 sq. ft.

2nd Floor

1,023 sq. ft.

Deck

1,123 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

109' 0"

Depth

79' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

1322 sq. ft.

Count

4 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

European

Mediterranean

Rustic

Tuscan

Special Features

Breakfast Nook

Butler Walk-in Pantry

Courtyard

Den

Formal Dining

Game/Rec Room

Home Office

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Media Room

Mudroom

Outdoor Fireplace

Two Kitchen Islands

Two Story Great Room

Wet Bar

Wine Room

Plan Collections

Home Office

Luxury

Photo Gallery

Premium Collection

Sloping Lot
