Plan 54206HU

Tuscan Dream Home with Casita

Heated S.F.
3,745
Beds
3
Baths
3.5
Stories
1
Cars
3

Floor Plan

Plan 54206HU

Main Level
Main Level
2nd Floor
2nd Floor

Plan 54206HU

M-F 9am-5pm EST |

1-203-761-8500

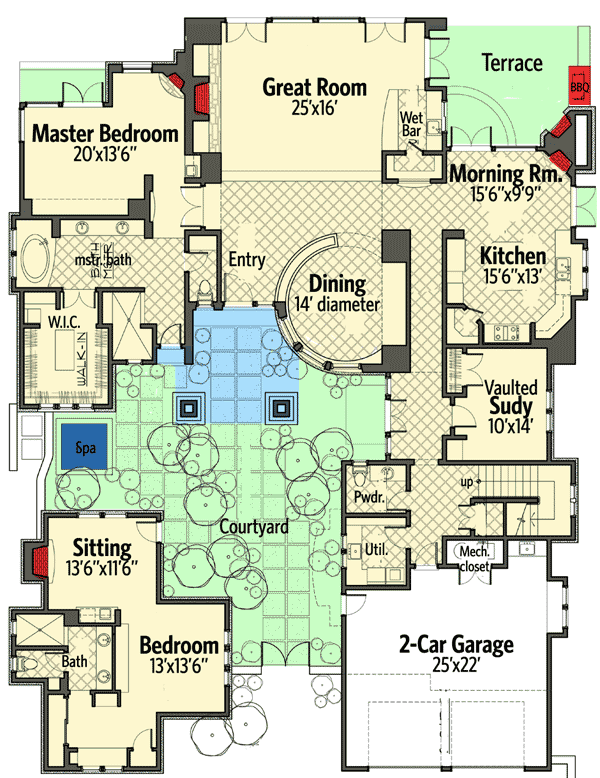

Main Level

Plan 54206HU: Tuscan Dream Home with Casita - Floor Plan - Main Level - Mediterranean, Southwest, Spanish, Tuscan

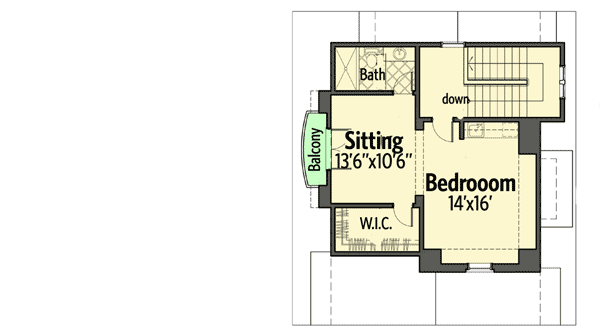

2nd Floor

Plan 54206HU: Tuscan Dream Home with Casita - Floor Plan - 2nd Floor - Mediterranean, Southwest, Spanish, Tuscan

Plan Details

  • Walk across the private courtyard to reach the entry to this Tuscan dream home where the views immediately open up to reveal a half round dining room and spacious great room with wet bar.
  • The kitchen and morning room form one large space with double doors that open to a lovely terrace with outdoor fireplace.
  • Every bedroom in this luxurious Tuscan dream home is a beautiful suite, each with an added perk.
  • The master suite has a private patio and a sitting area with a cozy fireplace.
  • On the second floor, this suite also has a sitting area with a private outdoor balcony and a wet bar.
  • The detached casita would make a wonderful in-law suite with its sitting room with fireplace and wet bar.
  • A second (detached) 1-car garage is separated from the attached garage by a flagstone auto court. This garage, should you decide to build it, includes a space to store a golf cart.

What's Included

  • Cover sheet with renderings or photos
  • Site plan from original project for reference, with floor areas and drawing index
  • Main level architectural plan
  • Upper level architectural plan
  • Elevations of four sides
  • Section drawings at ¼” scale
  • Typical construction details and framing details
  • Foundation and floor framing plan
  • Upper level floor and lower roof framing plan
  • Upper roof framing plan
  • Basic lighting plans for main and upper levels available for some plans.  Check availability.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,745 sq. ft.

1st Floor

3,103 sq. ft.

2nd Floor

642 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

72' 0"

Depth

93' 6"

Max Ridge Height

25' 6"

Garage

Type

Attached

Area

1222 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

4 on 12

Architectural Style

Mediterranean

Southwest

Spanish

Tuscan

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Courtyard

In-Law Suite

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Outdoor Fireplace

Outdoor Kitchen

Wet Bar

Plan Collections

Luxury

Photo Gallery

Premium Collection
