Tuscan One-Story House Plan with Massive Walk-in Pantry

Plan 51794HZ

  • 2,920

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Enjoy one-story living with this attractive house plan with a stone and stucco exterior. It gives you 3 beds, a flex room and one of the larger pantries we've seen in home this size.
  • A vaulted covered entry gives you protection as you enter through a pair of French doors. The foyer opens to the airy great room with a vaulted ceiling and access to the rear porch.
  • A large island in the kitchen has an eating bar, dual sinks, a dishwasher and storage for trash. It is open to both the dining room and the great room.
  • A split bedroom layout maximizes your privacy.
  • A 2-car garage is accessible from the side and a 1-car garage has front-facing access.

This house plan has 7 pages as follows:
  1. Cover Sheet with abbreviations, rendering, sheet index
  2. Foundation Plan and Details
  3. Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

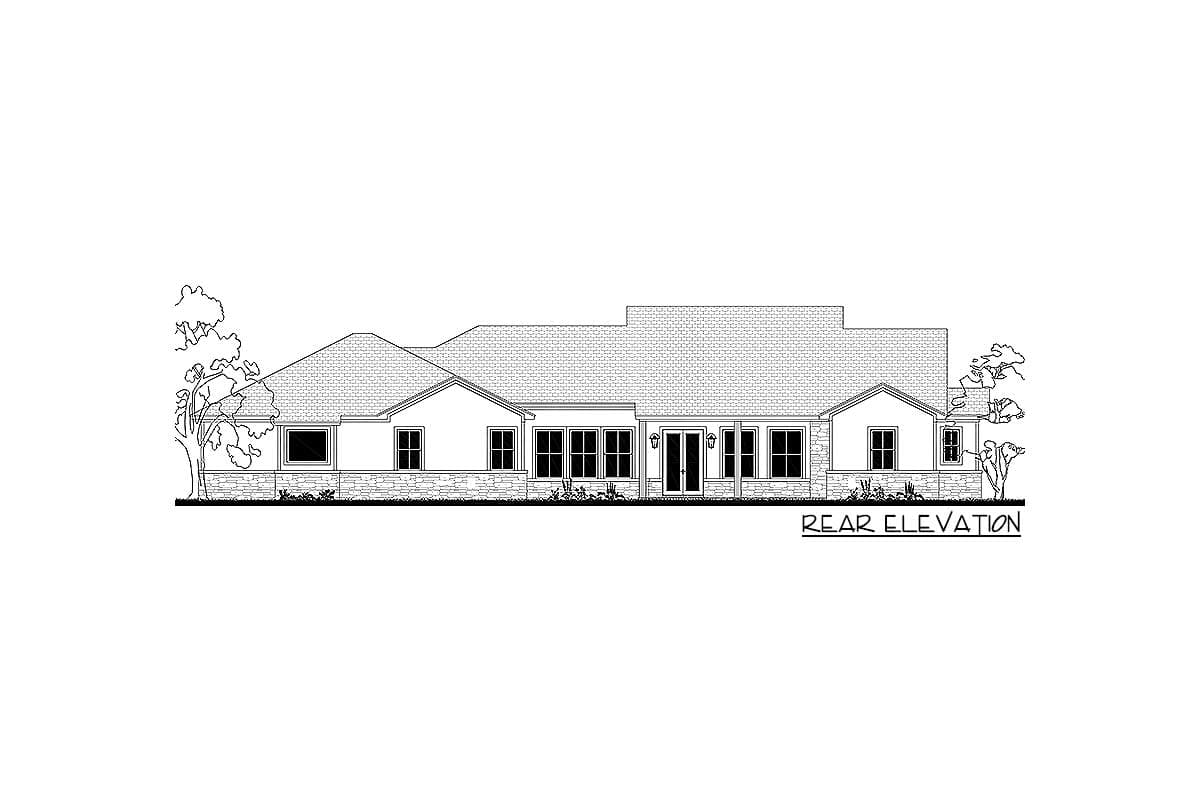

  4. Front and rear exterior views with notes
  5. Right and left exterior views with notes and wall section
  6. Cross Section & kitchen cabinet views
  7. Roof plan & span charts Page 8 Electrical plans & notes/ legend

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

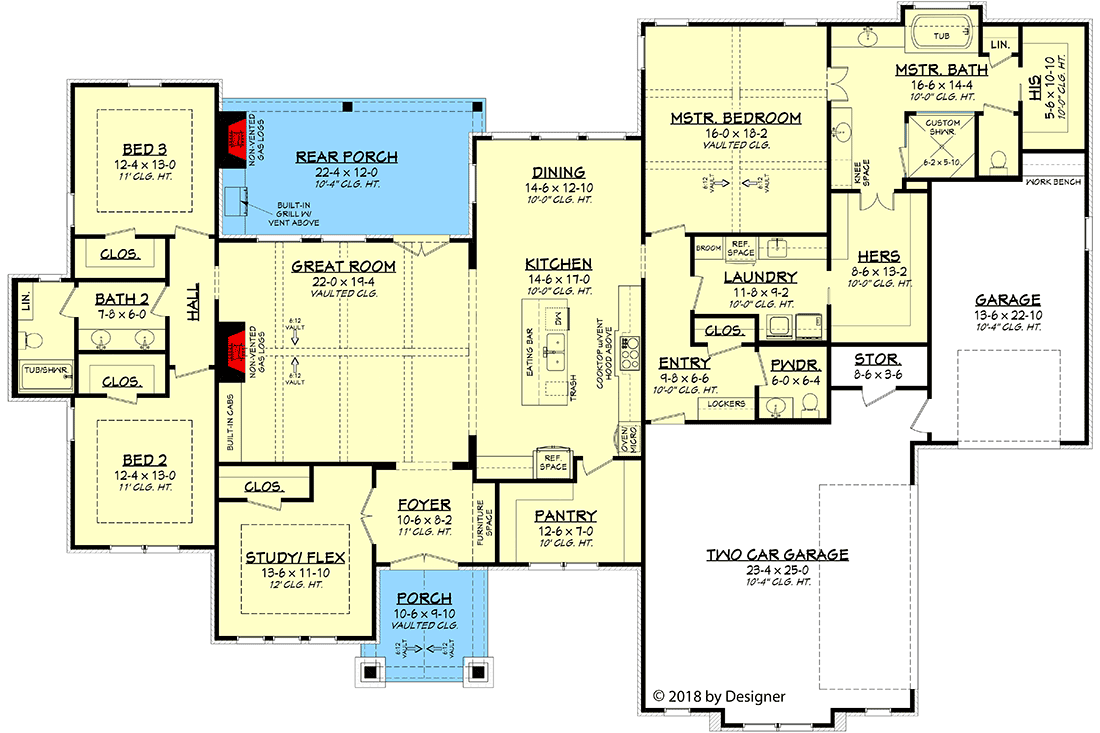

Tuscan One-Story House Plan with Massive Walk-in Pantry - 51794HZ floor plan - Main Level

Basement Stairs Layout

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

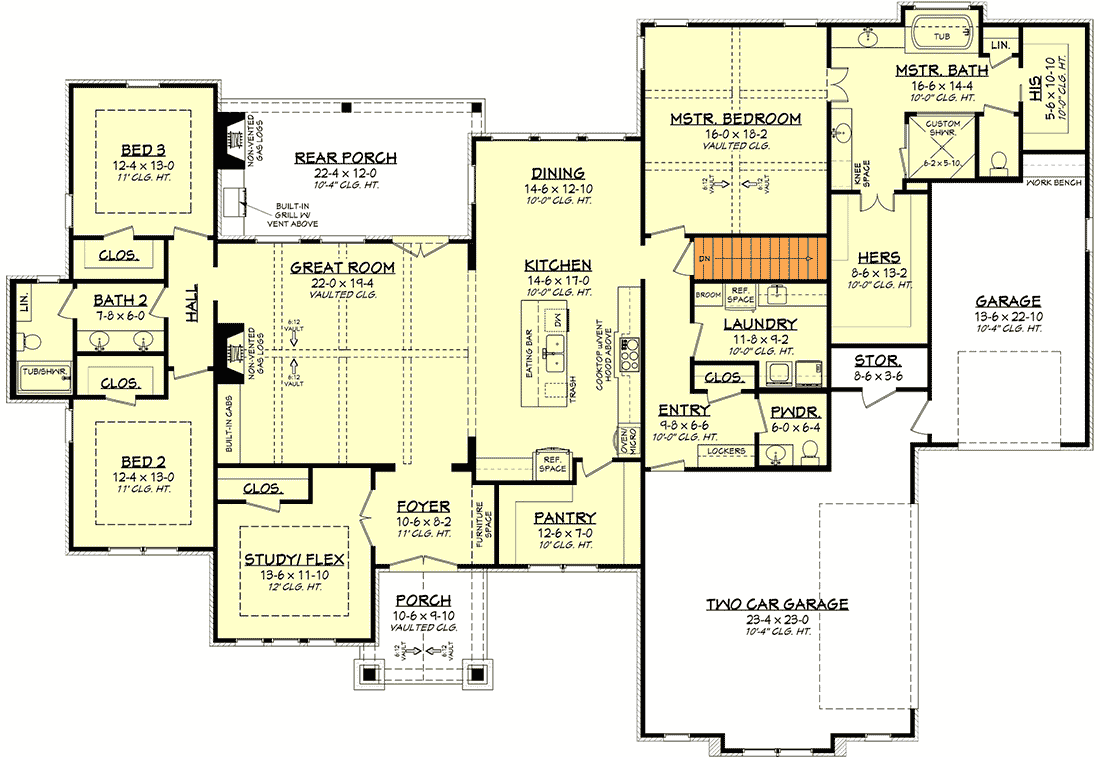

Tuscan One-Story House Plan with Massive Walk-in Pantry - 51794HZ floor plan - Basement Stairs Layout

Unfinished Basement Layout

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

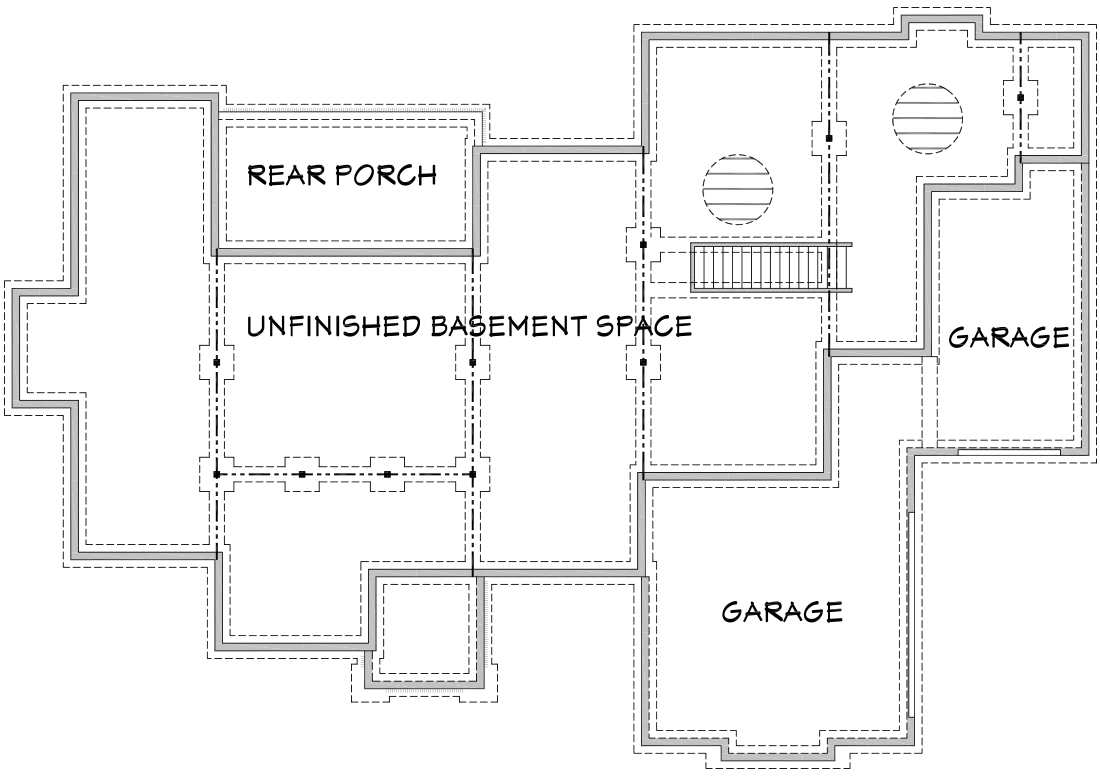

Tuscan One-Story House Plan with Massive Walk-in Pantry - 51794HZ floor plan - Unfinished Basement Layout

Tuscan One-Story House Plan with Massive Walk-in Pantry

  • 2,920

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Basement Stairs Layout

  • Unfinished Basement Layout

Plan Details

Square Footage Breakdown

  • Total: 2,920 sq. ft.
  • 1st Floor: 2,920 sq. ft.

Dimensions

  • Width: 94' 8"
  • Depth: 63' 6"
  • Max ridge height: 23' 0"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 981 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Stick
