Tuscan Prairie Home Plan with Large Service Areas
Heated S.F.
2,951
Beds
3
Baths
4.5
Stories
1
Cars
3
What's Included
Plan Details
  • Curved windows and entryways add character to the exterior of this Tuscan Prairie home plan that totals 2,951 square feet of living space.
  • The great room overlooks the rear covered patio that features a fire pit and built-in BBQ, while the open floor plan connects it with the eat-in kitchen.
  • From the kitchen, a pocket door reveals the large pantry, as well as the neighboring mudroom with access to a pass-thru laundry room.
  • The master bedroom consumes the right side of the design with natural light in the walk-in closet.
  • Bedroom suites 2 and 3 sit side by side and include full bathrooms and walk-in closets.
What's Included

  • Cover Sheet: General Notes and code criteria
  • Foundation Plan: Concrete layouts including footings, slabs and stem walls, dimensions, floor joist layout, plumbing fixture locations and construction notes and details

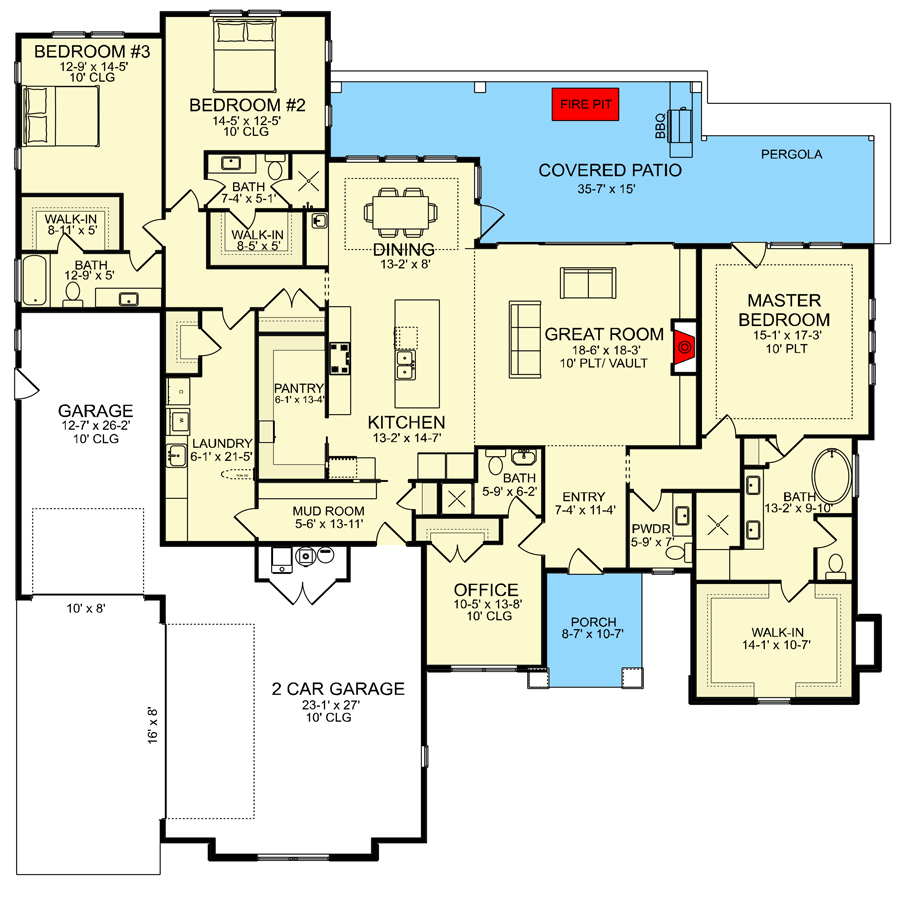

  • Floor Plan(s): Dimensions, wall framing, room sizes, door and window location and sizes, plumbing fixtures, kitchen layout with cabinetry location and construction notes and details
  • Roof Plan: Bird's eye view and general layout, roof pitches, eave sizes, special ceiling heights, trey ceilings located and construction notes and details
  • Section View(s): A cut or cuts through the home showing wall plate heights, stair sections, special construction sections including footings and crawl space or slab details

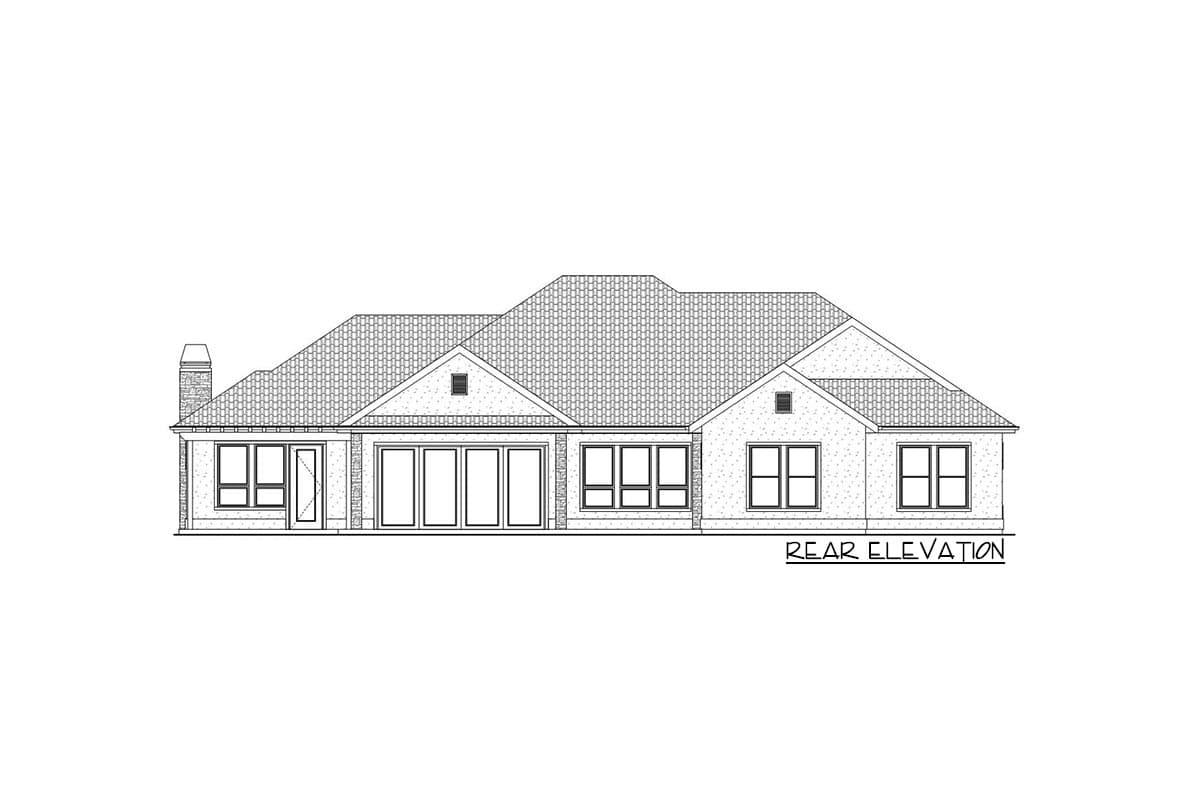

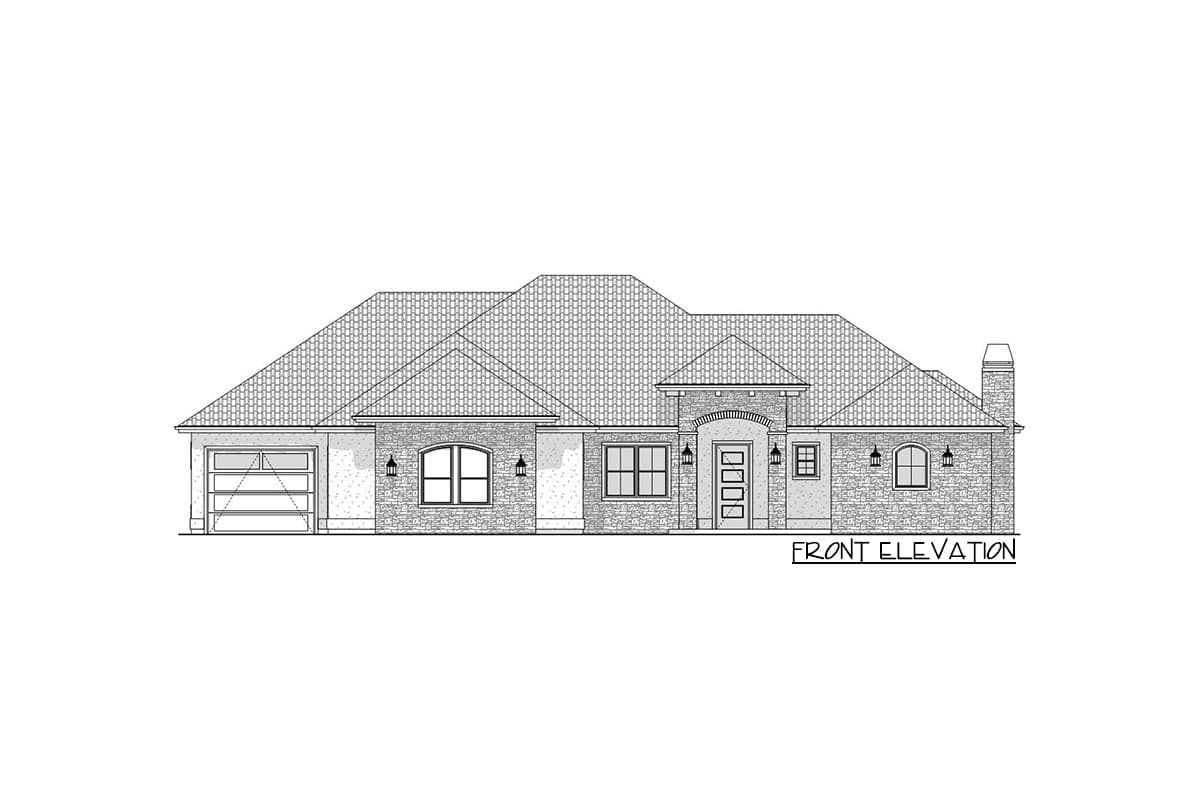

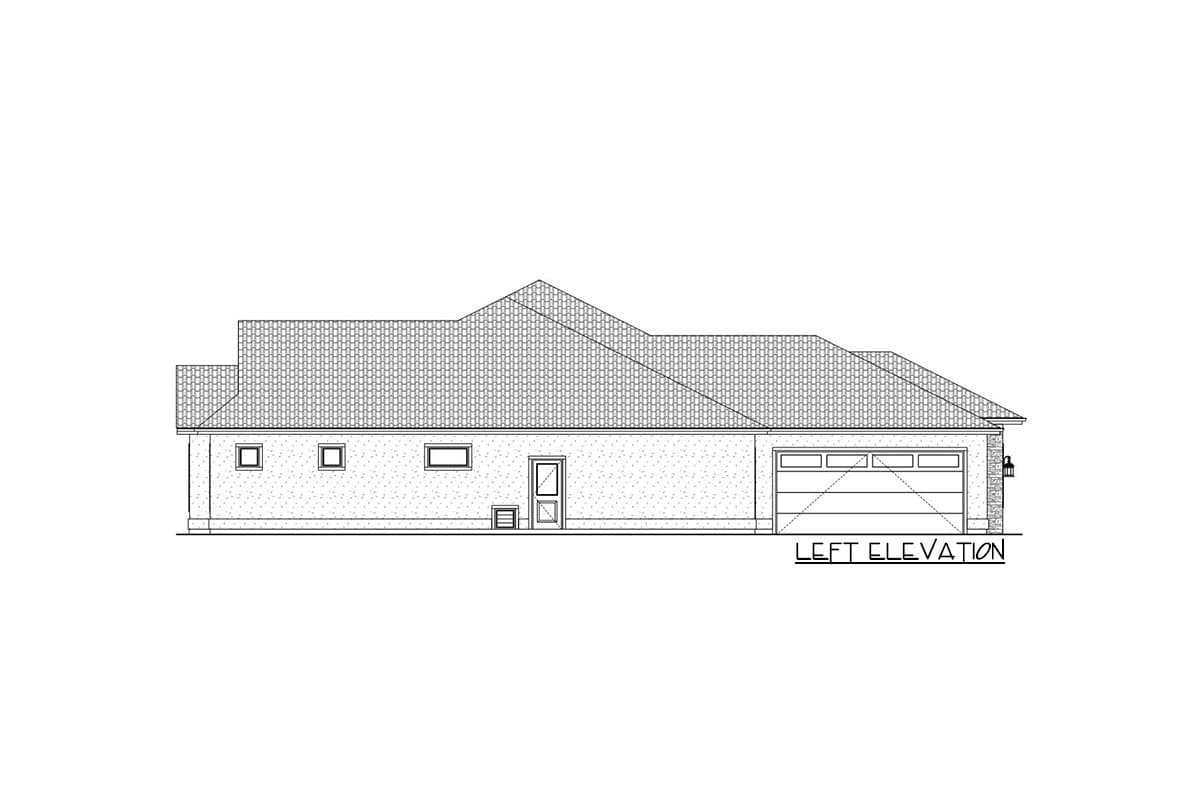

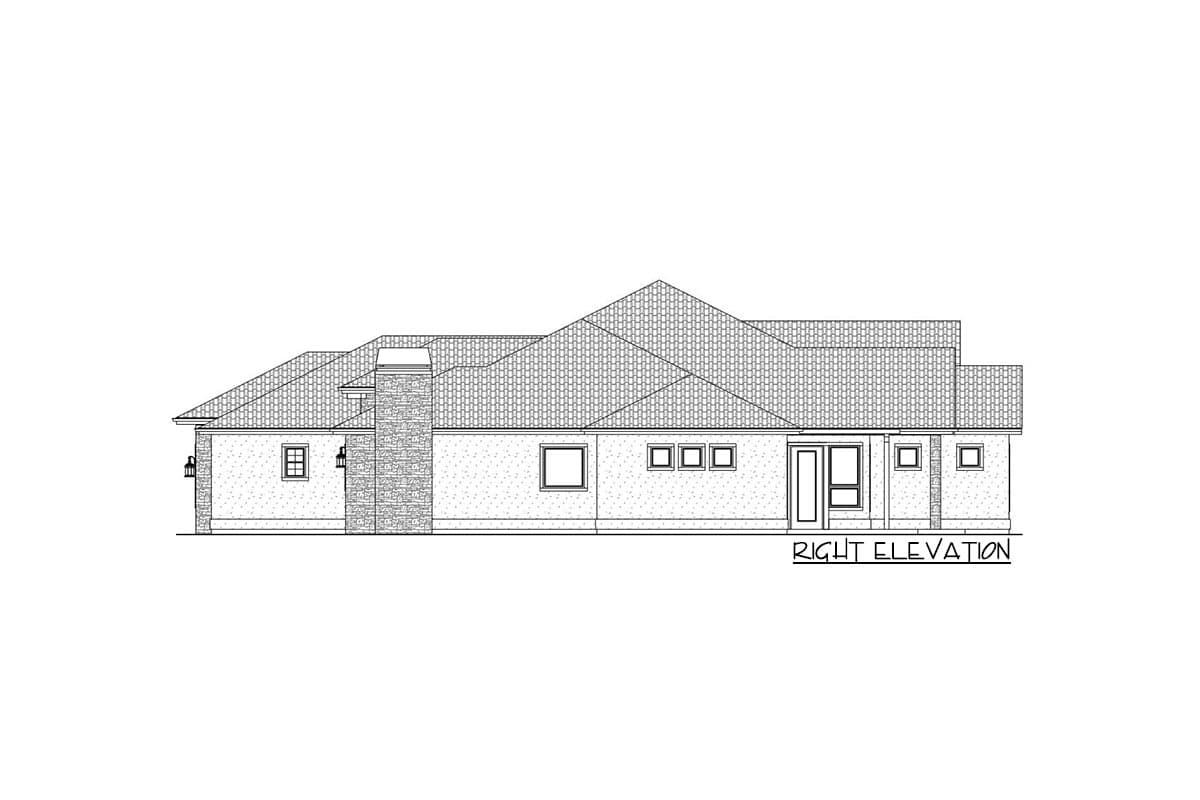

  • Exterior Elevations: Shows 2-D exterior views of all 4 sides of home locating and showing roof lines, roof pitches, material callouts, window locations, vents, trim style and plate heights
  • Electrical Plans: General layout of smoke detectors, carbon monoxide detectors, exhaust fans, lights, switches, outlets and GFI outlets

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Tuscan Prairie Home Plan with Large Service Areas

  • 2,951

    Heated s.f.

  • 3

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,951 sq. ft.
  • 1st Floor: 2,951 sq. ft.

Dimensions

  • Width: 77' 10"
  • Depth: 78' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1022 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 8
  • Framing Type: Stick And Truss
