Plan 6770MG

Two Bedroom Vacation Retreat

Heated S.F.

1,561

Beds

2

Baths

2

Stories

2

Cars

2

What's Included

Floor Plan

Main Level

Reverse Floor Plan

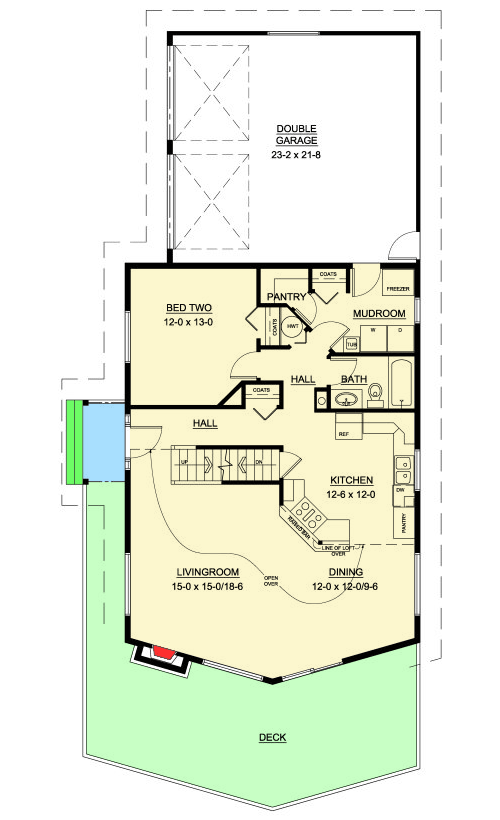

Two Bedroom Vacation Retreat - 6770MG floor plan - Main Level

2nd Floor

Reverse Floor Plan

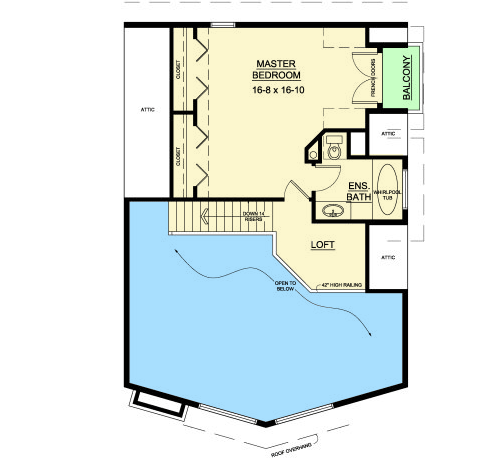

Two Bedroom Vacation Retreat - 6770MG floor plan - 2nd Floor

Plan Details

Bask in the sun on the expansive deck of this Vacation retreat.
Two-story windows shed light into the main living area of the home.
The kitchen is large and has an eating bar for informal meals or just to sit and chat with the family chef.
One bedroom is on the main floor and the master suite has the whole second level to itself.
Double doors open to a small balcony and a loft area has views of the main level below.
Related Plans: Get an alternate layout with house plan 6760MG. And remove the garage with house plan 6745MG.

What's Included

Foundation plan
Electrical plan calling out locations, not wiring
Fully dimensioned floor plans
4 elevations
Cross section
Wall details, etc.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

1,561 sq. ft.

1st Floor:

1,064 sq. ft.

2nd Floor:

497 sq. ft.

Basement Unfinished:

1,064 sq. ft.

Beds/Baths

Bedrooms:

2

Full bathrooms:

2

Foundation Type

Standard Foundations:

Walkout

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x6

Dimensions

Width:

32' 0"

Depth:

74' 0"

Max Ridge Height:

26' 0"

Garage

Type:

Attached

Area:

1004 sq. ft.

Count:

2 Cars

Entry Location:

Front

Ceiling Heights

Floor / Height:

Lower Level / 8' 0" First Floor / 8' 0" Second Floor / 8' 0"

Room Details	Ceiling Type	Width	Depth	Height
Great Room	Vaulted
Dining Room	Vaulted

Roof Details

Primary Pitch:

12 on 12

Secondary Pitch:

4 on 12

Framing Type:

Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Master Suite - 2nd Floor

Plan Collections

Square Footage Breakdown

Total Heated Area:

1,561 sq. ft.

1st Floor:

1,064 sq. ft.

2nd Floor:

497 sq. ft.

Basement Unfinished:

1,064 sq. ft.

Beds/Baths

Bedrooms:

2

Full bathrooms:

2

Foundation Type

Standard Foundations:

Walkout

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x6

Dimensions

Width:

32' 0"

Depth:

74' 0"

Max Ridge Height:

26' 0"

Garage

Type:

Attached

Area:

1004 sq. ft.

Count:

2 Cars

Entry Location:

Front

Ceiling Heights

Floor / Height:

Lower Level / 8' 0" First Floor / 8' 0" Second Floor / 8' 0"

Room Details	Ceiling Type	Width	Depth	Height
Great Room	Vaulted
Dining Room	Vaulted

Roof Details

Primary Pitch:

12 on 12

Secondary Pitch:

4 on 12

Framing Type:

Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Master Suite - 2nd Floor

Plan Collections
