Plan 330010WLE
EXCLUSIVE
Two Family House Plan with Home Office and Matching 4 Bed 2250 Square Foot Units
Heated S.F.
4,518
Units
2
Width
39' 11"
Depth
60'
What's Included
Plan Details
  • This two-family house plan gives you side-by-side 4 bed, 3.5 bath units each with 2,259 square feet of heated living (1,158 sq. ft. on the main floor; 1,101 sq. ft. on the second floor).

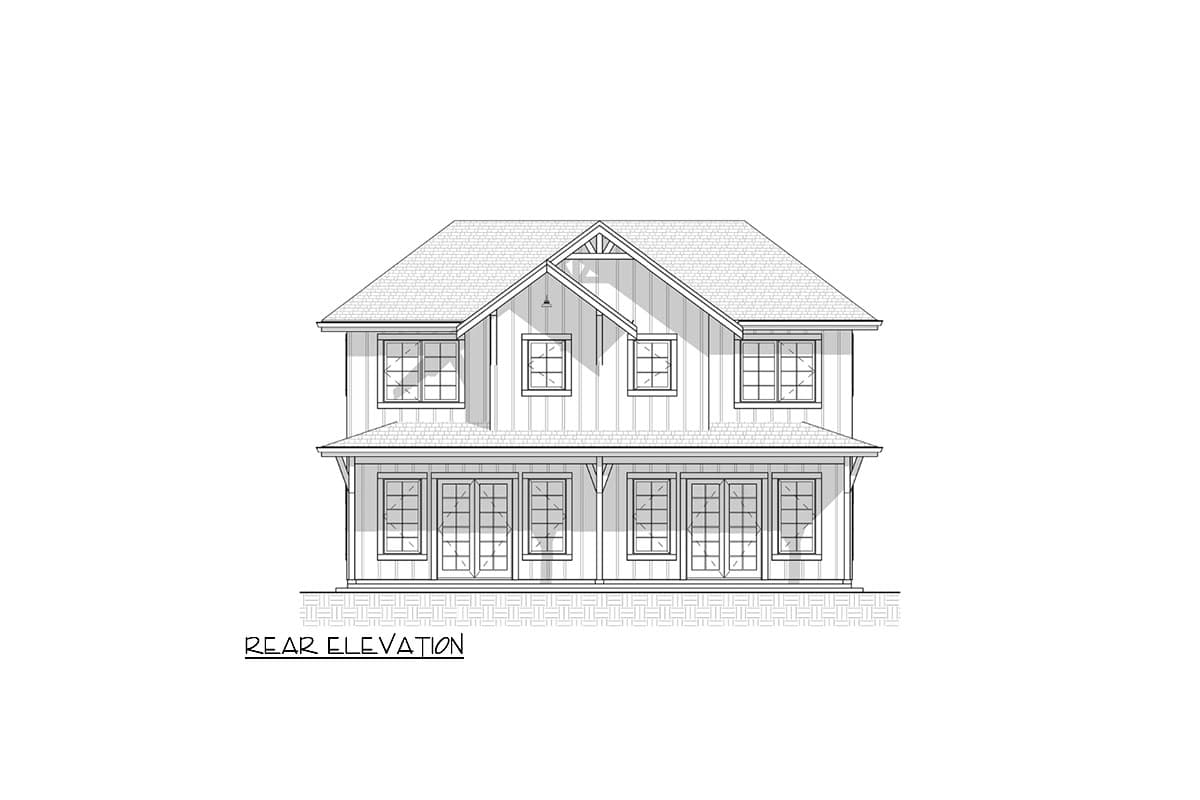

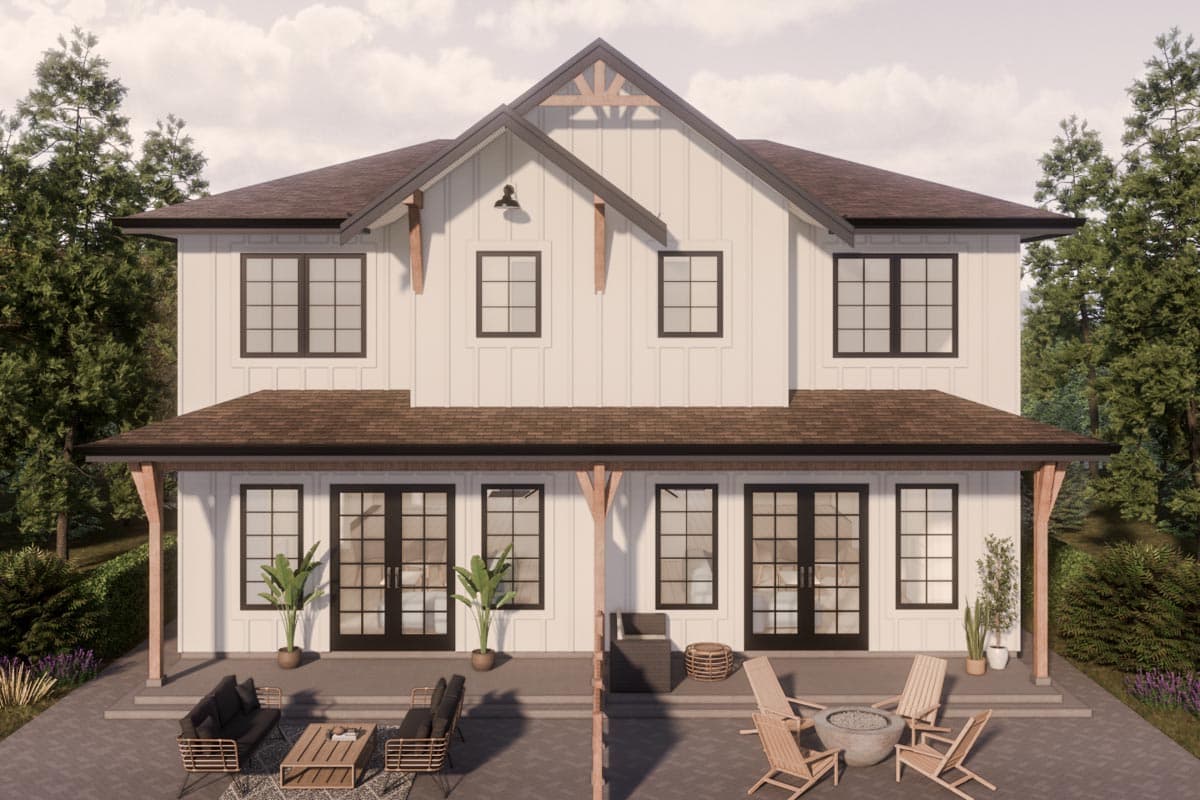

  • A  covered patio in back gives you 120 square feet of fresh air space to enjoy with a privacy wall between the two units.
  • There is a home office on the main floor, giving you a dedicated work-from-home space.
  • All bedrooms are located on the second floor, as is laundry for your convenience.
Unit A
2,259 Sq. Ft.
1158 Sq. Ft. 1st Floor
1101 Sq. Ft. 2nd Floor
4 Beds
3 Full Baths
None
19' w 60' d 29' h
Unit B
2,259 Sq. Ft.
1158 Sq. Ft. 1st Floor
1101 Sq. Ft. 2nd Floor
4 Beds
3 Full Baths
None
19' 11" w 60' d 29' 5" h
What's Included
  • Foundation Plan - Foundation wall and footing locations
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Roof Plan - Roof layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

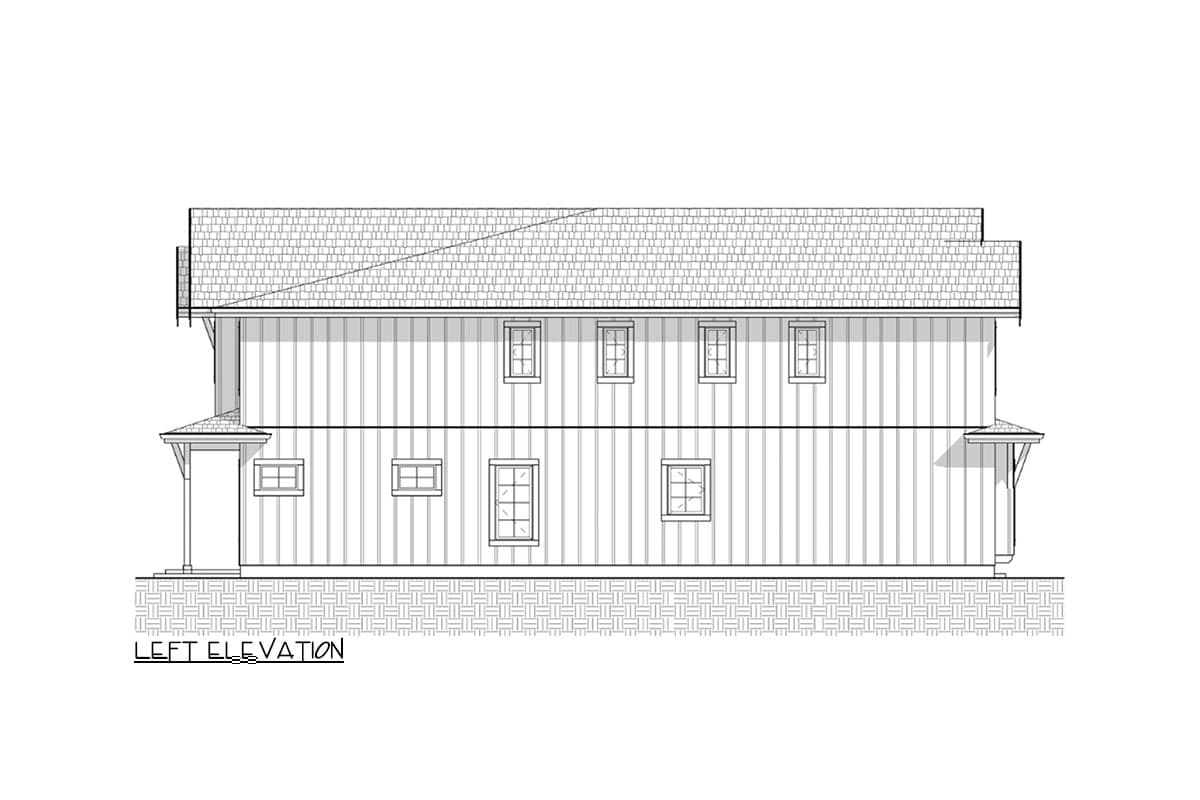

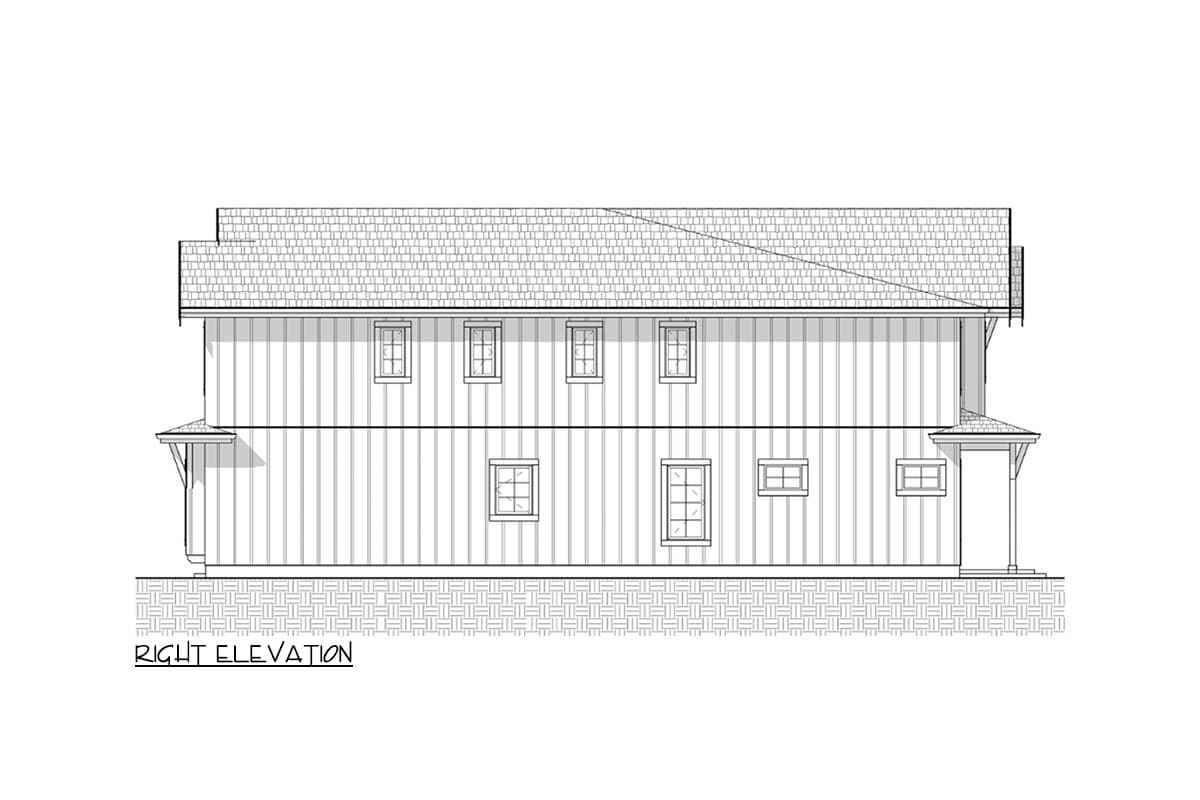

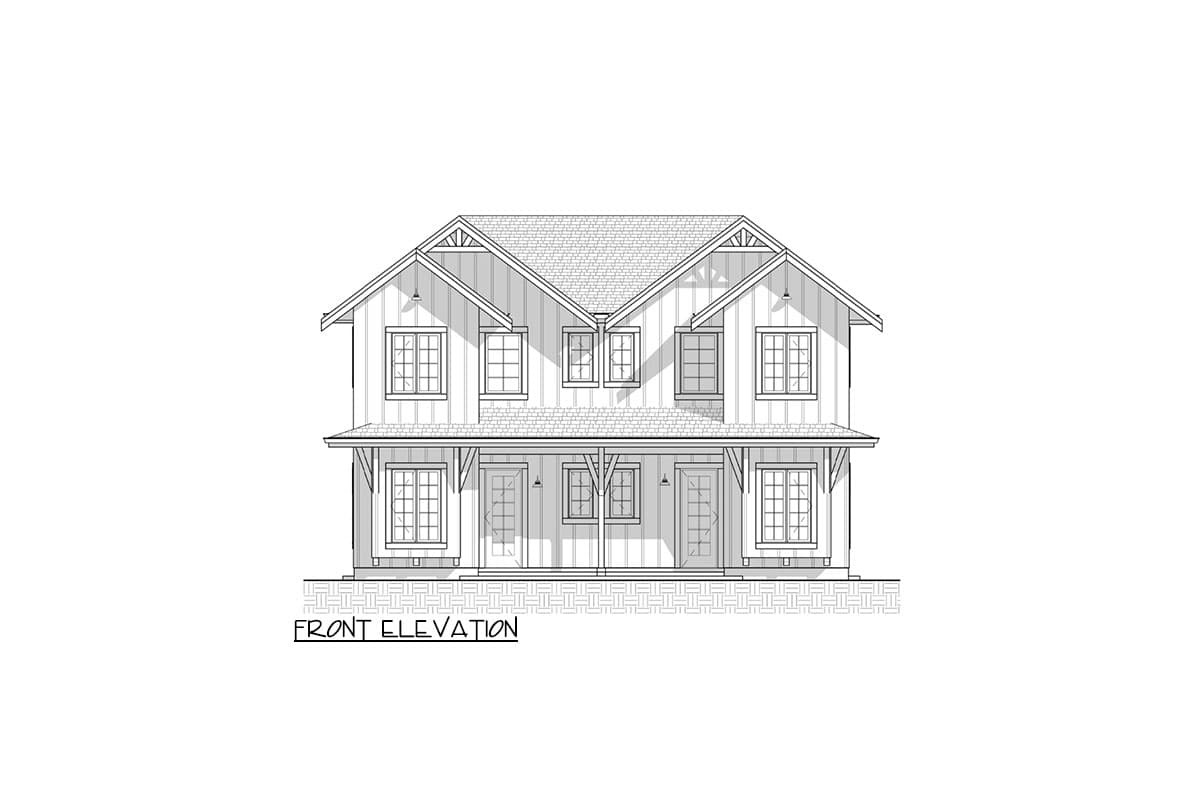

  • Exterior Elevations - Views of the front, rear, and sides of the home. Plus material and color legends that align with the renderings.
  • Sections - Full building cross sections.
  • Details - Typical details for foundation, floor framing, roof and any necessary details for specific Architectural elements.
  • Electrical Plans - Basic locations of lights, outlets, switches, panels and switching diagrams.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) — your subcontractors handle this
  • Framing layouts with beam sizes and locations
  • Material lists
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Two Family House Plan with Home Office and Matching 4 Bed 2250 Square Foot Units

  • 4,518

    Heated s.f.

  • 2

    Units

  • 39' 11"

    Width

  • 60'

    Depth

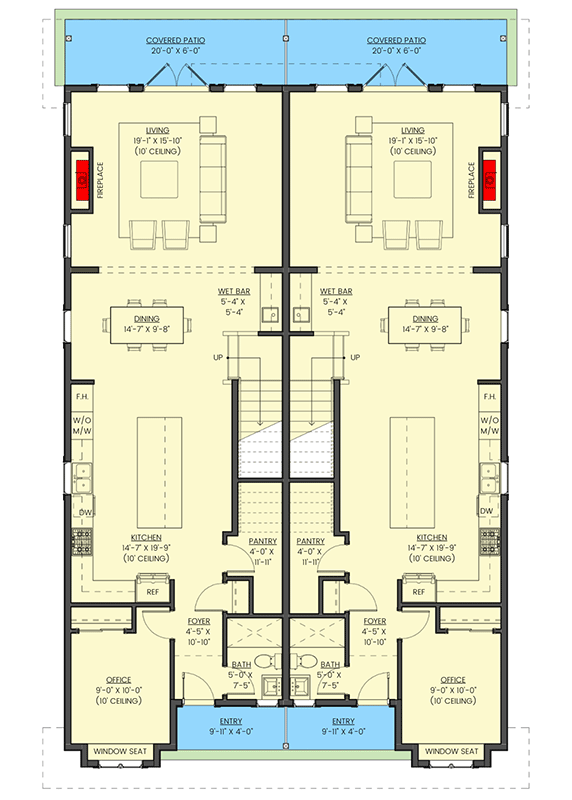

Floor Plan

  • Main Level

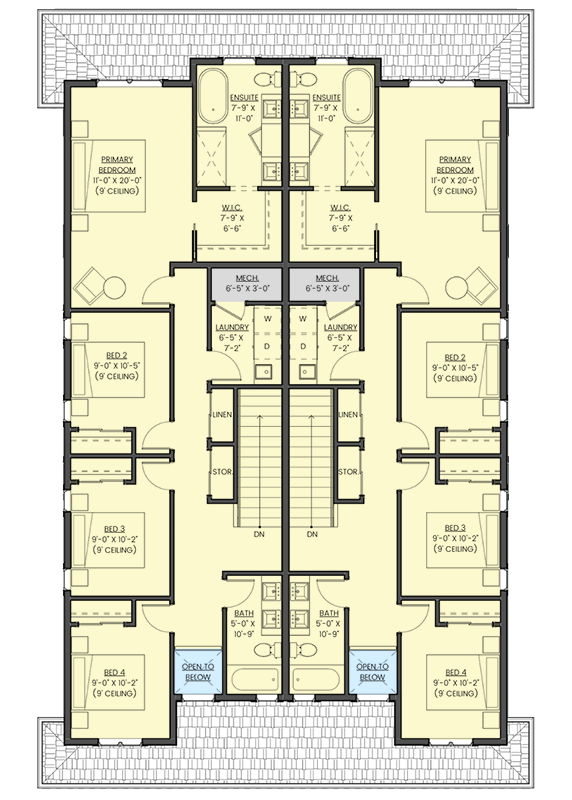

  • 2nd Floor
