Plan 90197PD

Two Story Arched Window

Heated S.F.
1,730
Beds
3
Baths
1.5
Stories
2
Cars
1

Floor Plan

Plan 90197PD

Main Level
Main Level
2nd Floor
2nd Floor

Plan 90197PD

M-F 9am-5pm EST |

1-203-761-8500

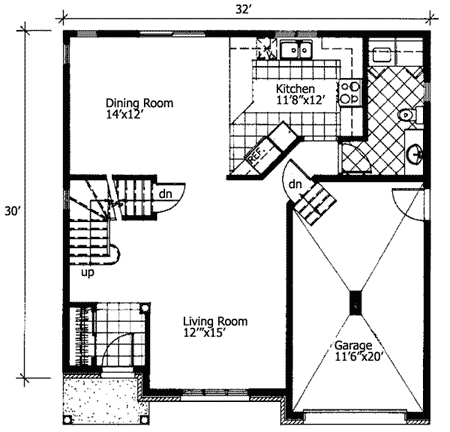

Main Level

Plan 90197PD: Two Story Arched Window - Floor Plan - Main Level - Traditional

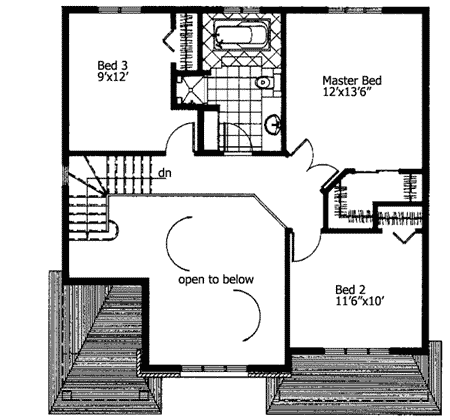

2nd Floor

Plan 90197PD: Two Story Arched Window - Floor Plan - 2nd Floor - Traditional

Plan Details

  • A beautiful arched window that rises up two stories is the first thing you see in this 3 bedroom narrow lot home plan.
  • Inside, an open floor plan makes the space seem larger, as does the soaring ceiling in the living room.
  • An open rail balcony on the second floor allows views of the living room below.
  • Three bedrooms share a large hall bath with a jetted tub.
  • An unfinished basement gives you room for expansion.

What's Included

Please note this plan is designed to the National Building Code of Canada.
  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
  • Suggested lighting plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,730 sq. ft.

1st Floor

785 sq. ft.

2nd Floor

945 sq. ft.

Basement Unfinished
