Plan 147034RML

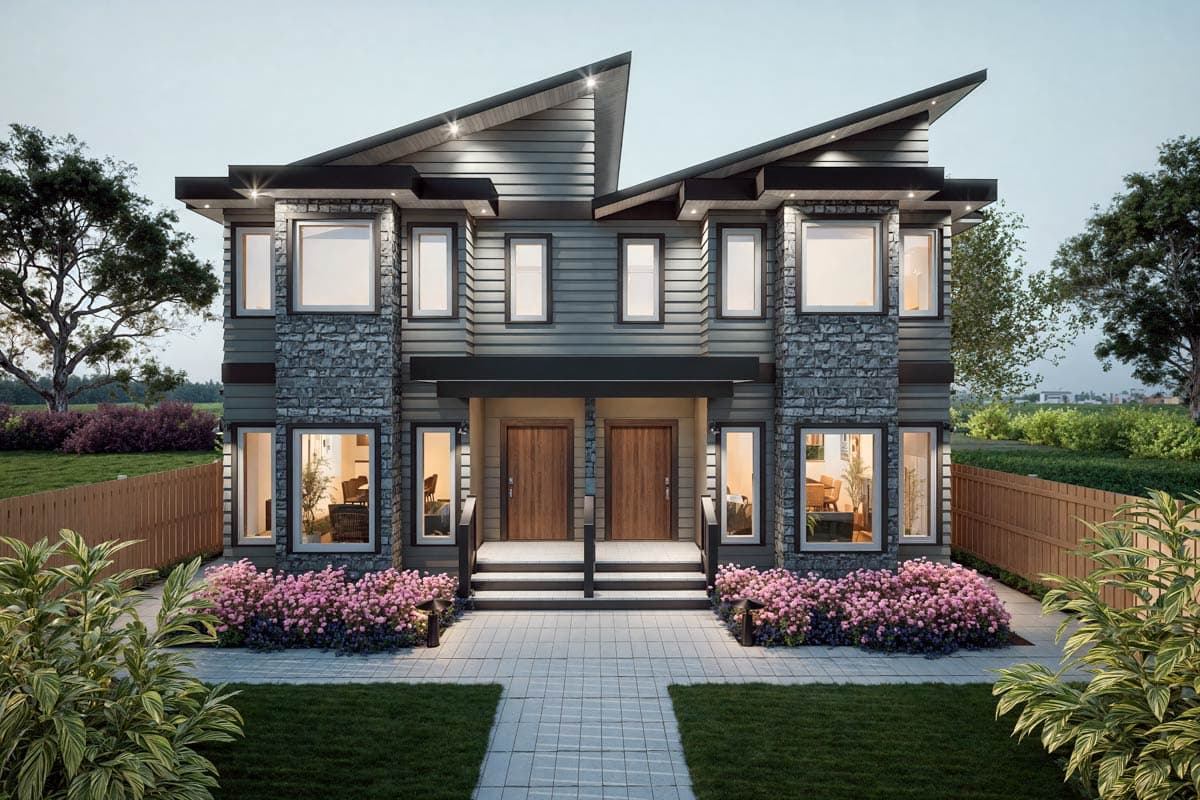

Two-Story Contemporary European Duplex Plan with Rear Covered Porch - 2016 Sq Ft Per Unit

Heated S.F.
4,031
Units
2
Width
Depth

Floor Plan

Plan 147034RML

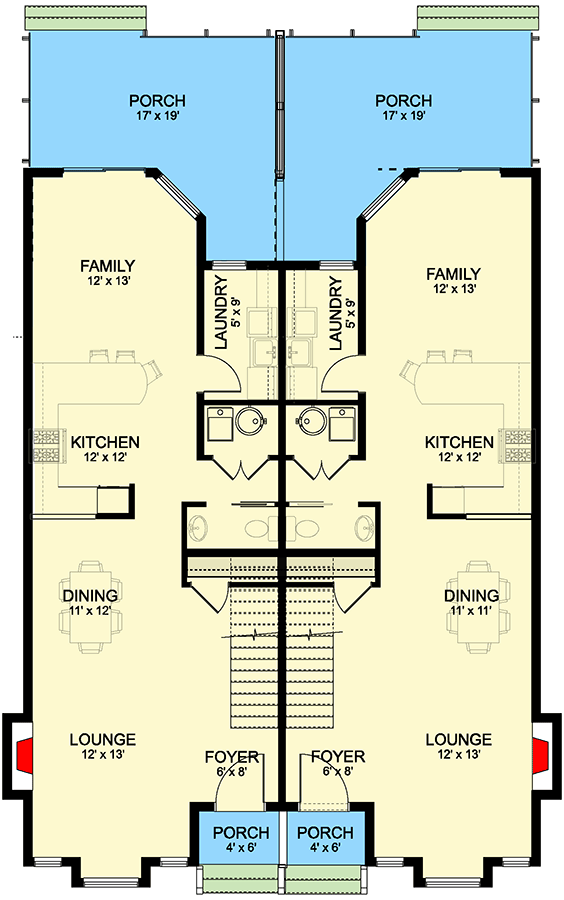

Main Level
Main Level

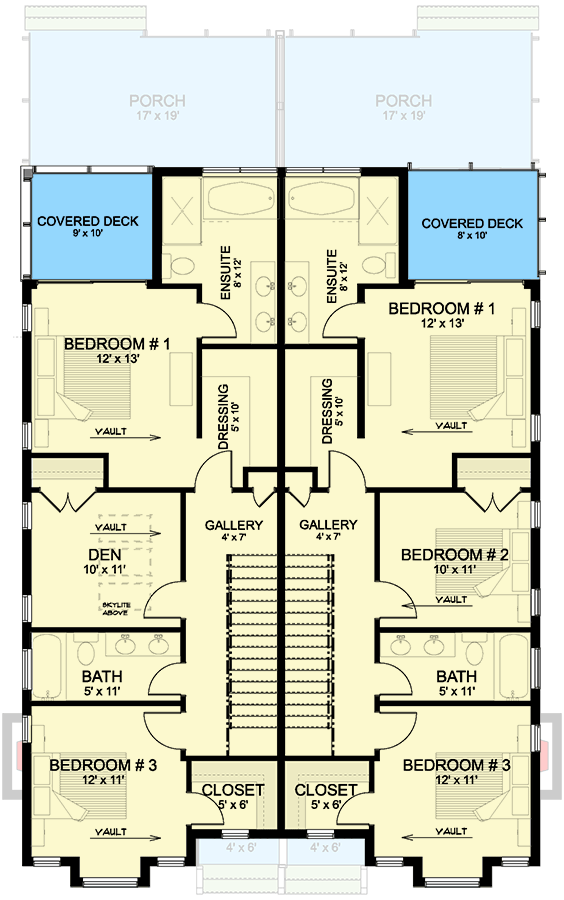

2nd Floor
2nd Floor

Plan 147034RML

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 147034RML: Two-Story Contemporary European Duplex Plan with Rear Covered Porch - 2016 Sq Ft Per Unit - Floor Plan - Main Level - Contemporary, European

2nd Floor

Plan 147034RML: Two-Story Contemporary European Duplex Plan with Rear Covered Porch - 2016 Sq Ft Per Unit - Floor Plan - 2nd Floor - Contemporary, European

Plan Details

  • This elegant duplex plan offers a total of 4,031 sq ft of living space, split evenly into two units, each with 3 bedrooms and 2.5 bathrooms.
  • Upon entering, you are welcomed into an open lounge that flows seamlessly into the dining area and kitchen, perfect for modern living.
  • The main floor features an airy family room with vaulted ceilings, creating a spacious and inviting environment.
  • Upstairs, the master suite includes a private ensuite and dressing area, separated from the secondary bedrooms by a versatile den space.

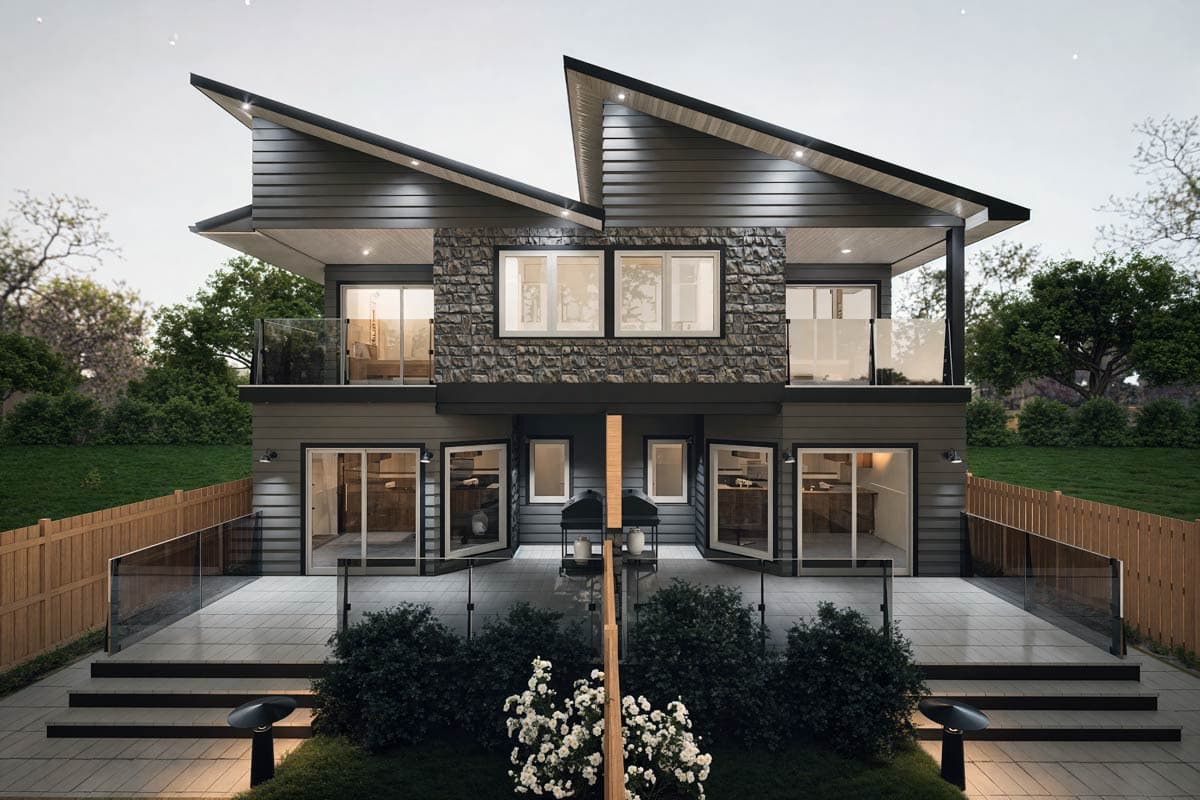

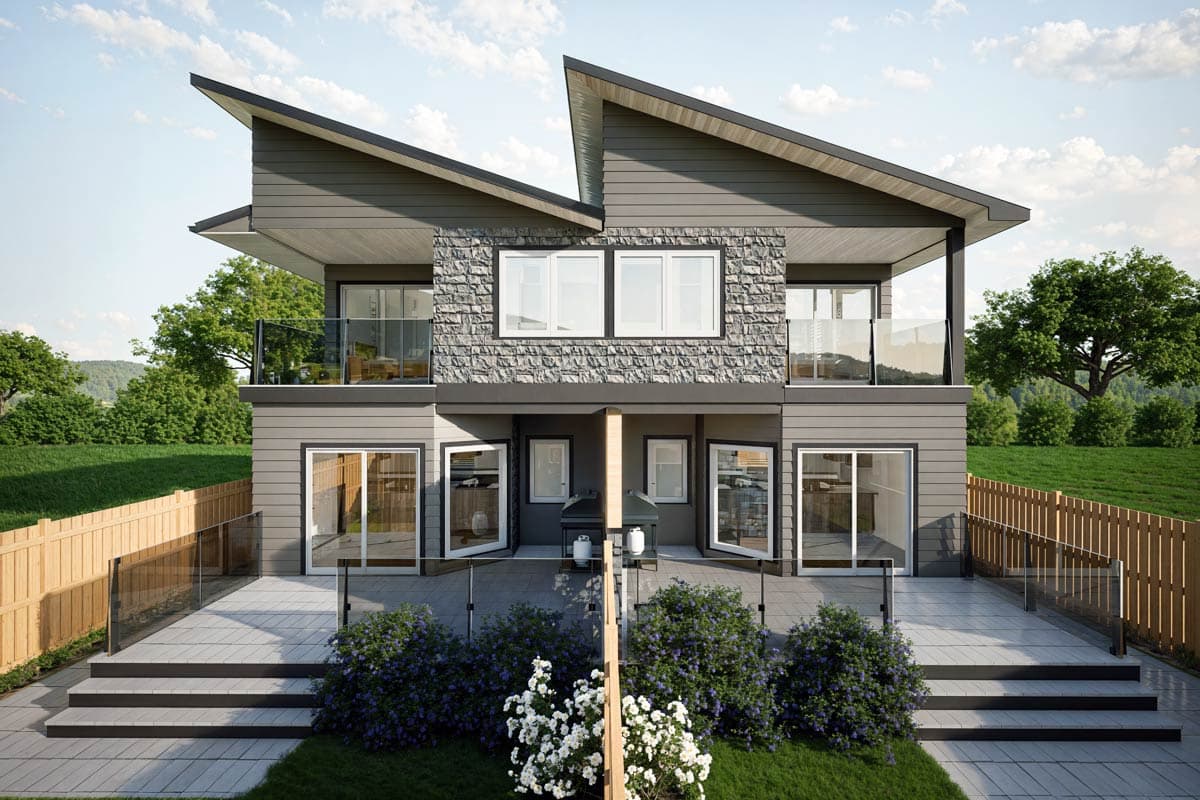

  • Step outside to enjoy the covered deck and generous rear porch for outdoor relaxation and entertainment.
  • Additional flex room and office space provide options for customization to suit your lifestyle.
Unit A
Heated Area
2,016Sq. Ft.
1156 Sq. Ft. 1st
860 Sq. Ft. 2nd
Beds
2 or 3Beds
Baths
2Full Baths
1Half Bath
Dimensions
40'width
52'depth
Unfinished Areas
25 Sq. Ft. Porch, Front
234 Sq. Ft. Porch, Rear
259 Sq. Ft. Porch, Combined
41 Sq. Ft. Deck
299 Sq. Ft. Deck & Porch
24 Sq. Ft. Entry
Unit B
Heated Area
2,015Sq. Ft.
1155 Sq. Ft. 1st
860 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
20'width
52'depth
Unfinished Areas
24 Sq. Ft. Porch, Front
234 Sq. Ft. Porch, Rear
258 Sq. Ft. Porch, Combined
40 Sq. Ft. Deck
299 Sq. Ft. Deck & Porch
24 Sq. Ft. Entry

What's Included

  • Title Sheet w/ Color Rendering and Sheet Index
  • General Notes and Details
  • Foundation Plan and Notes
  • Dimensioned Floor Plan(s) with Window Schedule
  • Roof Plan
  • Building Sections and Details
  • Exterior Elevations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

4,031 sq. ft.

1st Floor

2,311 sq. ft.

2nd Floor

1,720 sq. ft.

Porch, Front

49 sq. ft.

Porch, Rear

468 sq. ft.

Porch, Combined

517 sq. ft.

Deck

81 sq. ft.

Deck & Porch

598 sq. ft.

Entry

48 sq. ft.

Beds/Baths

Bedrooms

5 or 6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 4"

Depth

52' 0"

Max Ridge Height

27' 4"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

1 on 50

Framing Type

Stick And Truss

Architectural Style

Contemporary

European

Special Features

Den

Flex Room

Home Office

Laundry - Main Level

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

4,031 sq. ft.

1st Floor

2,311 sq. ft.

2nd Floor

1,720 sq. ft.

Porch, Front

49 sq. ft.

Porch, Rear

468 sq. ft.

Porch, Combined

517 sq. ft.

Deck

81 sq. ft.

Deck & Porch

598 sq. ft.

Entry

48 sq. ft.

Beds/Baths

Bedrooms

5 or 6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 4"

Depth

52' 0"

Max Ridge Height

27' 4"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

1 on 50

Framing Type

Stick And Truss

Architectural Style

Contemporary

European

Special Features

Den

Flex Room

Home Office

Laundry - Main Level

Master Suite - Upstairs
