Plan 666048RAF

Two-Story Contemporary Home Plan with 2 Master Suites

Heated S.F.
3,809
Beds
4
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 666048RAF

Main Level
Main Level
2nd Floor
2nd Floor

Plan 666048RAF

M-F 9am-5pm EST |

1-203-761-8500

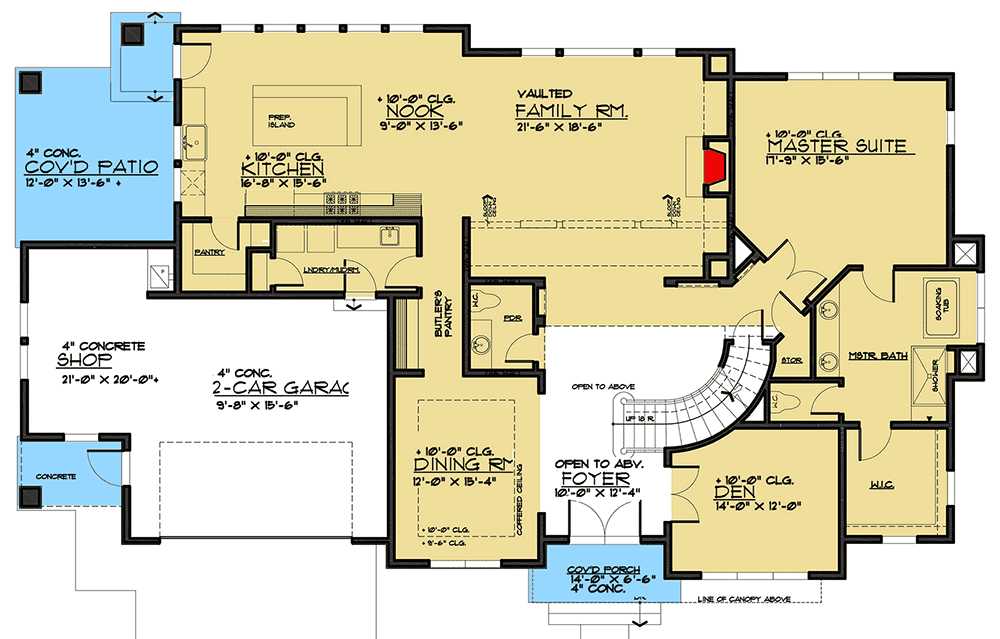

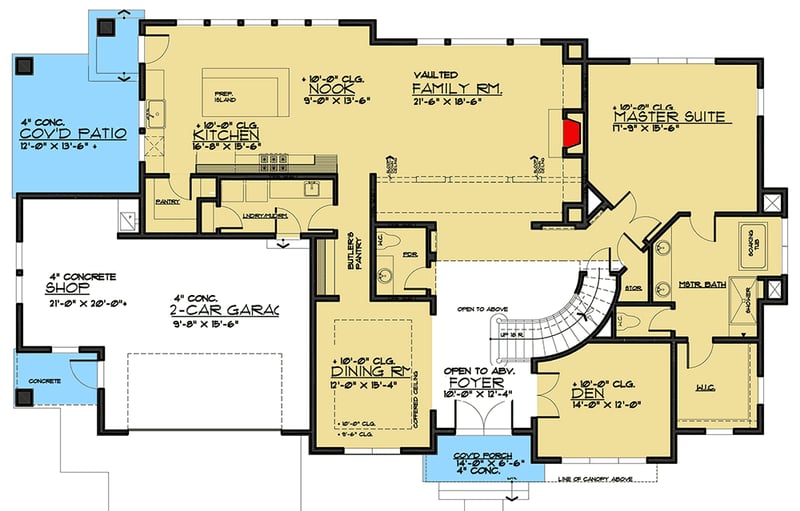

Main Level

Plan 666048RAF: Two-Story Contemporary Home Plan with 2 Master Suites - Floor Plan - Main Level - Contemporary, Modern, Northwest, Prairie

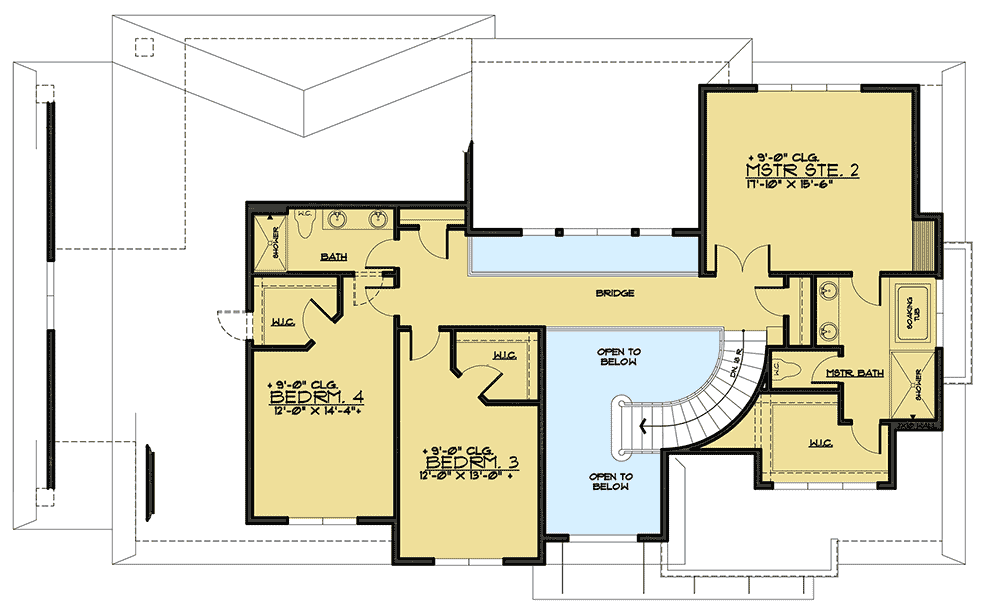

2nd Floor

Plan 666048RAF: Two-Story Contemporary Home Plan with 2 Master Suites - Floor Plan - 2nd Floor - Contemporary, Modern, Northwest, Prairie

Plan Details

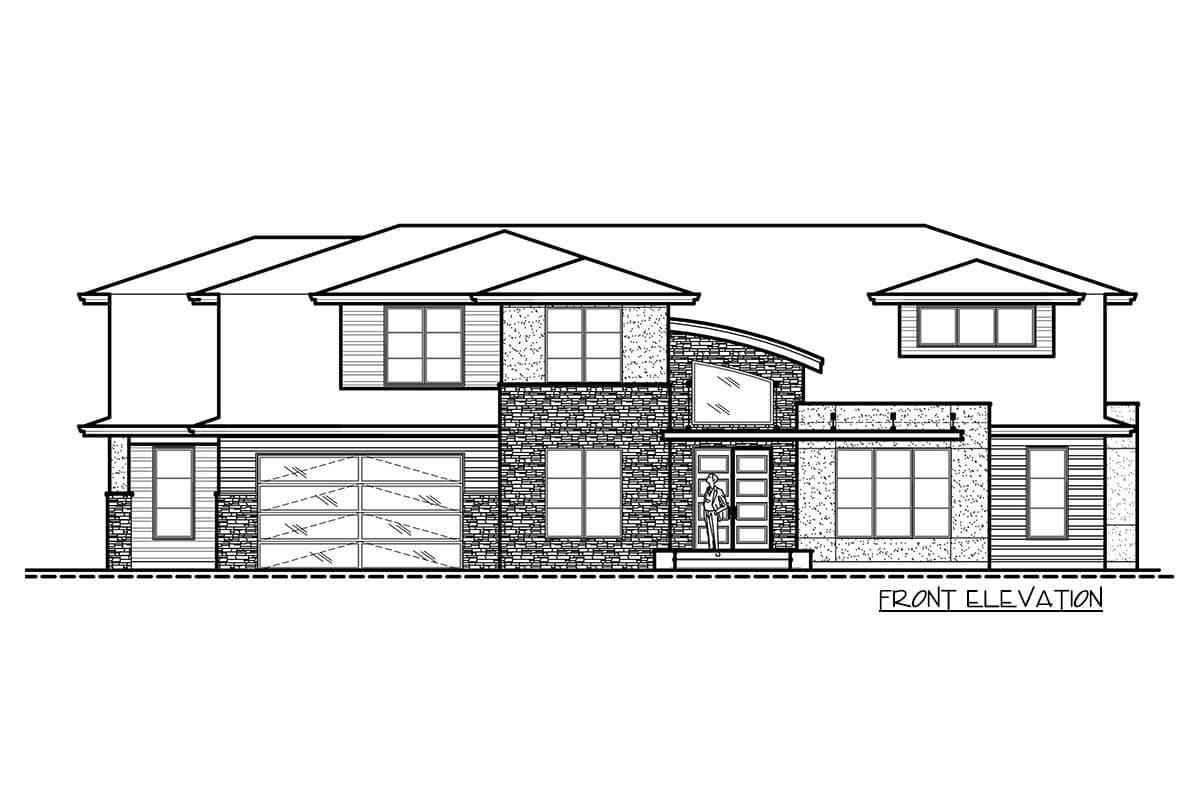

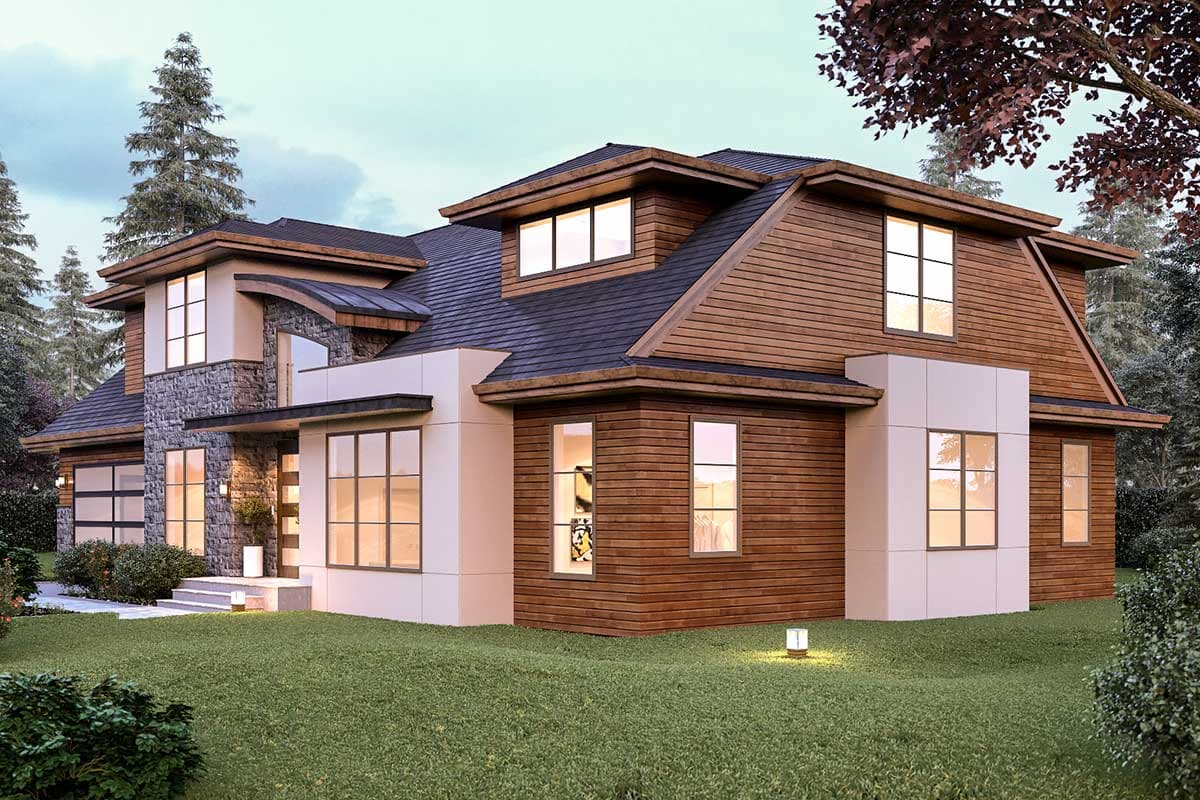

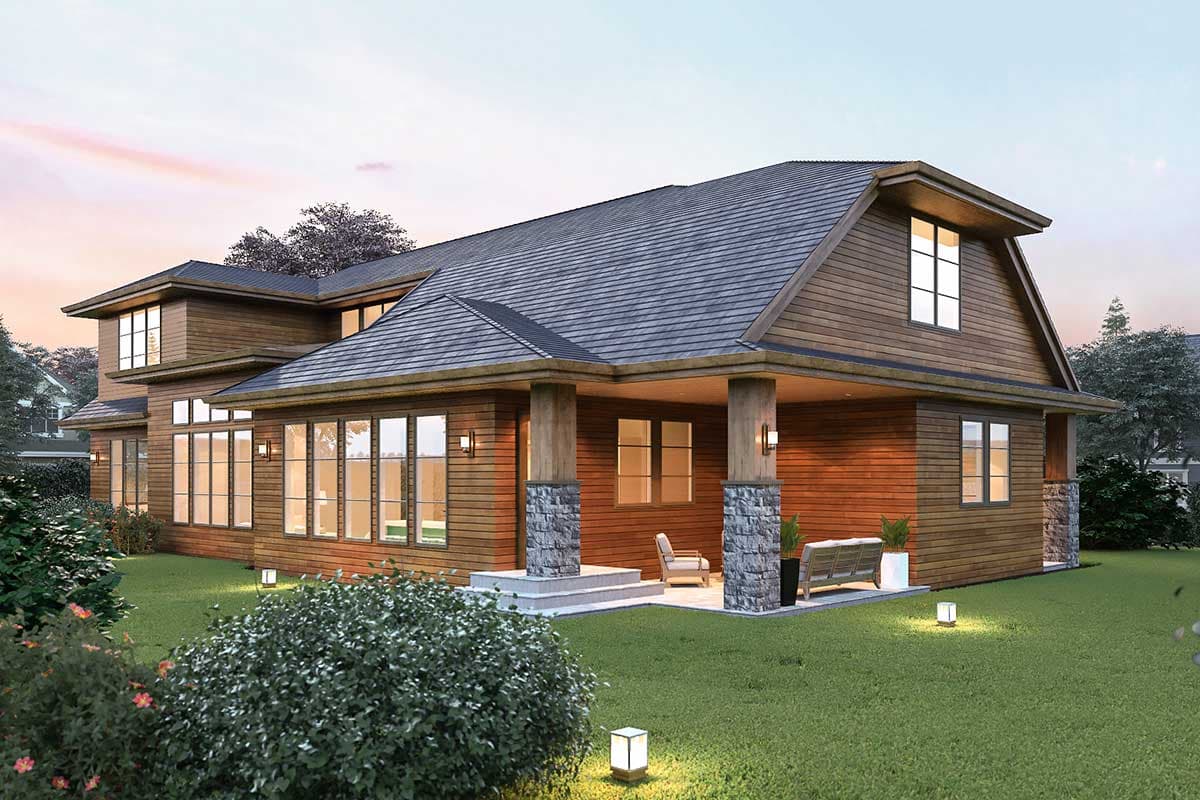

  • Warm tones, stone accents, and large modern windows adorn the facade of this contemporary house plan.
  • French doors welcome guests into a two-story foyer with a custom, curved staircase providing a feeling of grandeur immediately upon entering. A quiet den sits to the right of the foyer, and a dining room to the left.

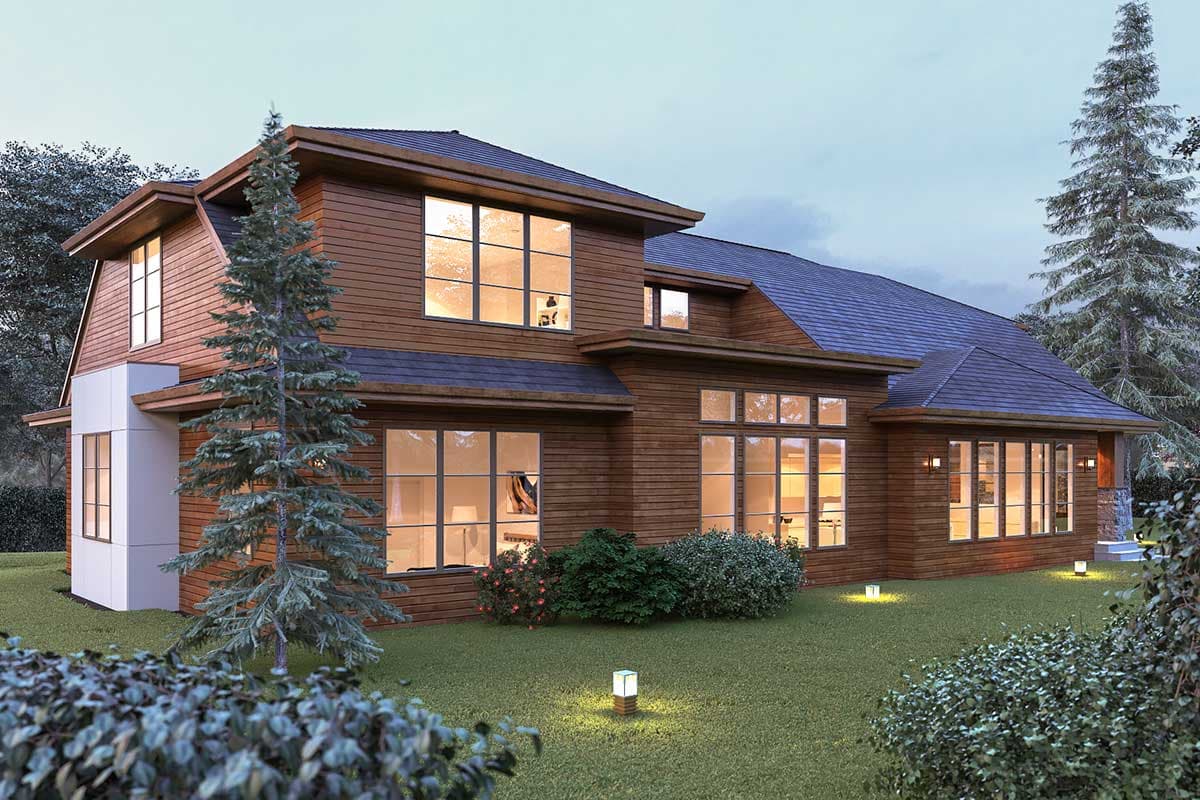

  • An open layout combines the family room, nook, and kitchen, while offering large windows for rearward views. A sizable prep island and walk-in pantry accommodates any size family or gathering.
  • A butler's pantry connects the kitchen to the formal dining room.
  • The main-level master suite can be found behind french doors, and features a spacious bathroom with a soaking tub, separate shower, private toilet room, and large walk-in closet.
  • A nearly identical, second master suite resides at the top of the stairs. The open hallway (bridge) leads to bedrooms 3 and 4, which share a 4-fixture bath.
  • Homeowner's with hobbies will delight in the workshop attached to the 2-car garage.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans

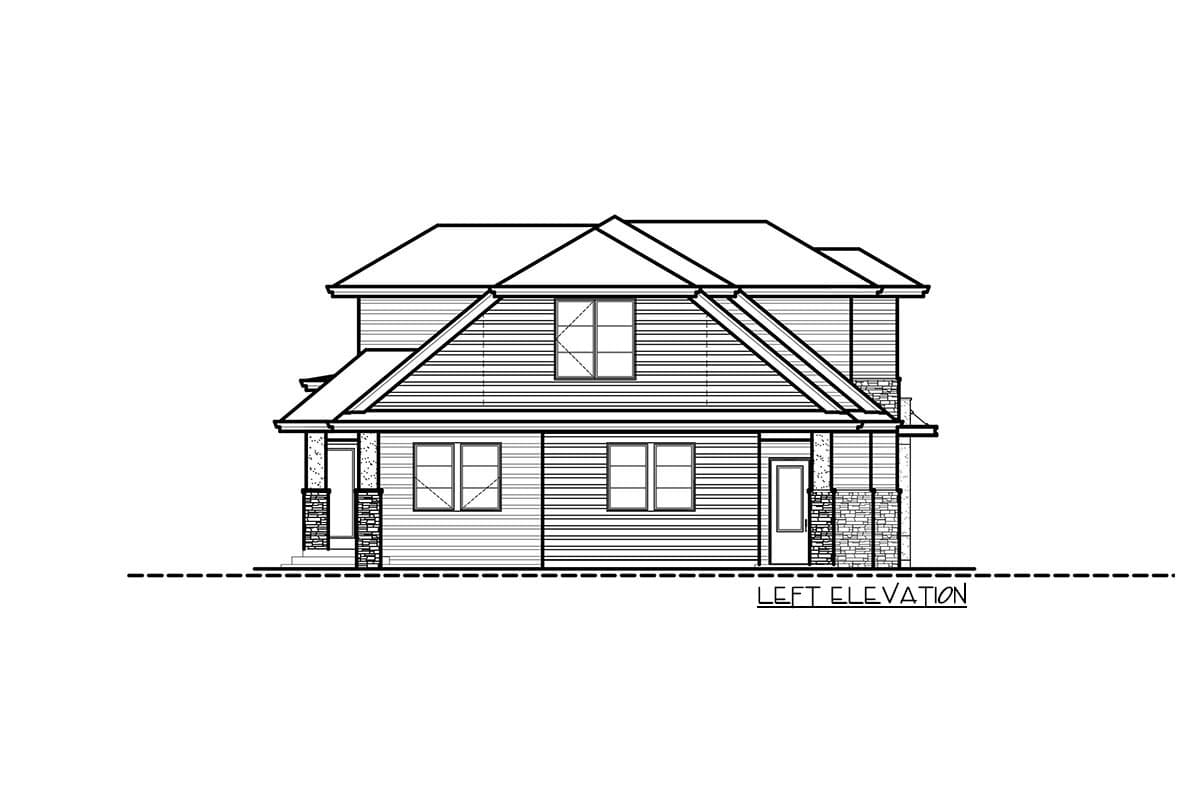

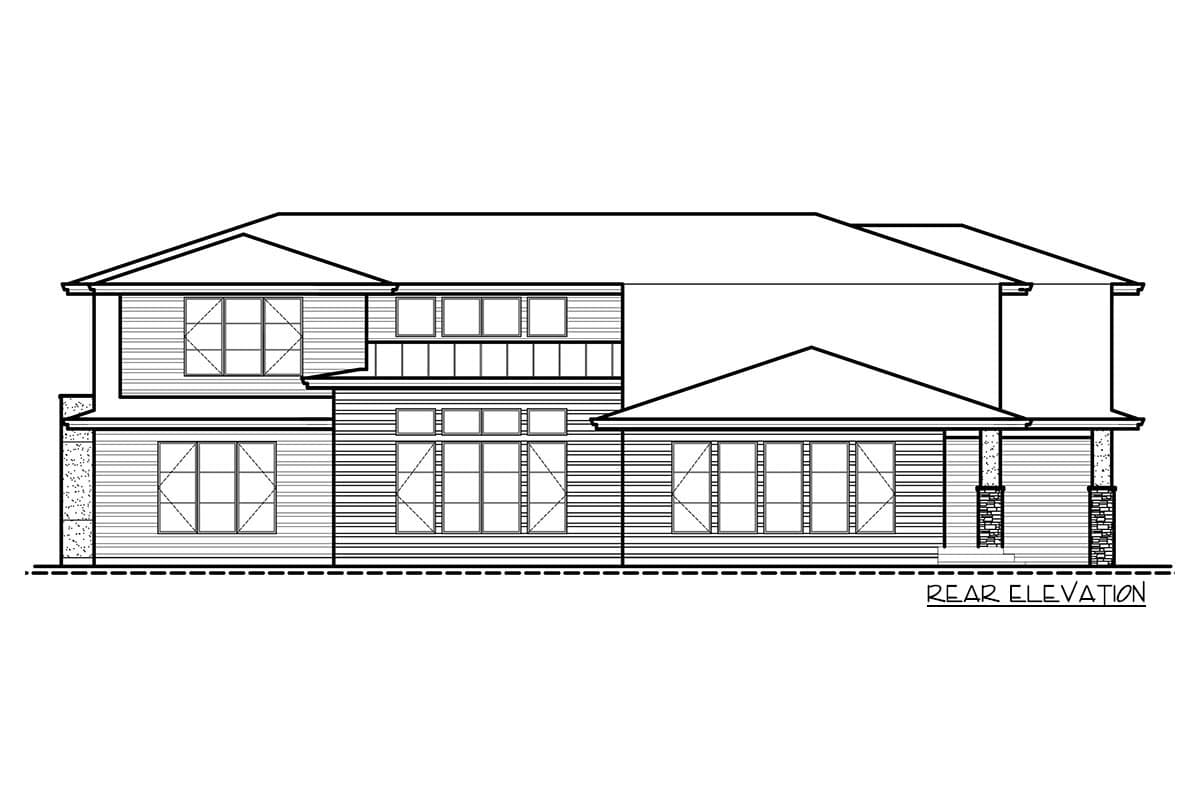

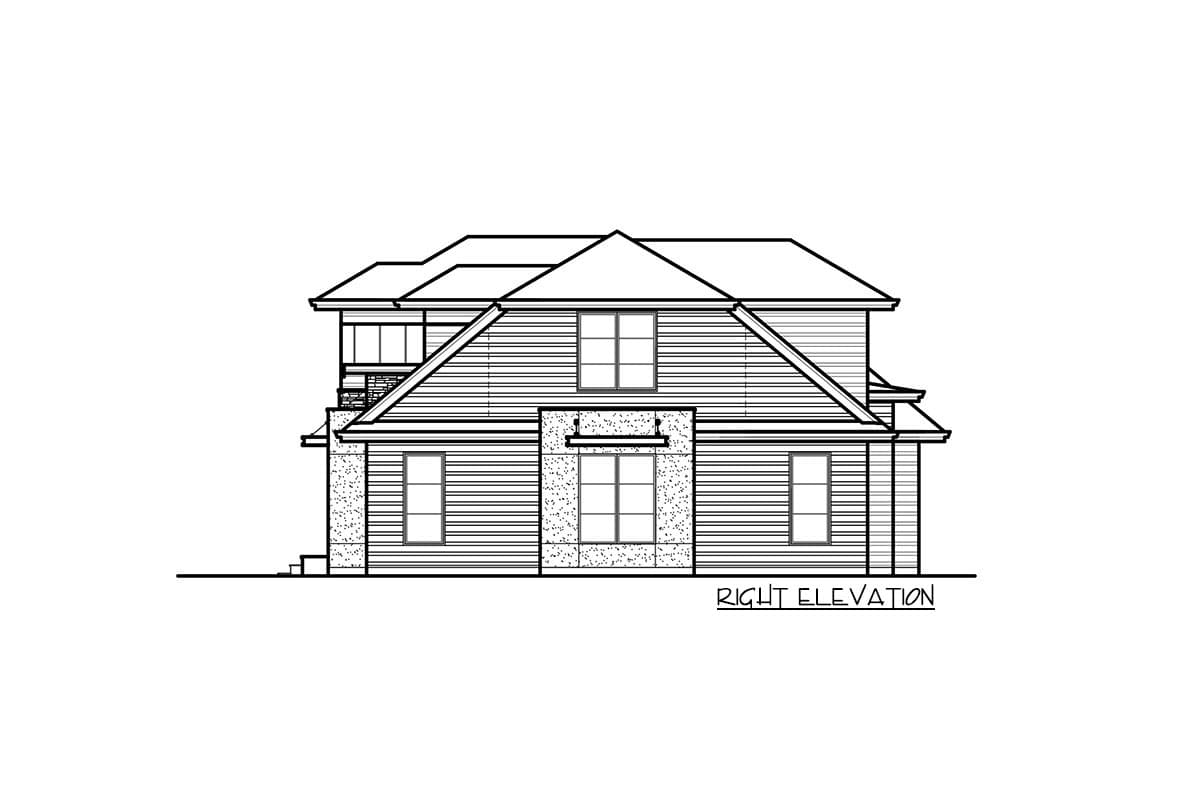

  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,809 sq. ft.

1st Floor

2,407 sq. ft.

2nd Floor

1,402 sq. ft.

Porch, Front

64 sq. ft.

Covered Patio

236 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

77' 6"

Depth

46' 0"

Max Ridge Height

26' 10"

Garage

Type

Attached

Area

577 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Garage

11' 6''

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Prairie

Special Features

Breakfast Nook

Den

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Upstairs

Mudroom

Two Master Suites

Walk-in Pantry

Workshop

Plan Collections

Two Master Suites

Square Footage Breakdown

Total Heated Area

3,809 sq. ft.

1st Floor

2,407 sq. ft.

2nd Floor

1,402 sq. ft.

Porch, Front

64 sq. ft.

Covered Patio

236 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

77' 6"

Depth

46' 0"

Max Ridge Height

26' 10"

Garage

Type

Attached

Area

577 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Garage

11' 6''

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Prairie

Special Features

Breakfast Nook

Den

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Upstairs

Mudroom

Two Master Suites

Walk-in Pantry

Workshop

Plan Collections

Two Master Suites
