Plan 666102RAF

Two-story Contemporary Home Plan with Rooftop Deck

Heated S.F.
3,240
Beds
3 - 4
Baths
3
Stories
2
Cars
3

Floor Plan

Plan 666102RAF

Main Level
Main Level
2nd Floor
2nd Floor

Plan 666102RAF

M-F 9am-5pm EST |

1-203-761-8500

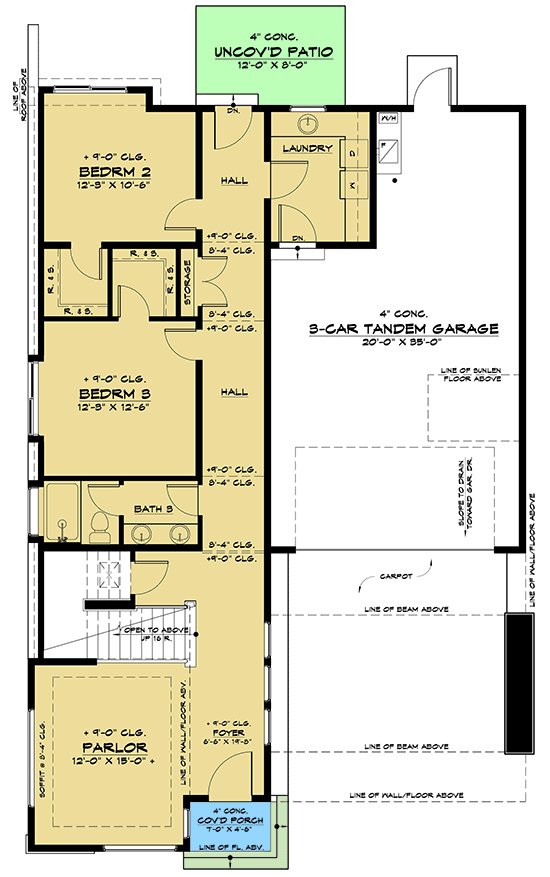

Main Level

Plan 666102RAF: Two-story Contemporary Home Plan with Rooftop Deck - Floor Plan - Main Level - Contemporary, Modern, Northwest

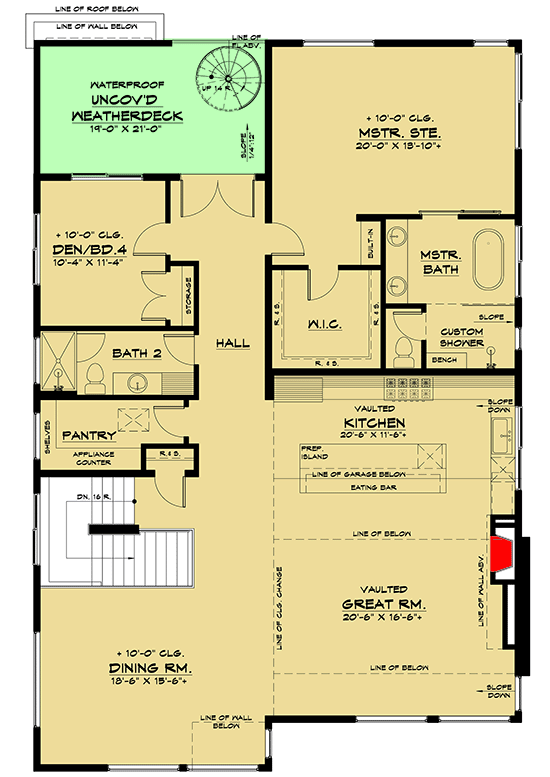

2nd Floor

Plan 666102RAF: Two-story Contemporary Home Plan with Rooftop Deck - Floor Plan - 2nd Floor - Contemporary, Modern, Northwest

Plan Details

  • The sharp angle of this two-story, contemporary home plan's roof highlights a modern elegance that adds to the curb appeal.
  • Upon entering, you will find a parlor near the foyer. Down the hall, two large bedrooms share a compartmentalized bath and the 3-car tandem garage opens into the laundry room.
  • Take in the best views from the second level living spaces, where oversized windows create a light and airy environment. The open kitchen boasts a prep island with an eating bar, large range, and sizable pantry with an appliance counter.
  • Relax in the master suite, which features a charming built-in, custom shower in the 5-fixture bathroom, and a walk-in closet. A den, or fourth bedroom, is located across the hall, as well as an uncovered deck.

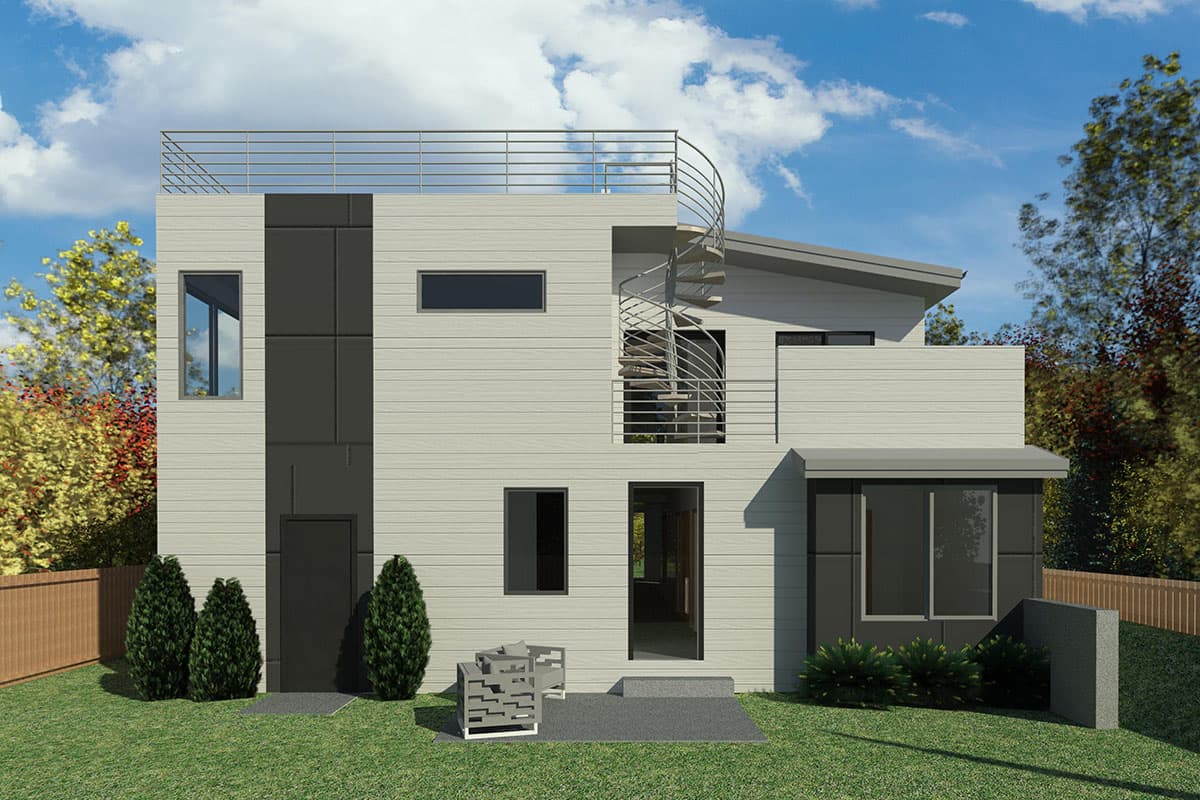

  • A spiral staircase guides you up to a rooftop deck, ideal for entertaining.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans

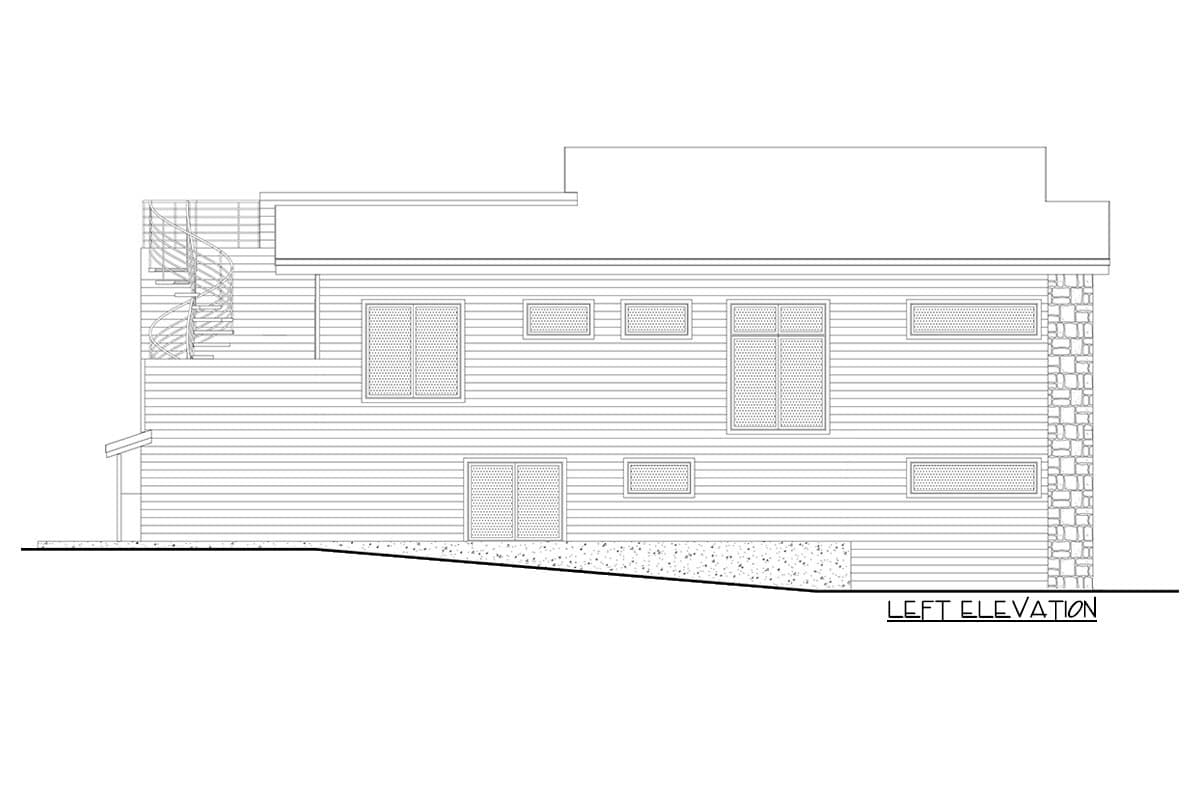

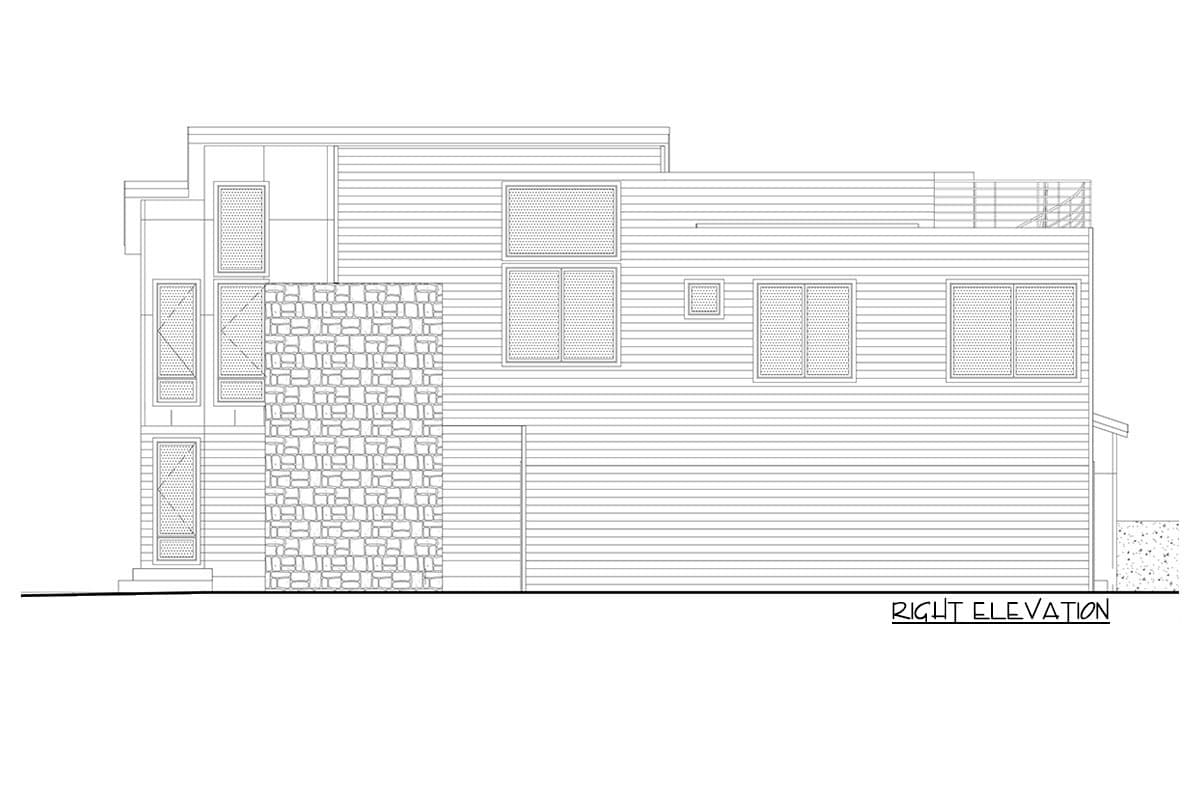

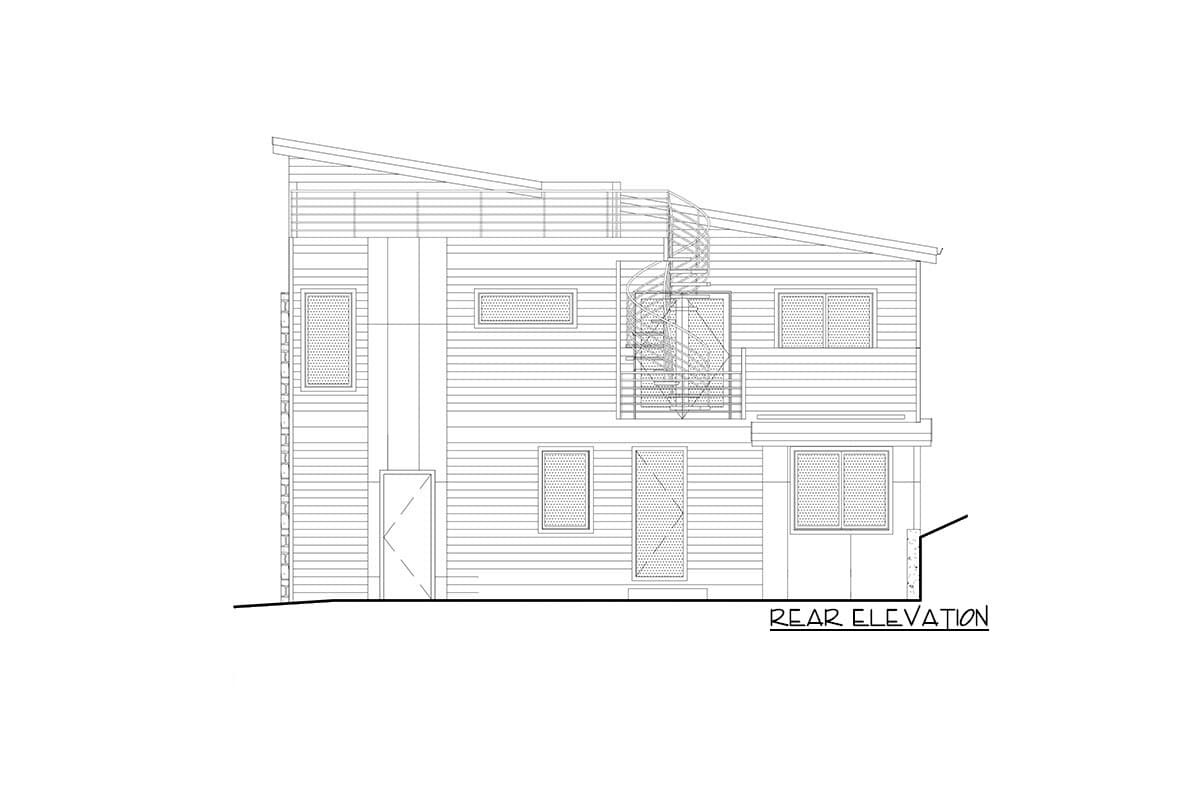

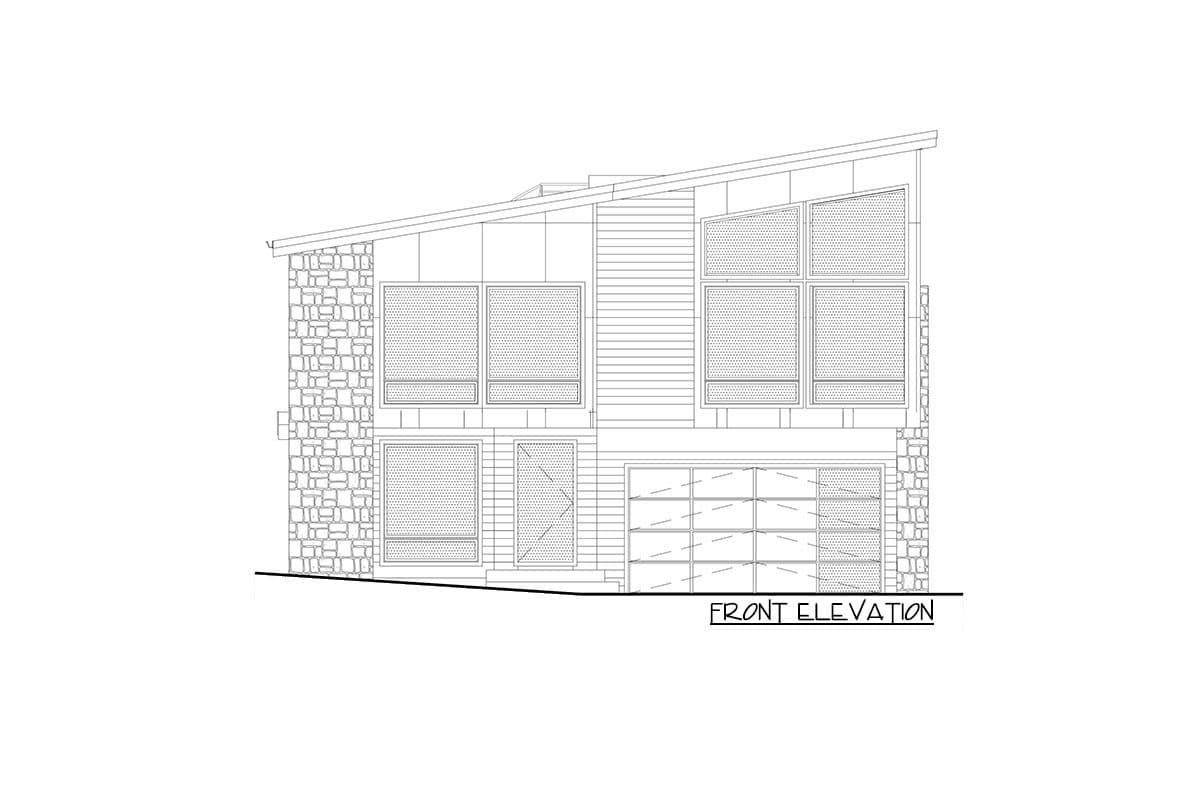

  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,240 sq. ft.

1st Floor

1,214 sq. ft.

2nd Floor

2,026 sq. ft.

Porch, Combined

32 sq. ft.

Deck

797 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

61' 6"

Max Ridge Height

27' 10"

Garage

Type

Attached

Area

607 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

10'

Roof Details

Primary Pitch

2 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Den

Laundry - Main Level

Master Suite - Upstairs

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

3,240 sq. ft.

1st Floor

1,214 sq. ft.

2nd Floor

2,026 sq. ft.

Porch, Combined

32 sq. ft.

Deck

797 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

61' 6"

Max Ridge Height

27' 10"

Garage

Type

Attached

Area

607 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

10'

Roof Details

Primary Pitch

2 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Den

Laundry - Main Level

Master Suite - Upstairs

Mudroom

Walk-in Pantry
