Plan 666005RAF

Two-Story Contemporary Northwesty-Style House Plan

Two-Story Contemporary Northwesty-Style House Plan

Plan 666005RAF

  • 2,796

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • A winning combination of stone, cedar and stucco wraps around the facade of this Northwest house plan.
  • Designed to fit on a narrow lot, the home is less than 34' wide.
  • The open floor plan goes a long way towards making the first floor feel larger.
  • The kitchen gets a huge island, a walk-in pantry and views of the entire great room area - no need to wonder where everyone is.
  • A vaulted ceiling crowns the second floor master suite and all four bedrooms are just steps away from the second floor laundry room.
  • Related Plan: Get a bonus room and more square footage with house plan 666004RAF (2,899 sq. ft.).

Our plans include

-Cover Sheet/General Notes
-Floor plans
-Elevations
-Cross sections
-Glazing and Energy Calcs


Floor Plan

Plan details



Two-Story Contemporary Northwesty-Style House Plan

  • 2,796

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $1,229
  • 5 Sets $1,334
  • 8 Sets $1,439
  • CAD $3,750
  • View all purchase option online

About This Plan

  • A winning combination of stone, cedar and stucco wraps around the facade of this Northwest house plan.
  • Designed to fit on a narrow lot, the home is less than 34' wide.
  • The open floor plan goes a long way towards making the first floor feel larger.
  • The kitchen gets a huge island, a walk-in pantry and views of the entire great room area - no need to wonder where everyone is.
  • A vaulted ceiling crowns the second floor master suite and all four bedrooms are just steps away from the second floor laundry room.
  • Related Plan: Get a bonus room and more square footage with house plan 666004RAF (2,899 sq. ft.).

Floor Plans

  • Main Level

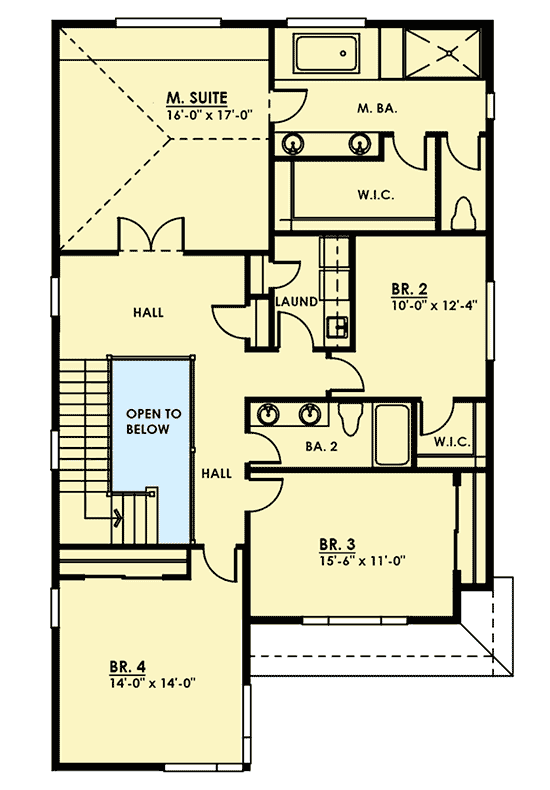

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,796 sq. ft.
  • 1st Floor: 1,247 sq. ft.
  • 2nd Floor: 1,549 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 33' 6"
  • Depth: 57' 0"

Garage

  • Type: Attached
  • Area: 370 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 3 on 12
  • Framing Type: Truss
