Plan 147030RML

Two-Story Contemporary Triplex Plan with 1700 Sq Ft Units

Heated S.F.
5,260
Units
3
Width
Depth

Floor Plan

Plan 147030RML

Main Level
Main Level
2nd Floor
2nd Floor

Plan 147030RML

M-F 9am-5pm EST |

1-203-761-8500

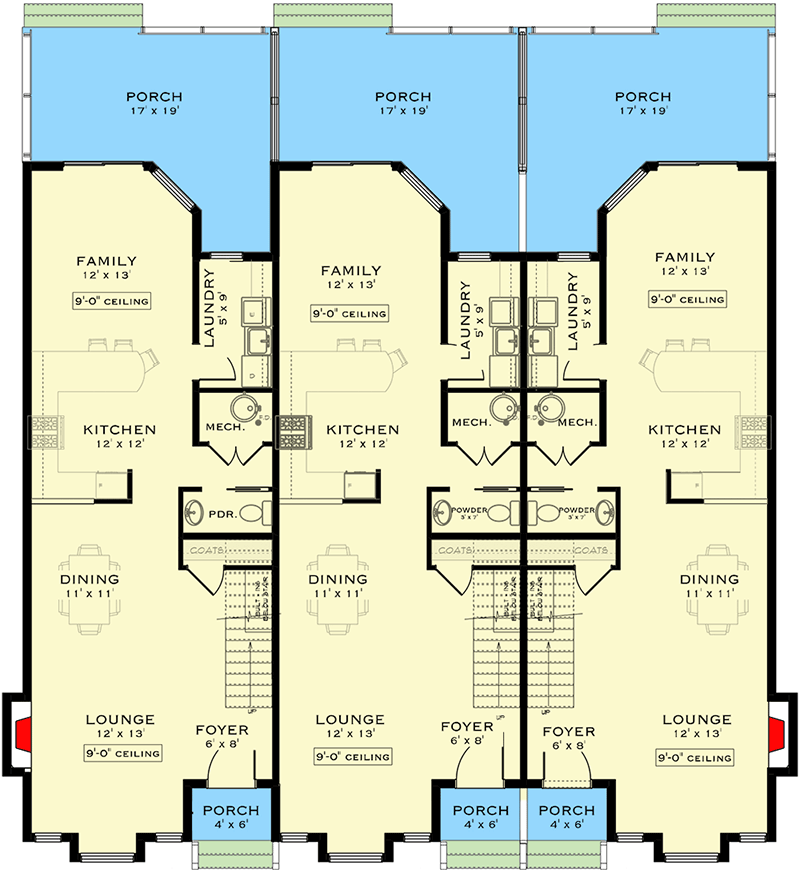

Main Level

Plan 147030RML: Two-Story Contemporary Triplex Plan with 1700 Sq Ft Units - Floor Plan - Main Level - Contemporary

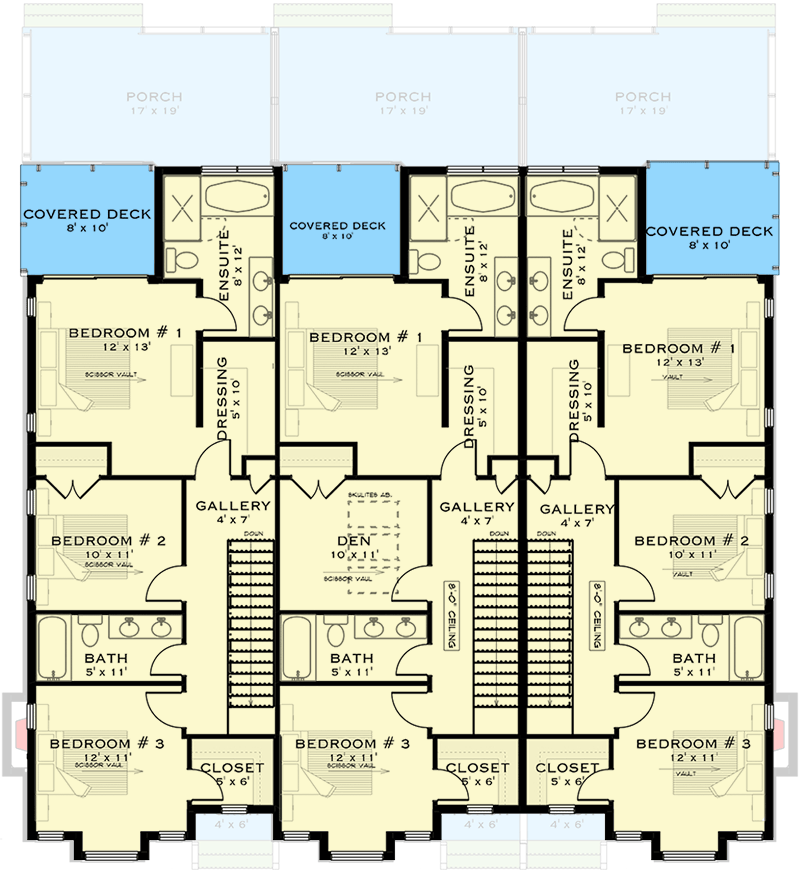

2nd Floor

Plan 147030RML: Two-Story Contemporary Triplex Plan with 1700 Sq Ft Units - Floor Plan - 2nd Floor - Contemporary

Plan Details

  • This contemporary triplex design offers a total of 5,260 sq. ft. of living space across three units, each with 3 bedrooms and 2.5 bathrooms.
  • Upon entry, the open-concept layout welcomes you into a spacious area with a lounge, dining room, and kitchen seamlessly flowing together to enhance social connectivity.
  • Each unit features a thoughtfully designed kitchen adjoining the dining and family areas, ideal for everyday living and entertaining guests.
  • The primary bedrooms showcase spacious dressing areas and en-suite bathrooms, while secondary bedrooms are conveniently located with easy access to a shared bath.
  • Unique features include a flex room that can serve as an office or den, offering versatility for work or leisure.
  • Outdoor spaces are well-appointed with a porch and covered decks, perfect for enjoying fresh air or hosting gatherings.
Unit A & C
Heated Area
1,754Sq. Ft.
887 Sq. Ft. 1st
867 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
19'width
52'depth
Unit B
Heated Area
1,754Sq. Ft.
887 Sq. Ft. 1st
867 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Dimensions
19'width
52'depth

What's Included

  • Title Sheet w/ Color Rendering and Sheet Index
  • General Notes and Details
  • Foundation Plan and Notes
  • Dimensioned Floor Plan(s) with Window Schedule
  • Roof Plan
  • Building Sections and Details
  • Exterior Elevations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

5,260 sq. ft.

1st Floor

2,660 sq. ft.

2nd Floor

2,600 sq. ft.

Porch, Front

72 sq. ft.

Porch, Rear

969 sq. ft.

Porch, Combined

1,041 sq. ft.

Deck

250 sq. ft.

Deck & Porch

1,291 sq. ft.

Entry

144 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

6

Half bathrooms

3

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

59' 0"

Depth

52' 0"

Max Ridge Height

27' 4"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

0 on 12

Framing Type

Stick And Truss

Architectural Style

Contemporary

Special Features

Bedrooms - Clustered

Den

Flex Room

Home Office

Laundry - Main Level

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

5,260 sq. ft.

1st Floor

2,660 sq. ft.

2nd Floor

2,600 sq. ft.

Porch, Front

72 sq. ft.

Porch, Rear

969 sq. ft.

Porch, Combined

1,041 sq. ft.

Deck

250 sq. ft.

Deck & Porch

1,291 sq. ft.

Entry

144 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

6

Half bathrooms

3

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

59' 0"

Depth

52' 0"

Max Ridge Height

27' 4"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

0 on 12

Framing Type

Stick And Truss

Architectural Style

Contemporary

Special Features

Bedrooms - Clustered

Den

Flex Room

Home Office

Laundry - Main Level

Master Suite - Upstairs
