Plan 2584DH

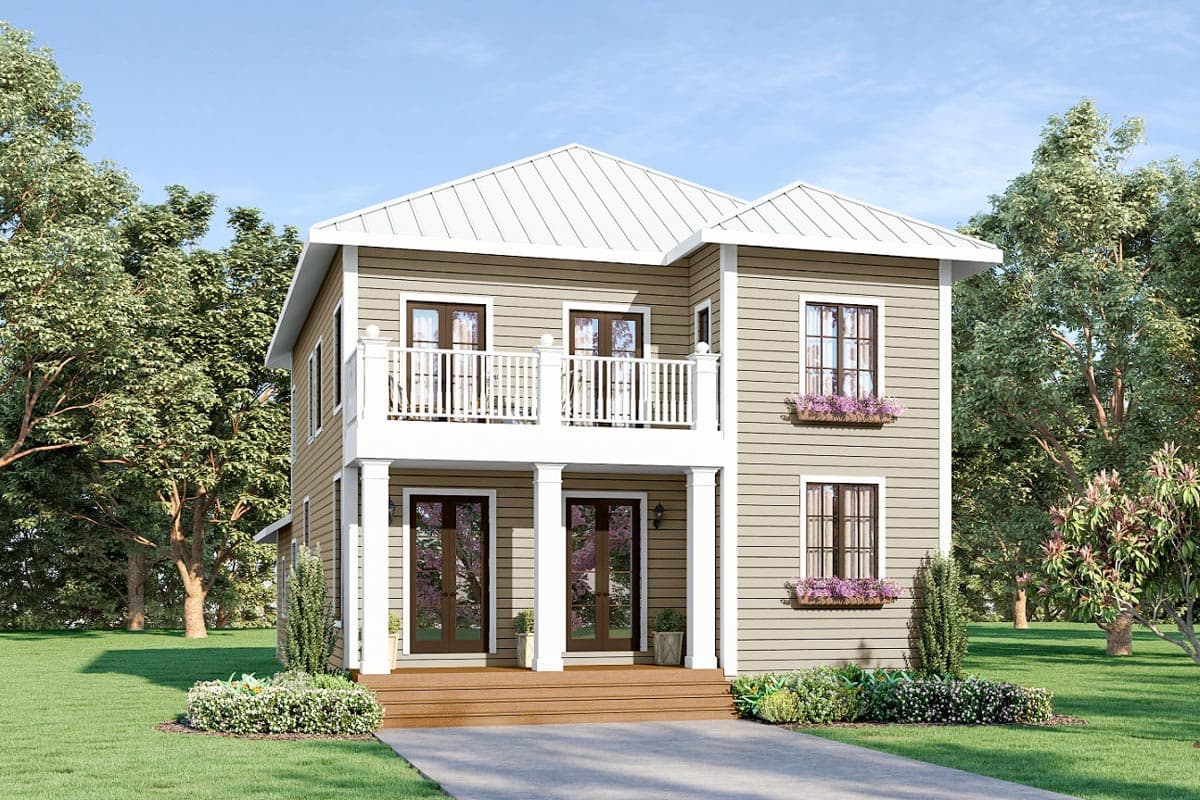

Two-Story Cottage House Plan with Flex Room and Alley-Access Garage - 2415 Sq Ft
Heated S.F.
2,415
Beds
4
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 2584DH

Main Level
slide image 0
2nd Floor
slide image 1

Plan 2584DH

1-800-854-7852

1-262-521-4596

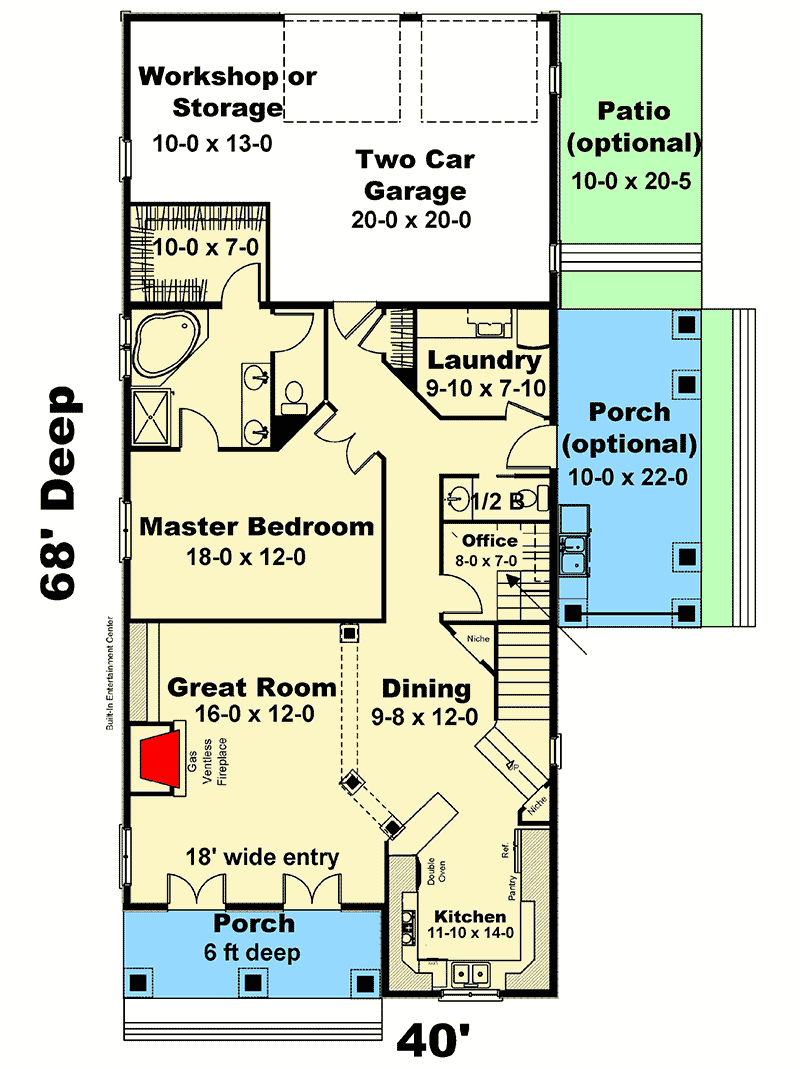

Main Level
floor plan image Main Level

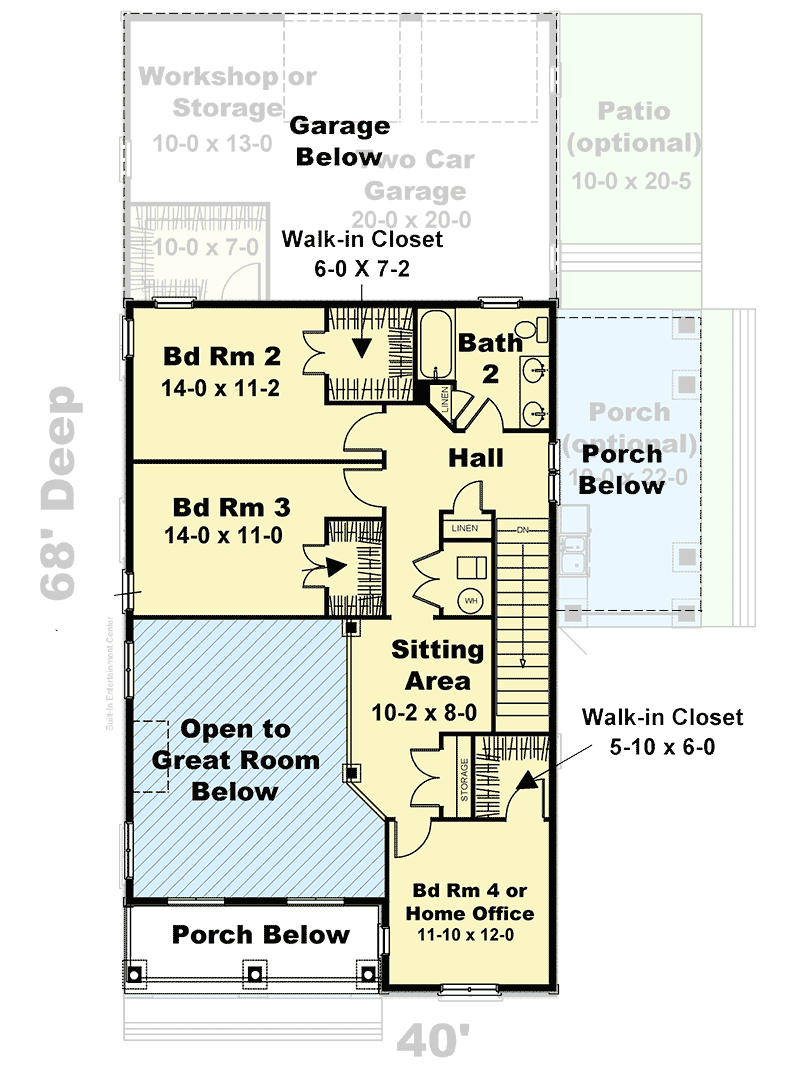

2nd Floor
floor plan image 2nd Floor
Plan Details

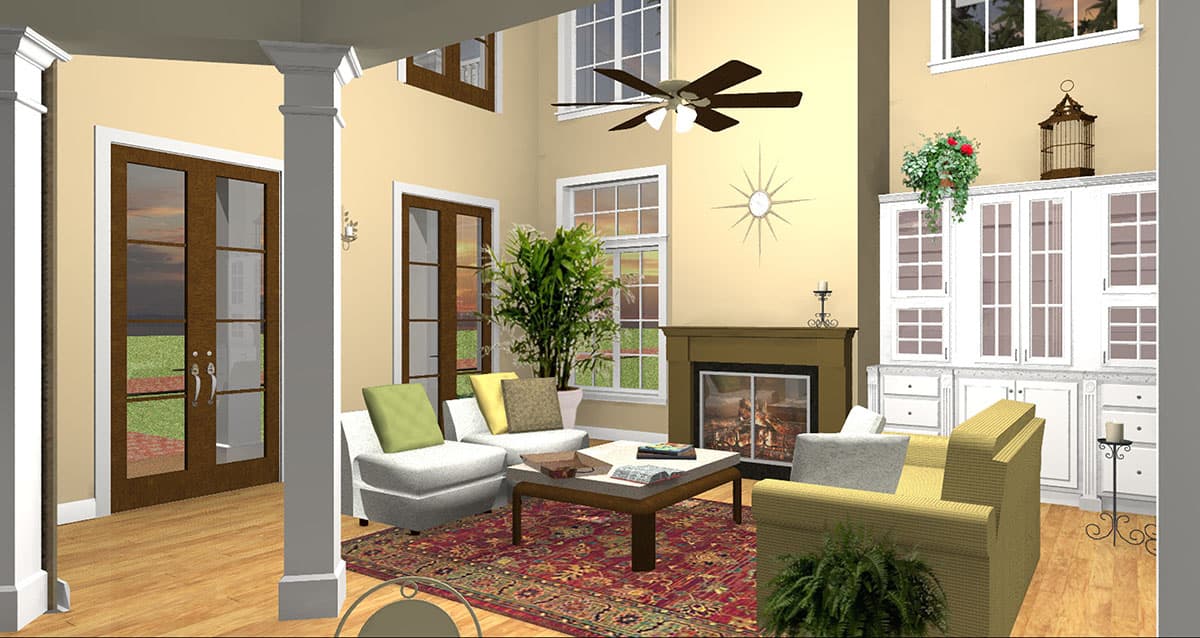

  • This two-story cottage house plan with flex room features an open airy great room and dining area, highlighted by a gas fireplace, double French doors and columns and built-in custom cabinets.

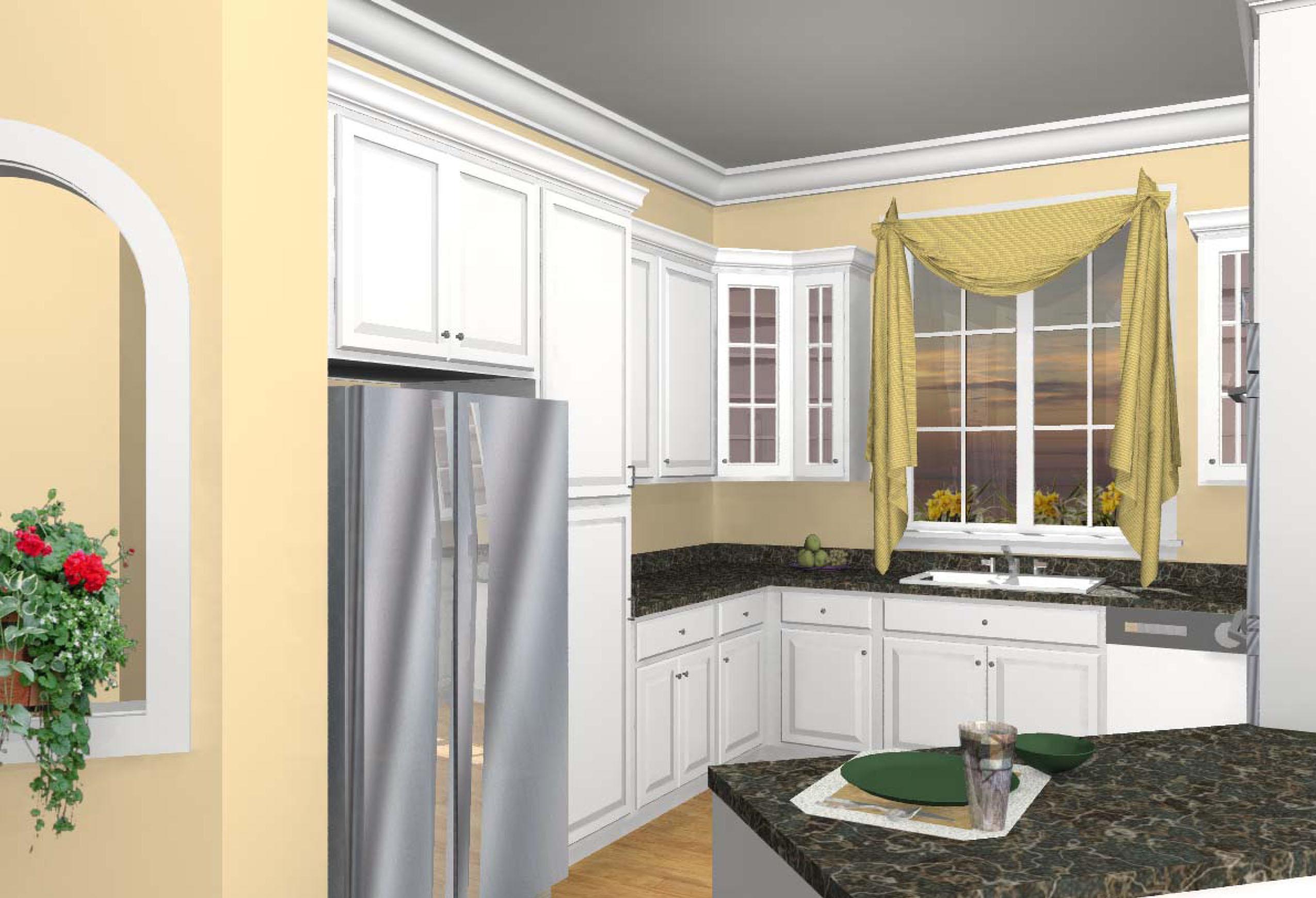

  • The kitchen is highlighted with a view into the great room and lots of cabinet space. Two niches offer unique angles and extra storage around the angled stairs.

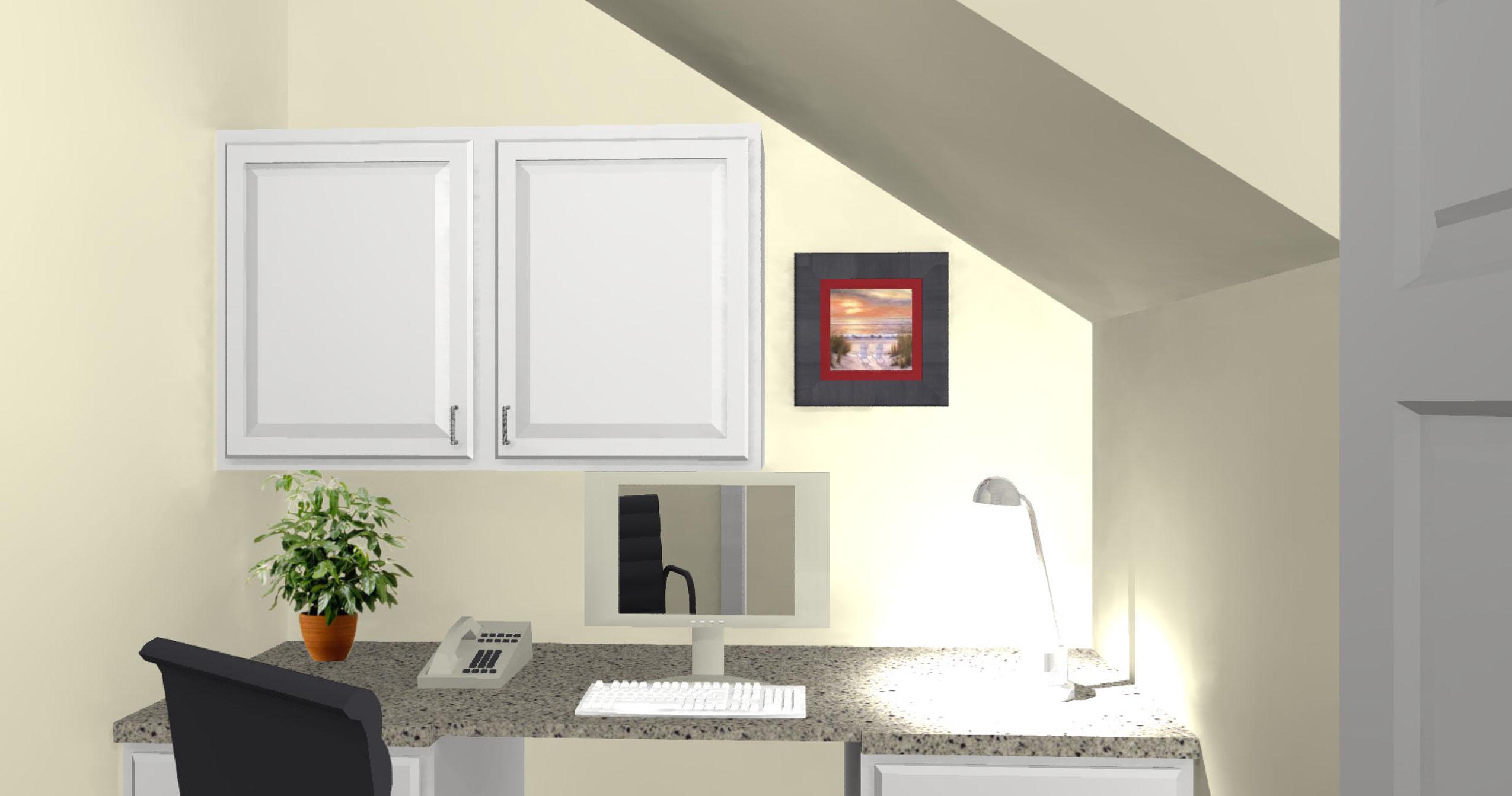

  • A home office is tucked under the stairs, perfect for a computer or hobby area.
  • The large master suite features a spa style bath and walk-in closet. The angled entry
  • creates more privacy for the homeowners.
  • The laundry takes care of the family's clothes with a space saving stacked washer/dryer and lots of cabinets.
  • On the second floor, a sitting Area is open to the great room below with fixed French doors that spill light into the great room below. All bedrooms, on this level, have large walk-in closets and share access with a full bath.
  • Outdoor entertaining is made more enjoyable with an optional side porch. This area has a privacy screen and is perfect for relaxing. Cabinets house a sink and under-counter refrigerator, perfect for outdoor entertaining. The optional patio is created for a grilling area or soaking up the sunshine.

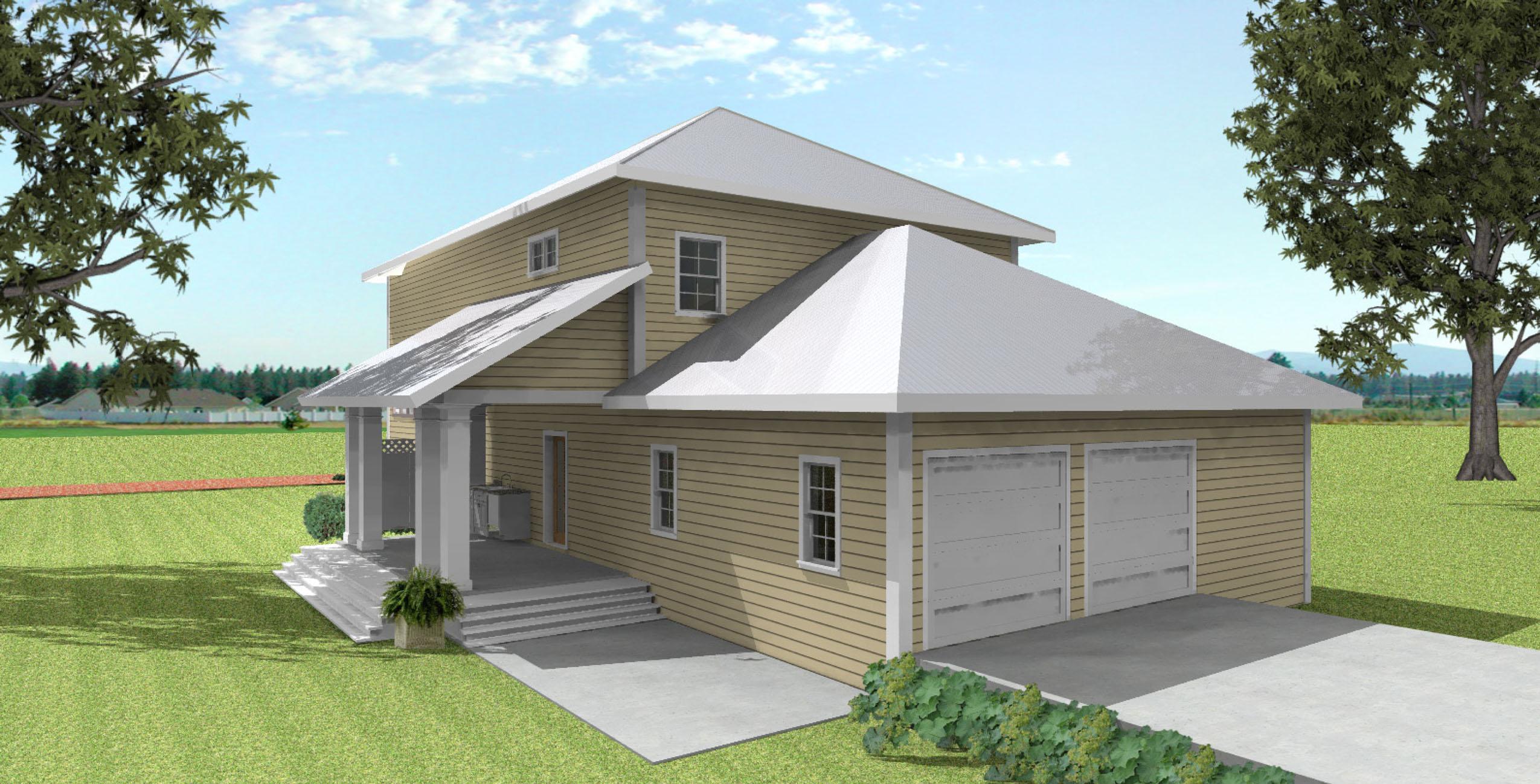

  • The alley-access double garage has a large area for extra storage or room for a workshop.
What's Included
  • Floor plans - Included with your plans will be a detailed floor plan at 1/4" scale with a window and door schedule.
  • Foundation Plan - On many of our plans we offer you options on the type of foundation. The available options for each plan are shown on the page with the plans.
  • Electrical Plan - This sheet will show the locations of all lights, receptacles, switches, etc. as well as a roof layout.
  • Exterior Elevations - Our plans include complete front, sides and rear views, as well as any special exterior details.
  • Interior Elevations of cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections, Details and Typical Specifications Sheets
  • Some plans can be ordered with a materials list for an extra change. Please check availability for this option.
  • Plumbing diagrams and HVAC plans are not available for these homes, since they are generally not needed for home construction and since each county's code will vary and a licensed plumber and/or electrician must follow the codes.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,415 sq. ft.

1st Floor

1,407 sq. ft.

2nd Floor

1,008 sq. ft.

Porch, Front

192 sq. ft.

Porch, Rear

220 sq. ft.

Covered Patio

204 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

68' 0"

Max Ridge Height

31' 0"

Garage

Type

Attached

Area

527 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Cottage

Plan Collections

Square Footage Breakdown

Total Heated Area

2,415 sq. ft.

1st Floor

1,407 sq. ft.

2nd Floor

1,008 sq. ft.

Porch, Front

192 sq. ft.

Porch, Rear

220 sq. ft.

Covered Patio

204 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

68' 0"

Max Ridge Height

31' 0"

Garage

Type

Attached

Area

527 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style
