Plan 52293WM
Two-Story Cottage with 1-Car Garage
Heated S.F.
1,564
Beds
2-3
Baths
2.5
Stories
2
Cars
1
What's Included
Plan Details
  • This adorable cottage plan features a gable roof above horizontal siding, with a charming front porch spanning the length of the home. A 1-car garage attaches to the right of the home.

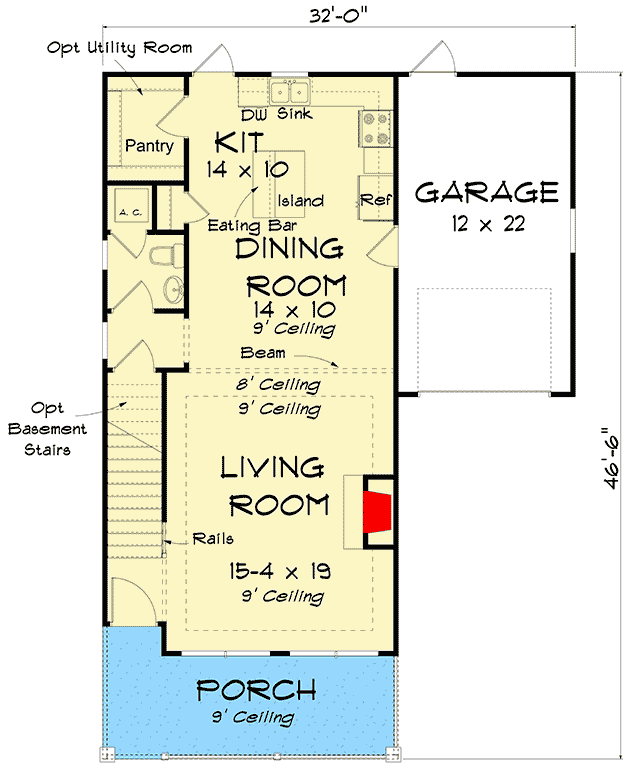

  • The main level consists of the shared living spaces in an open format. The light-filled living room includes a fireplace, while overlooking the front porch.
  • The eat-in kitchen boasts an island with an eating bar, and a large walk-in pantry is just within reach. The double-bowl sink rests beneath a window with views of the backyard.

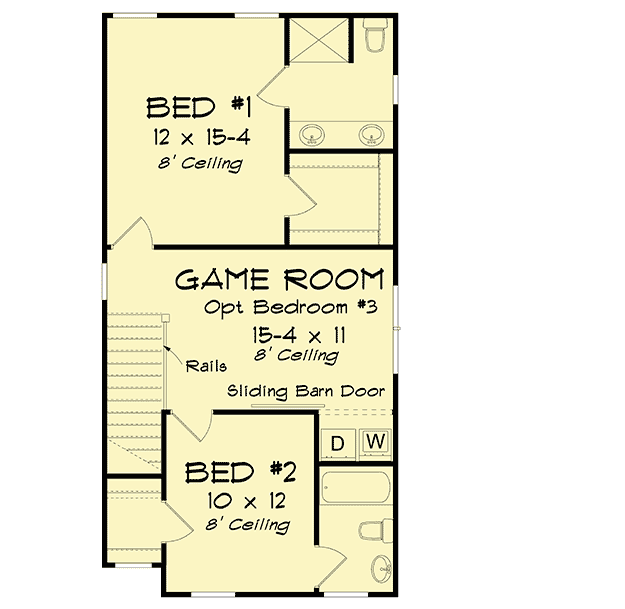

  • Upstairs, a game room with a laundry closet sits between two bedrooms; one with a 4-fixture bath, and one with a full bath. Convert the game room into a third bedroom if needed.
  • Related Plan: Remove the garage with house plan 52292WM.
What's Included
  • Front elevation and construction notes

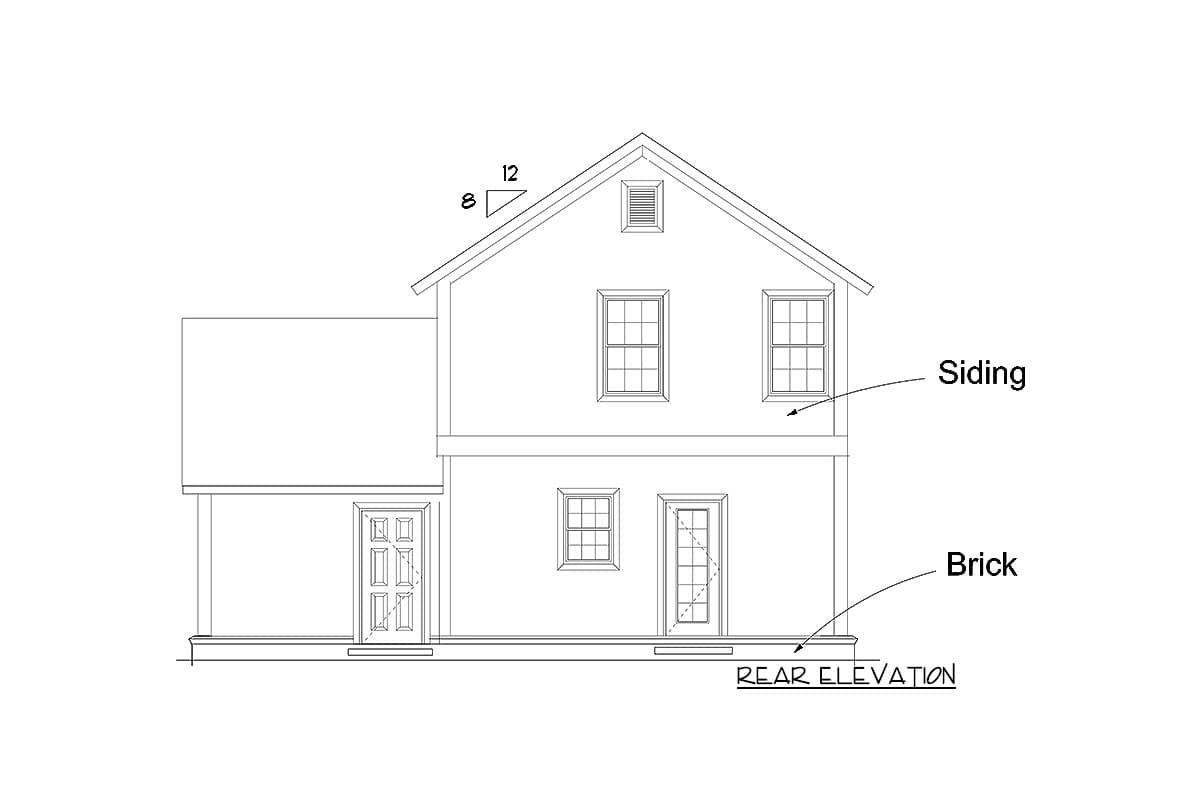

  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Most plans have an optional full building section--only available upon request--at no extra cost.  This section is not typically required in the US but can be a requirement in Canada
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Two-Story Cottage with 1-Car Garage

  • 1,564

    Heated s.f.

  • 2-3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 1

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,564 sq. ft.
  • 1st Floor: 782 sq. ft.
  • 2nd Floor: 782 sq. ft.

Dimensions

  • Width: 32' 0"
  • Depth: 46' 6"
  • Max ridge height: 25' 4"

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 264 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
