Plan 52292WM

Two-Story Cottage with Second-Level Sleeping Rooms

Name: Plan 52292WM: Two-Story Cottage with Second-Level Sleeping Rooms
Brand: Architectural Designs
SKU: 52292WM
Price: 905.25 USD
Availability: InStock

Heated S.F.

1,564

Beds

2 - 3

Baths

2.5

Stories

Floor Plan

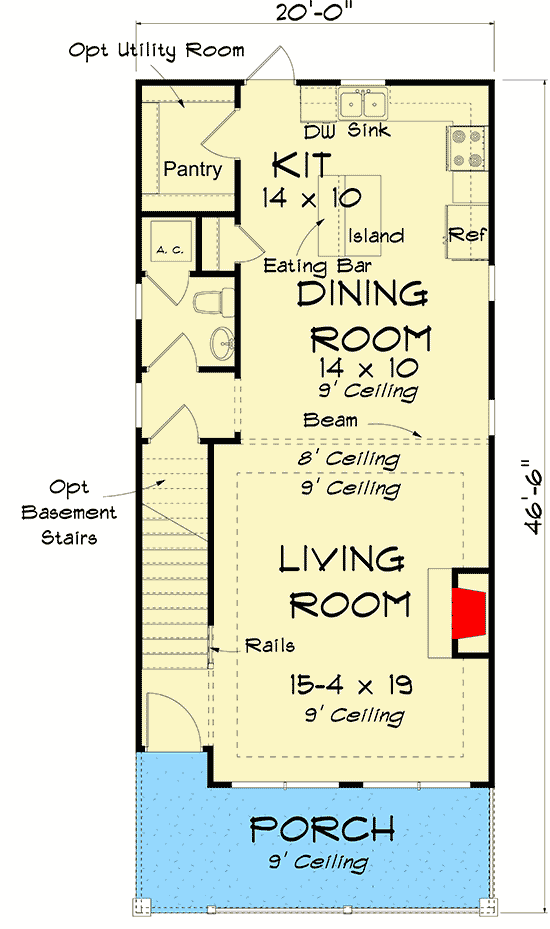

Main Level

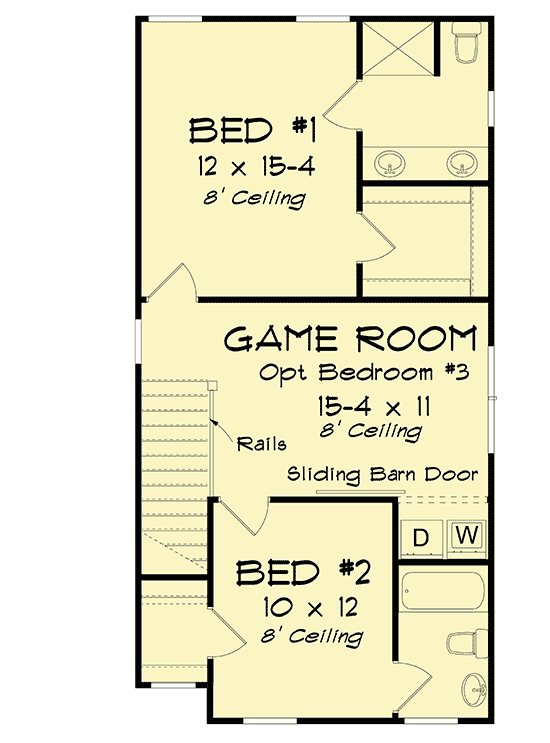

2nd Floor

Plan Details

This adorable cottage plan features a gable roof above horizontal siding, with a charming front porch spanning the length of the home.
The main level consists of the shared living spaces in an open format. The light-filled living room includes a fireplace, while overlooking the front porch.
The eat-in kitchen boasts an island with an eating bar, and a large walk-in pantry is just within reach. The double-bowl sink rests beneath a window with views of the backyard.
Upstairs, a game room with a laundry closet sits between two bedrooms; one with a 4-fixture bath, and one with a full bath. Convert the game room into a third bedroom, if needed.
Related Plan: Get a 1-car garage on the right with house plan 52293WM.

What's Included

Front elevation and construction notes

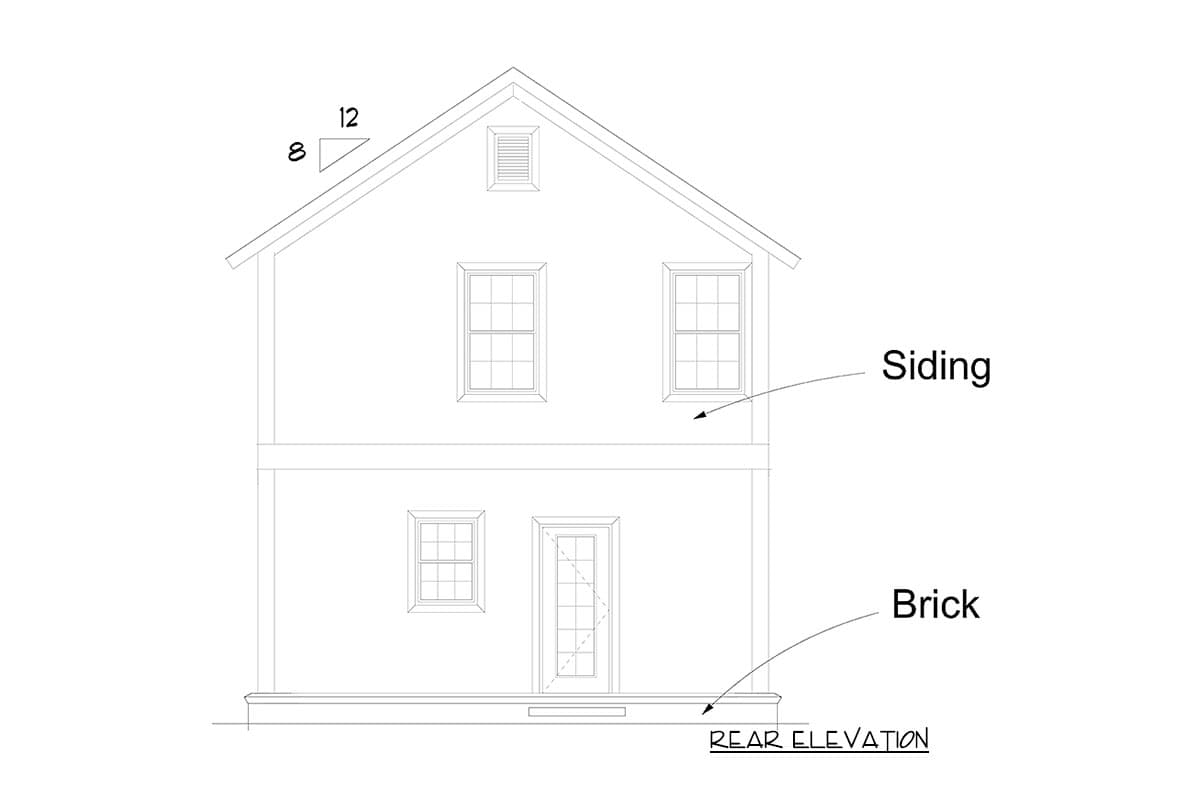

Rear and side elevations
Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
Second floor plan (if applicable) with the same details as the first level floor plan
Typical wall section
Typical foundation details
Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
Foundation plan
Full building section

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
