Plan 72312DA Two-story Craftsman Triplex Offering 3-Bedroom Units

4,892 3 110' 0" 37' 0" 6
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Two-story Craftsman Triplex Offering 3-Bedroom Units

Plan 72312DA

  • 4,892

    Heated s.f.

  • 3

    Units

  • 110' 0"

    Width

  • 37' 0"

    Depth

  • This two-story Craftsman triplex plan with each unit nearly identical in size. Each units offers 3 beds, 2 full and 1 half bath. The end units have 744 square feet on the first floor (the middle one has 745 square feet) and 887 square feet on the second floor (the middle unit has 885 square feet).
  • The first floor of each unit makes up the common living areas such as the living room, dining room, kitchen and utility room.
  • Uniquely placed, the garage bays are entered from the rear of the building, maintaining a neat façade while capturing the coveted family friendly craftsman look.
  • The covered front porches above the entry of each unit will keep your guests dry as they come into the home, while a door leading into the dining room from the garage keeps you and your tenants sheltered from stormy or cold weather.
  • The second story is comprised of a cozy loft with a small storage area and three bedrooms per unit.
  • The two single bedrooms share a common bath between them while the master suite has its own private bathroom and walk-in closet.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

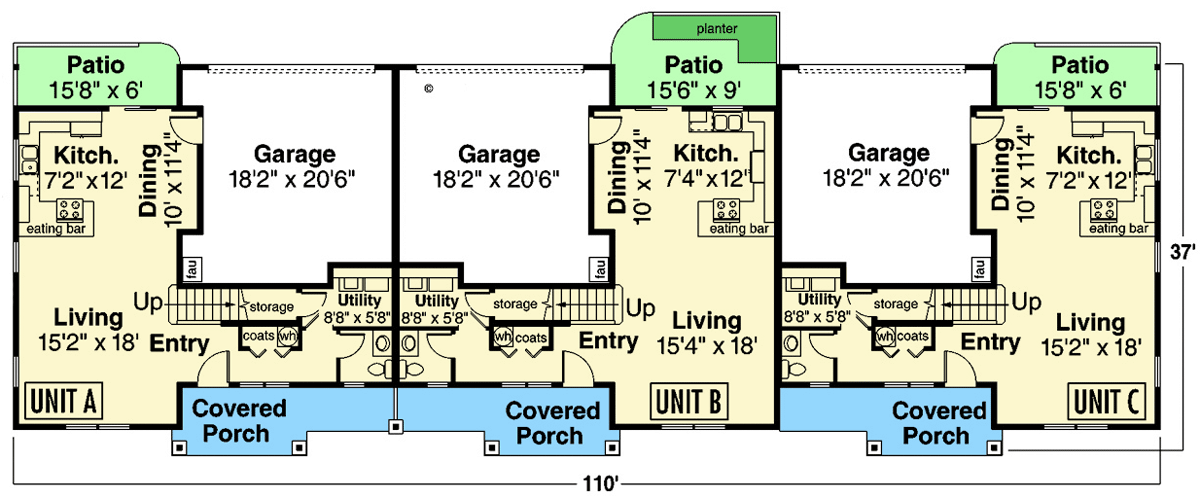

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Two-story Craftsman Triplex Offering 3-Bedroom Units - 72312DA floor plan - Main Level

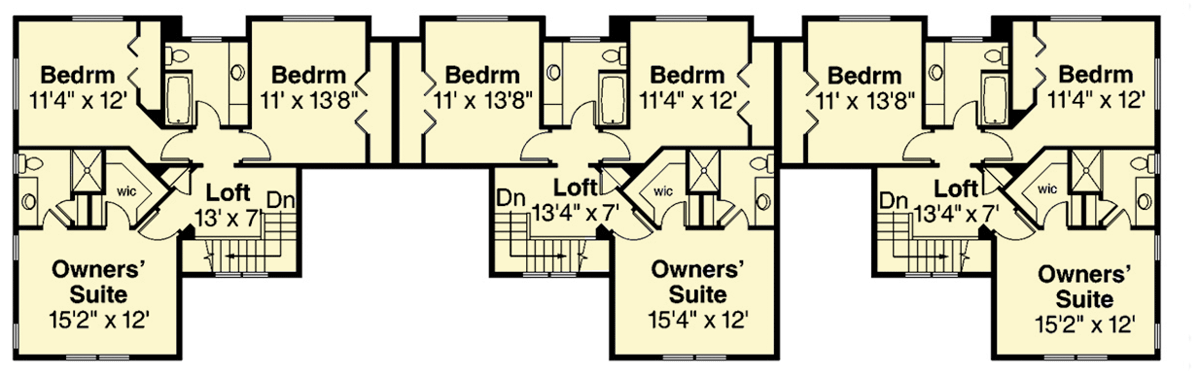

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Two-story Craftsman Triplex Offering 3-Bedroom Units - 72312DA floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,892 sq. ft.
  • 1st Floor: 2,233 sq. ft.
  • 2nd Floor: 2,659 sq. ft.

Beds/Baths

  • Bedrooms: 9
  • Full bathrooms: 6
  • Half bathrooms: 3

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 110' 0"
  • Depth: 37' 0"
  • Max ridge height: 26' 9"

Garage

  • Type: Attached
  • Area: 395 sq. ft.
  • Count: 6 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 7 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Two-story Craftsman Triplex Offering 3-Bedroom Units

  • 4,892

    Heated s.f.

  • 3

    Units

  • 110' 0"

    Width

  • 37' 0"

    Depth

Buy This Plan
  • Study Set - Digital $1,455
  • PDF Light $1,820
  • 5 Sets + PDF $2,185
  • PDF - Single-Build $3,685
  • CAD - Single-Build $4,045
  • CAD - Unlimited Build $4,450
  • View all purchase option online

About This Plan

  • This two-story Craftsman triplex plan with each unit nearly identical in size. Each units offers 3 beds, 2 full and 1 half bath. The end units have 744 square feet on the first floor (the middle one has 745 square feet) and 887 square feet on the second floor (the middle unit has 885 square feet).
  • The first floor of each unit makes up the common living areas such as the living room, dining room, kitchen and utility room.
  • Uniquely placed, the garage bays are entered from the rear of the building, maintaining a neat façade while capturing the coveted family friendly craftsman look.
  • The covered front porches above the entry of each unit will keep your guests dry as they come into the home, while a door leading into the dining room from the garage keeps you and your tenants sheltered from stormy or cold weather.
  • The second story is comprised of a cozy loft with a small storage area and three bedrooms per unit.
  • The two single bedrooms share a common bath between them while the master suite has its own private bathroom and walk-in closet.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,892 sq. ft.
  • 1st Floor: 2,233 sq. ft.
  • 2nd Floor: 2,659 sq. ft.

Beds/Baths

  • Bedrooms: 9
  • Full bathrooms: 6
  • Half bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 110' 0"
  • Depth: 37' 0"
  • Max ridge height: 26' 9"

Garage

  • Type: Attached
  • Area: 395 sq. ft.
  • Count: 6 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Stick And Truss
