Plan 42385DB

Two-Story Craftsman with Flex Room

Pageloader

Two-Story Craftsman with Flex Room

Plan 42385DB

  • 2,361

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Interior columns set off the formal dining room in this Craftsman house plan, keeping the sightlines open.
  • A flex room gives you options from a study to a formal living room to a playroom for the kids.
  • The open layout at the rear of the home encompasses the kitchen, nook and giant family room.
  • Homeowners will appreciate having both an island and a walk-in pantry.
  • The three car garage has a tandem bay that can be used for storage too.
  • A lovely tray ceiling crowns the master suite that has double doors for a grand entry.
  • Two of the three family bedrooms have large walk-in closets and there's a built-in bookshelf and a second floor laundry for your convenience.
  • Options include an extra bathroom for bedroom 2 and an expanded walk-in closet for the master suite.
  • Related Plan: Downsize to a 3 bedrooms with house plan 42183DB.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

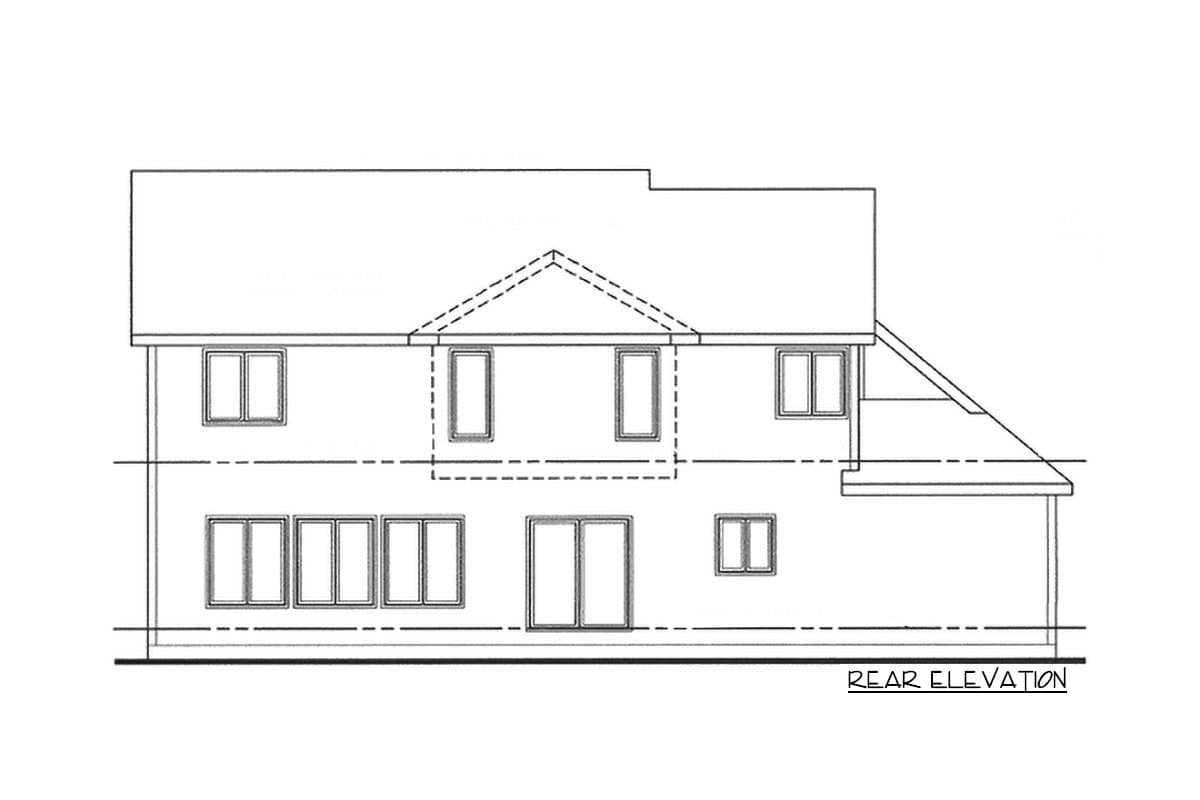

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

Plan details



Two-Story Craftsman with Flex Room

  • 2,361

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Digital Study Set $665
  • PDF - single-use $1,015
  • 5 Sets $1,140
  • 5 Sets PLUS $1,185
  • 8 Sets $1,210
  • PDF - multi-use $1,515
  • CAD $1,776
  • CAD - multi-use $2,276
  • View all purchase option online

About This Plan

  • Interior columns set off the formal dining room in this Craftsman house plan, keeping the sightlines open.
  • A flex room gives you options from a study to a formal living room to a playroom for the kids.
  • The open layout at the rear of the home encompasses the kitchen, nook and giant family room.
  • Homeowners will appreciate having both an island and a walk-in pantry.
  • The three car garage has a tandem bay that can be used for storage too.
  • A lovely tray ceiling crowns the master suite that has double doors for a grand entry.
  • Two of the three family bedrooms have large walk-in closets and there's a built-in bookshelf and a second floor laundry for your convenience.
  • Options include an extra bathroom for bedroom 2 and an expanded walk-in closet for the master suite.
  • Related Plan: Downsize to a 3 bedrooms with house plan 42183DB.

Floor Plans

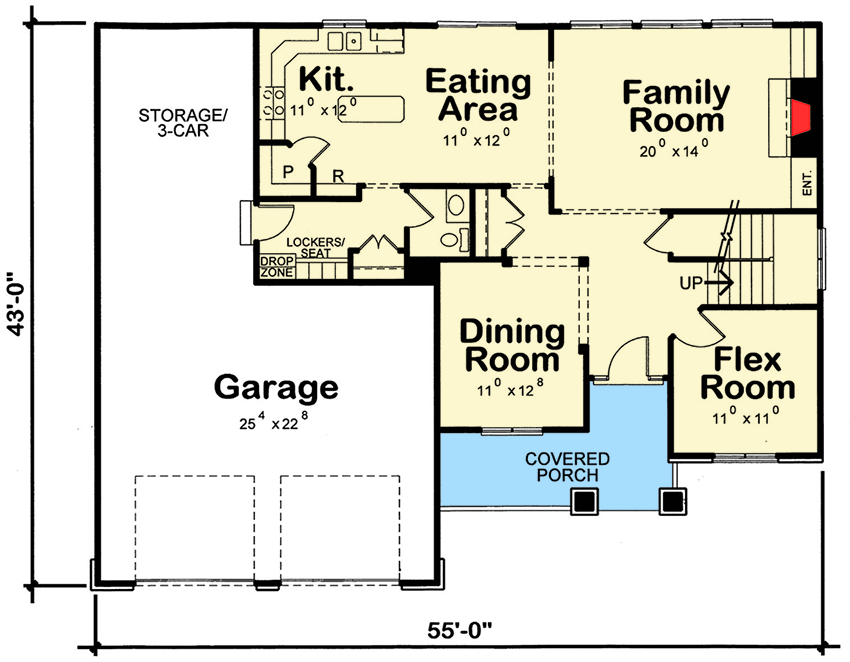

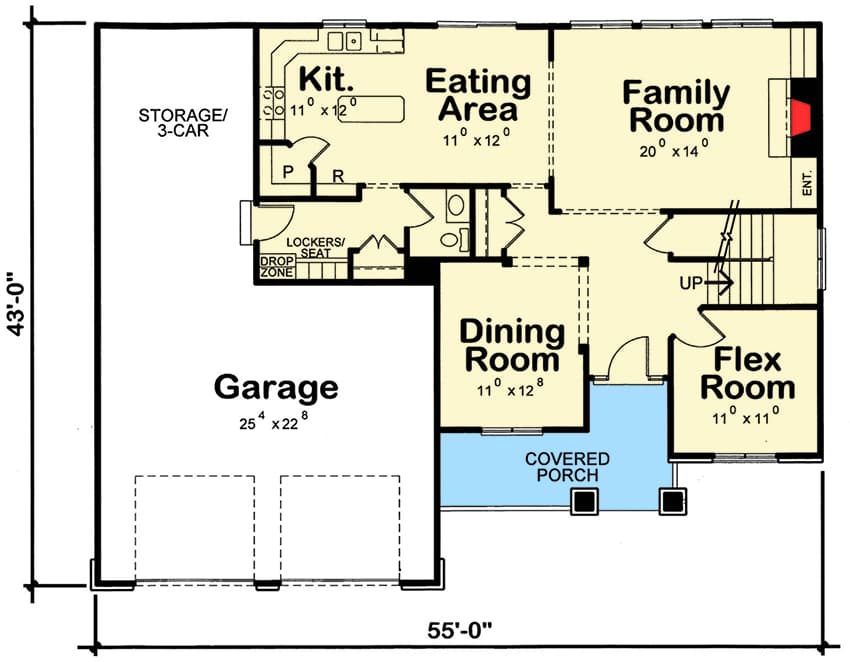

  • Main Level

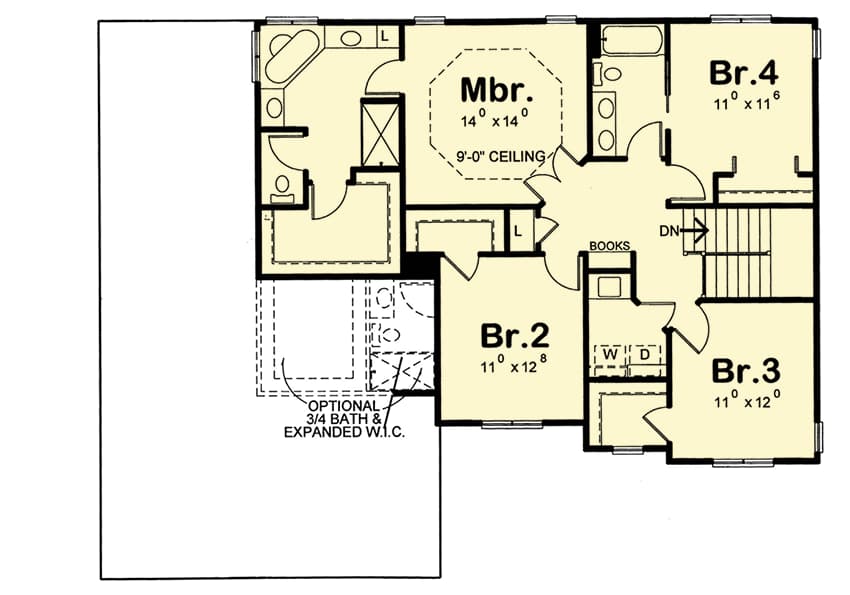

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,361 sq. ft.
  • 1st Floor: 1,192 sq. ft.
  • 2nd Floor: 1,169 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 55' 0"
  • Depth: 43' 0"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 834 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"
