Plan 370008SEN

Two-Story Craftsman with Optional Lower Level

Heated S.F.
2,243
Beds
3 - 5
Baths
3.5 - 4.5
Stories
2
Cars
2- 3

Floor Plan

Plan 370008SEN

Main Level
Main Level
2nd Floor
2nd Floor
Optional Lower Level
Optional Lower Level

Plan 370008SEN

M-F 9am-5pm EST |

1-203-761-8500

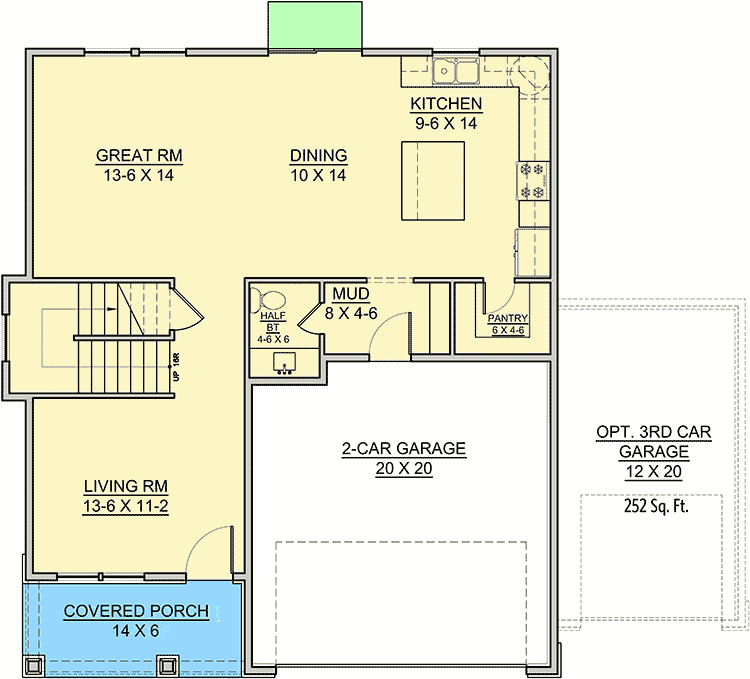

Main Level

Plan 370008SEN: Two-Story Craftsman with Optional Lower Level - Floor Plan - Main Level - Country, Craftsman, Northwest

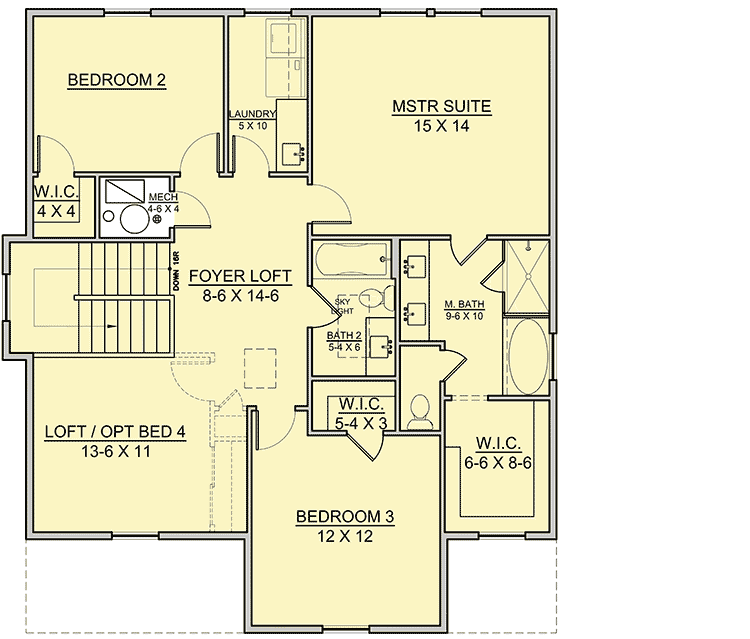

2nd Floor

Plan 370008SEN: Two-Story Craftsman with Optional Lower Level - Floor Plan - 2nd Floor - Country, Craftsman, Northwest

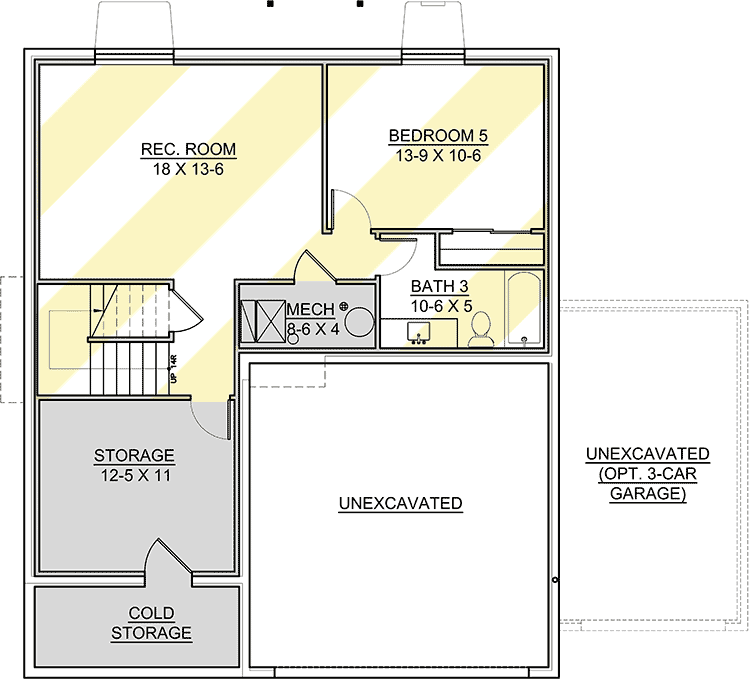

Optional Lower Level

Plan 370008SEN: Two-Story Craftsman with Optional Lower Level - Floor Plan - Optional Lower Level - Country, Craftsman, Northwest

Plan Details

  • The functionality of this two-story craftsman house plan doubles as an added sense of charm. The main floor consists of the shared living spaces, with the sleeping rooms upstairs, and an optional lower level for additional living space, if needed.
  • The front porch welcomes guests into a quiet living room. An open floor plan connects the great room and eat-in kitchen, which features a large prep island and a walk-in pantry.
  • Keep outdoor gear organized in the mudroom, just inside from the 2-car garage. The design includes an optional third bay for added flexibility.
  • Upstairs, the spacious master suite includes a 5-fixture bath, along with a walk-in closet. Two additional bedrooms share the hall bath and the laundry room is centrally located for easy access. A loft space can easily be converted into a fourth bedroom if needed.
  • Increase living space by 1,069 sq. ft. with the optional lower level, which provides a generously-sized recreation room, fifth bedroom, and a full bath.

What's Included

This plan includes the following details:
  • Cover Sheet
  • General Notes

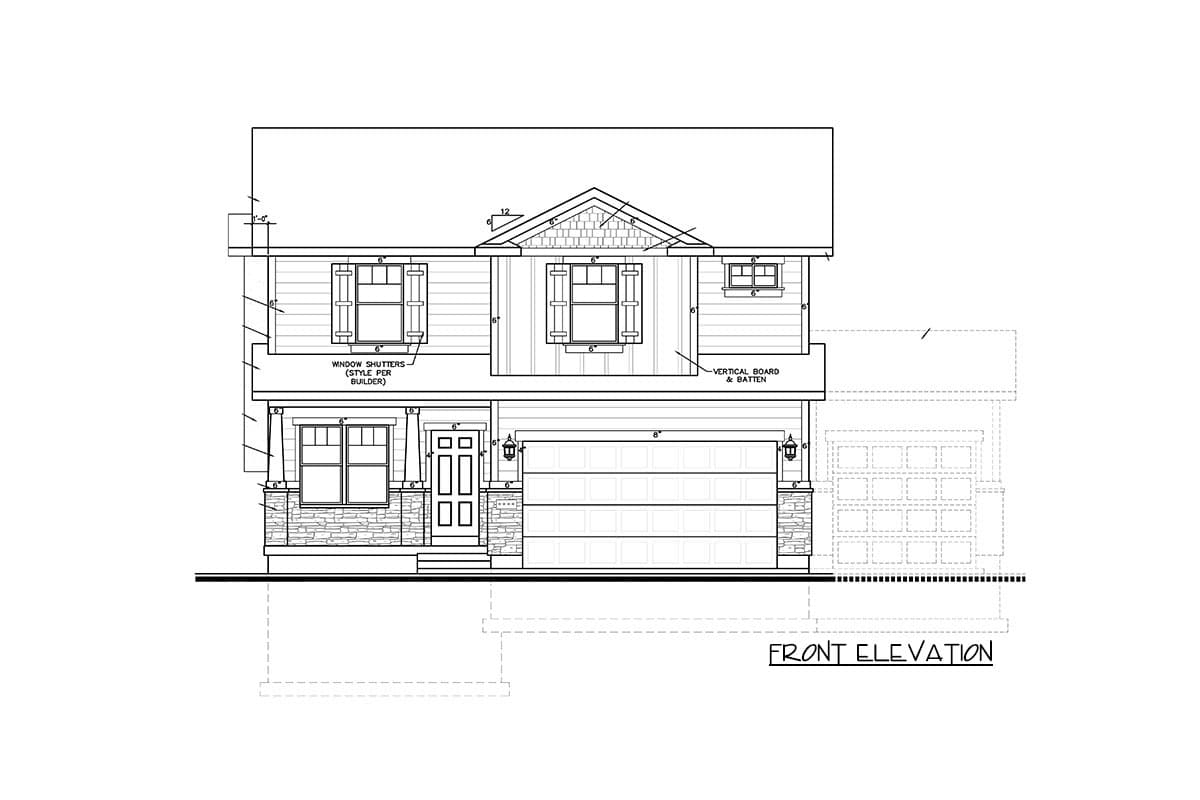

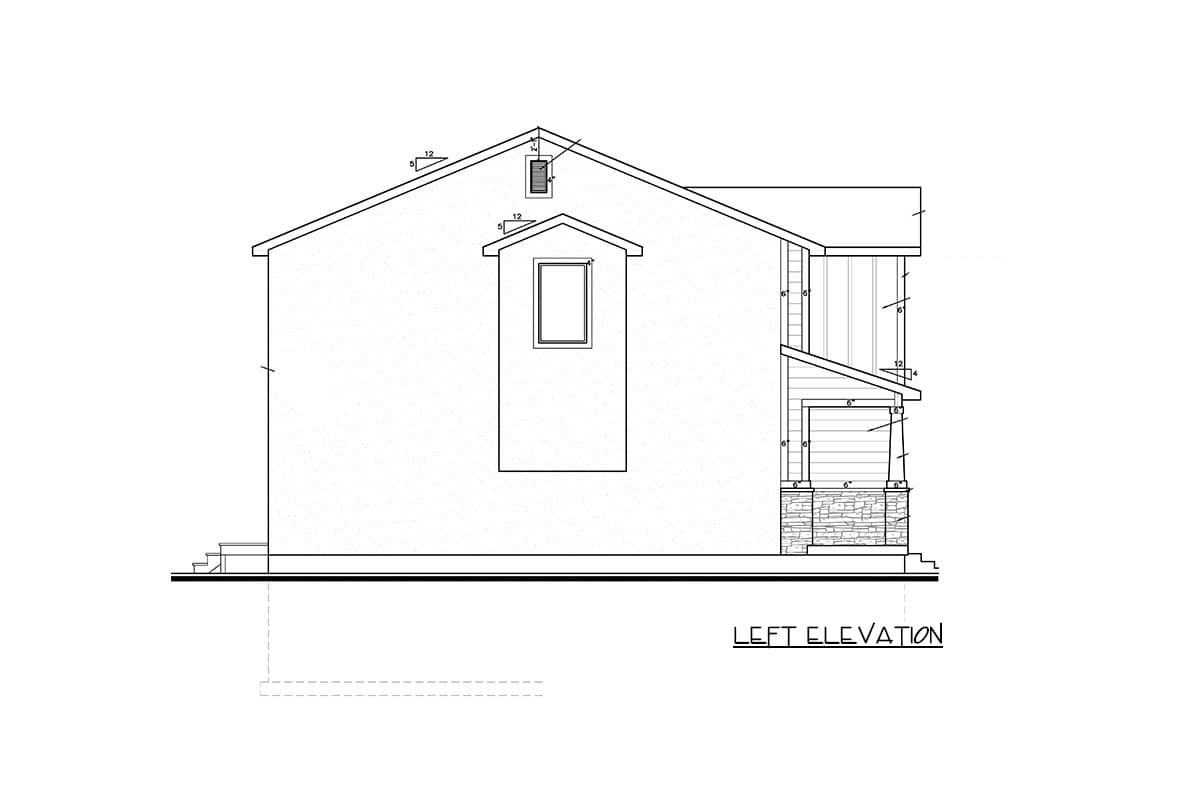

  • Front & left elevations

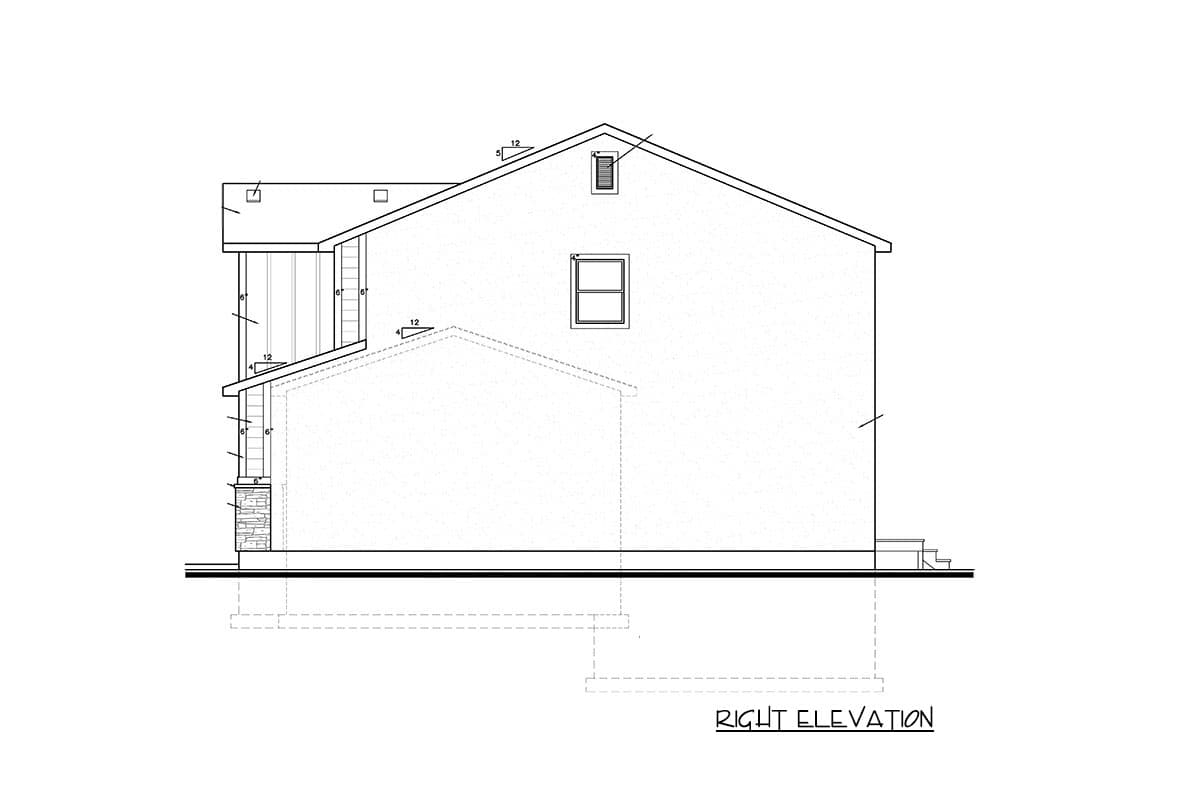

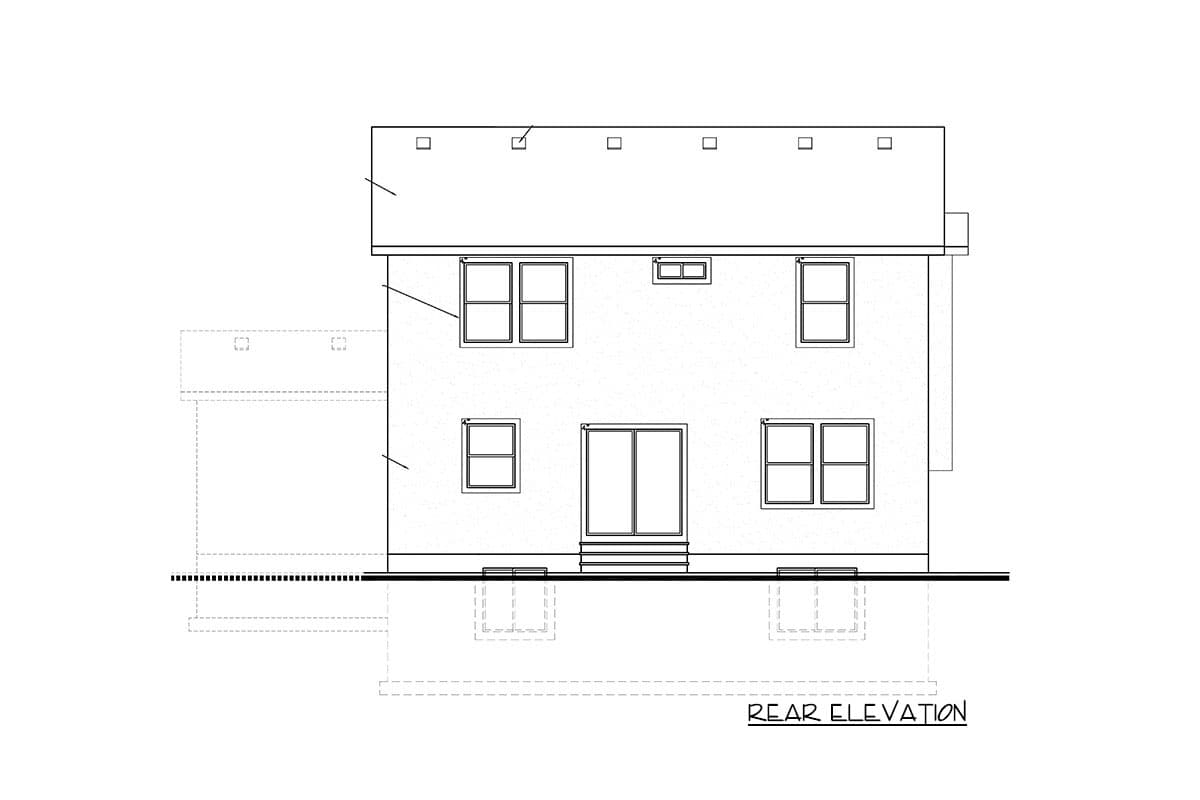

  • Rear & right elevations
  • Foundation page
  • Main floor plan
  • Upper floor plan
  • Main floor framing plan (basement option)
  • Upper floor/low roof framing plan
  • Upper roof framing plan
  • Building/stair sections
  • Main electrical plan
  • Upper floor electrical plan
  • Basement electrical plan (for basement option)
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,243 sq. ft.

1st Floor

984 sq. ft.

2nd Floor

1,259 sq. ft.

Optional Lower Level

1,069 sq. ft.

Porch, Combined

84 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

3 or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

35' 6"

Depth

40' 0"

Max Ridge Height

28' 1"

Garage

Type

Attached

Area

408 sq. ft.

Count

2 or 3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

Northwest

Special Features

Laundry - Upstairs

Loft

Master Suite - Upstairs

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

2,243 sq. ft.

1st Floor

984 sq. ft.

2nd Floor

1,259 sq. ft.

Optional Lower Level

1,069 sq. ft.

Porch, Combined

84 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

3 or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

35' 6"

Depth

40' 0"

Max Ridge Height

28' 1"

Garage

Type

Attached

Area

408 sq. ft.

Count

2 or 3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

Northwest

Special Features

Laundry - Upstairs

Loft

Master Suite - Upstairs

Mudroom

Walk-in Pantry
