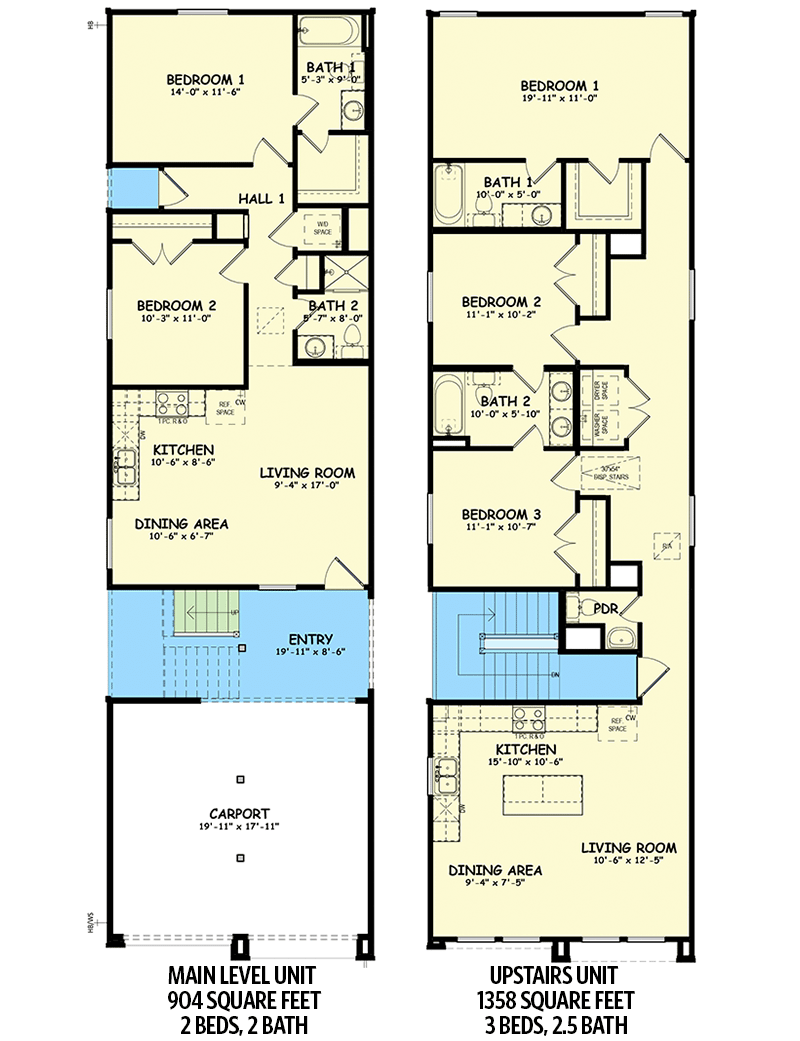

Plan 100313GHR: Two-Story Duplex House Plan with 2262 Square Foot 5 Beds - Floor Plan - Main Level and Upstairs Unit - Contemporary, Modern, Scandinavian

Plan Details

  • This multi-family house plan gives you 2 units, with the ground level unit giving you 904 square feet of living with 2 beds and 2 baths and the upstairs unit giving you 1358 square feet of heated living with 3 beds and 2.5 baths.
  • This multi-family home plan also offers a 2-car carport in the front of the space, one covered spot for each family.
Unit Downstairs
Heated Area
904Sq. Ft.
904 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Dimensions
20' 6"width
44'depth
28' 3"height
Unit Upstairs
Heated Area
1,358Sq. Ft.
1358 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
20' 6"width
71' 5"depth
28' 3"height

What's Included

  • Cover sheet with area, door & window schedules
  • Dimensioned floorplans with general notes, window & door sizes
  • Interior cabinet elevation
  • Foundation outline (perimeter dimensions only. All other construction details to be handled locally based on site and soil conditions)
  • Roof plan (Birdseye view with pitches)
  • Cornice details

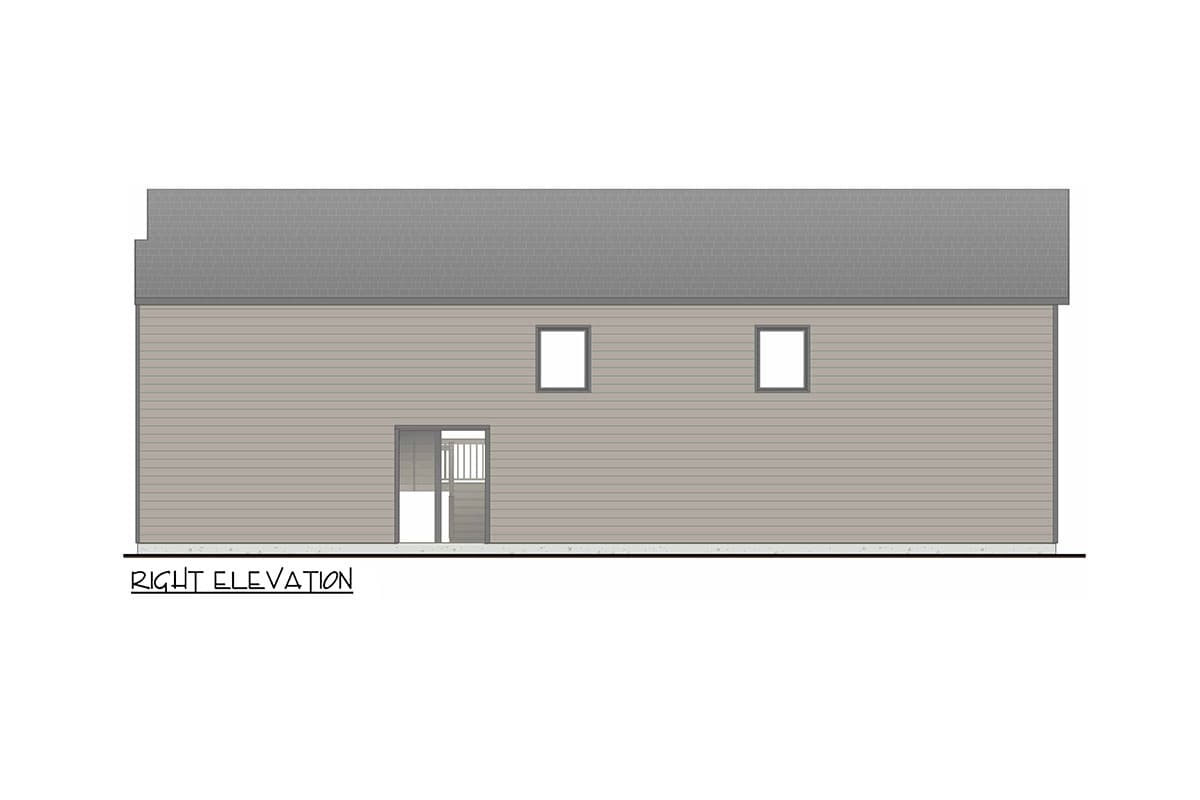

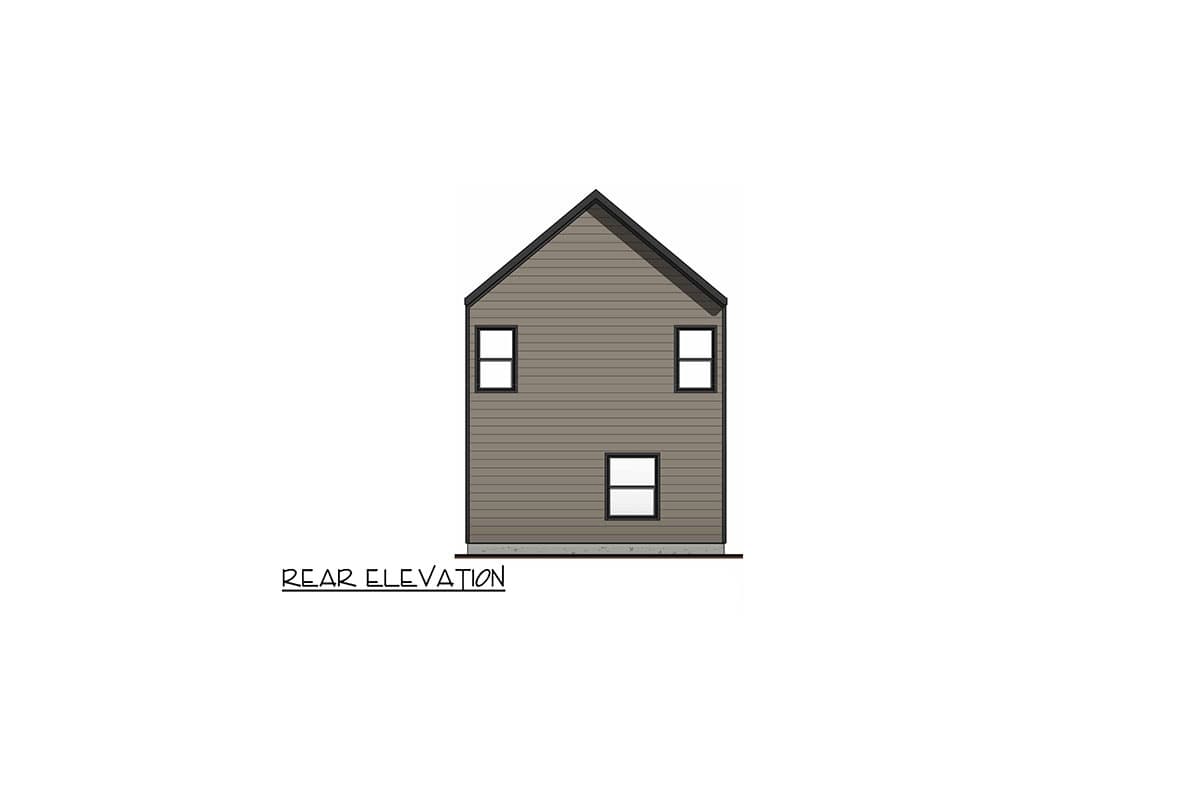

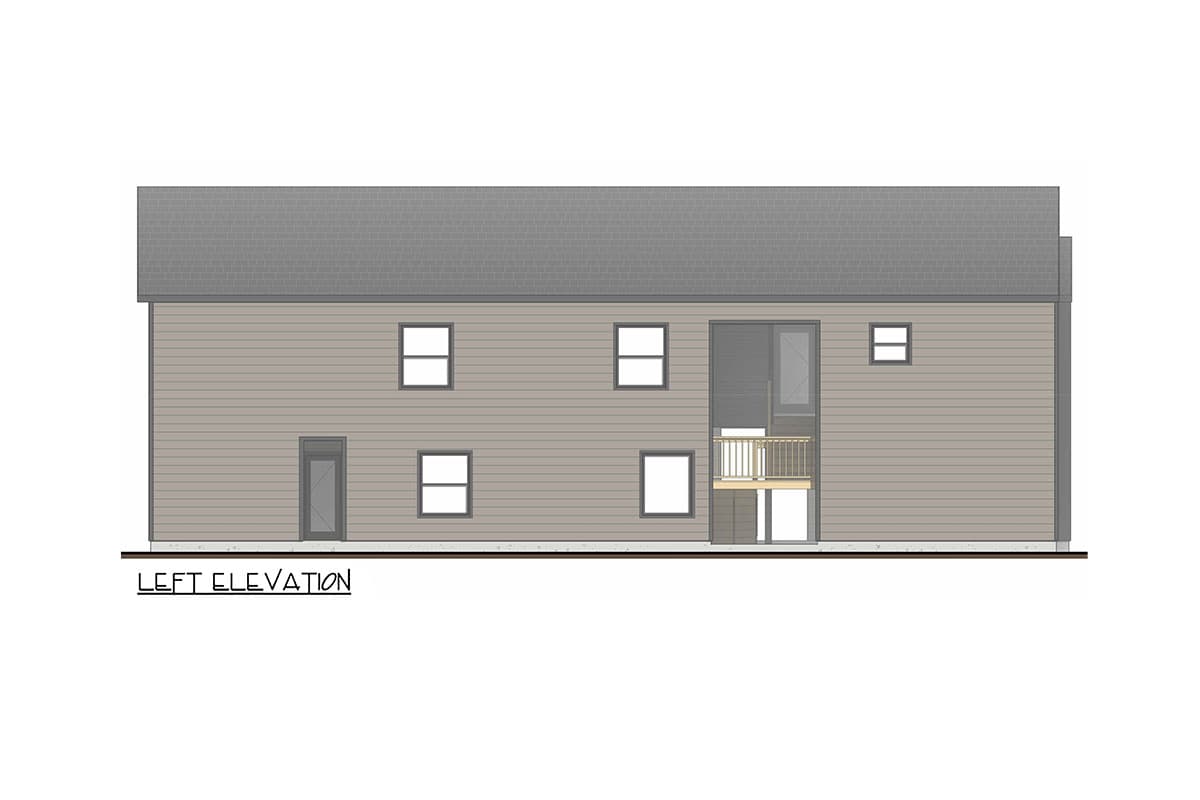

  • Exterior elevations (4 sides)
  • Building sections (if applicable)
  • Electrical plans
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
