Two-Story Duplex House Plan with Pocket Offices - 2048 Sq Ft Per Unit

Heated S.F.
4,096
Units
2
Width
Depth

Floor Plan

Plan 52419WM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 52419WM

M-F 9am-5pm EST |

1-203-761-8500

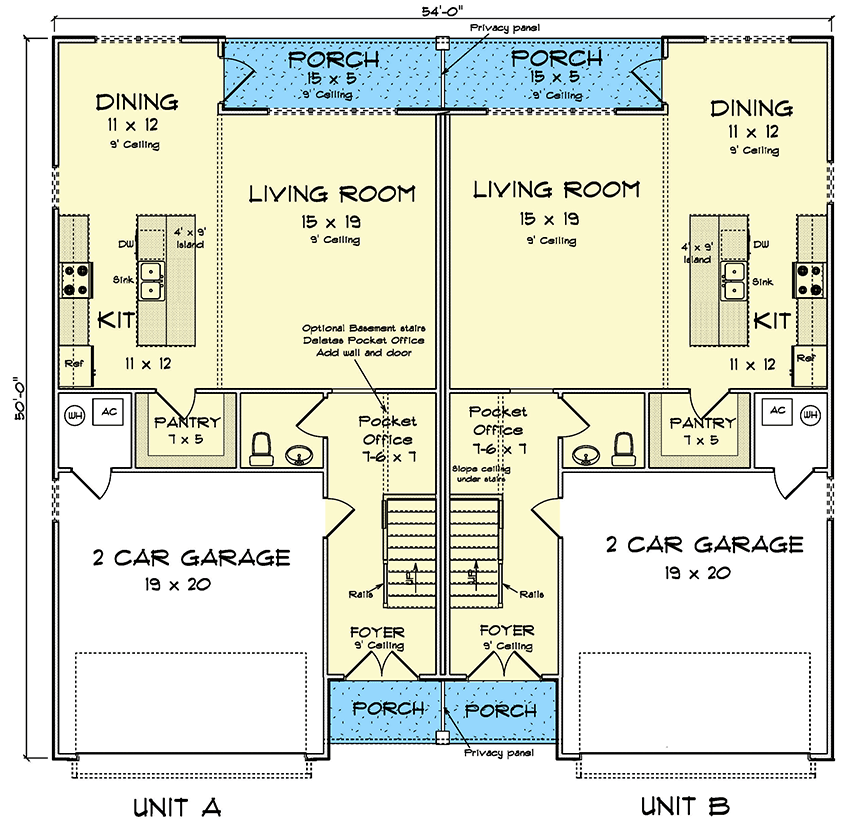

Main Level

Plan 52419WM: Two-Story Duplex House Plan with Pocket Offices - 2048 Sq Ft Per Unit - Floor Plan - Main Level - Traditional

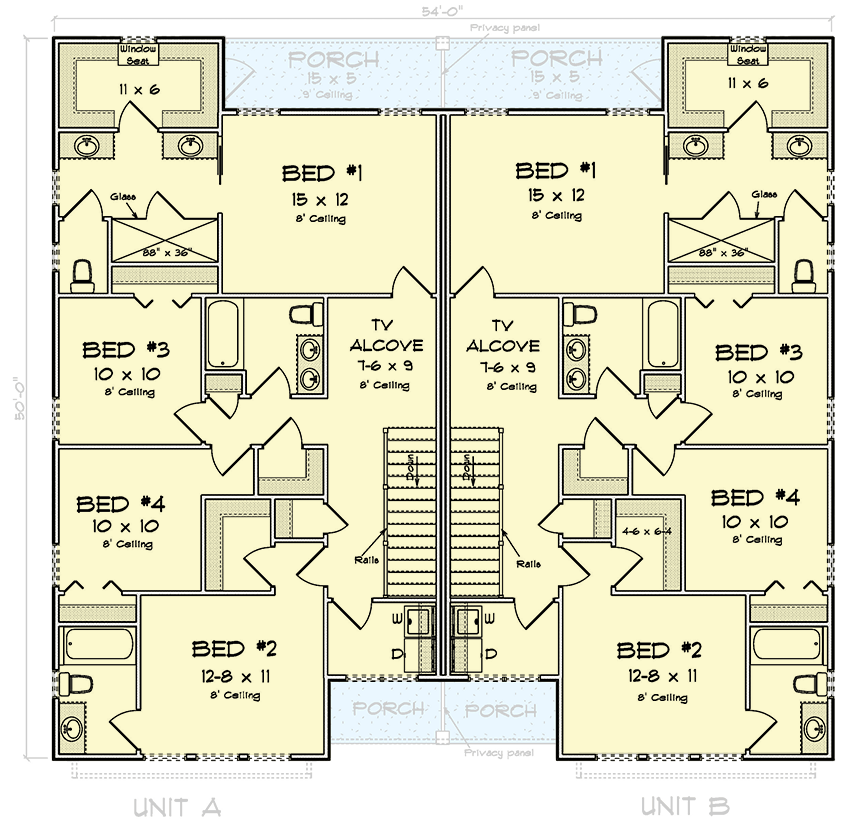

2nd Floor

Plan 52419WM: Two-Story Duplex House Plan with Pocket Offices - 2048 Sq Ft Per Unit - Floor Plan - 2nd Floor - Traditional

Plan Details

  • This duplex house plan gives you 2 units each with 2,048 square feet of heated living space (819 sq. ft. on the first floor, 1229 sq. ft. on the second floor), 4 beds, 3.5 baths and a 410 sq. ft. 2-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
Heated Area
2,048Sq. Ft.
813 Sq. Ft. 1st
1229 Sq. Ft. 2nd
Beds
4Beds
Baths
3Full Baths
1Half Bath
Cars
Attached
410 Sq. Ft.
Dimensions
27'width
50'depth
Unfinished Areas
410 Sq. Ft. Garage
36 Sq. Ft. Porch, Front
77 Sq. Ft. Porch, Rear
Unit B
Heated Area
2,048Sq. Ft.
819 Sq. Ft. 1st
1229 Sq. Ft. 2nd
Beds
4Beds
Baths
3Full Baths
1Half Bath
Cars
Attached
410 Sq. Ft.
Dimensions
27'width
50'depth
Unfinished Areas
410 Sq. Ft. Garage
36 Sq. Ft. Porch, Front
77 Sq. Ft. Porch, Rear

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,096 sq. ft.

1st Floor

813 sq. ft.

2nd Floor

1,229 sq. ft.

Porch, Front

72 sq. ft.

Porch, Rear

154 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

6

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 0"

Depth

50' 0"

Max Ridge Height

28' 5"

Garage

Type

Attached

Area

820 sq. ft.

Count

4 Cars

Entry Location

Front

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Home Office

Laundry - Upstairs

Loft

Master Suite - Upstairs

Walk-in Pantry

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

4,096 sq. ft.

1st Floor

813 sq. ft.

2nd Floor

1,229 sq. ft.

Porch, Front

72 sq. ft.

Porch, Rear

154 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

6

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 0"

Depth

50' 0"

Max Ridge Height

28' 5"

Garage

Type

Attached

Area

820 sq. ft.

Count

4 Cars

Entry Location

Front

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Home Office

Laundry - Upstairs

Loft

Master Suite - Upstairs

Walk-in Pantry

Plan Collections

Home Office
