Plan 22394DR
Two-Story Multi-Family Duplex
Heated S.F.
3,222
Units
2
Width
48'
Depth
36'
What's Included
Plan Details
  • There's lots of space inside this good-looking two-story duplex with side-by-side matching units. Each unit has a large air lock entry foyer that keeps cold air out of the house and 805 square feet on the main floor and 806 square feet
  • The living rooms are kept separate from the kitchen, giving you a more quiet environment.
  • As a space-saving measure, the powder room is combined with the laundry room.
  • The L-shaped kitchens have islands to add more storage.
  • Sliding glass doors take you outside.
  • All three bedrooms on the upper floor share the five piece washroom.
Unit A
1,611 Sq. Ft.
806 Sq. Ft. 1st Floor
805 Sq. Ft. 2nd Floor
3 Beds
1 Full Bath
1 Half Bath
24' w 36' d 27' 8" h
Unit B
1,611 Sq. Ft.
806 Sq. Ft. 1st Floor
805 Sq. Ft. 2nd Floor
3 Beds
1 Full Bath
1 Half Bath
24' w 36' d 27' 8" h
What's Included
Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Two-Story Multi-Family Duplex

  • 3,222

    Heated s.f.

  • 2

    Units

  • 48'

    Width

  • 36'

    Depth

Floor Plan

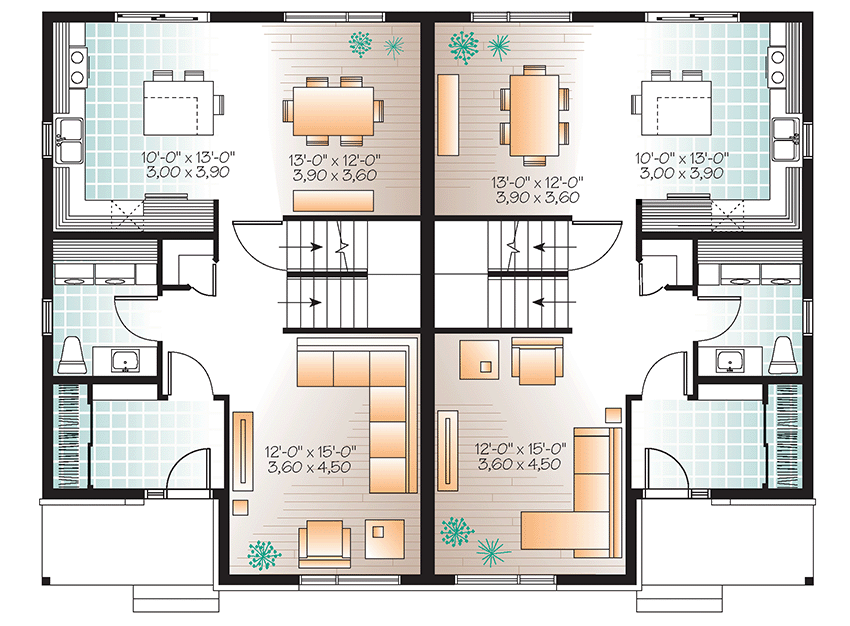

  • Main Level

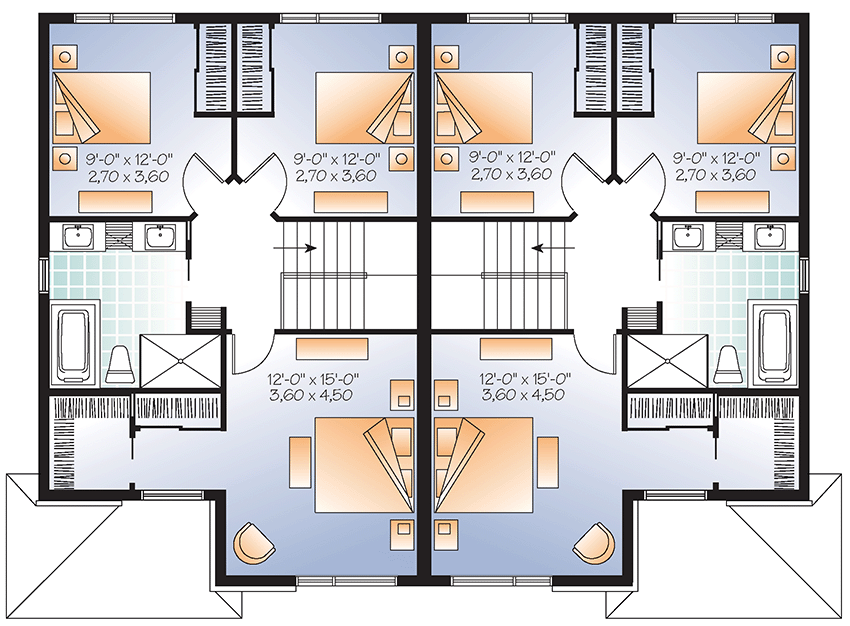

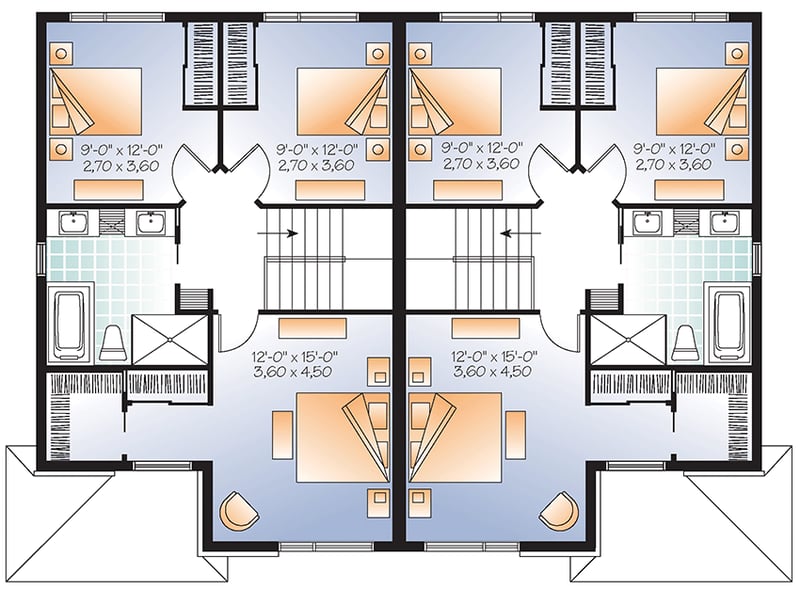

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,222 sq. ft.
  • 1st Floor: 1,612 sq. ft.
  • 2nd Floor: 1,610 sq. ft.

Dimensions

  • Width: 48' 0"
  • Depth: 36' 0"
  • Max ridge height: 27' 8"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 2
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"
