Plan 801127PM Two Story New American Home Plan with Second Level Master Suite

2,247 4 2.5 2 1
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Two Story New American Home Plan with Second Level Master Suite

Plan 801127PM

  • 2,247

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 1

    Cars

  • This trendy two story house gives you living area of 2,247 sq. ft that has 4 bedrooms, 2.5 baths and a 1-Car garage ( 419 sq.ft.).
  • As you step inside, a welcoming foyer beckons, featuring a convenient closet on the left that connects seamlessly to the garage.
  • Within the residence, an expansive open-concept floor plan unfolds before you, seamlessly merging the kitchen, dining area, and living room into a large living space. The dining room gracefully extends to a rear porch, where an outdoor kitchen awaits, creating an ideal setting for entertaining.
  • Venturing upstairs reveals the four bedrooms, along with two well-appointed bathrooms. Additionally, a dedicated laundry room completes the upper level, ensuring both convenience and functionality for everyday living.
  • DELIVERY NOTE: Please 15 to 20 days for plan delivery.

Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:

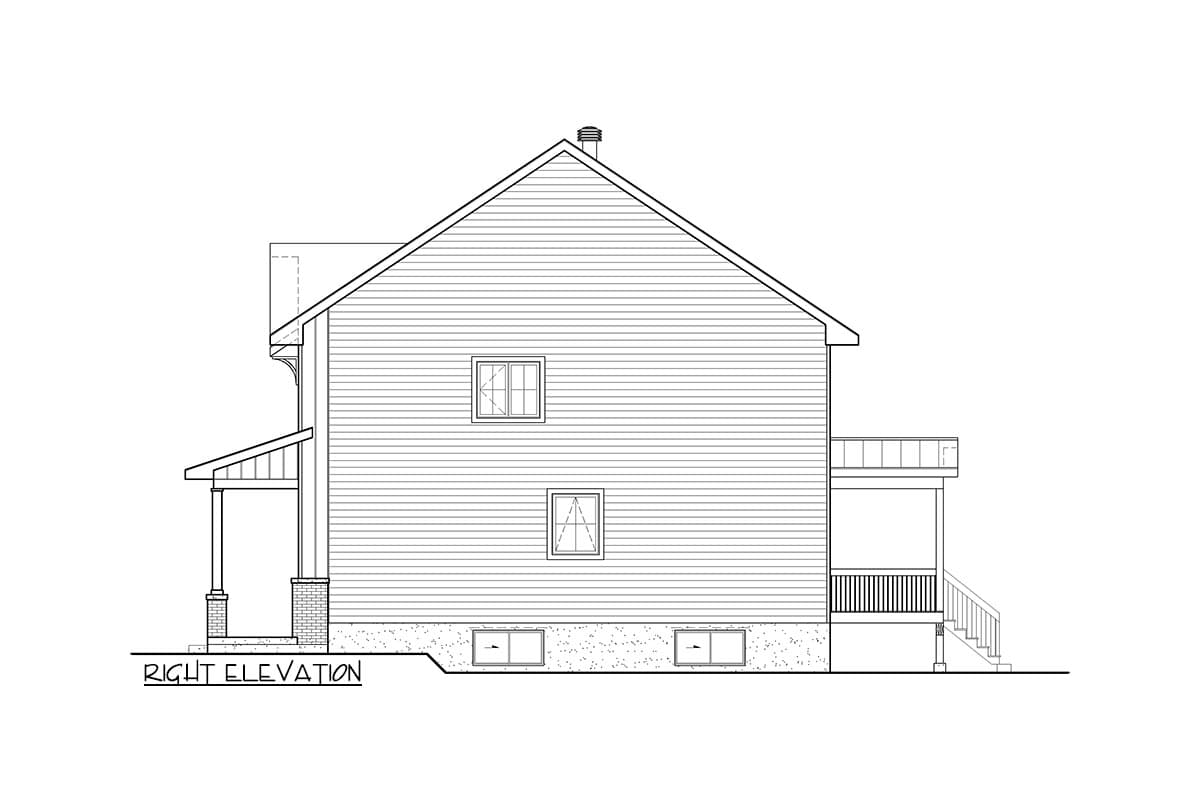

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

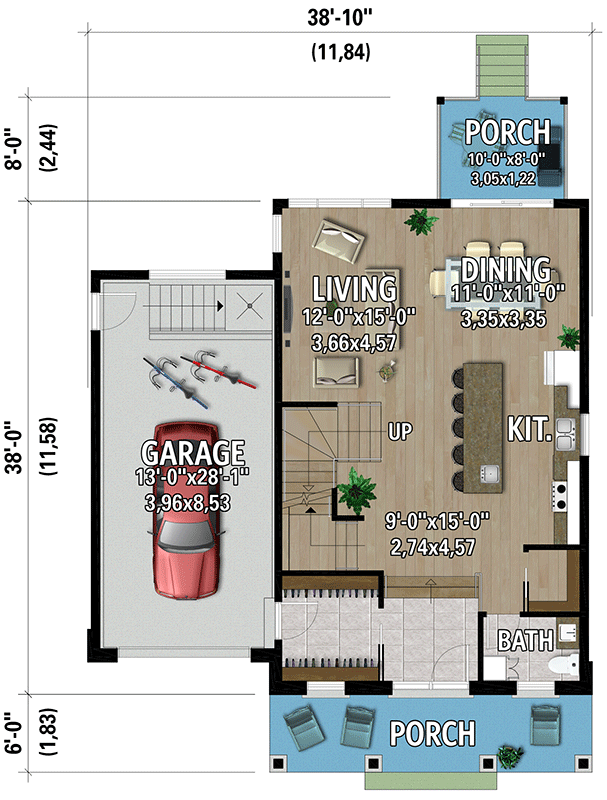

Two Story New American Home Plan with Second Level Master Suite - 801127PM floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Two Story New American Home Plan with Second Level Master Suite - 801127PM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,247 sq. ft.
  • 1st Floor: 914 sq. ft.
  • 2nd Floor: 1,333 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 38' 10"
  • Depth: 38' 0"
  • Max ridge height: 36' 5"

Garage

  • Type: Attached
  • Area: 419 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12

Architectural Style

Special features

Plan Collections

Two Story New American Home Plan with Second Level Master Suite

  • 2,247

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 1

    Car garage

Buy This Plan
  • PDF - Single-Build $1,070
  • 5 Sets $1,115
  • 5 Sets + PDF $1,215
  • 5 Set + PDF + Materials List $1,310
  • CAD + PDF - Single-Build $2,090
  • View all purchase option online

About This Plan

  • This trendy two story house gives you living area of 2,247 sq. ft that has 4 bedrooms, 2.5 baths and a 1-Car garage ( 419 sq.ft.).
  • As you step inside, a welcoming foyer beckons, featuring a convenient closet on the left that connects seamlessly to the garage.
  • Within the residence, an expansive open-concept floor plan unfolds before you, seamlessly merging the kitchen, dining area, and living room into a large living space. The dining room gracefully extends to a rear porch, where an outdoor kitchen awaits, creating an ideal setting for entertaining.
  • Venturing upstairs reveals the four bedrooms, along with two well-appointed bathrooms. Additionally, a dedicated laundry room completes the upper level, ensuring both convenience and functionality for everyday living.
  • DELIVERY NOTE: Please 15 to 20 days for plan delivery.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,247 sq. ft.
  • 1st Floor: 914 sq. ft.
  • 2nd Floor: 1,333 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 38' 10"
  • Depth: 38' 0"
  • Max ridge height: 36' 5"

Garage

  • Type: Attached
  • Area: 419 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
