Plan 270127AF

Two-Story New American House Plan with 4 Bedrooms and 2-Car Garage

Heated S.F.
1,961
Beds
4
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 270127AF

Main Level
Main Level
2nd Floor
2nd Floor
Optionally Finished Lower Level
Optionally Finished Lower Level

Plan 270127AF

M-F 9am-5pm EST |

1-203-761-8500

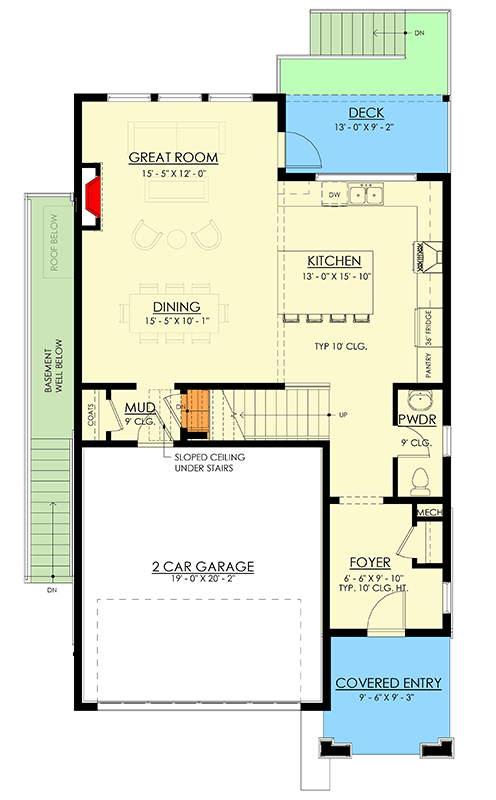

Main Level

Plan 270127AF: Two-Story New American House Plan with 4 Bedrooms and 2-Car Garage - Floor Plan - Main Level - Craftsman, Modern Farmhouse, New American

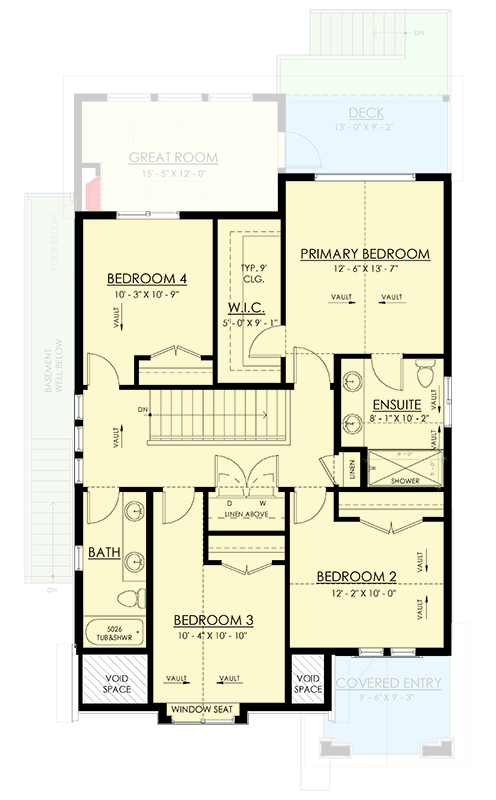

2nd Floor

Plan 270127AF: Two-Story New American House Plan with 4 Bedrooms and 2-Car Garage - Floor Plan - 2nd Floor - Craftsman, Modern Farmhouse, New American

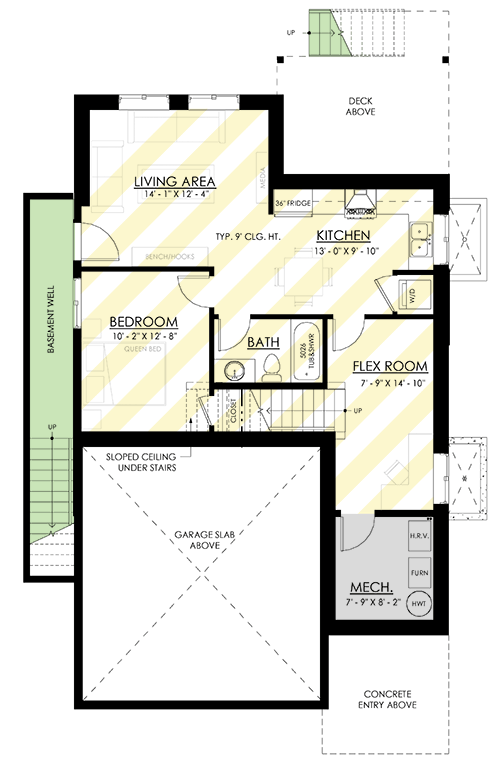

Optionally Finished Lower Level

Plan 270127AF: Two-Story New American House Plan with 4 Bedrooms and 2-Car Garage - Floor Plan - Optionally Finished Lower Level - Craftsman, Modern Farmhouse, New American

Plan Details

  • This 1,961 sq ft New American House Plan features 4 bedrooms, 2.5 baths, and a 406 sq ft, 2-car garage.

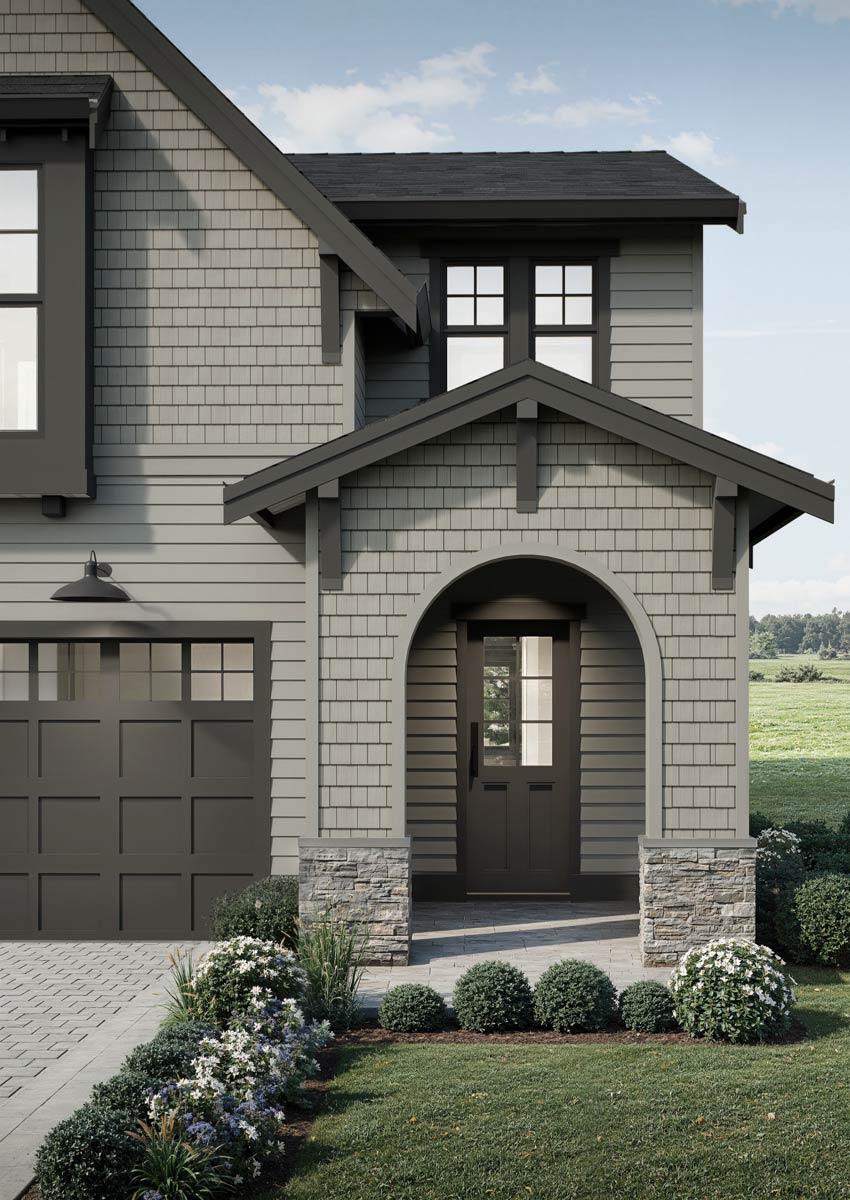

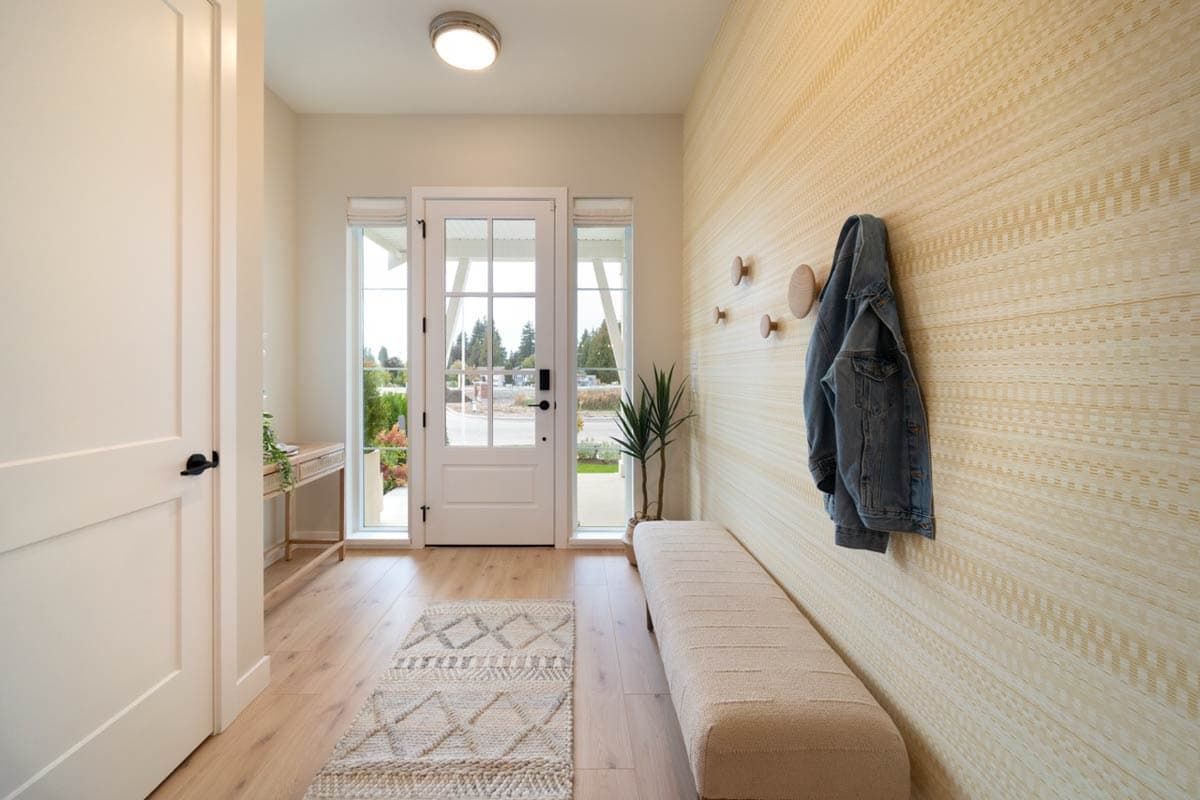

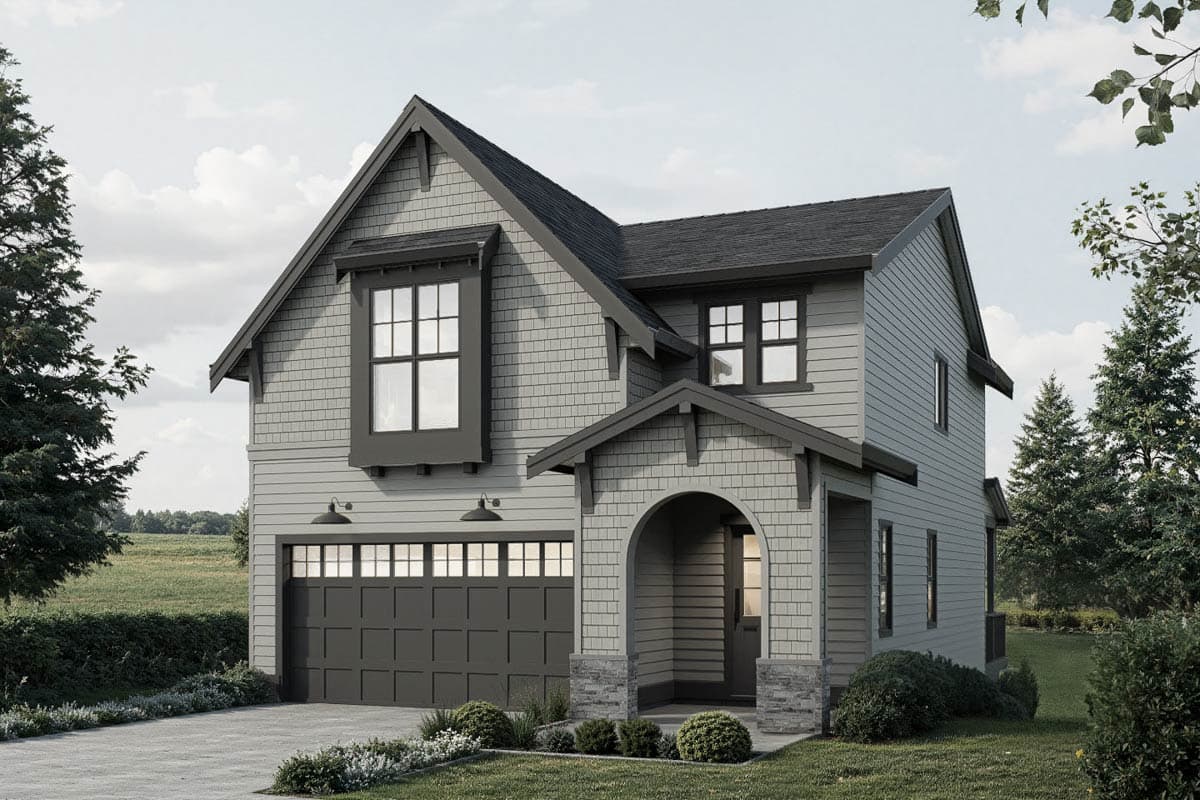

  • An inviting arched entry porch welcomes you into a home designed for modern living, highlighted by a convenient mudroom from the garage.

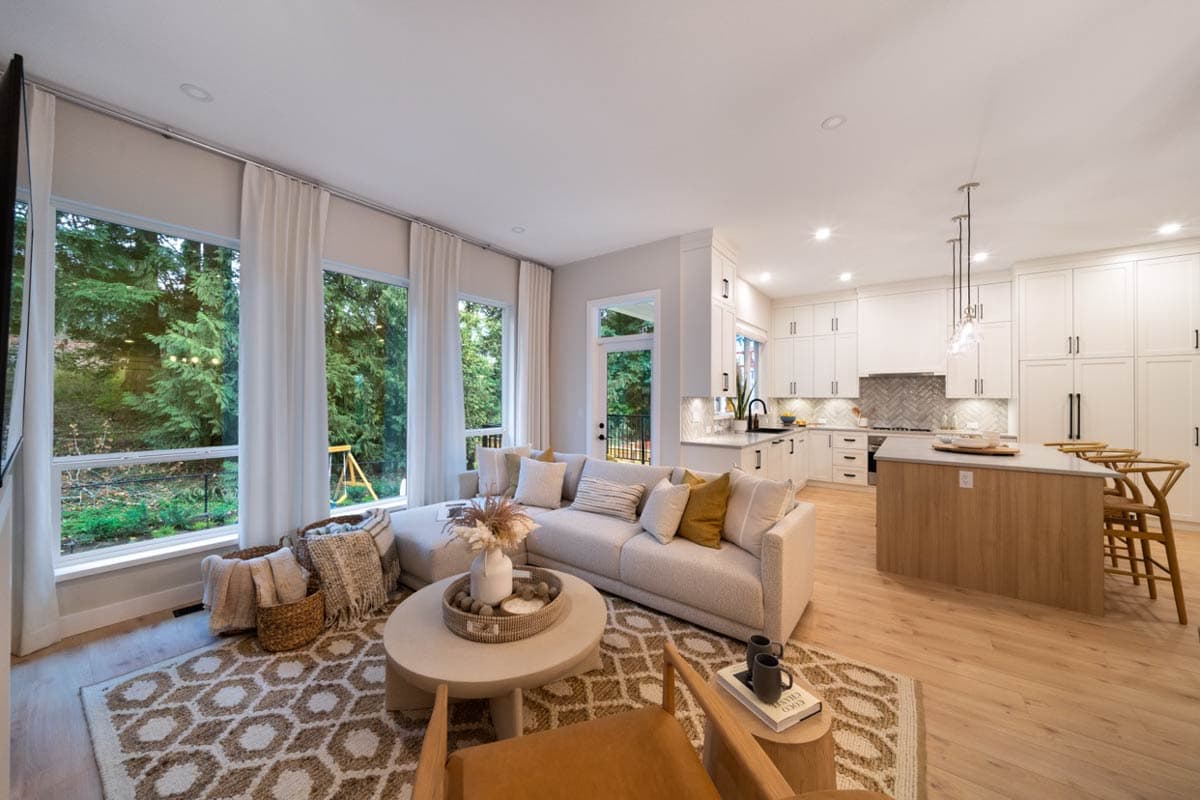

  • The first floor boasts a generous 10-foot ceiling height, creating an expansive feel throughout the main living areas, perfect for daily life and gatherings.

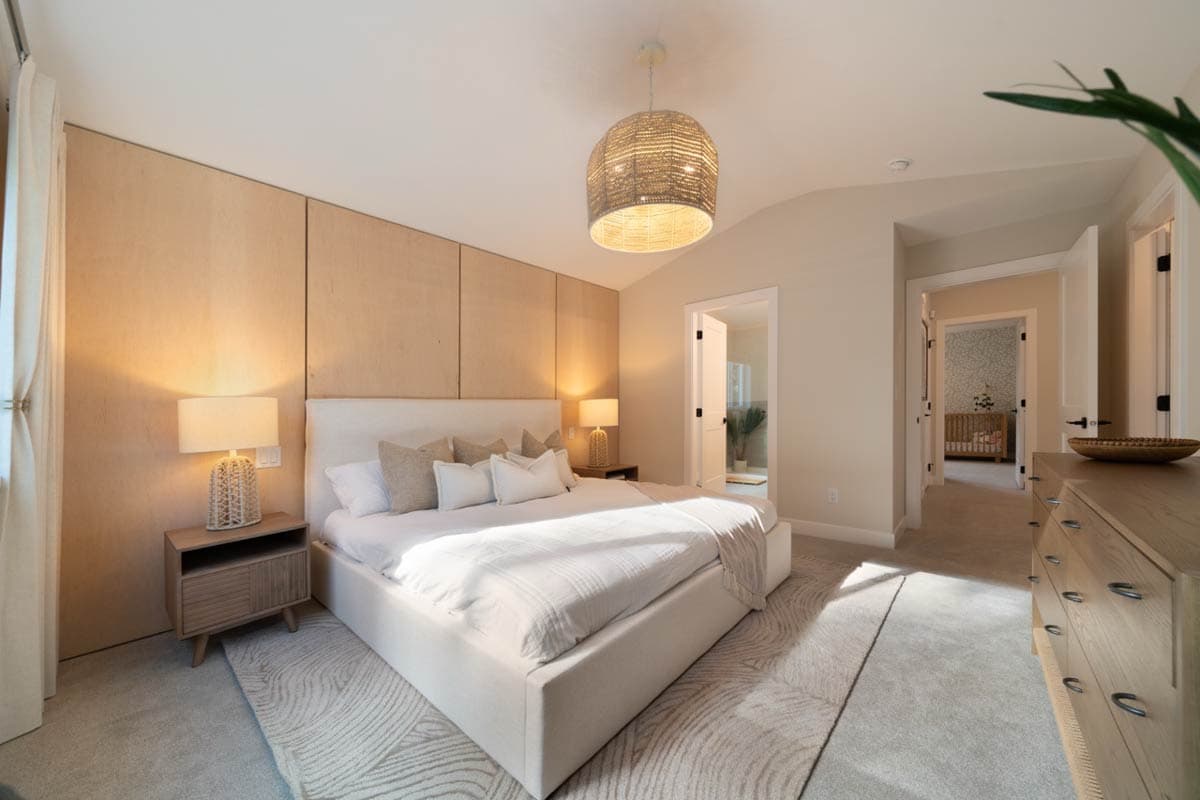

  • The primary suite is thoughtfully located upstairs with vaulted ceilings, offering a private retreat, while the three secondary bedrooms are clustered with an upstairs laundry for convenience.
  • The charming arched entry porch provides a welcoming spot to enjoy the neighborhood.

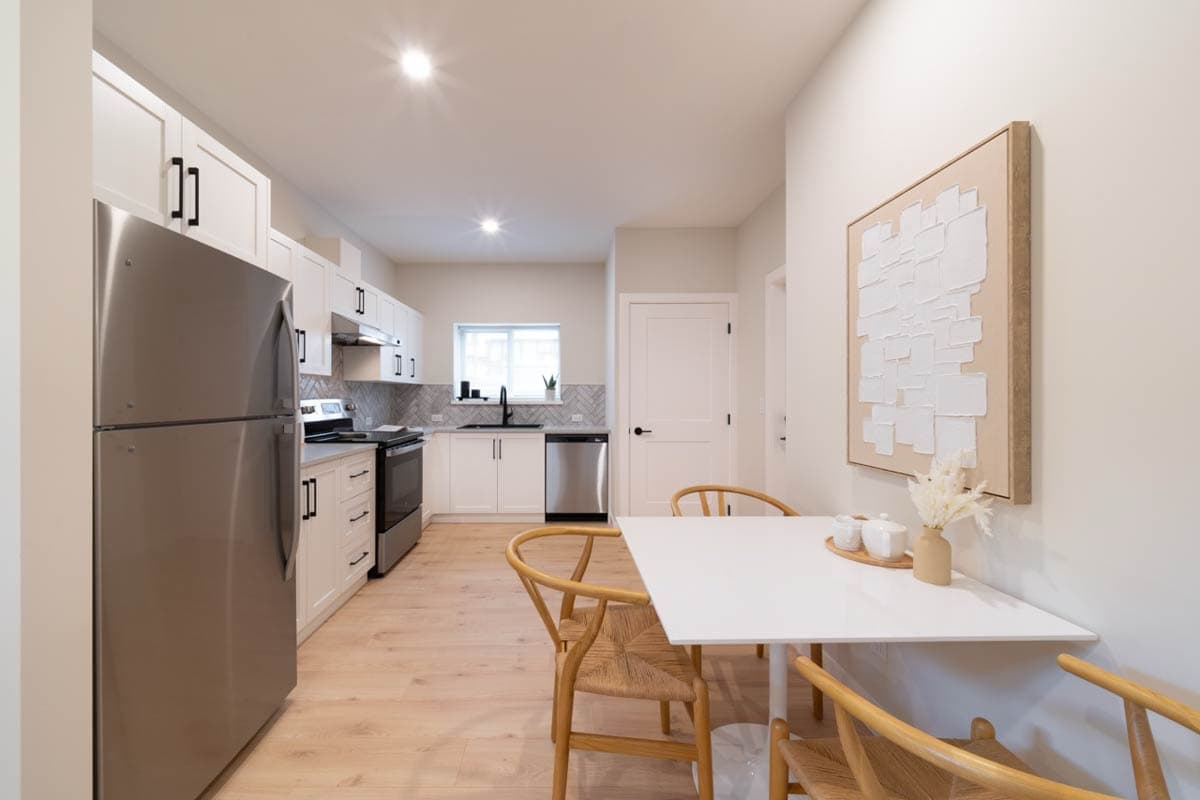

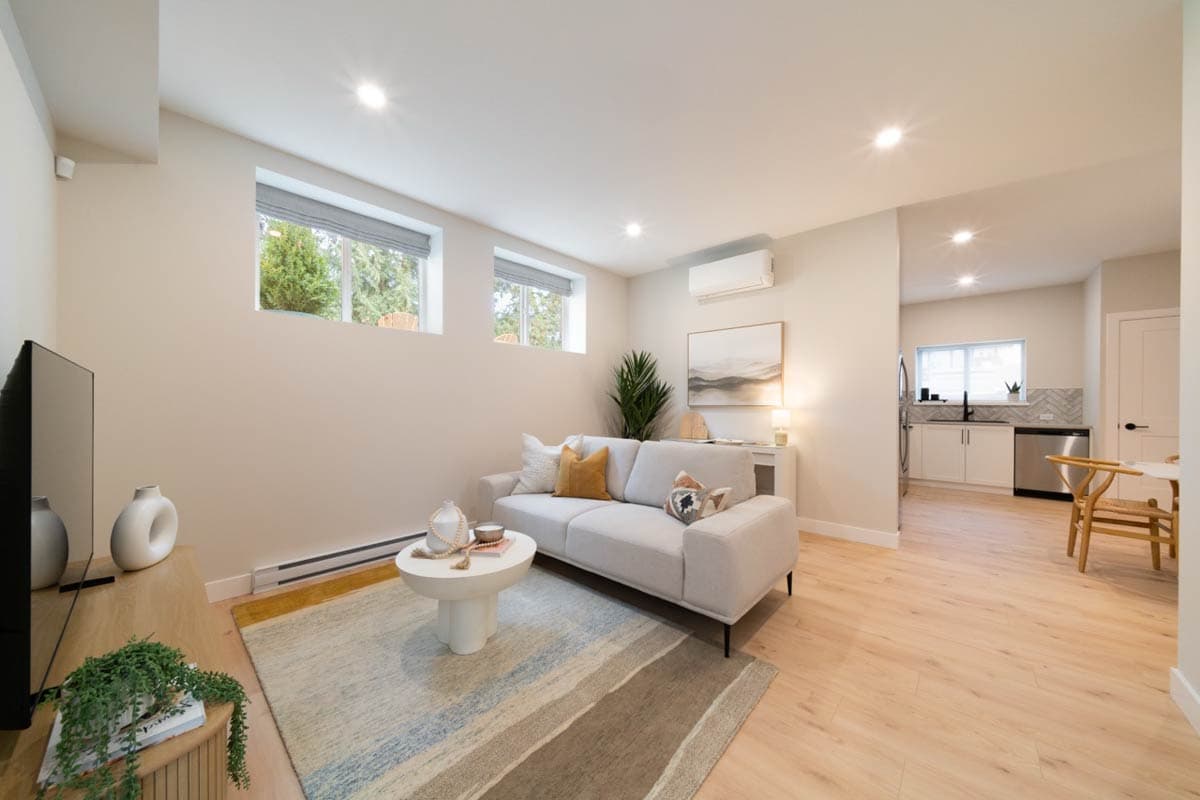

  • An optional 888 sq ft lower level provides ample space for future expansion, ideal for additional guest quarters.
  • Related Plans: Get an alternate version with house plan 270115AF (1,981 sq. ft.), 270119AF (1,961 sq. ft.), 270120AF (1,968 sq. ft.), 270122AF (1,968 sq. ft.) or 270123AF (1,981 sq. ft.).

What's Included

  • Foundation Plan
  • Floor Plan(s) with Door and Window Opening Sizes
  • Roof Plan showing pitches, valleys, ridges

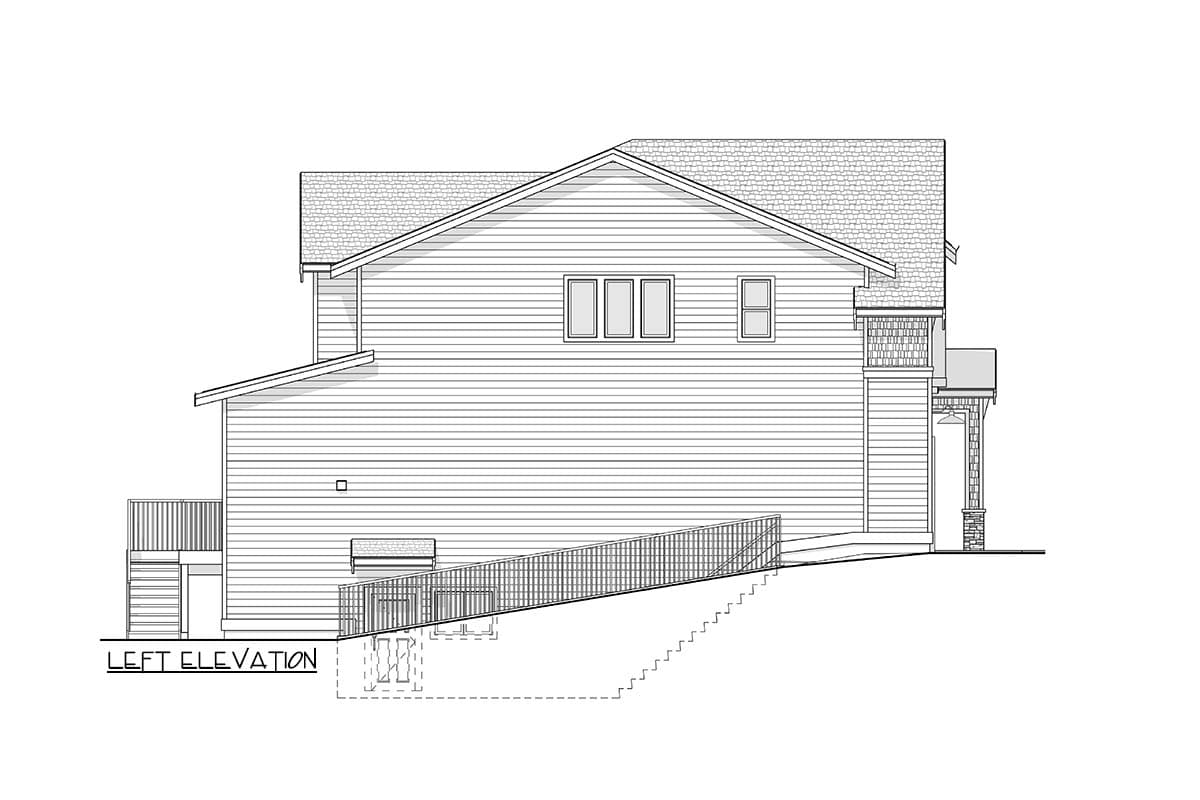

  • Exterior Elevations
  • Building Section
  • Typical Construction Details/Sections

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Framing - layouts with beam sizes and locations
  • Electrical plan
  • Plumbing Details
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Energy calculations - handled locally when required
  • Renderings, photography, or marketing imagery

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,961 sq. ft.

1st Floor

886 sq. ft.

2nd Floor

1,075 sq. ft.

Optional Lower Level

888 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

29' 6"

Depth

54' 11"

Max Ridge Height

29' 4"

Garage

Type

Standard

Area

406 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

8'

Room

Ceiling Type

Height

All Bedrooms

Vaulted

0' 0''

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Craftsman

Modern Farmhouse

New American

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Plan Collections

Canadian House Plans
