Plan 623502DJ

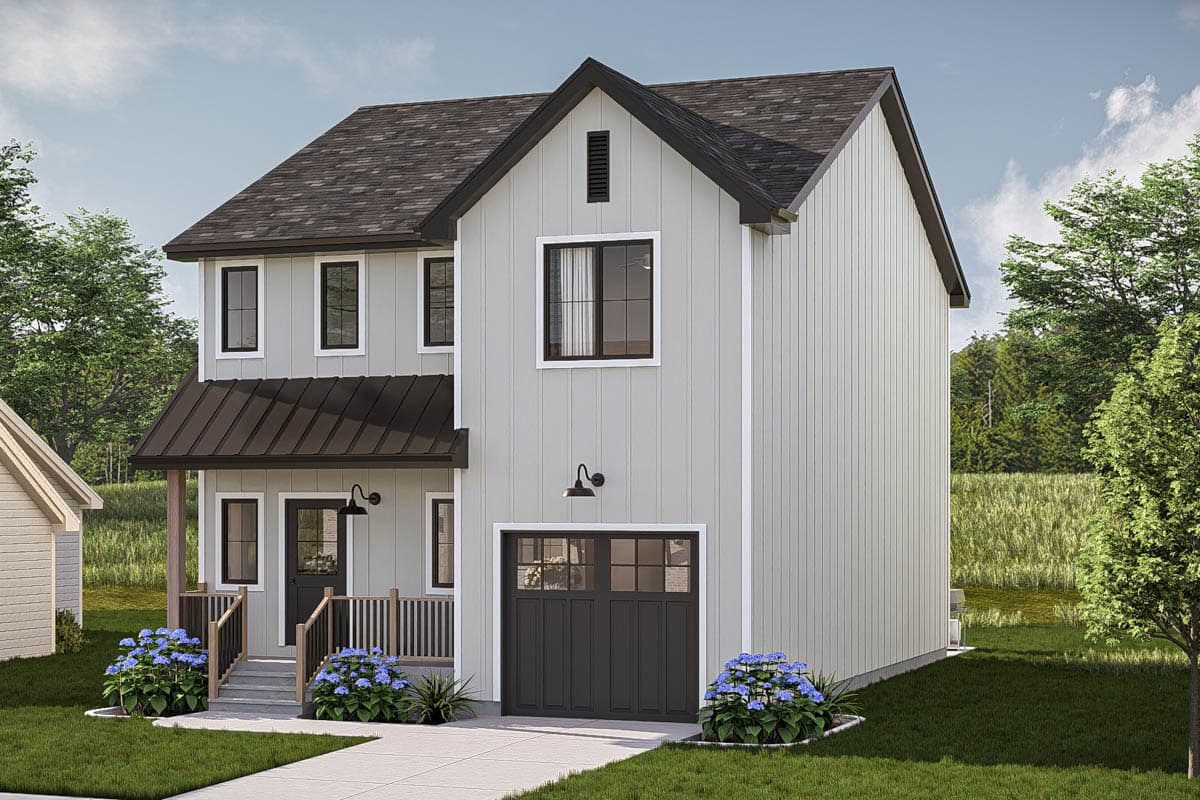

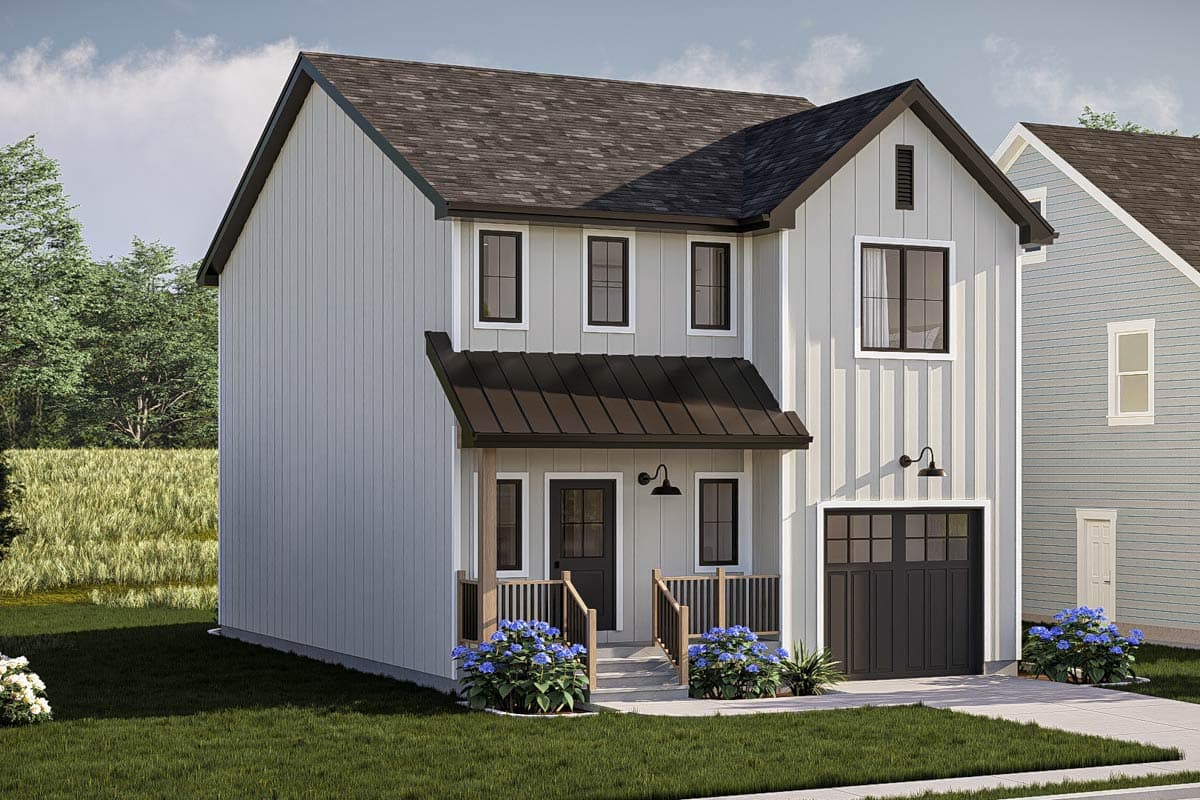

Two-Story New American House Plan with Second Level Master Suite - 1730 Sq Ft
Heated S.F.
1,730
Beds
3
Baths
2.5
Stories
2
Cars
1
Tour
Floor Plan

Plan 623502DJ

Main Level
slide image 0
2nd Floor
slide image 1
Optional Lower Level (Paid Option $$$)
slide image 2

Plan 623502DJ

1-800-854-7852

1-262-521-4596

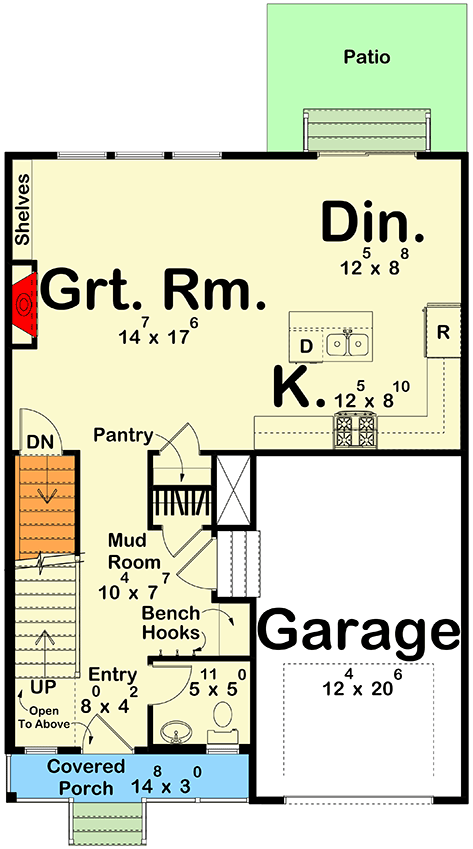

Main Level
floor plan image Main Level

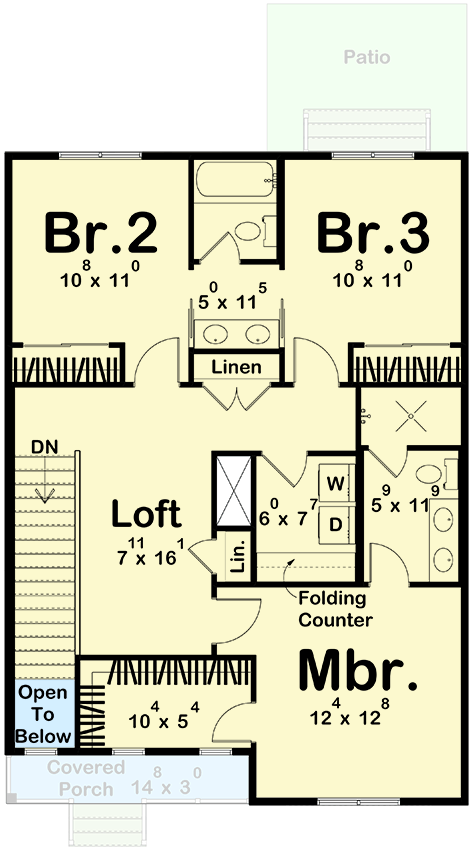

2nd Floor
floor plan image 2nd Floor

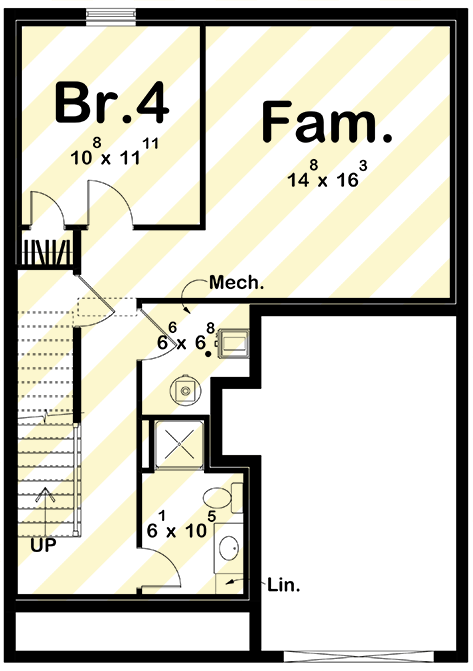

Optional Lower Level (Paid Option $$$)
floor plan image Optional Lower Level (Paid Option $$$)
Plan Details
  • This 2-story modern farmhouse offers 1,730 sq. ft. with 3 bedrooms and 3 bathrooms.

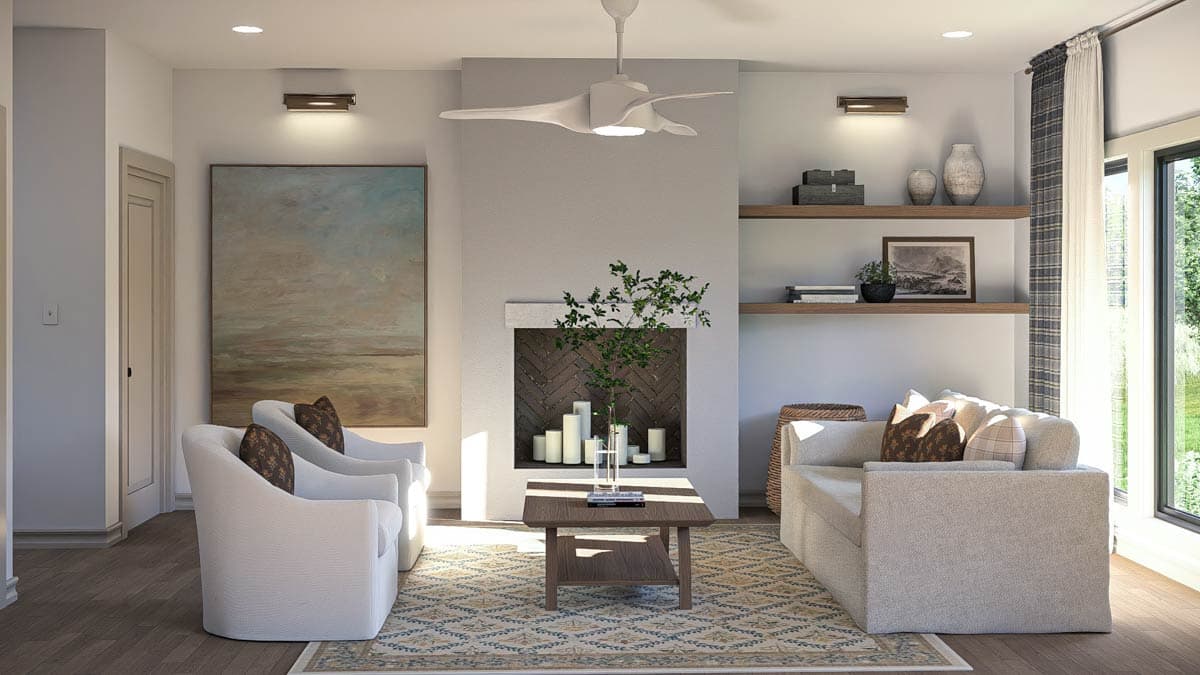

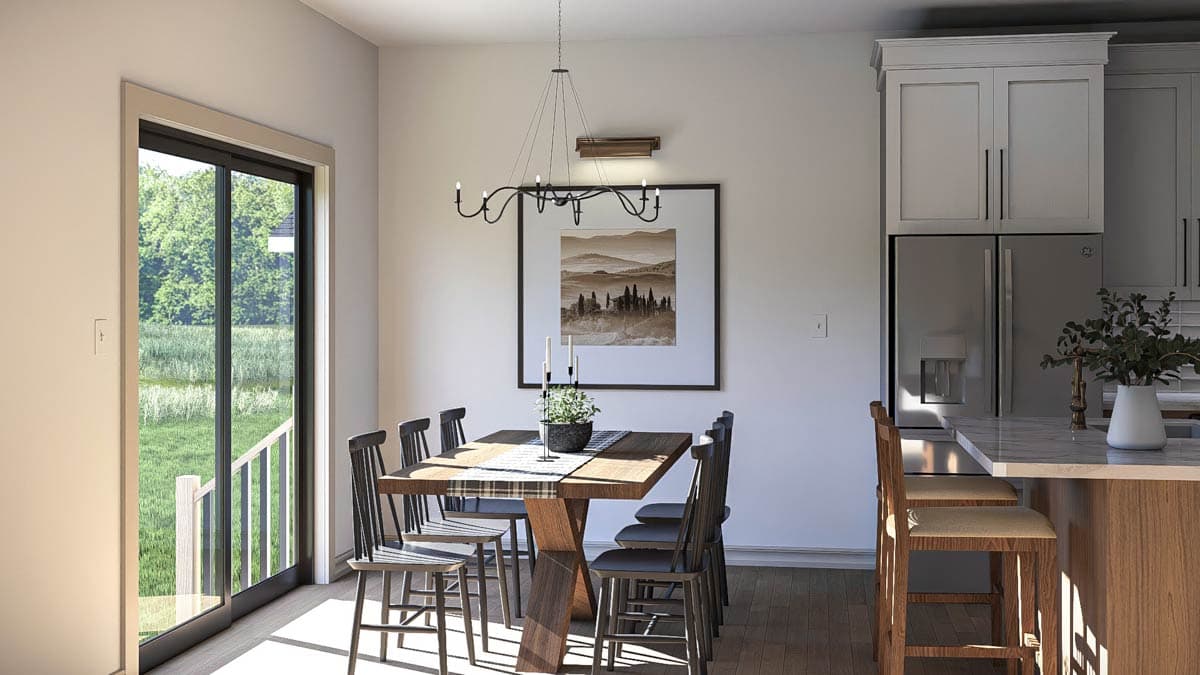

  • The main floor features an open layout with a fireplace and seamless flow between the kitchen, dining, and living areas.

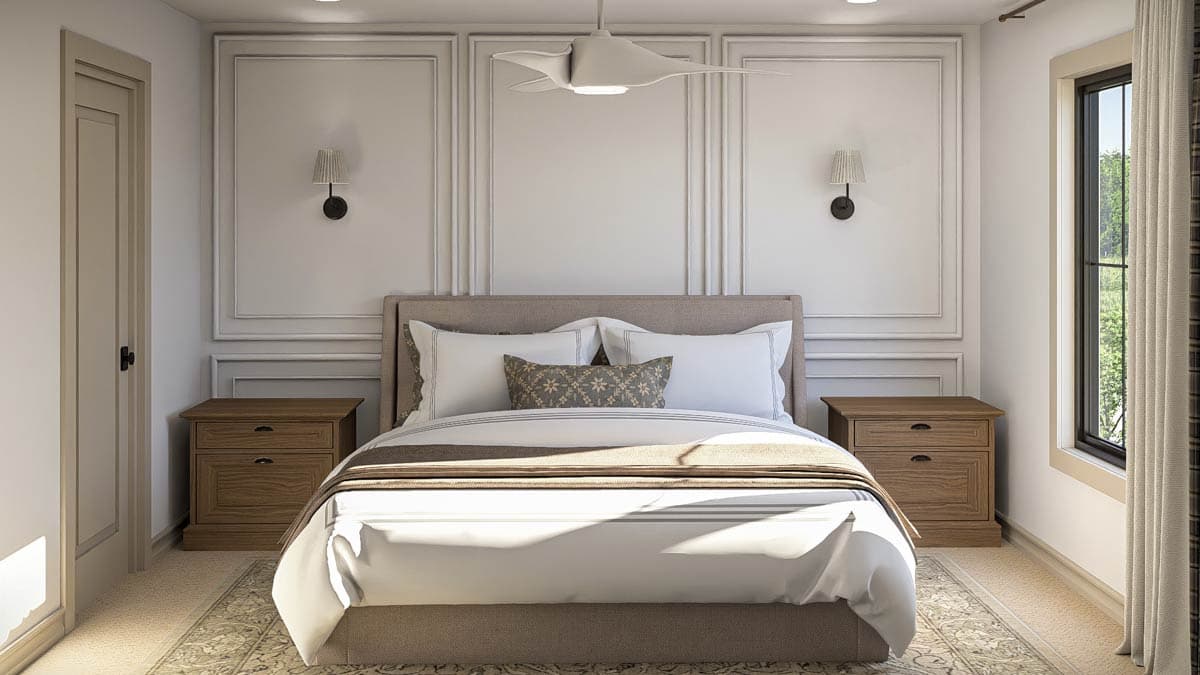

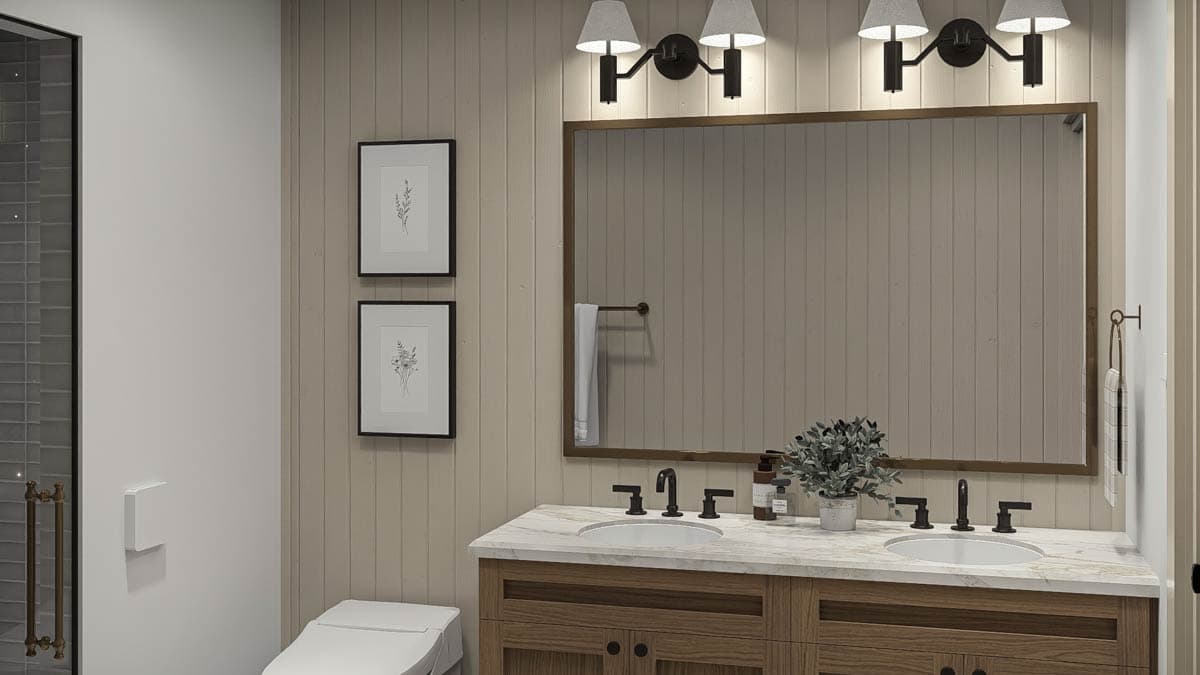

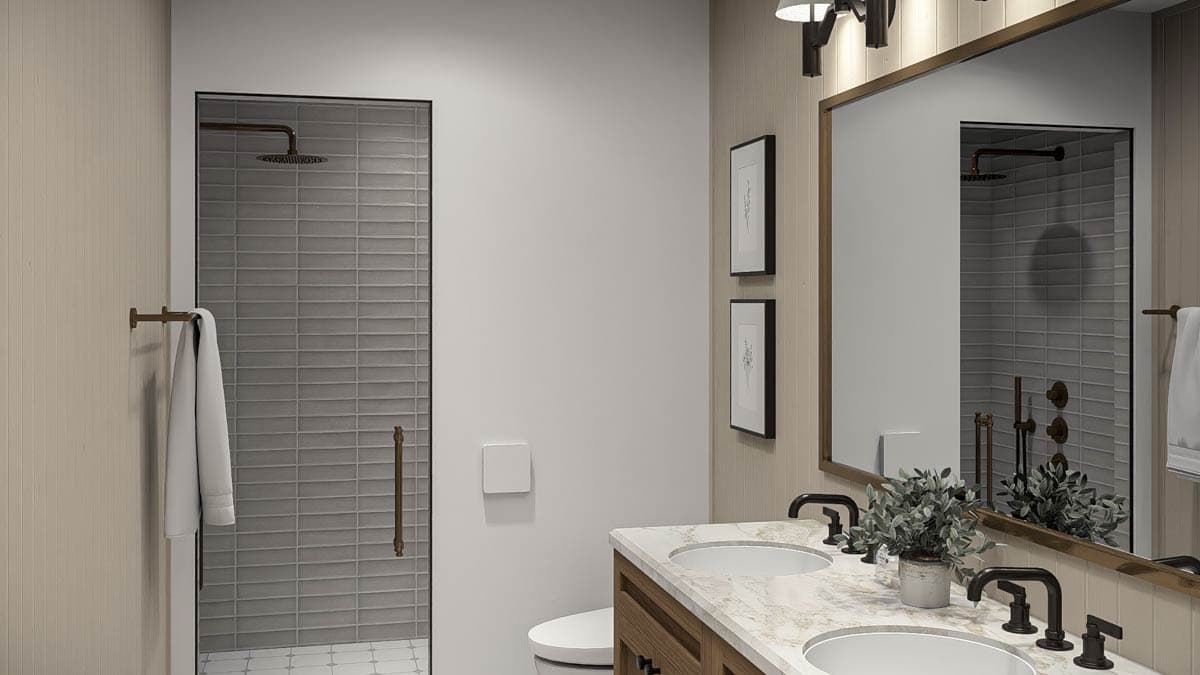

  • The kitchen includes a center island and pantry. Upstairs, the primary suite has a double vanity, walk-in shower, and walk-in closet, while the other two bedrooms share a Jack-and-Jill bath.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,730 sq. ft.

1st Floor

764 sq. ft.

2nd Floor

966 sq. ft.

Optional Lower Level

592 sq. ft.

Porch, Front

44 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

27' 8"

Depth

39' 0"

Max Ridge Height

28' 4"

Garage

Type

Attached

Area

263 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Modern Farmhouse

New American

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Upstairs

Loft

Master Suite - 2nd Floor

Mudroom
