Plan 80845PM Two-Story Northwest House Plan

2,536 4 2.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Two-Story Northwest House Plan

Plan 80845PM

  • 2,536

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Presenting a solid facade, this two-story Northwest house plan offers good looks as well.
  • Pass by a quiet study on your way back to the huge open main living area.
  • With no walls to block the views, you can see the family room fireplace all the way from the kitchen island at the other end of the house.
  • Notice the huge walk-in pantry that gives you so much storage space!
  • Sliding glass doors in the dining area take you to the back deck.
  • All the bedrooms are upstairs with a hall bathroom to serve the secondary bedrooms.
  • The master suite gets a private bathroom as well as a large walk-in closet.

Plan sets include the following:

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

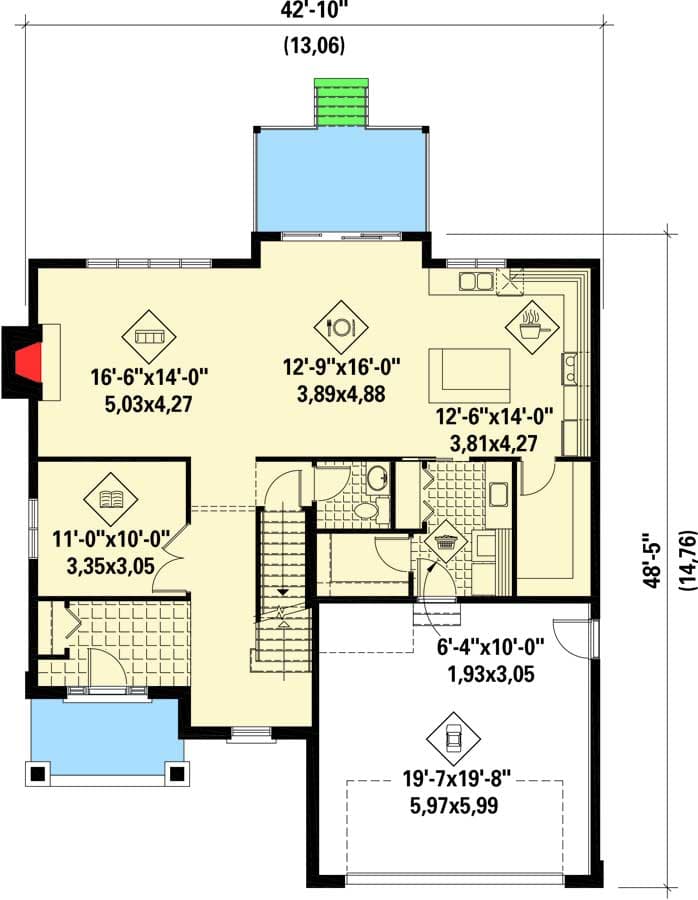

Two-Story Northwest House Plan - 80845PM floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

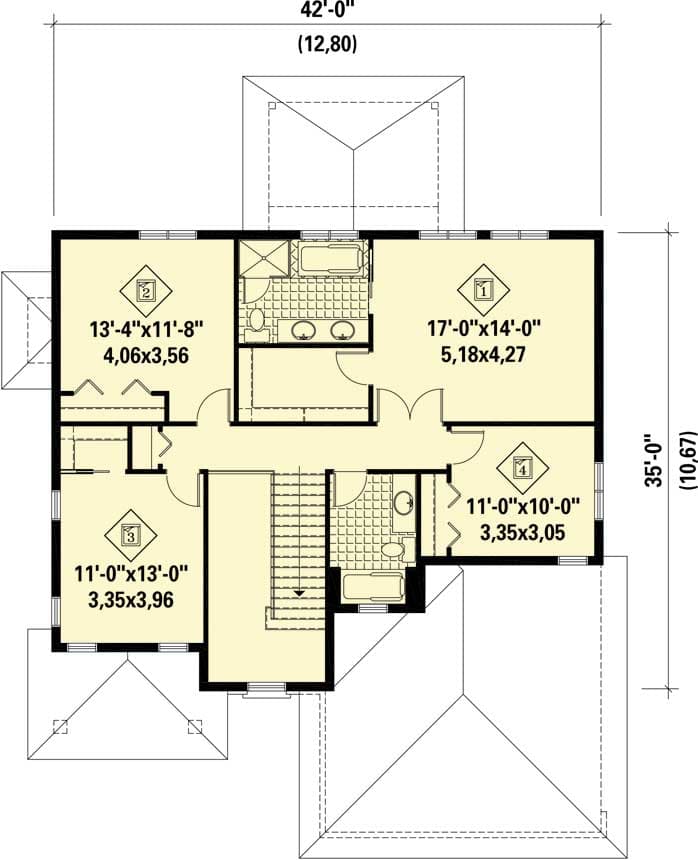

Two-Story Northwest House Plan - 80845PM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,536 sq. ft.
  • 1st Floor: 1,274 sq. ft.
  • 2nd Floor: 1,262 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 42' 10"
  • Depth: 48' 5"
  • Max ridge height: 28' 9"

Garage

  • Type: Attached
  • Area: 446 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Two-Story Northwest House Plan

  • 2,536

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,203
  • 8 Sets $1,251
  • PDF - Single-Build $1,415
  • CAD - Single-Build $2,131
  • View all purchase option online

About This Plan

  • Presenting a solid facade, this two-story Northwest house plan offers good looks as well.
  • Pass by a quiet study on your way back to the huge open main living area.
  • With no walls to block the views, you can see the family room fireplace all the way from the kitchen island at the other end of the house.
  • Notice the huge walk-in pantry that gives you so much storage space!
  • Sliding glass doors in the dining area take you to the back deck.
  • All the bedrooms are upstairs with a hall bathroom to serve the secondary bedrooms.
  • The master suite gets a private bathroom as well as a large walk-in closet.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,536 sq. ft.
  • 1st Floor: 1,274 sq. ft.
  • 2nd Floor: 1,262 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 42' 10"
  • Depth: 48' 5"
  • Max ridge height: 28' 9"

Garage

  • Type: Attached
  • Area: 446 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
