Plan 623692DJ

Two-Story Townhome Triplex Plan with Three Bedrooms and Private Patios

Name: Plan 623692DJ: Two-Story Townhome Triplex Plan with Three Bedrooms and Private Patios
Brand: Architectural Designs
SKU: 623692DJ
Price: 1515.80 USD
Availability: InStock

Heated S.F.

5,721

Units

Width

Depth

Tour

Floor Plan

Plan Details

This modern farmhouse townhome design offers 1,907 finished square feet across two levels, featuring three bedrooms, two full bathrooms, and one half-bath.
The arrival experience begins at a welcoming covered porch that opens into a functional entry, seamlessly connecting to the heart of the home.
The main level layout emphasizes an open-concept flow, where the kitchen, dining area, and great room transition effortlessly for daily living and social gatherings.
Upstairs, the primary suite serves as a serene retreat, complete with a walk-in closet and direct access to the conveniently located upper-level laundry room.
Two additional bedrooms share a full bath, providing comfortable accommodations for family or guests while maintaining a thoughtful separation from the primary suite.
Residents can enjoy private outdoor relaxation on the rear-facing covered patio, ideal for quiet mornings or unwinding after a long day.
Each unit includes a 257-square-foot garage with an integrated mudroom featuring built-in benches and hooks to keep your home organized and clutter-free.

Unit A,B & C

Heated Area

1,907Sq. Ft.

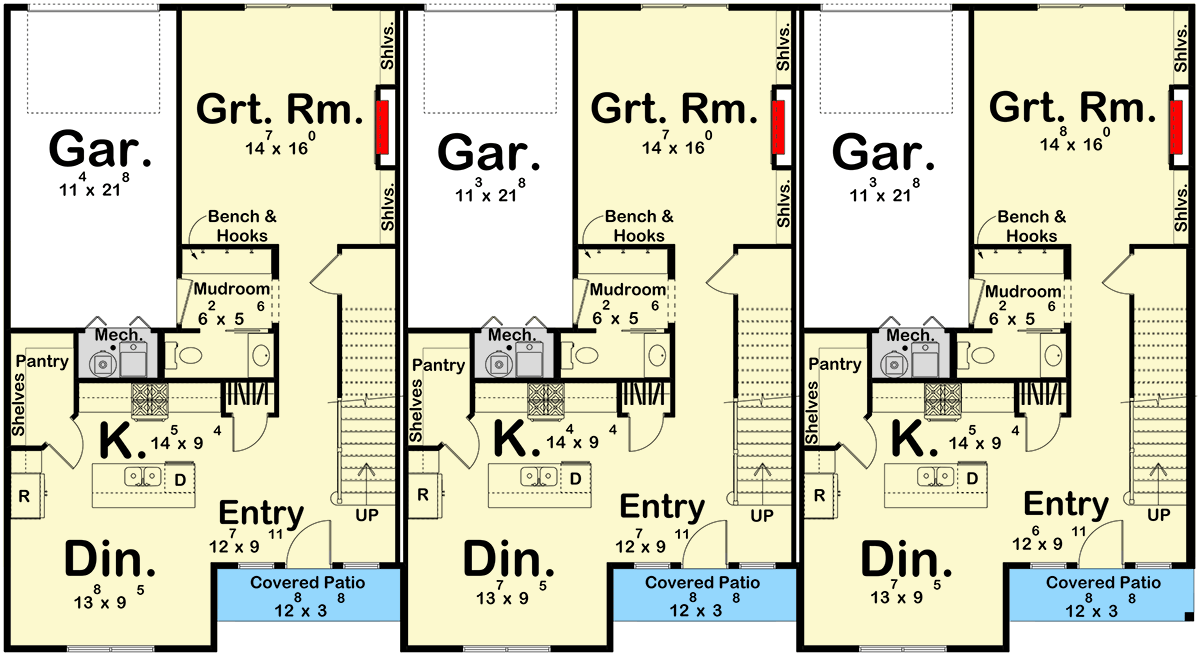

838 Sq. Ft. 1st

1069 Sq. Ft. 2nd

Beds

3Beds

Baths

2Full Baths

1Half Bath

Cars

Standard

257 Sq. Ft.

Dimensions

27'width

44'depth

Unfinished Areas

257 Sq. Ft. Garage

46 Sq. Ft. Porch, Combined

What's Included

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement

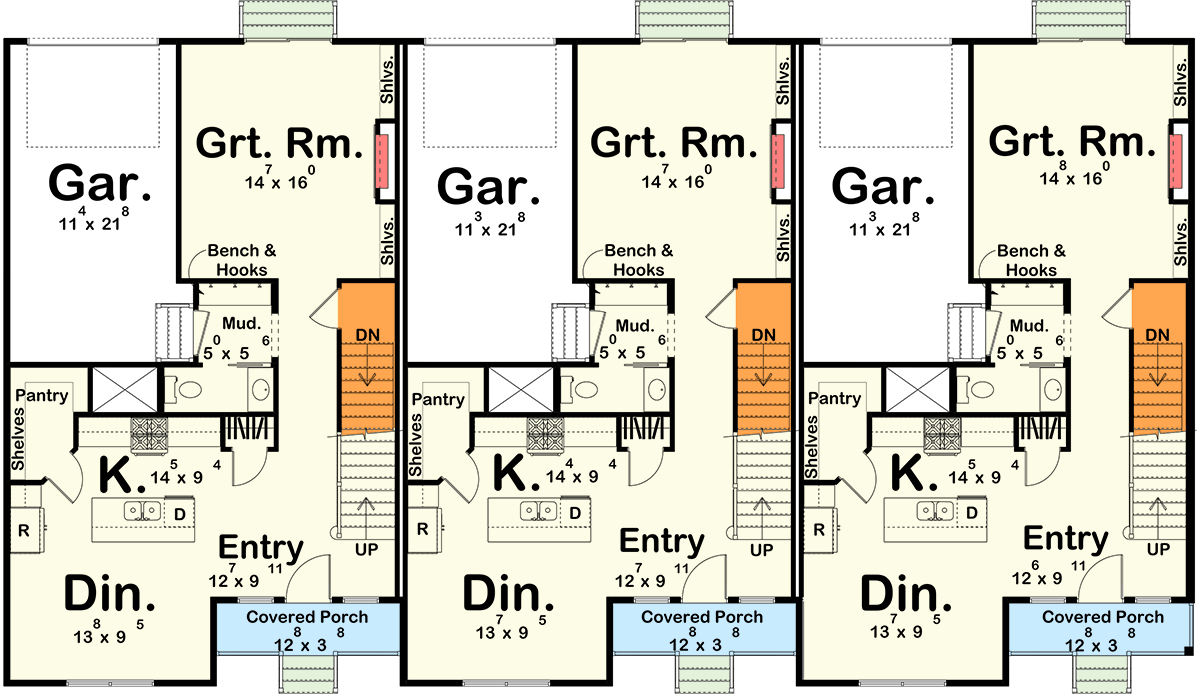

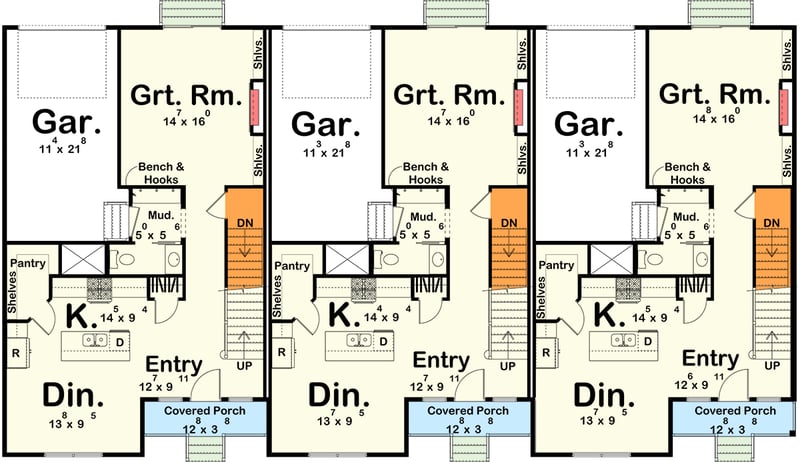

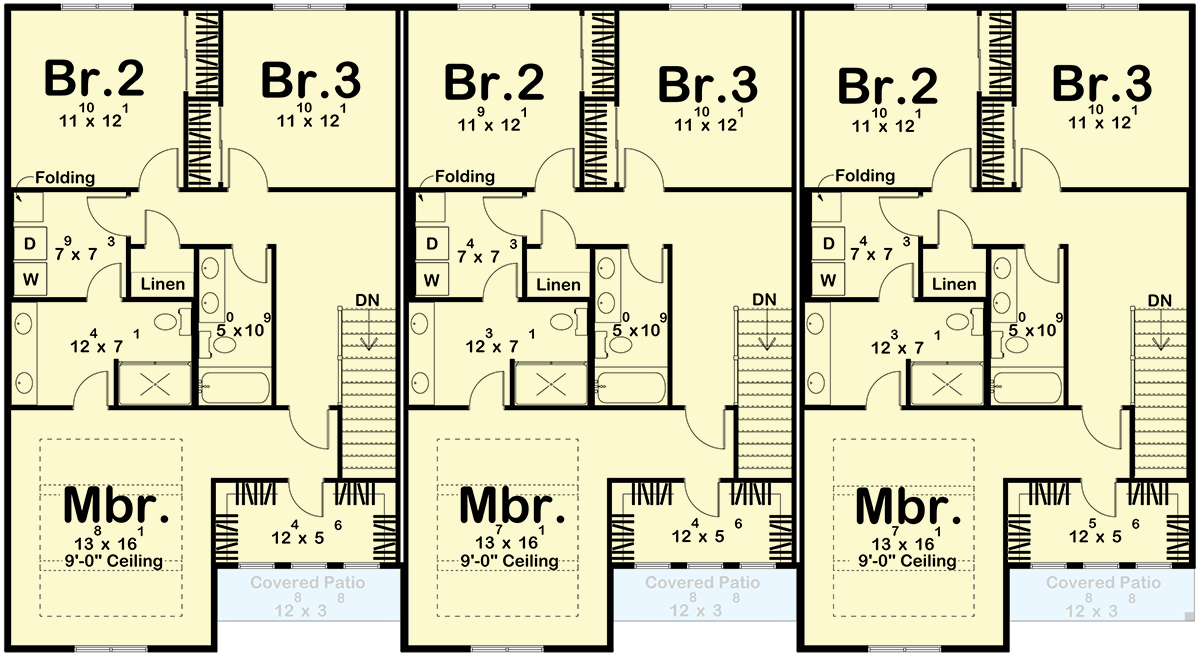

Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Typical Wall Section
Typical Stair Section (if applicable)
Cabinets Elevations (if applicable)

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
