Plan 52434WM

Two-Story Traditional Duplex House Plan with Loft Under 2000 Sq Ft Per Unit

Heated S.F.
3,962
Units
2
Width
Depth

Floor Plan

Plan 52434WM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 52434WM

M-F 9am-5pm EST |

1-203-761-8500

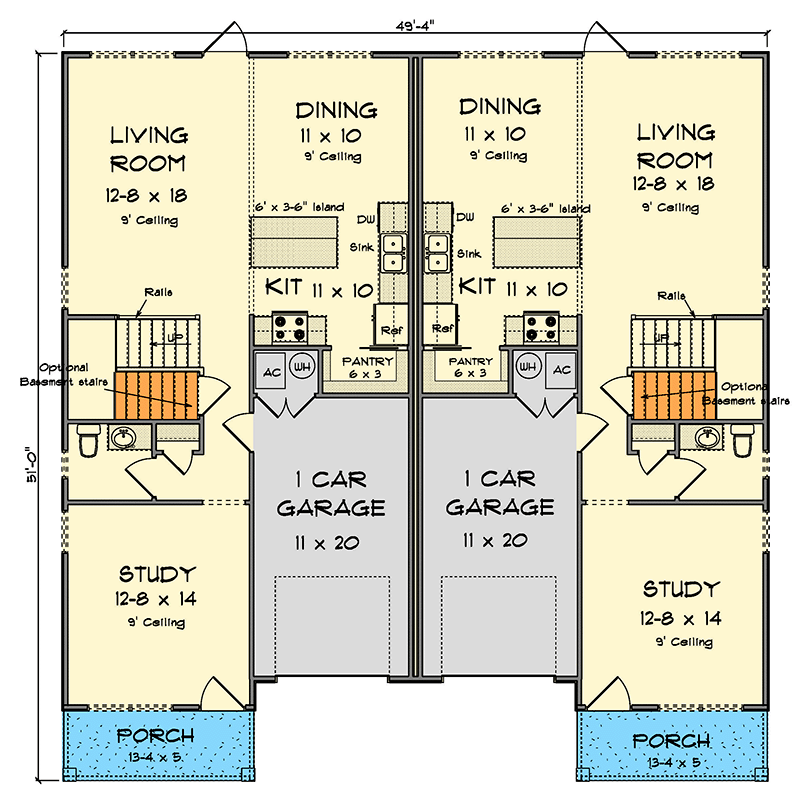

Main Level

Plan 52434WM: Two-Story Traditional Duplex House Plan with Loft Under 2000 Sq Ft Per Unit - Floor Plan - Main Level - New American, Traditional

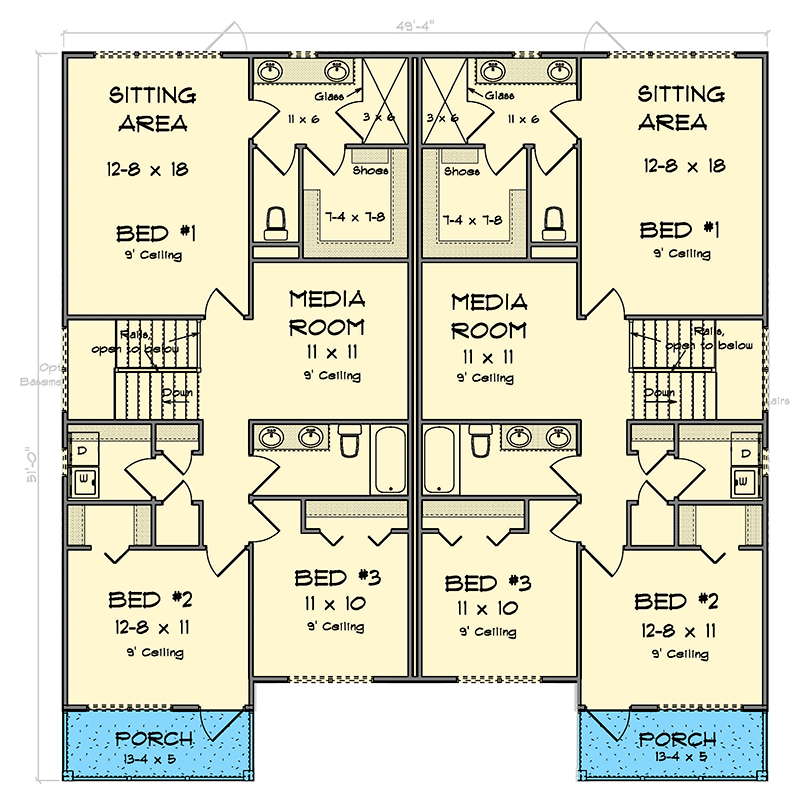

2nd Floor

Plan 52434WM: Two-Story Traditional Duplex House Plan with Loft Under 2000 Sq Ft Per Unit - Floor Plan - 2nd Floor - New American, Traditional

Plan Details

  • This duplex house plan gives you 2 units each with 1,981 square feet of heated living space (869 sq. ft. on the first floor, 1112 sq. ft. on the second floor), 3 beds, 2.5 baths and a 242 sq. ft. 1-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
Heated Area
1,981Sq. Ft.
869 Sq. Ft. 1st
1112 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
242 Sq. Ft.
Dimensions
24'width
51'depth
Unfinished Areas
242 Sq. Ft. Garage
134 Sq. Ft. Porch, Front
Unit B
Heated Area
1,981Sq. Ft.
869 Sq. Ft. 1st
1112 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
Dimensions
24'width
51'depth
Unfinished Areas
134 Sq. Ft. Porch, Front

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,962 sq. ft.

1st Floor

1,738 sq. ft.

2nd Floor

1,112 sq. ft.

Porch, Front

268 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

49' 4"

Depth

51' 0"

Max Ridge Height

30' 4"

Garage

Type

Attached

Area

484 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

New American

Traditional

Special Features

Bedrooms - Split

Loft

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

3,962 sq. ft.

1st Floor

1,738 sq. ft.

2nd Floor

1,112 sq. ft.

Porch, Front

268 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

49' 4"

Depth

51' 0"

Max Ridge Height

30' 4"

Garage

Type

Attached

Area

484 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

New American

Traditional

Special Features

Bedrooms - Split

Loft

Master Suite - Upstairs
