Plan 52424WM

Two-Story Traditional Multi-Family House Plan with Loft and Pocket Office - 1812 Sq Ft Per Unit

Heated S.F.
3,624
Units
2
Width
Depth

Floor Plan

Plan 52424WM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 52424WM

M-F 9am-5pm EST |

1-203-761-8500

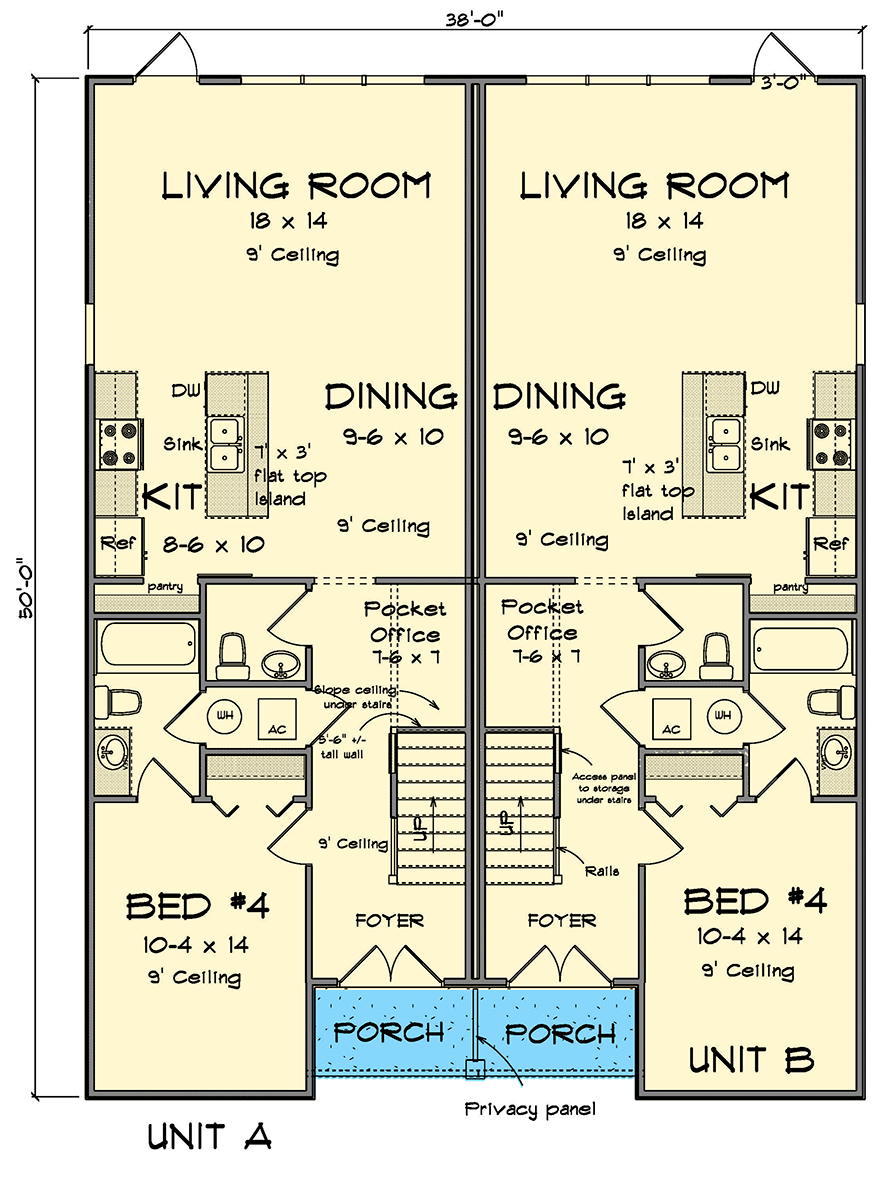

Main Level

Plan 52424WM: Two-Story Traditional Multi-Family House Plan with Loft and Pocket Office - 1812 Sq Ft Per Unit - Floor Plan - Main Level - Traditional

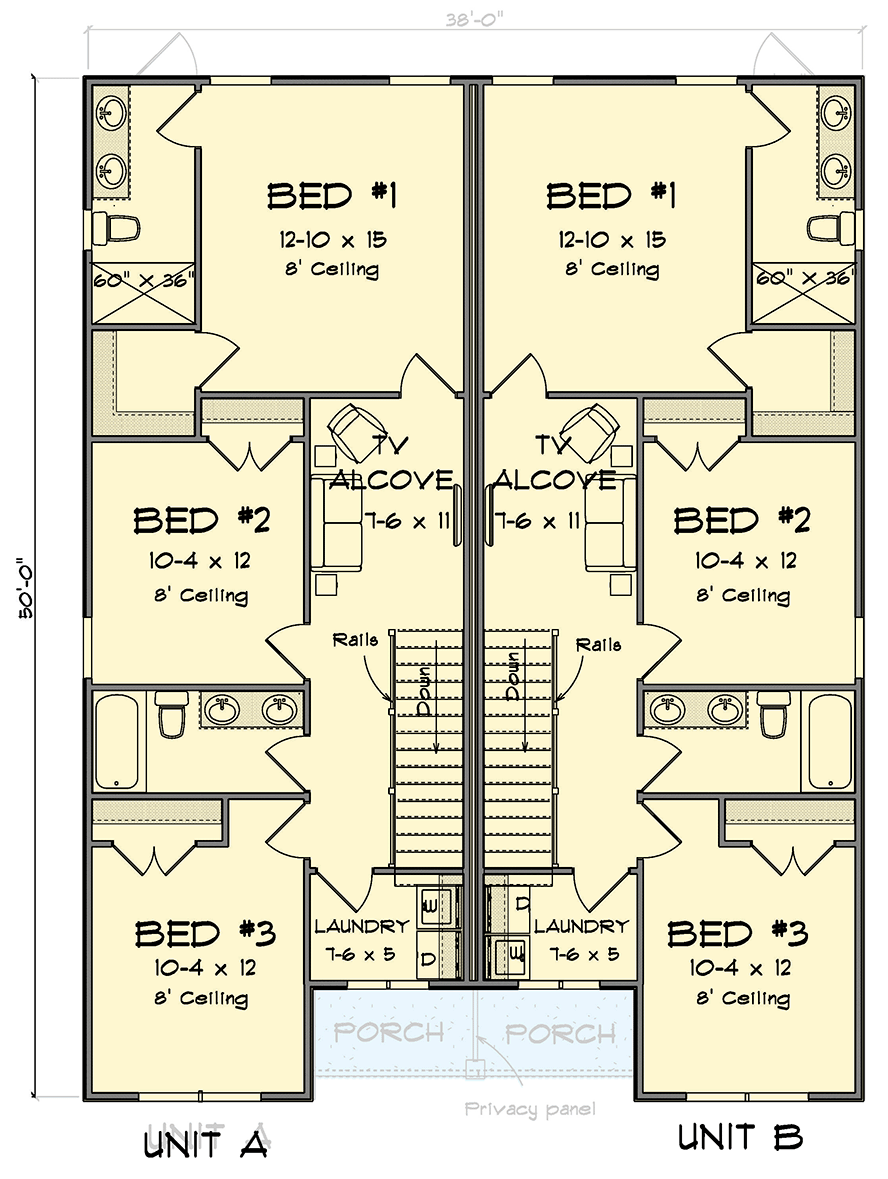

2nd Floor

Plan 52424WM: Two-Story Traditional Multi-Family House Plan with Loft and Pocket Office - 1812 Sq Ft Per Unit - Floor Plan - 2nd Floor - Traditional

Plan Details

  • This multi-family house plan gives you 2 units each with 1,812 square feet of heated living space (906 sq. ft. on the first floor, 906 sq. ft. on the second floor), 4 beds and 3.5 baths.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
Heated Area
1,812Sq. Ft.
906 Sq. Ft. 1st
906 Sq. Ft. 2nd
Beds
4Beds
Baths
3Full Baths
1Half Bath
Dimensions
19'width
50'depth
Unfinished Areas
36 Sq. Ft. Porch, Front
Unit B
Heated Area
1,812Sq. Ft.
1812 Sq. Ft. 1st
906 Sq. Ft. 2nd
Beds
4Beds
Baths
3Full Baths
1Half Bath
Dimensions
19'width
50'depth
Unfinished Areas
36 Sq. Ft. Porch, Front
