Plan 82066KA

Ultra-Luxury in a Mediterranean Package

Heated S.F.
5,024
Beds
4
Baths
4.5
Stories
2
Cars
4

Floor Plan

Plan 82066KA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 82066KA

M-F 9am-5pm EST |

1-203-761-8500

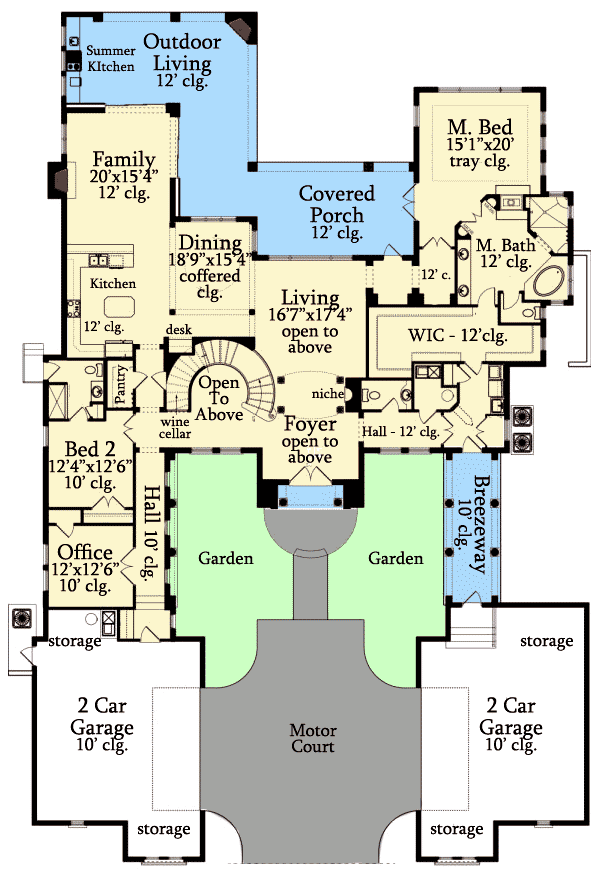

Main Level

Plan 82066KA: Ultra-Luxury in a Mediterranean Package - Floor Plan - Main Level - Florida-Style, Mediterranean

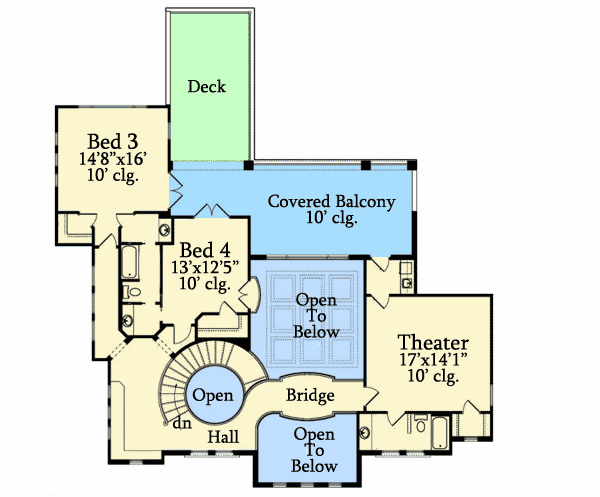

2nd Floor

Plan 82066KA: Ultra-Luxury in a Mediterranean Package - Floor Plan - 2nd Floor - Florida-Style, Mediterranean

Plan Details

  • A motor court entry takes you past twin gardens placed on either side of the impressive two-story entry porch for this luxurious Mediterranean house plan.
  • The grand two-story foyer opens up to showcase a stunning curved staircase with a wine cellar tucked under the stairs.
  • Columns and display niches in the middle foyer lead you to the large formal living room that soars upward.
  • On one side you have the master bedroom wing with its massive walk-in closet that opens right into the laundry room.
  • The master bathroom is almost as big as the bedroom and shares a two-way fireplace with the bedroom.
  • A huge outdoor living porch wraps around the main living area so you have wonderful views for every room.
  • On the second floor, you have two additional bedrooms that open to a covered balcony and an open deck beyond.
  • Take the balcony bridge to the home theater room and enjoy the views of the foyer and living room as you pass by.

What's Included

  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.

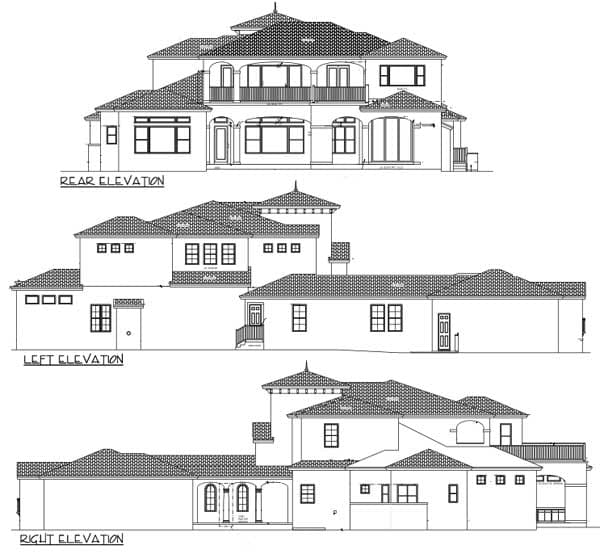

  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

5,024 sq. ft.

1st Floor

3,541 sq. ft.

2nd Floor

1,483 sq. ft.

Porch, Rear

909 sq. ft.

Entry

63 sq. ft.

Balcony / Veranda

425 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

81' 8"

Depth

124' 8"

Max Ridge Height

33' 0"

Garage

Type

Attached

Area

1672 sq. ft.

Count

4 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Florida-Style

Mediterranean

Special Features

Bedrooms - Split

Home Theater

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Plan Collections

Luxury
