Plan 66188WE

Unbelievable Master Suite

Heated S.F.
5,604
Beds
4
Baths
5.5
Stories
2
Cars
3

Floor Plan

Plan 66188WE

Main Level
Main Level
2nd Floor
2nd Floor

Plan 66188WE

M-F 9am-5pm EST |

1-203-761-8500

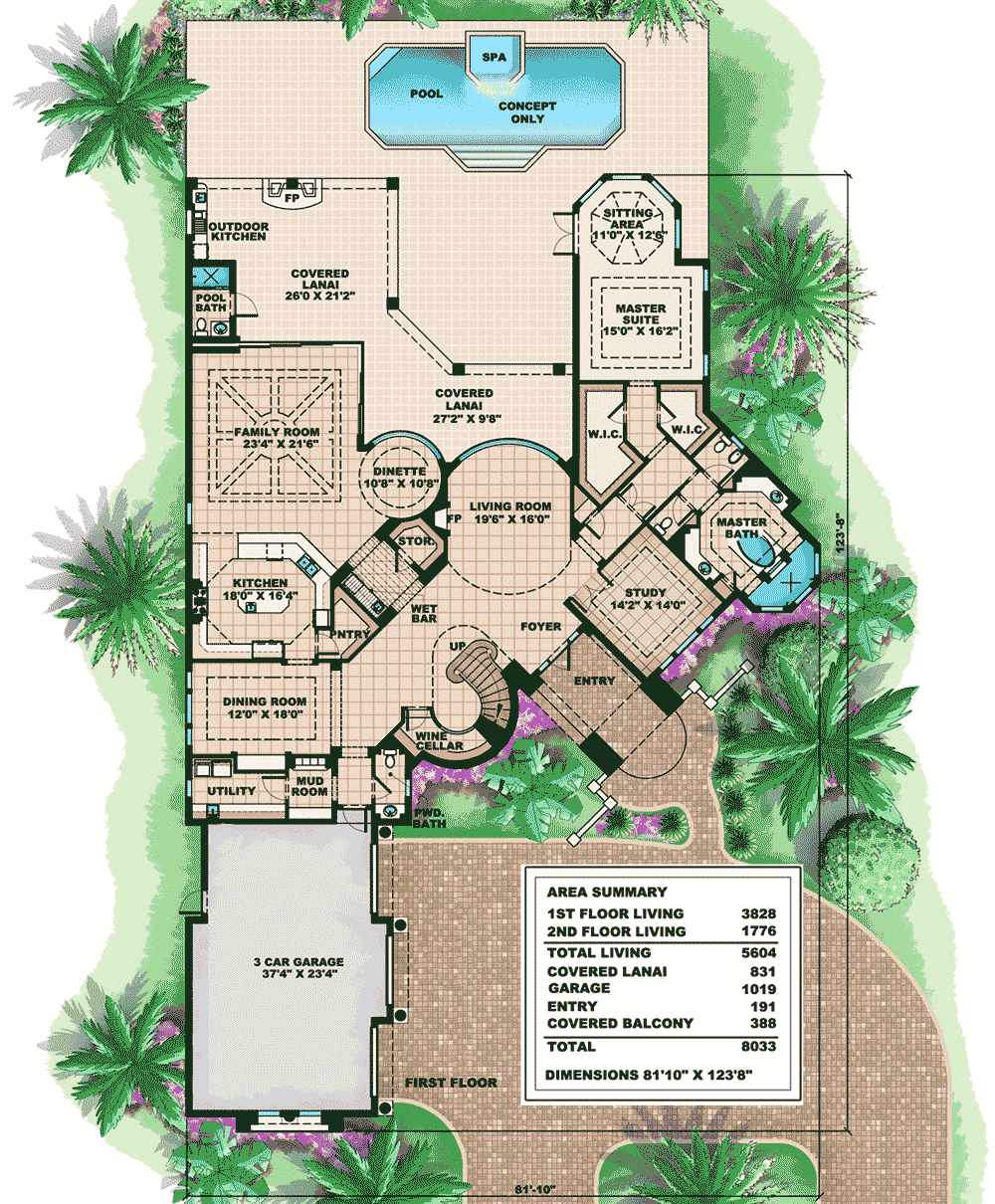

Main Level

Plan 66188WE: Unbelievable Master Suite - Floor Plan - Main Level - Florida-Style, Mediterranean

2nd Floor

Plan 66188WE: Unbelievable Master Suite - Floor Plan - 2nd Floor - Florida-Style, Mediterranean

Plan Details

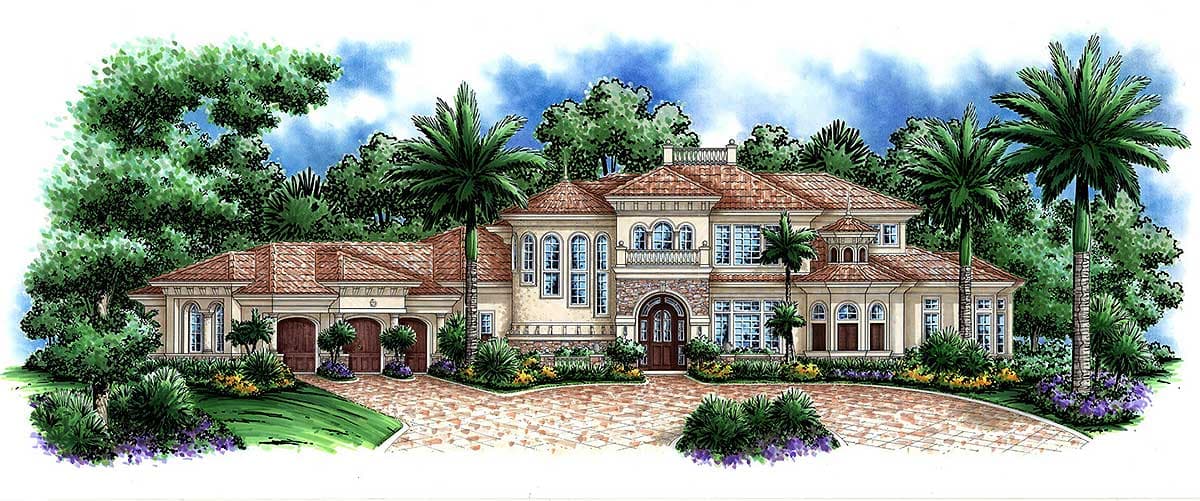

  • The beauty of this home plan starts at the front elevation and never ends. The master suite is unbelievable with a turret style bath and spacious octagonal sitting area.
  • As you enter the family room you go under a barreled ceiling leading you through the wet bar.
  • The kitchen and family room open up to zero corner sliders and a radial glass dinette.
  • Outside by the pool is a wonderful sitting area under the covered lanai right by the outside fire place.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Material Labels
  • Floor-to-Floor Heights
  • Roof Slope Indicators
Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes
Electrical Layouts
  • Building Section Markers
  • All Electrical Outlets, Fixtures, and Switching
Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor and Deck Joist Size and Spacing
  • Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges, and Valleys
  • Building Section Markers
Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor Joist Size and Spacing
  • Floor-to-Floor Heights
  • Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness
Miscellaneous Notes and Details
  • Miscellaneous General Notes
  • Stairway details (if applicable)
We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

5,604 sq. ft.

1st Floor

3,828 sq. ft.

2nd Floor

1,776 sq. ft.

Entry

191 sq. ft.

Balcony / Veranda

388 sq. ft.

Lanai

831 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

81' 10"

Depth

123' 8"

Max Ridge Height

30' 4"

Garage

Type

Attached

Area

945 sq. ft.

Count

3 Cars

Entry Location

Front, Courtyard

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida-Style

Mediterranean

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Walk-in Pantry

Wet Bar

Plan Collections

Luxury
