Plan 28123J

Under 2500 Square Foot Craftsman House Plan with 4 Beds and 3-Car Tandem Garage

Heated S.F.
2,482
Beds
4
Baths
2.5
Stories
2
Cars
3

Floor Plan

Plan 28123J

Main Level
Main Level
2nd Floor
2nd Floor

Plan 28123J

M-F 9am-5pm EST |

1-203-761-8500

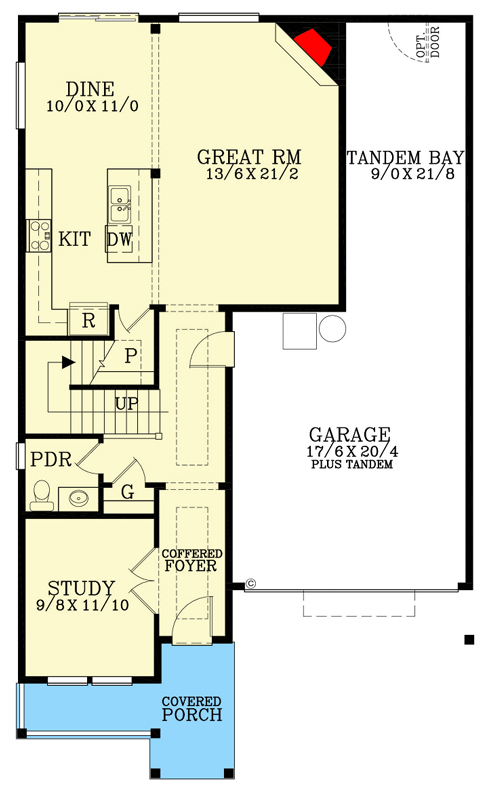

Main Level

Plan 28123J: Under 2500 Square Foot Craftsman House Plan with 4 Beds and 3-Car Tandem Garage - Floor Plan - Main Level - Country, Craftsman, Northwest

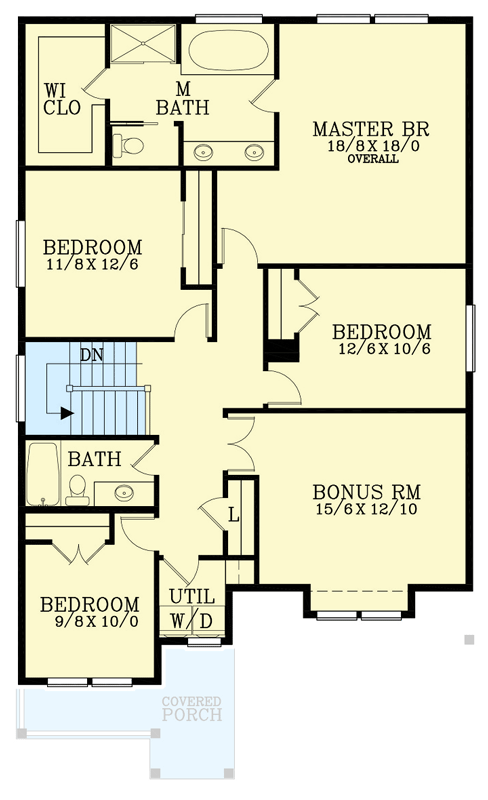

2nd Floor

Plan 28123J: Under 2500 Square Foot Craftsman House Plan with 4 Beds and 3-Car Tandem Garage - Floor Plan - 2nd Floor - Country, Craftsman, Northwest

Plan Details

  • This 4 bed, 2.5 bath Craftsman house plan gives you 2,498 square feet of heated living space and has a 3-car garage (610 sq. ft.) when you park tandem-style in the right bay.
  • A coffered foyer greets you as you enter from the front porch. French doors on your left open to the study which makes a great work-from-home space.
  • The spacious great room features a corner fireplace surrounded and has views to the back. The great room is open to the island kitchen and dining room with rear yard access.
  • Upstairs is dedicated to bedrooms plus a bonus room - included in the Total Living Area - which can be put to many uses. Laundry is conveniently located upstairs.
  • Related Plans: Get a true 3-car-wide garage with house plan 28077J (3,298 sq. ft.) and get 2-car garage with house plans 28076J (2,759 sq. ft.) and 28124J (2,959 sq. ft.)..

What's Included

  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,482 sq. ft.

1st Floor

972 sq. ft.

2nd Floor

1,510 sq. ft.

Porch, Front

98 sq. ft.

Porch, Combined

98 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 0"

Depth

50' 0"

Max Ridge Height

29' 7"

Garage

Type

Attached

Area

610 sq. ft.

Count

3 Cars

Entry Location

Front

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

Northwest

Special Features

Bedrooms - Clustered

Den

Flex Room

Game/Rec Room

Home Office

Laundry - Upstairs

Library/Study

Master Suite - Upstairs

Media Room

Optionally Finished Bonus Room

Tandem Garage

Plan Collections

Home Office
