Unforgettable Deck

Plan 81600AB

  • 2,952

    Heated s.f.

  • 2-5

    Beds

  • 2.5+ - 4.5+

    Baths

  • 1

    Stories

  • 4

    Cars

  • You won't forget the views from the rear deck of this European mountain home plan. With 711 square feet of space, the deck is where you'll most want to be.
  • From the covered entry you step into a dramatic barrel vaulted foyer. The barrel vault continues straight back through to the great room.
  • The kitchen has views to the deck and great room. An angled eating nook has an extension of a 3-season room with fireplace. And the kitchen also has a huge 7'x10' pantry.
  • The master has its own seatig area and a doorh helps you take advantage of the deck steps away.
  • An office can also be used as a formal dining room if your lifestyle goes that way.
  • The stairs sweep down to the lower level where you'll find bedrooms, a huge family room, games, and another great outdoor area. Plus, there is a large mechanical room and fitness area.

Plans include the following:

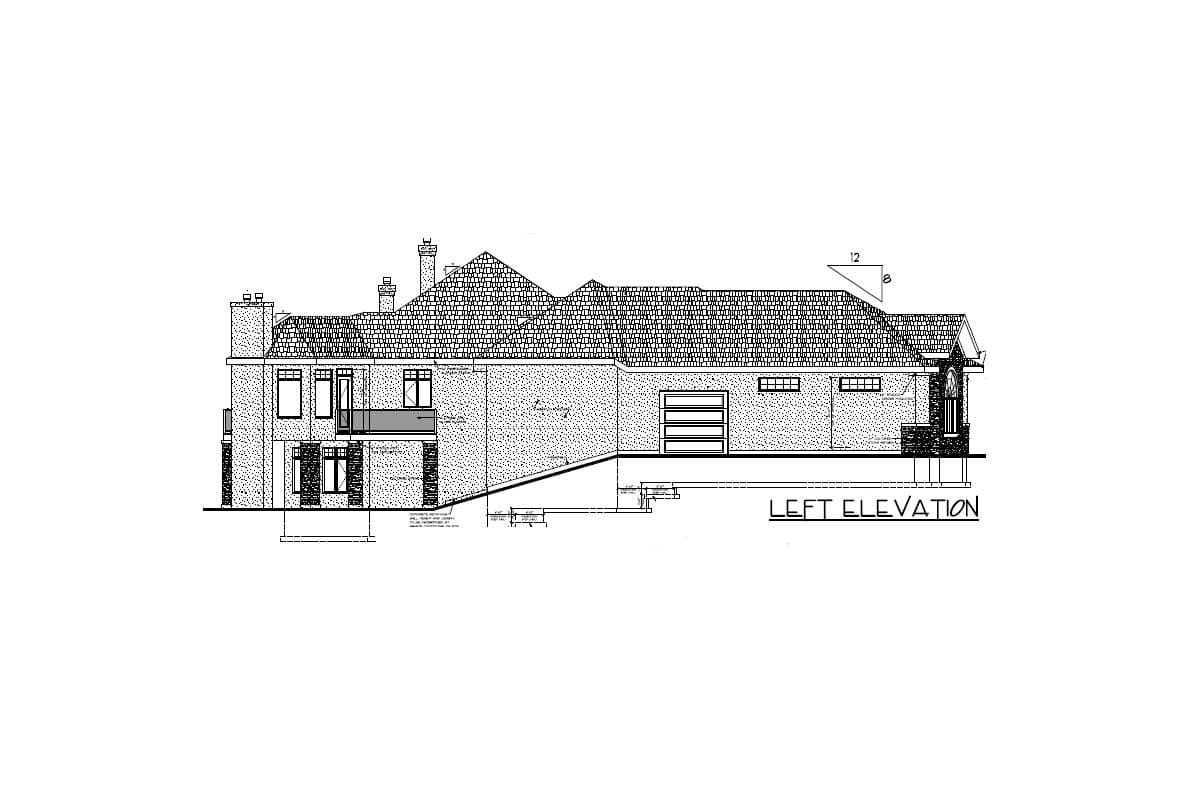

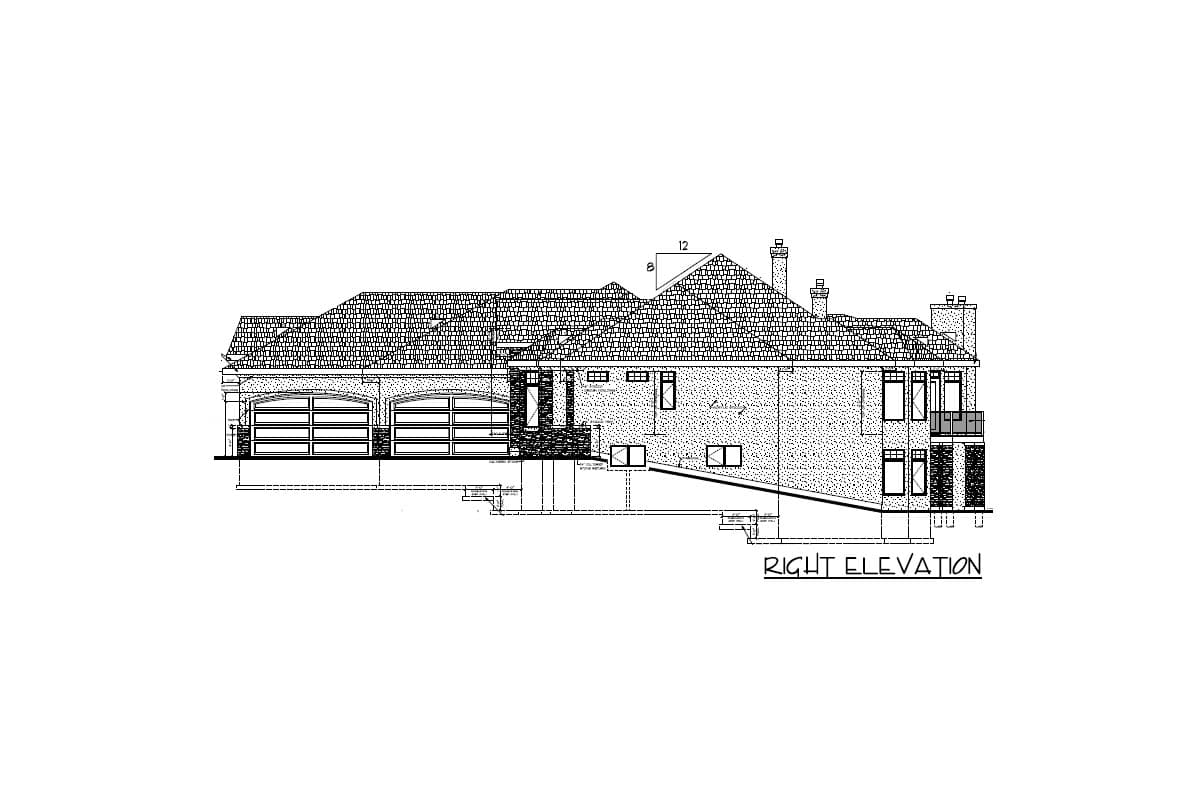

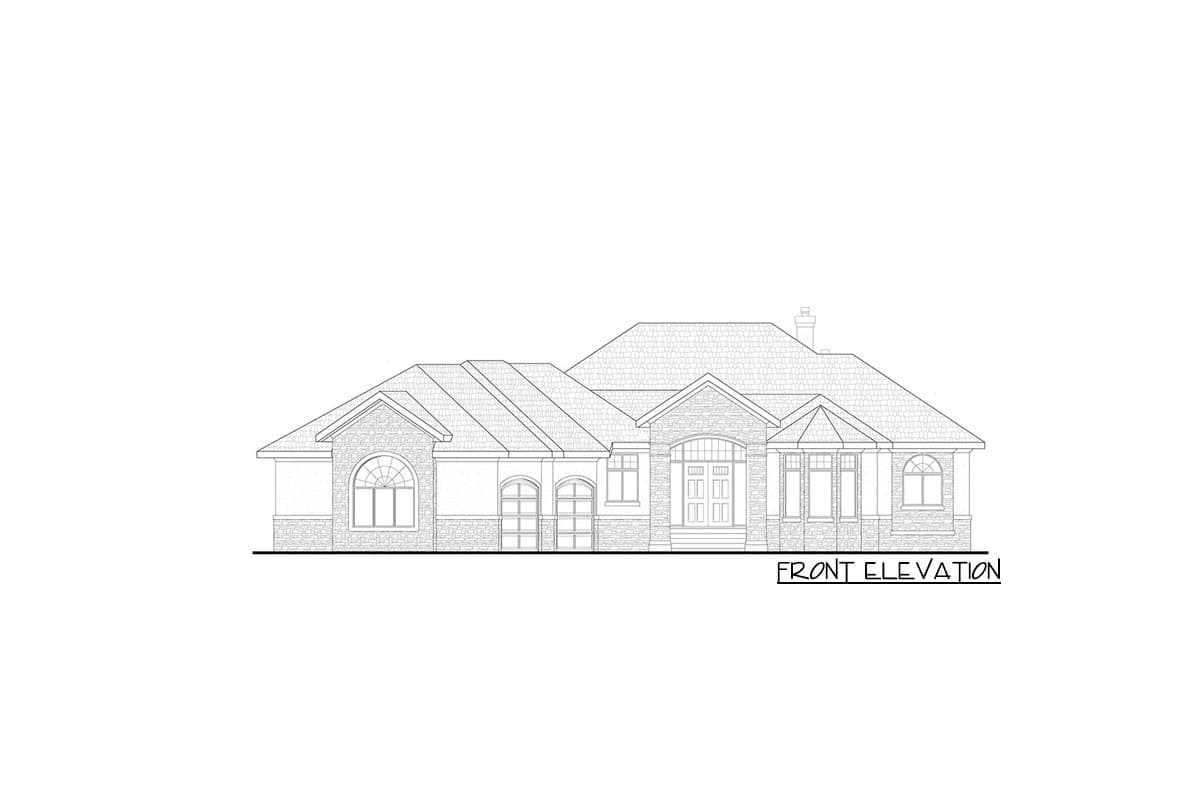

  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

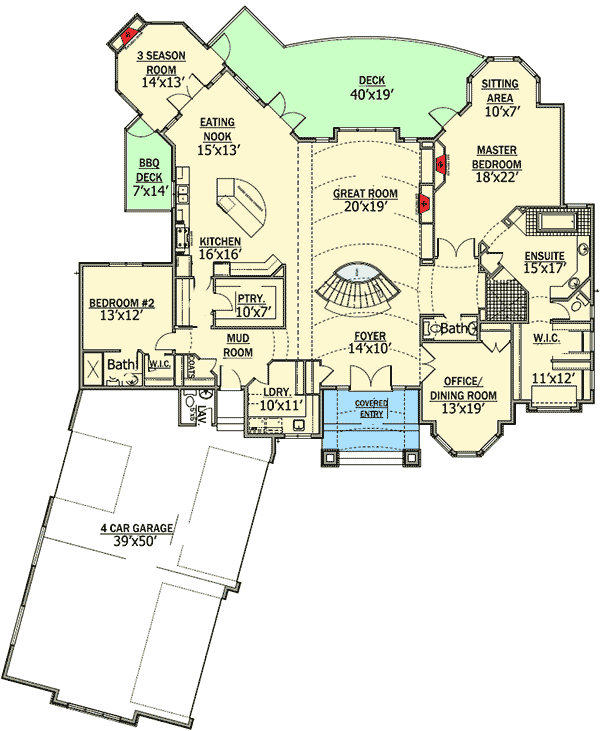

Unforgettable Deck - 81600AB floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

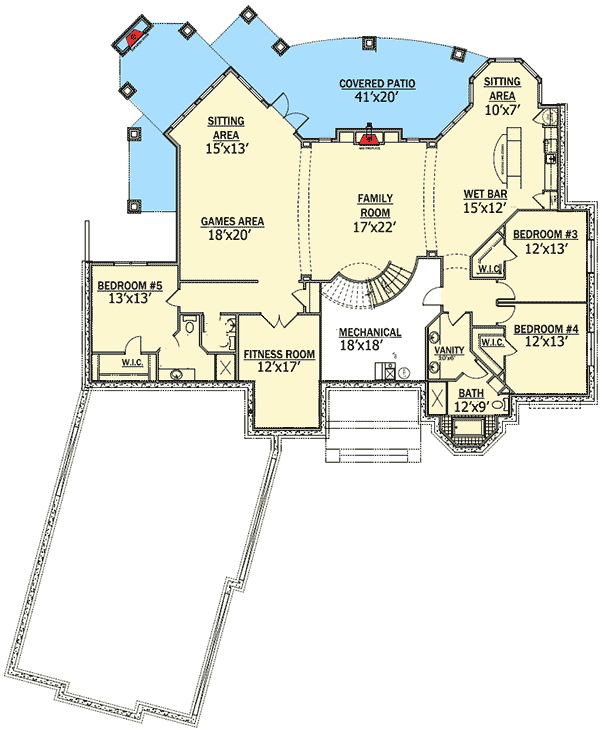

Unforgettable Deck - 81600AB floor plan - Lower Level

Plan details

Unforgettable Deck

  • 2,952

    Heated s.f.

  • 2-5

    Beds

  • 2.5+ - 4.5+

    Baths

  • 1

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $1,815
  • CAD - Single-Build $2,725
  • View all purchase option online

About This Plan

  • You won't forget the views from the rear deck of this European mountain home plan. With 711 square feet of space, the deck is where you'll most want to be.
  • From the covered entry you step into a dramatic barrel vaulted foyer. The barrel vault continues straight back through to the great room.
  • The kitchen has views to the deck and great room. An angled eating nook has an extension of a 3-season room with fireplace. And the kitchen also has a huge 7'x10' pantry.
  • The master has its own seatig area and a doorh helps you take advantage of the deck steps away.
  • An office can also be used as a formal dining room if your lifestyle goes that way.
  • The stairs sweep down to the lower level where you'll find bedrooms, a huge family room, games, and another great outdoor area. Plus, there is a large mechanical room and fitness area.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,952 sq. ft.
  • 1st Floor: 2,952 sq. ft.
  • Deck: 711 sq. ft.
  • Optional Lower Level: 2,512 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, 4, or 5
  • Full bathrooms: 2, 3, or 4
  • Half bathrooms: 2 or 3

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 87' 0"
  • Depth: 106' 0"
  • Max ridge height: 28' 6"

Garage

  • Type: Attached
  • Area: 1373 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
