Plan 42064MJ

Unique Angled Entry

Heated S.F.
3,238
Beds
4
Baths
4
Stories
1
Cars
3

Floor Plan

Plan 42064MJ

Main Level
Main Level

Plan 42064MJ

M-F 9am-5pm EST |

1-203-761-8500

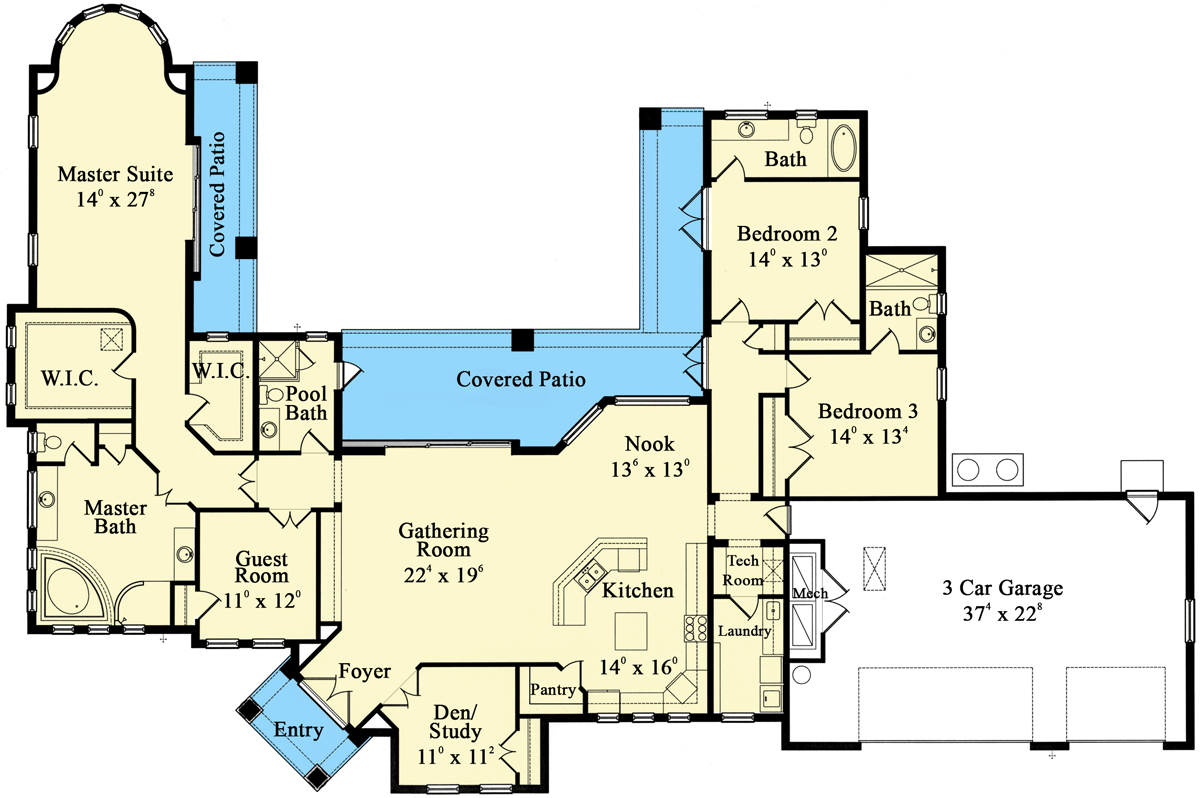

Main Level

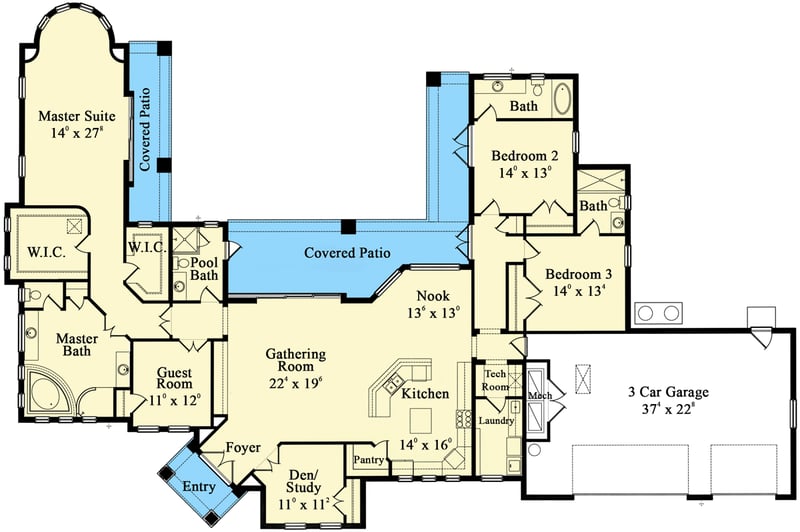

Plan 42064MJ: Unique Angled Entry - Floor Plan - Main Level - Florida-Style, Mediterranean, Spanish

Plan Details

  • An unusual angled entry porch sets this Mediterranean home apart from others.
  • Step through the foyer into the huge, open living area where silding glass doors in the gathering room lead to the rear covered patio.
  • A tech center near the kitchen keeps the computers out of the main living area.
  • Two family bedrooms lie on the right wing of the home with a guest suite on the opposite side of the house.
  • The elegant master suite has a large bayed sitting area with four windows to bring in light.
  • You'll never feel cramped in this master bathroom with its large soaking tub, two sinks and a linen closet.
  • The three car garage is over-sized and has a door to the back yard.
  • FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.

What's Included

  • Cover Sheet
  • Floor Plans
  • Slab Foundation Plan (plumbing layout)
  • Elevations
  • Sections
  • Stair Sections if applicable
  • Electrical Layout
  • Basic Details Sheet

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Some plans may not include sections. Please contact us for availability.
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,238 sq. ft.

1st Floor

3,238 sq. ft.

Entry

60 sq. ft.

Covered Patio

582 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

111' 4"

Depth

73' 8"

Max Ridge Height

22' 0"

Garage

Type

Attached

Area

904 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

12'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Florida-Style

Mediterranean

Spanish

Special Features

Bedrooms - Split

Breakfast Nook

Den

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

3,238 sq. ft.

1st Floor

3,238 sq. ft.

Entry

60 sq. ft.

Covered Patio

582 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

111' 4"

Depth

73' 8"

Max Ridge Height

22' 0"

Garage

Type

Attached

Area

904 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

12'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Florida-Style

Mediterranean

Spanish

Special Features

Bedrooms - Split

Breakfast Nook

Den

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Plan Collections

Photo Gallery
