Plan 59152ND
Unique Cabin Cottage
Heated S.F.
1,544
Beds
3
Baths
2
Stories
2
What's Included
Plan Details

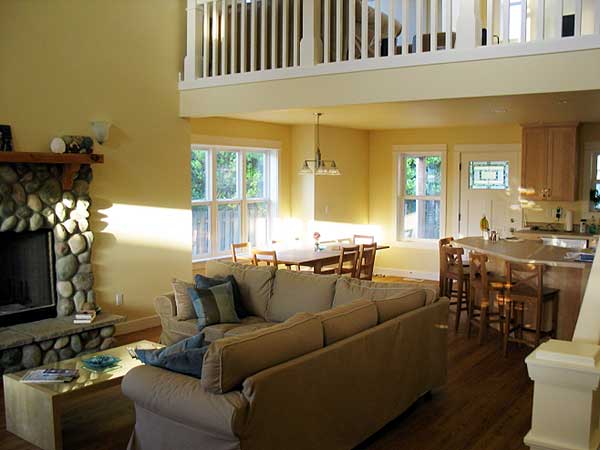

  • The den of this unique cottage house plan features a rock hearth fireplace.
  • Enjoy the eat at bar in the comfortable kitchen.
  • The supply room is perfect for extra kitchen storage or for your fishing tackle.
  • Save space with the stacked washer/dryer combo.
  • Take advantage of the outdoors and use the rear grilling porch when the weather is right.
  • Upstairs,the bedrooms have unique ceilings and shared a bath.
  • Related Plans: Other versions of this house plan include 59156ND (two dormers, 1,400 sq. ft.), 59151ND (one dormer, 1,397 sq. ft.), 59160ND (no dormers, 1,458 sq. ft.), 59154ND (no dormers, 1,970 sq. ft.) and house plan 59135ND (attached garage, 1,903 sq. ft.).
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)

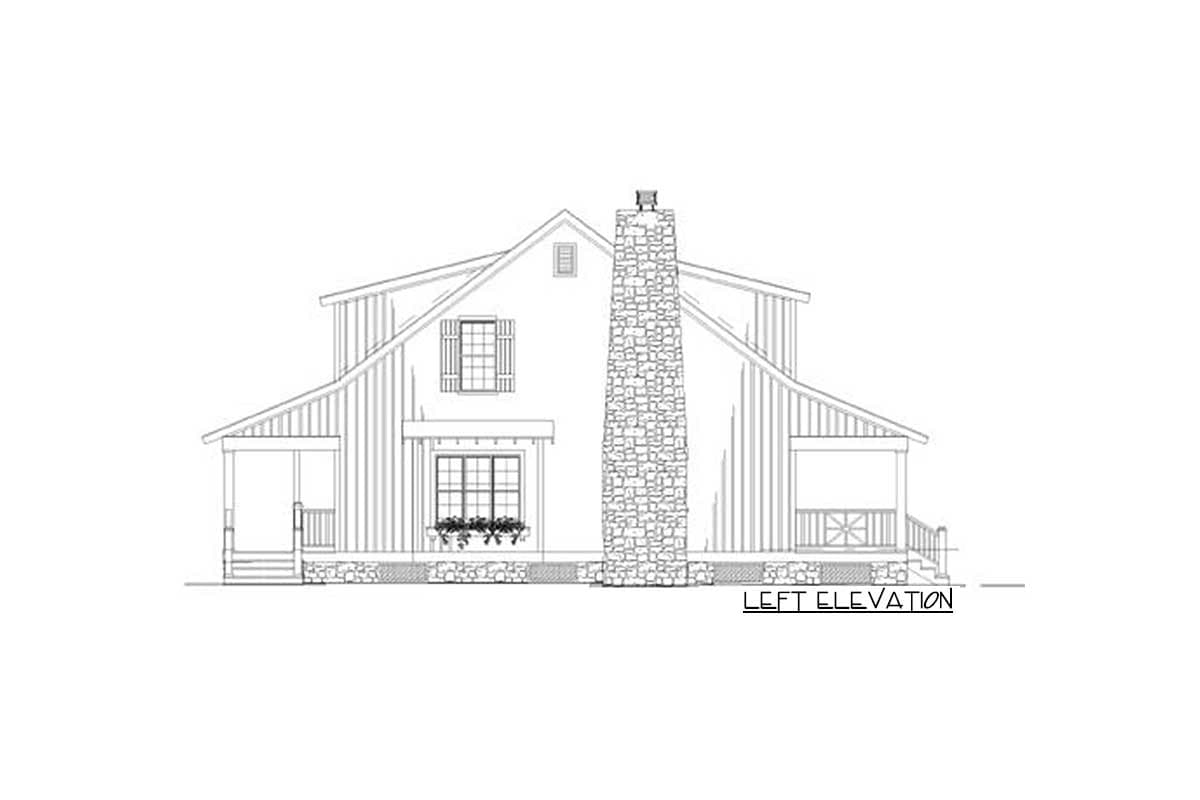

  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Unique Cabin Cottage

  • 1,544

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

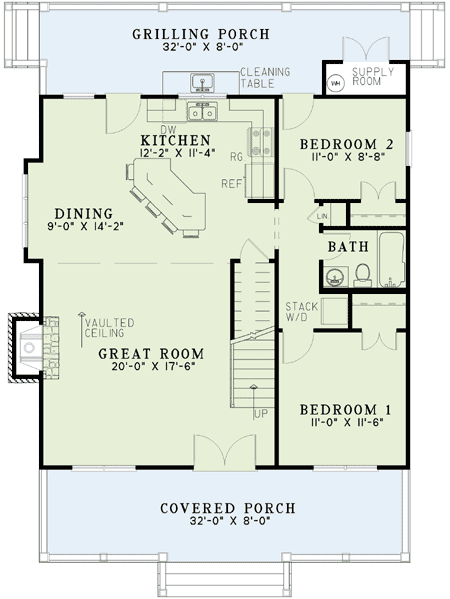

Floor Plan

  • Main Level

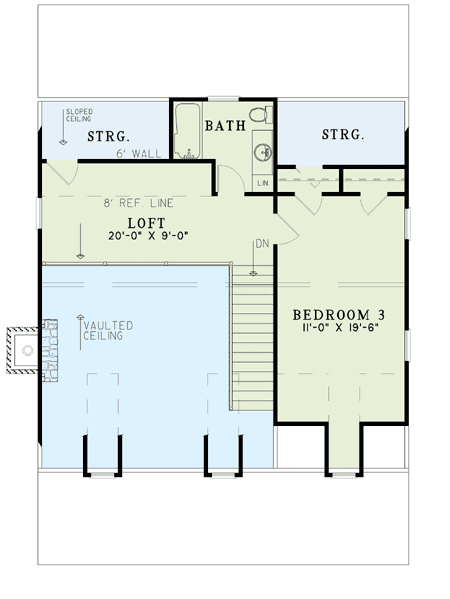

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,544 sq. ft.
  • 1st Floor: 1,031 sq. ft.
  • 2nd Floor: 513 sq. ft.

Dimensions

  • Width: 34' 4"
  • Depth: 48' 4"
  • Max ridge height: 24' 4"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick
