Unique Cottage with Loads of Character

Plan 23477JD

  • 3,714

    Heated s.f.

  • 4

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This adorable Cottage home is loaded with charm and character.
  • An eyebrow dormer and entry way accent the twin gables and round window below.
  • Wood shakes and stone continue the appeal.
  • The inside of this Cottage is by no means small, with all rooms a good size.
  • Tray, vaulted and coffered ceilings add interest all throughout the home.
  • Almost the entire second floor is devoted to the master suite with its sitting area and private covered deck.
  • A nearby office has a private bath and a Juliette balcony that opens to the great room below.
  • Family and friends will find comfortable quarters on the lower level with a full laundry and a rec room with fireplace.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet

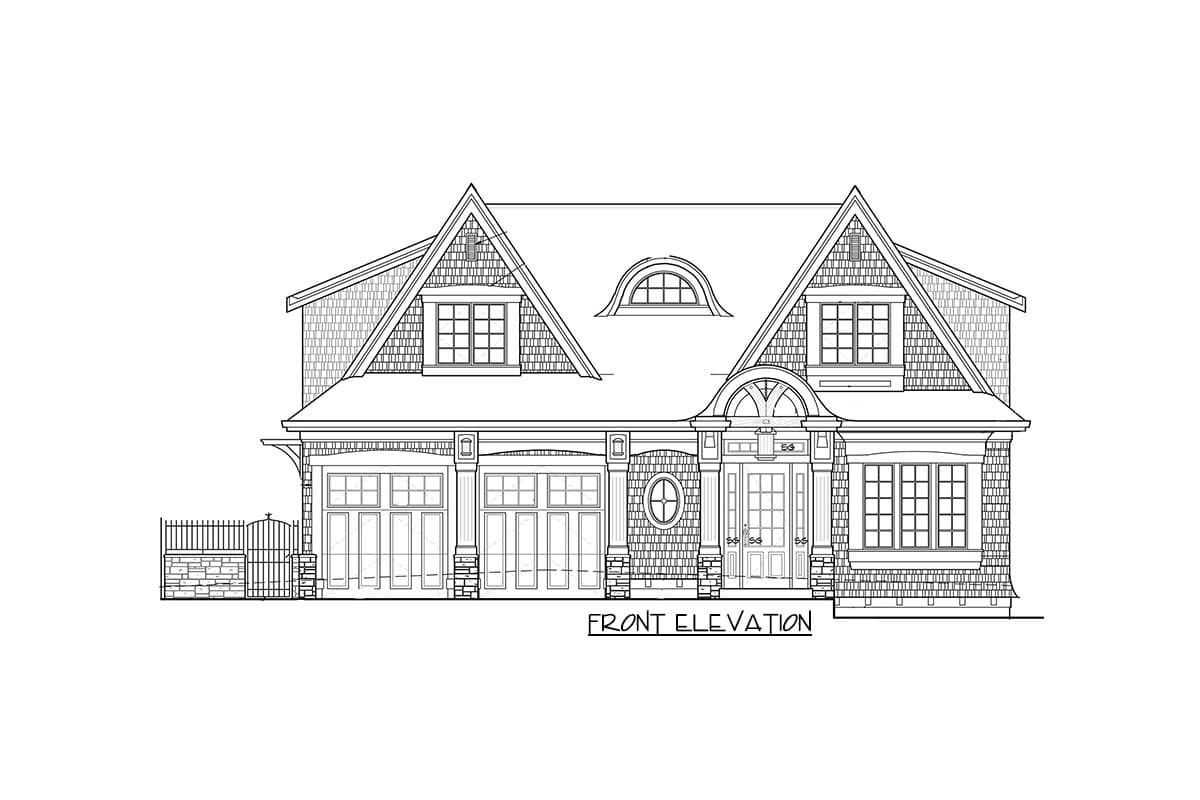

Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

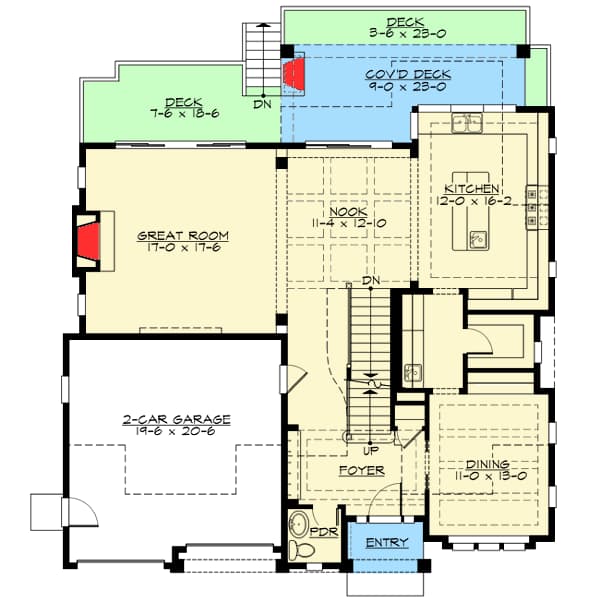

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Unique Cottage with Loads of Character - 23477JD floor plan - Main Level

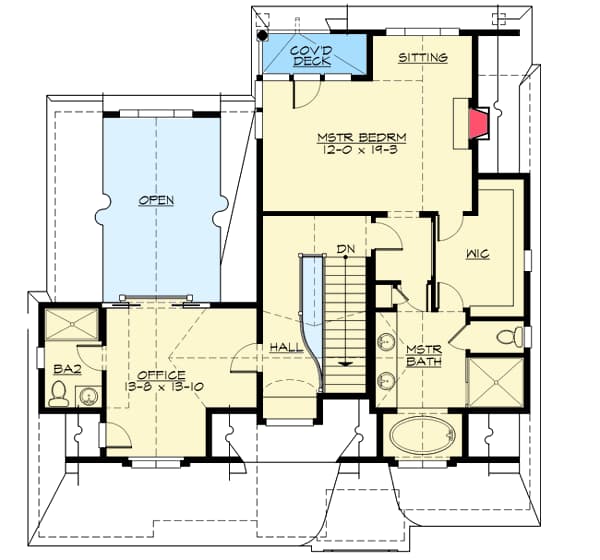

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Unique Cottage with Loads of Character - 23477JD floor plan - 2nd Floor

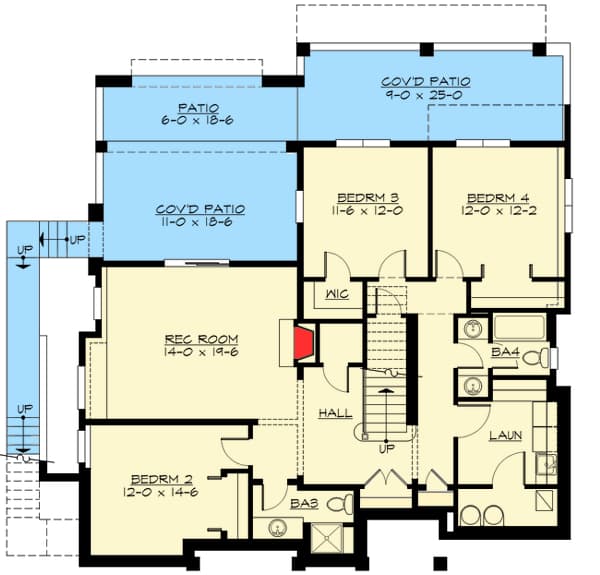

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Unique Cottage with Loads of Character - 23477JD floor plan - Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,714 sq. ft.
  • Lower Level: 1,443 sq. ft.
  • 1st Floor: 1,284 sq. ft.
  • 2nd Floor: 987 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 45' 0"
  • Depth: 48' 4"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Area: 406 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 7' 0"
Room Details Ceiling Type Width Depth Height
Office Vaulted 12' 0"
Master Bedroom Vaulted 12' 9"
Great Room Vaulted 24' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Unique Cottage with Loads of Character

  • 3,714

    Heated s.f.

  • 4

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $2,200
  • CAD + PDF - Unlimited Build $3,700
  • View all purchase option online

About This Plan

  • This adorable Cottage home is loaded with charm and character.
  • An eyebrow dormer and entry way accent the twin gables and round window below.
  • Wood shakes and stone continue the appeal.
  • The inside of this Cottage is by no means small, with all rooms a good size.
  • Tray, vaulted and coffered ceilings add interest all throughout the home.
  • Almost the entire second floor is devoted to the master suite with its sitting area and private covered deck.
  • A nearby office has a private bath and a Juliette balcony that opens to the great room below.
  • Family and friends will find comfortable quarters on the lower level with a full laundry and a rec room with fireplace.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information
