Plan 68618VR Unique Modern House Plan with an RV Bay

1,850 2 2 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Unique Modern House Plan with an RV Bay

Plan 68618VR

  • 1,850

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Stories

  • 3

    Cars

  • This very unique modern house plan has special features like tall RV garage bays, a workshop and a 2-story entry foyer.
  • There's a huge covered porch on the ground level and an even bigger uncovered balcony on the upper floor where the main living area is. Tall windows brighten the stairway and foyer.
  • Upstairs, the open layout makes the whole living area feel huge. The family room ceiling vaults from 9' to 19'8" and sliding doors open to the balcony.
  • The master bedroom has a walk-in closet and enjoys balcony access. The second bedroom sits behind barn doors.
  • Related Plans: Add a residential elevator with house plan 68814VR. Get a 1-bed version with plan 68496VR and a 3-bed version with house plan 680008VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

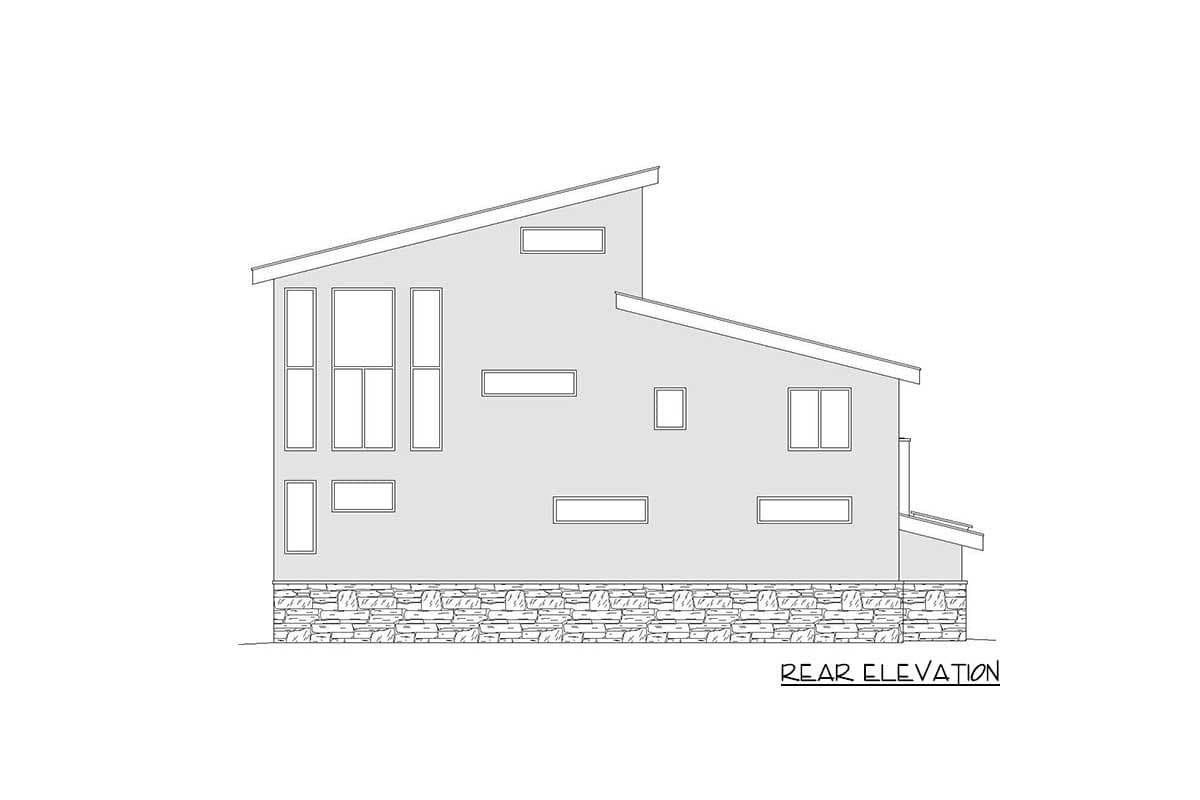

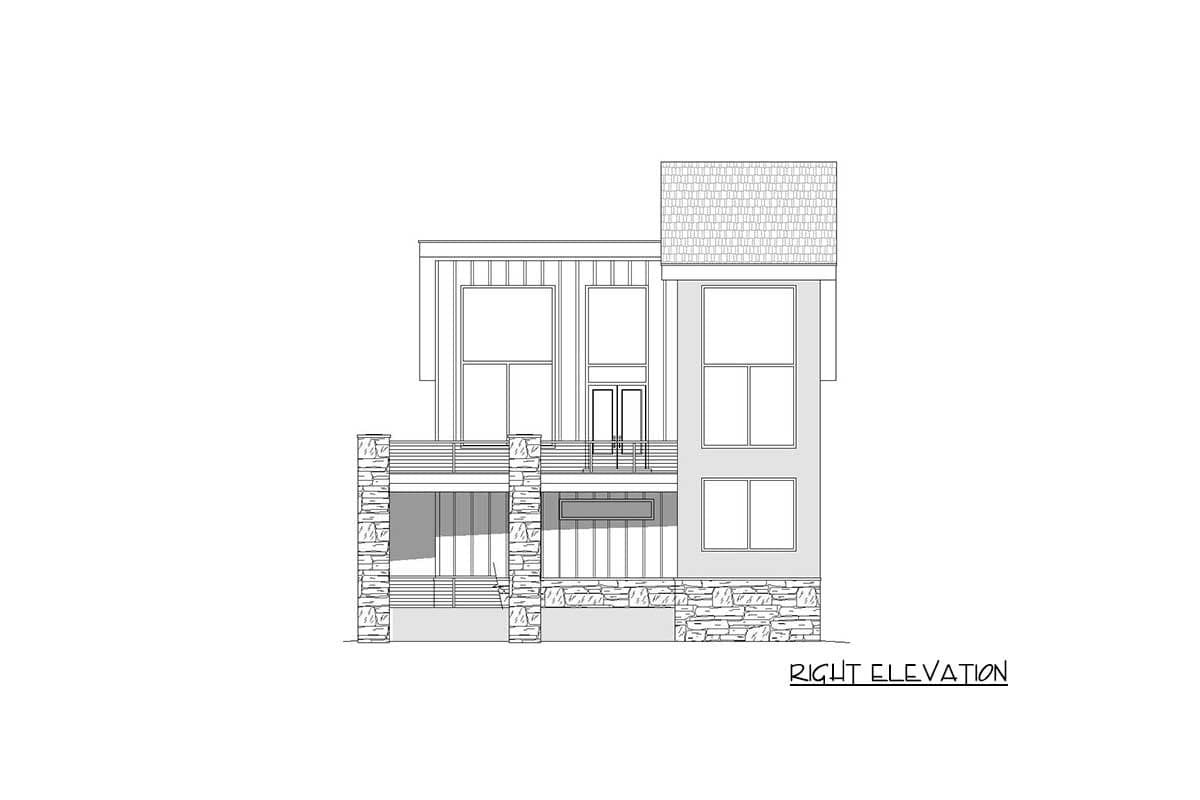

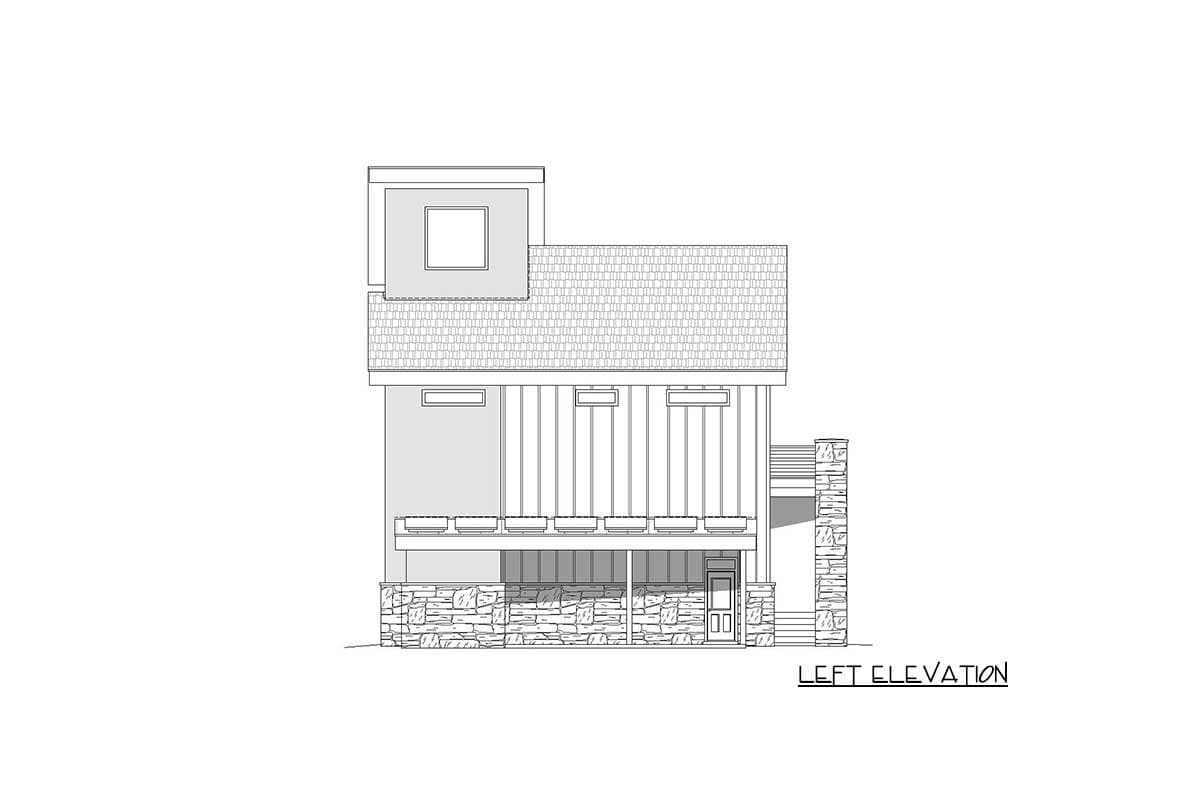

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

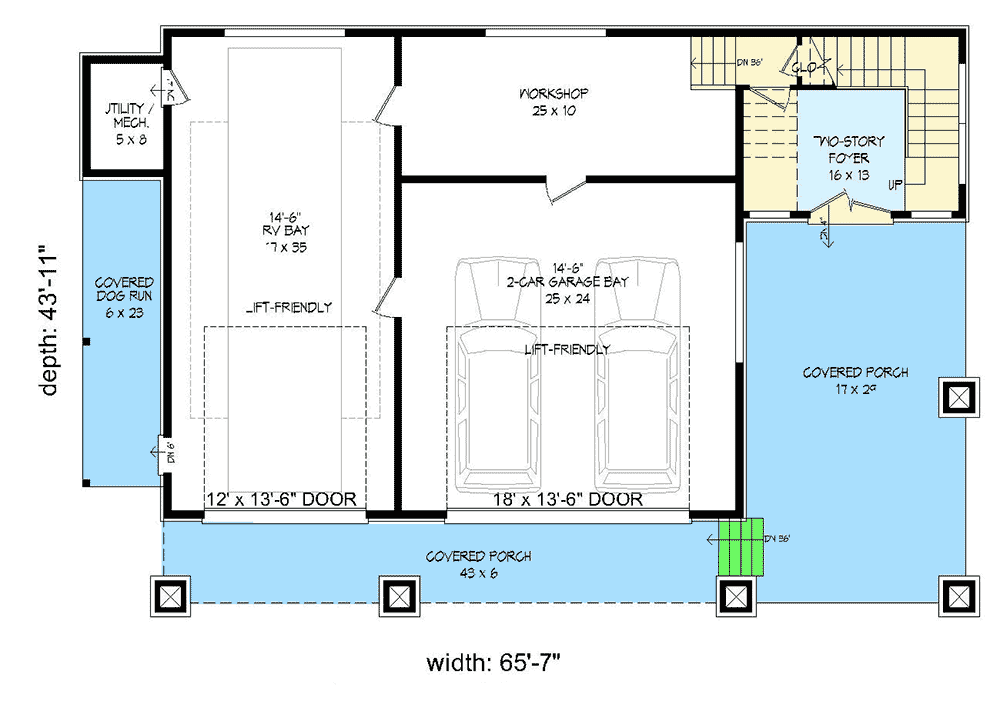

Unique Modern House Plan with an RV Bay - 68618VR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

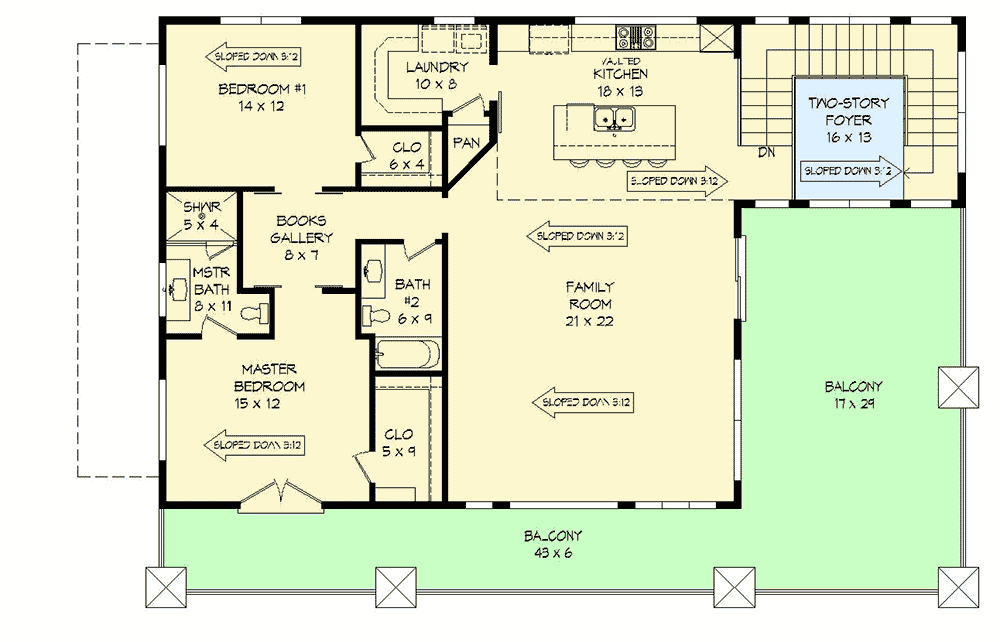

Unique Modern House Plan with an RV Bay - 68618VR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,850 sq. ft.
  • 1st Floor: 222 sq. ft.
  • 2nd Floor: 1,628 sq. ft.
  • Balcony / Veranda: 765 sq. ft.
  • Porch, Combined: 902 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Basement, Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 65' 7"
  • Depth: 43' 11"
  • Max ridge height: 45' 1"

Garage

  • Type: RV Garage, Drive Under
  • Area: 1325 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 14' 6" Second Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Family Room Vaulted 9' 0" to 19' 8"

Roof Details

  • Primary Pitch: 3 on 12
  • Framing Type: Truss

Architectural Style

Special features

Unique Modern House Plan with an RV Bay

  • 1,850

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,175
  • 5 Sets $1,260
  • 5 Sets + PDF $1,390
  • CAD + PDF - Single-Build $1,725
  • View all purchase option online

About This Plan

  • This very unique modern house plan has special features like tall RV garage bays, a workshop and a 2-story entry foyer.
  • There's a huge covered porch on the ground level and an even bigger uncovered balcony on the upper floor where the main living area is. Tall windows brighten the stairway and foyer.
  • Upstairs, the open layout makes the whole living area feel huge. The family room ceiling vaults from 9' to 19'8" and sliding doors open to the balcony.
  • The master bedroom has a walk-in closet and enjoys balcony access. The second bedroom sits behind barn doors.
  • Related Plans: Add a residential elevator with house plan 68814VR. Get a 1-bed version with plan 68496VR and a 3-bed version with house plan 680008VR.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,850 sq. ft.
  • 1st Floor: 222 sq. ft.
  • 2nd Floor: 1,628 sq. ft.
  • Balcony / Veranda: 765 sq. ft.
  • Porch, Combined: 902 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 65' 7"
  • Depth: 43' 11"
  • Max ridge height: 45' 1"

Garage

  • Type: RV Garage, Drive Under
  • Area: 1325 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 14' 6" Second Floor / 9' 0"

Roof

  • Primary Pitch: 3 on 12
  • Framing Type: Truss
