Unique Contemporary Home Plan with RV Bays

Plan 68496VR

  • 1,319

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Stories

  • 2

    Cars

  • This very special Contemporary house plan has unique features like tall RV garage bays, a covered dog run and a two-story entry foyer.
  • There's a huge covered porch on the ground level and an even bigger uncovered balcony on the upper floor where the main living area is.
  • Transom windows and tall walls of glass brighten the upper floor and there's even a solarium with sliding glass doors to the balcony.
  • The open layout makes the whole living area feel huge.
  • The second floor is an open vault ceiling that starts at 9’ and goes up to 14’-8” at the great room wall and further to 16’1 at the foyer.
  • There's room for a king size bed in the bedroom and a big walk-in closet and bathroom complete this unique home.
  • The RV garage doors measure 12' wide by 13'6" high.
  • Related Plans: Get a 2-bed version with house plans 68618VR and 68814VR (with an elevator). Get a 5-bedroom version with house plan 68839VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

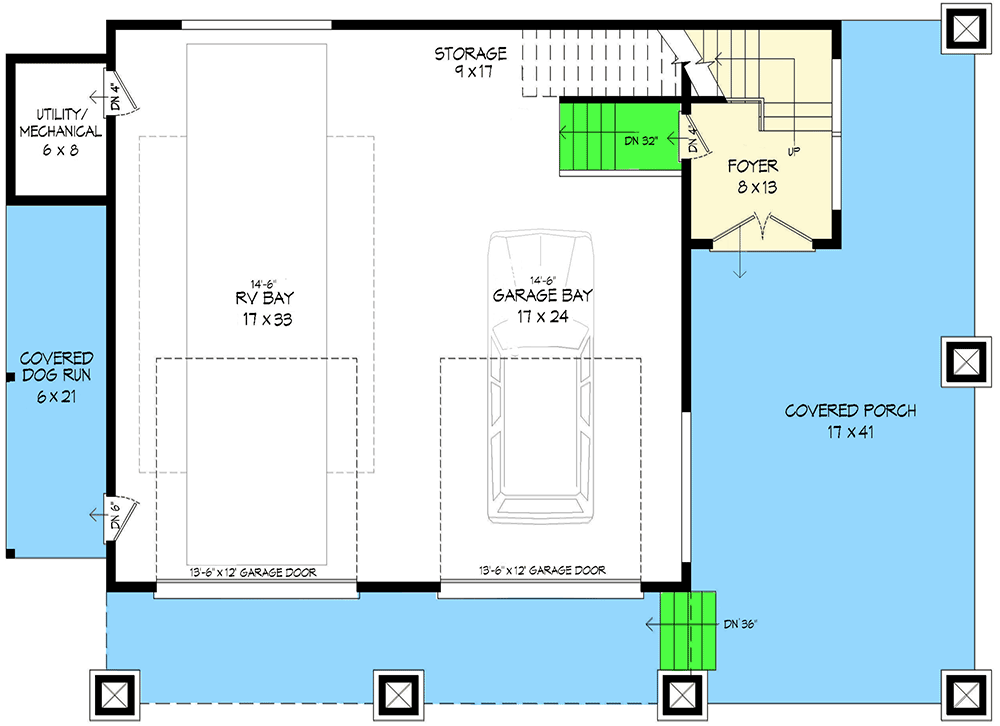

Unique Contemporary Home Plan with RV Bays - 68496VR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

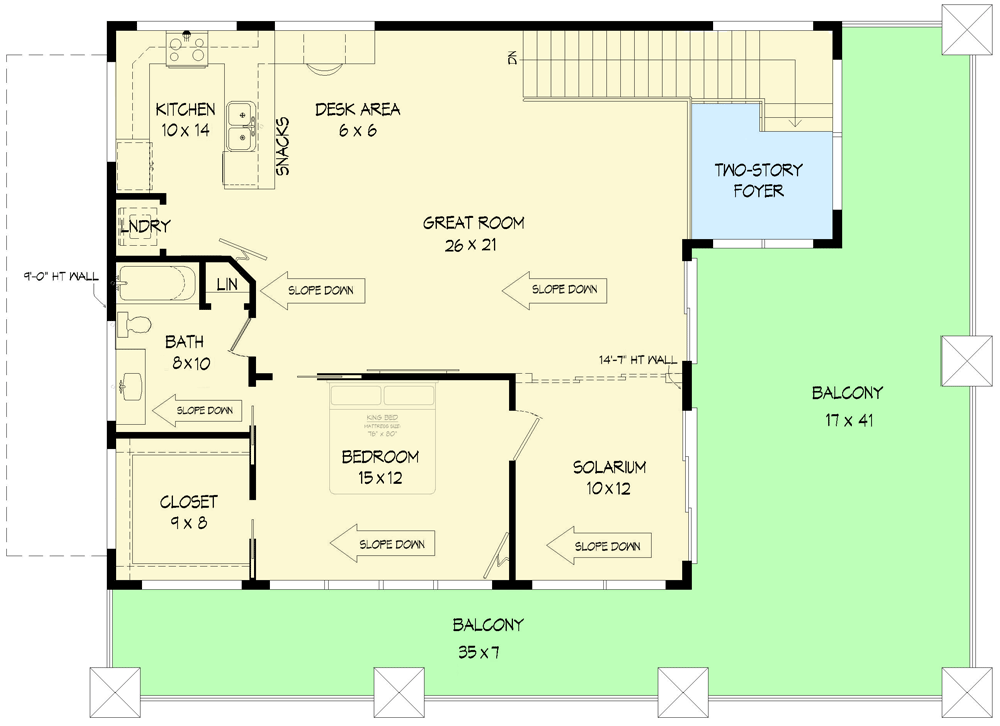

Unique Contemporary Home Plan with RV Bays - 68496VR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,319 sq. ft.
  • 1st Floor: 129 sq. ft.
  • 2nd Floor: 1,190 sq. ft.
  • Balcony / Veranda: 802 sq. ft.
  • Porch, Combined: 928 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 59' 0"
  • Depth: 42' 8"
  • Max ridge height: 34' 0"

Garage

  • Type: Attached, RV Garage
  • Area: 1237 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 14' 6" Second Floor / 14' 7"
Room Details Ceiling Type Width Depth Height
Great Room Slope 14' 7" to 9' 0"

Roof Details

  • Primary Pitch: 2 on 12
  • Framing Type: Truss

Architectural Style
