Plan 22513DR
Unique Mountain or Vacation House Plan
Heated S.F.
1,824
Beds
3
Baths
2.5
Stories
2
What's Included
Plan Details
  • A steep metal roof and distinctive stairwell bump out make this Mountain house plan unique.

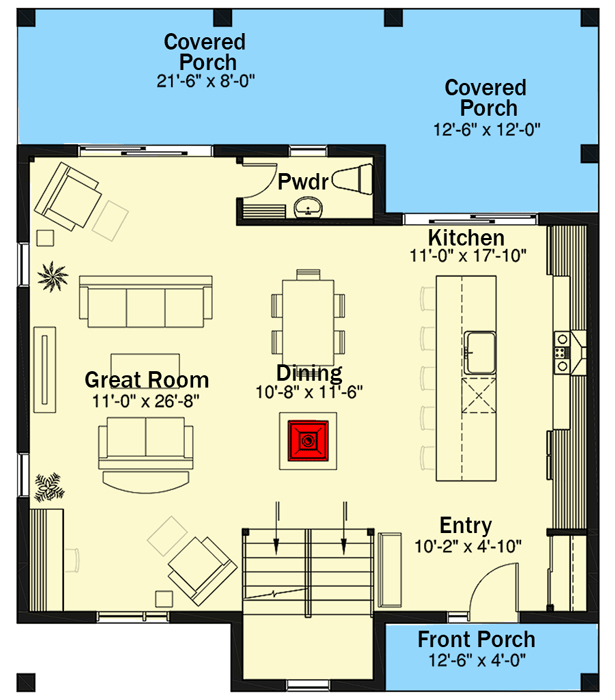

  • The entry foyer gives you immediate sight lines into the large, open kitchen, dining and living area.
  • You can seat five people at the huge kitchen island that offers extra counter space and storage too.

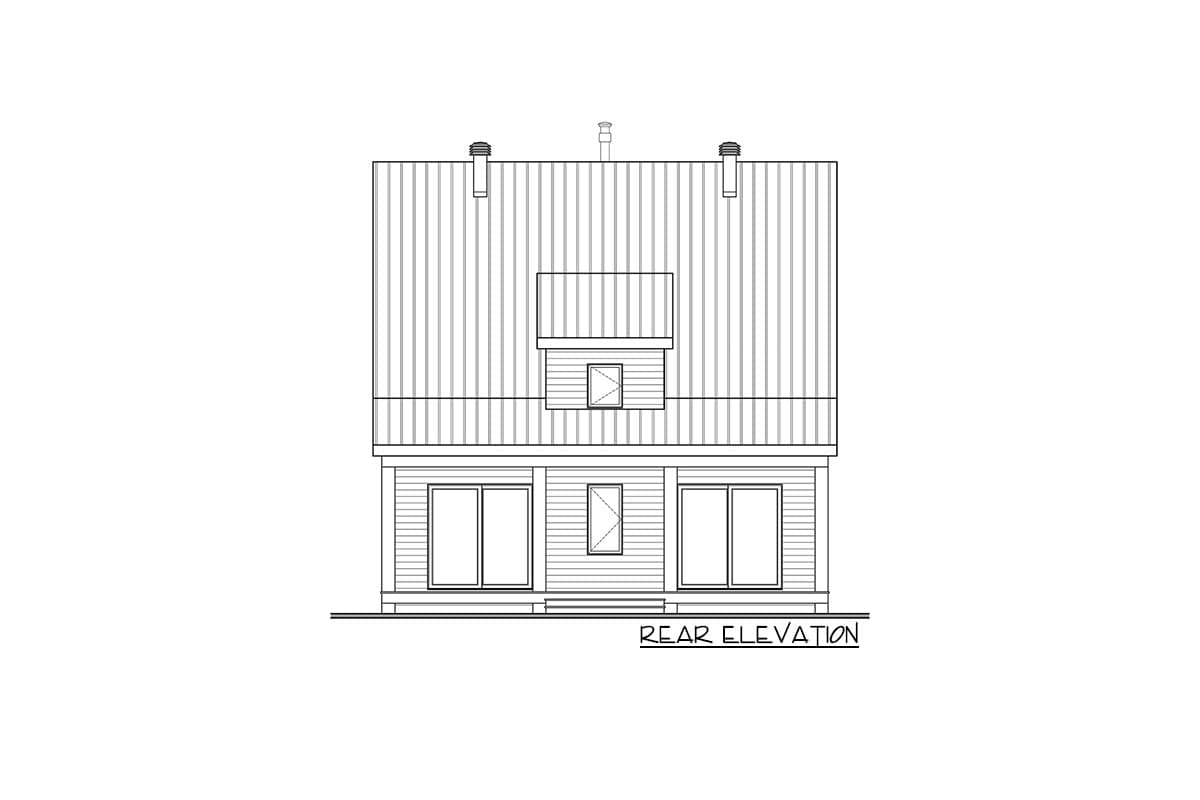

  • Two sets of sliding glass doors take you out to the rear covered porch.
  • A landing between floors means shorter flights of stairs.

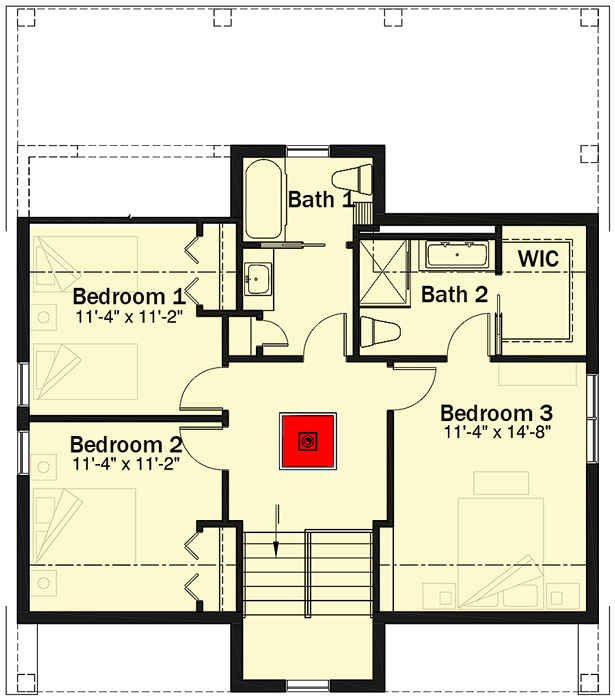

  • All three bedrooms are upstairs and the master suite gets a private bathroom and walk-in closet.
What's Included
Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Unique Mountain or Vacation House Plan

  • 1,824

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

Floor Plan

  • Main Level

  • 2nd Floor

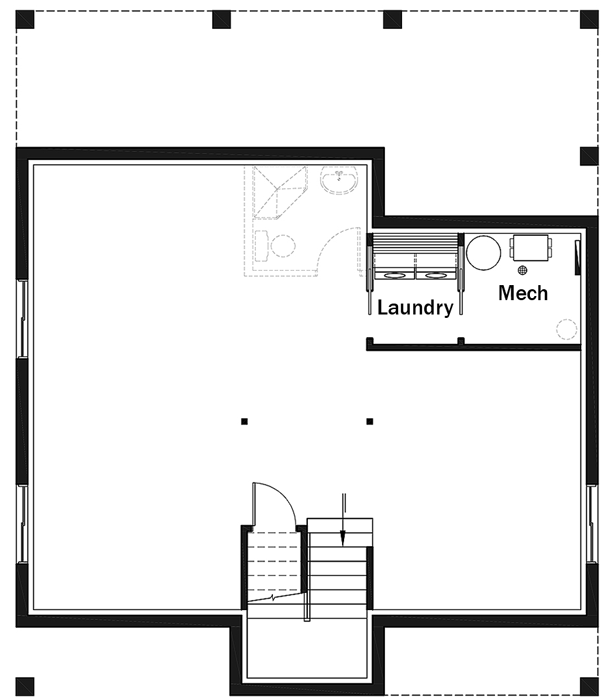

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 1,824 sq. ft.
  • 1st Floor: 938 sq. ft.
  • 2nd Floor: 886 sq. ft.

Dimensions

  • Width: 34' 0"
  • Depth: 32' 0"
  • Max ridge height: 33' 9"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 16 on 12
  • Framing Type: Truss
