Updated 2 Bedroom Ranch Home Plan
Heated S.F.
1,645
Beds
2
Baths
2
Stories
1
Cars
3
Videos
What's Included
Plan Details
  • This updated traditional ranch home plan includes detailing such as the front porch columns and corbels at the roof peaks.
  • The great room draws you into the home from the entry with it's impressive step ceiling and open plan.
  • A bay window adds further interest with views to the back yard, while opening into the kitchen where an island provides additional seating for family and guests.
  • The master suite lies to the left of the great room and impresses with a tray ceiling, dual sinks and a large walk-in closet.
  • A three-stall garage completes this traditional home plan.
  • Related Plans: Get an alternate exterior with house plans 89862AH and 89379AH. Get a finished lower level with house plan 8985AH.
What's Included

Plans include the following:

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What is NOT included in the plans:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Updated 2 Bedroom Ranch Home Plan

  • 1,645

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

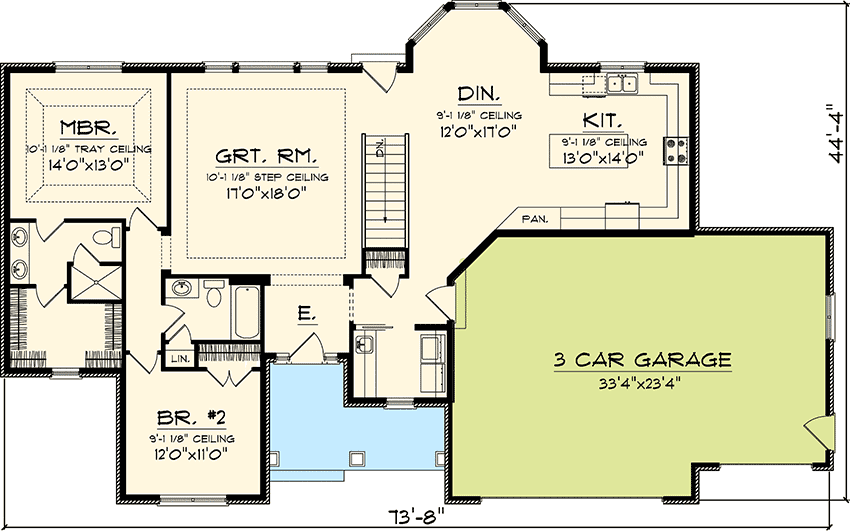

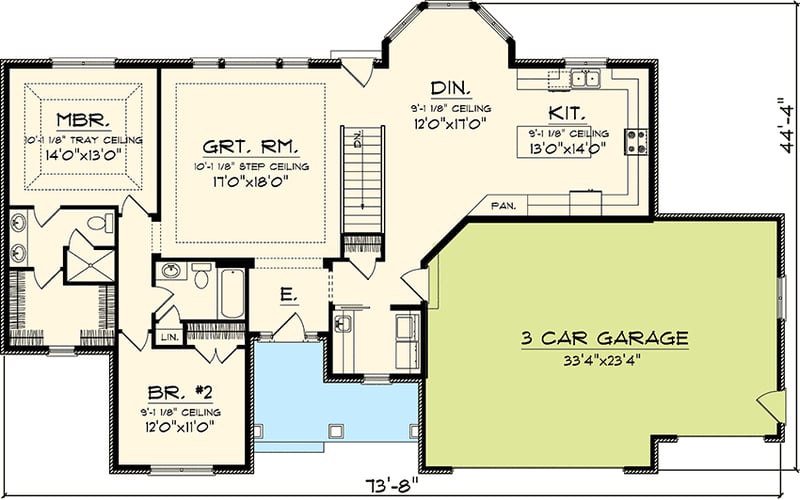

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,645 sq. ft.
  • 1st Floor: 1,645 sq. ft.

Dimensions

  • Width: 73' 8"
  • Depth: 44' 4"
  • Max ridge height: 23' 8"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 769 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Truss
