Upscale Florida Home Plan

Plan 66327WE

  • 7,107

    Heated s.f.

  • 5-6

    Beds

  • 5.5+

    Baths

  • 2

    Stories

  • 3

    Cars

  • From top to bottom, this Florida home plan sets the bar for luxurious living.
  • Every room in the house has amazing ceiling treatments and you get two master suites, one on each floor.
  • Even the covered lanai has a beamed ceiling plus a summer kitchen and convenient half bathroom.
  • The informal family living area is open concept with an L-shaped layout that lets everybody be together in one space.
  • On the first floor, the master suite has a separate sitting room with double doors that lead you to outdoor space.
  • The luxurious master bathroom has a two-entry shower area and a big soaking tub area.
  • Or take the second floor master suite that has a private balcony where you can sip your morning coffee before you start your day.
  • Both the front-facing bedrooms have easy access to the front covered porch.
  • The amazing loft area is a huge play space with a wet bar and sliding glass doors to a covered porch.
  • A residential elevator has been designed into this home so you never have to worry about climbing stairs.
  • The maid's suite over the garage can also serve as an in-law suite.

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Material Labels
  Floor-to-Floor Heights
  Roof Slope Indicators


Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Door and Window Sizes
  Completely Dimensioned Floor Plan
  Room Labels and Interior Room Sizes


Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching


*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers


Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated


Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness


Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


These items are NOT included:


Architectural or Engineering Stamp - handled locally if required

Site Plan - handled locally when required

Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

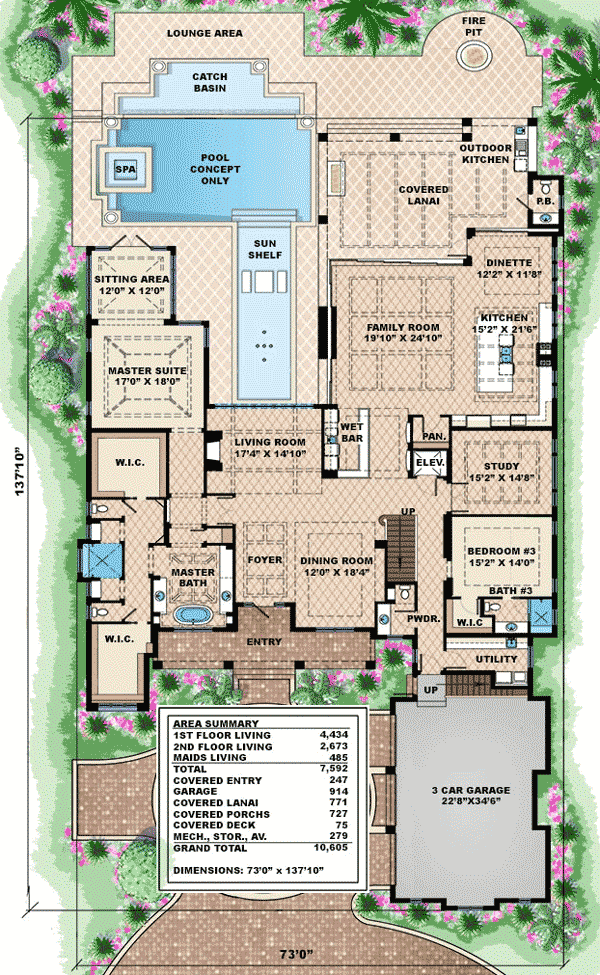

Upscale Florida Home Plan - 66327WE floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

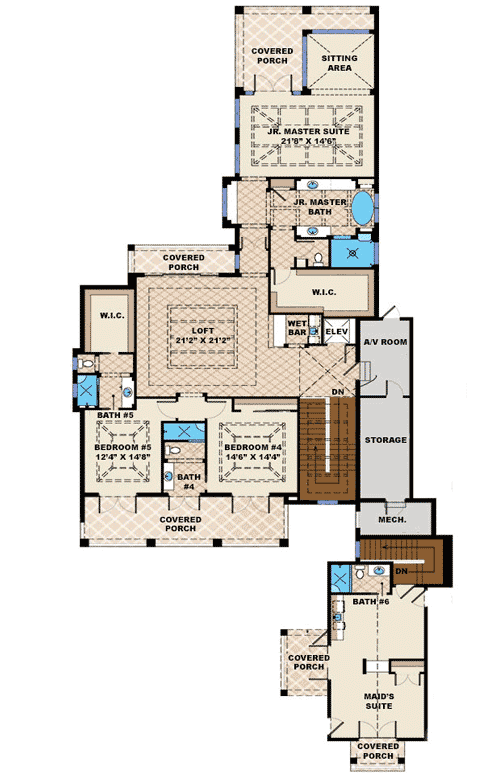

Upscale Florida Home Plan - 66327WE floor plan - 2nd Floor

Plan details

Upscale Florida Home Plan

  • 7,107

    Heated s.f.

  • 5 - 6

    Beds

  • 7

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Reproducible Set $4,000
  • PDF - Single-Build $4,000
  • CAD - Single-Build $4,000
  • View all purchase option online

About This Plan

  • From top to bottom, this Florida home plan sets the bar for luxurious living.
  • Every room in the house has amazing ceiling treatments and you get two master suites, one on each floor.
  • Even the covered lanai has a beamed ceiling plus a summer kitchen and convenient half bathroom.
  • The informal family living area is open concept with an L-shaped layout that lets everybody be together in one space.
  • On the first floor, the master suite has a separate sitting room with double doors that lead you to outdoor space.
  • The luxurious master bathroom has a two-entry shower area and a big soaking tub area.
  • Or take the second floor master suite that has a private balcony where you can sip your morning coffee before you start your day.
  • Both the front-facing bedrooms have easy access to the front covered porch.
  • The amazing loft area is a huge play space with a wet bar and sliding glass doors to a covered porch.
  • A residential elevator has been designed into this home so you never have to worry about climbing stairs.
  • The maid's suite over the garage can also serve as an in-law suite.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 7,107 sq. ft.
  • 1st Floor: 4,434 sq. ft.
  • 2nd Floor: 2,673 sq. ft.
  • Lanai: 771 sq. ft.
  • Entry: 247 sq. ft.
  • Deck: 75 sq. ft.
  • Apartment: 485 sq. ft.

Beds/Baths

  • Bedrooms: 5 or 6
  • Full bathrooms: 5
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 73' 0"
  • Depth: 137' 10"
  • Max ridge height: 29' 8"

Garage

  • Type: Attached
  • Area: 914 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
