Plan 36405TX

Upstairs Bar, Game and Media Room

Heated S.F.

5,297

Beds

5

Baths

5.5

Stories

2

Cars

3

What's Included

Floor Plan

Main Level

Reverse Floor Plan

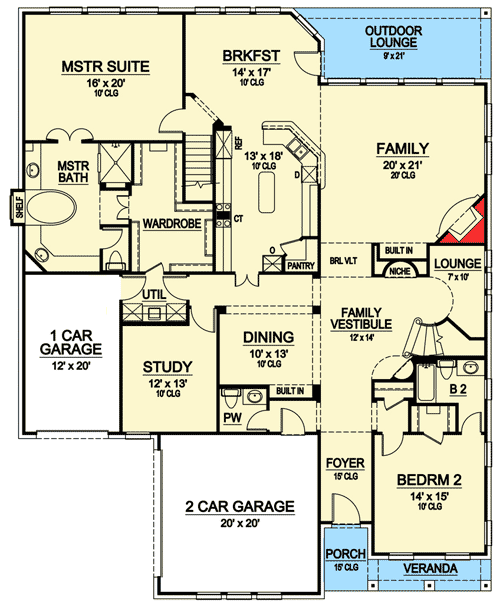

Upstairs Bar, Game and Media Room - 36405TX floor plan - Main Level

2nd Floor

Reverse Floor Plan

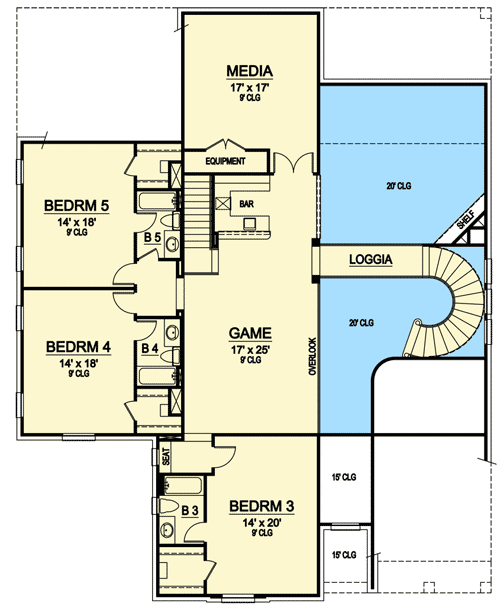

Upstairs Bar, Game and Media Room - 36405TX floor plan - 2nd Floor

Plan Details

You'll feel right at home as you walk into this stunning European luxury home plan. The 2-story foyer opens to a family vestibule with corner lounge, niche, and curved stairs to the second level. Large decorative pillars define the elegant dining room.
Access to the pantry and kitchen offers ease in serving meals to family and guests. Through the barrel vault off the family vestibule, the family room with corner warming fireplace and built-ins gives you great sunlight through its bank of rear windows.
The breakfast area leads to the outdoor lounge and is part of the kitchen and family room. A free-standing island and breakfast bar add counter space to this gourmet kitchen.
The spacious master suite boasts a lavish master bath with his and hers vanities, separate shower, tub and large wardrobe. A door from the wardrobe leads to the utility room, study and the one-car garage.
A front family bedroom with large walk-in closet, private full bath, and veranda views, can be converted to an in-law suite.
Upstairs, three family bedrooms offer walk-in closets and private, full baths. A bar, equipment room, game room, media room, and loggia for overlook views to below completes the upstairs.
Related Plans: Get an alternate exteriors with house plans 36380TX and 36407TX.

What's Included

Plan set includes the following:

1. Cover sheet

2. Foundation Plan

3. First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4. Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5. First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6. Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

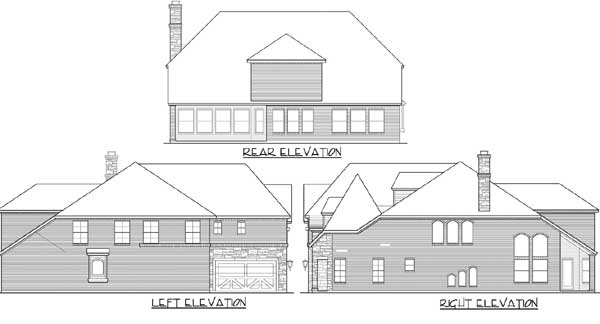

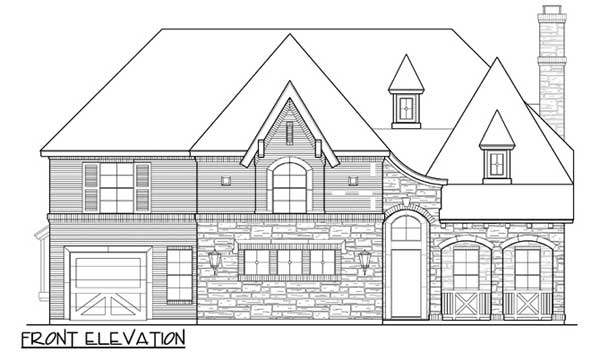

7. Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

8. Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9. Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10. Sections page

11. Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

5,297 sq. ft.

1st Floor:

3,116 sq. ft.

2nd Floor:

2,181 sq. ft.

Beds/Baths

Bedrooms:

5

Full bathrooms:

5

Half bathrooms:

1

Foundation Type

Standard Foundations:

Slab

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x4

Dimensions

Width:

60' 0"

Depth:

75' 0"

Max Ridge Height:

35' 0"

Garage

Type:

Attached

Area:

709 sq. ft.

Count:

3 Cars

Entry Location:

Front, Side

Ceiling Heights

Floor / Height:

Lower Level / 10' 0" First Floor / 9' 0"

Architectural Style

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections
