Lovely Stone and Brick European Home

Plan 36380TX

  • 5,297

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This stately European home plan is all decked out with stone, brick and decorative shutters.
  • The 15' high foyer leads you back to a family vestibule area where you can see the beautiful curved staircase.
  • Special touches like barrel vaulted ceilings and built-in niches will delight the eye.
  • An open floor plan lays out the main living area so you can see views from room to room.
  • The master suite is located on the ground level with triple windows to bring in light.
  • A second downstairs bedroom could serve as an in-law suite.
  • All three upstairs bedrooms are large with private baths and walk-in closets.
  • A game room with handy wet bar is perfect for entertaining or head down the hall to the media room to catch the latest movie.
  • Related Plans: Get alternate exteriors with house plans 36405TX and 36407TX.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

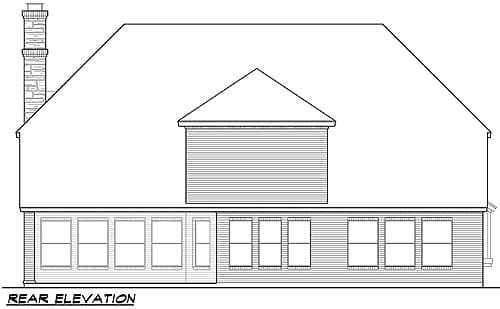

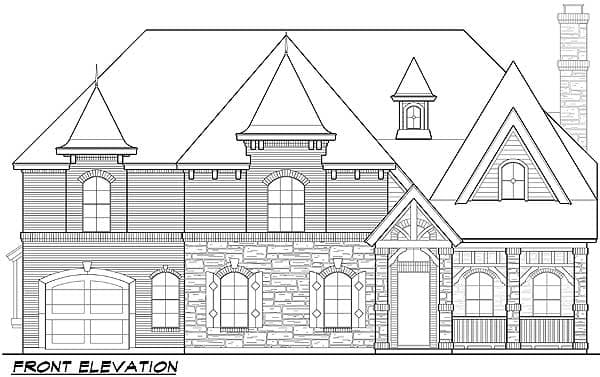

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

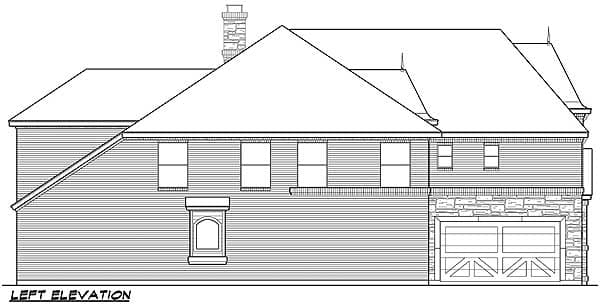

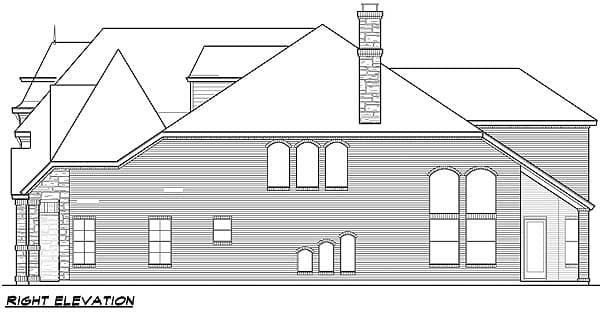

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

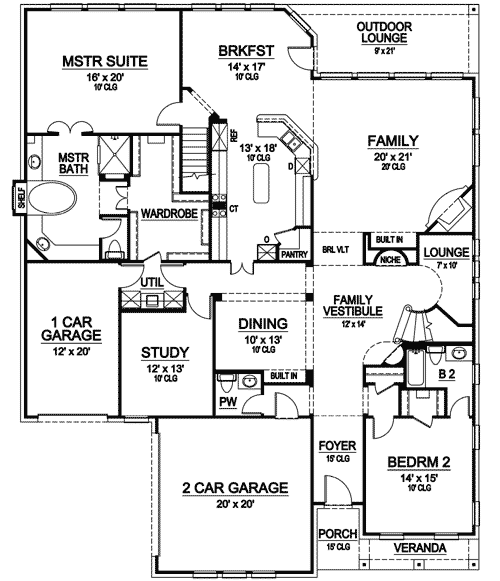

Lovely Stone and Brick European Home - 36380TX floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

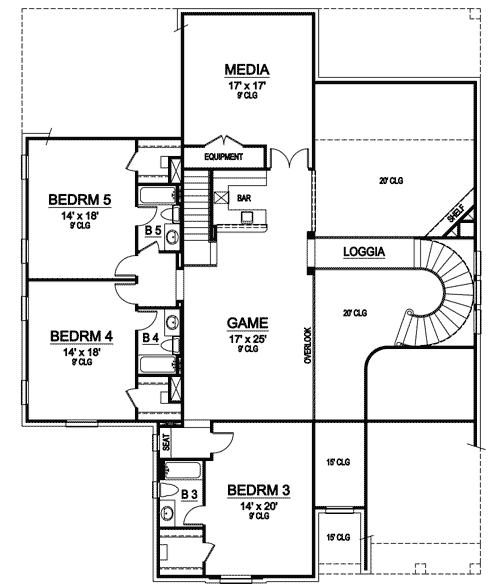

Lovely Stone and Brick European Home - 36380TX floor plan - 2nd Floor

Lovely Stone and Brick European Home

  • 5,297

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 5,297 sq. ft.
  • 1st Floor: 3,116 sq. ft.
  • 2nd Floor: 2,181 sq. ft.

Dimensions

  • Width: 60' 0"
  • Depth: 75' 0"
  • Max ridge height: 35' 0"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 709 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
