Plan 67730MG

Upstairs Living Area

Heated S.F.
1,063
Beds
3
Baths
1
Stories
1-2
Cars
1

Floor Plan

Plan 67730MG

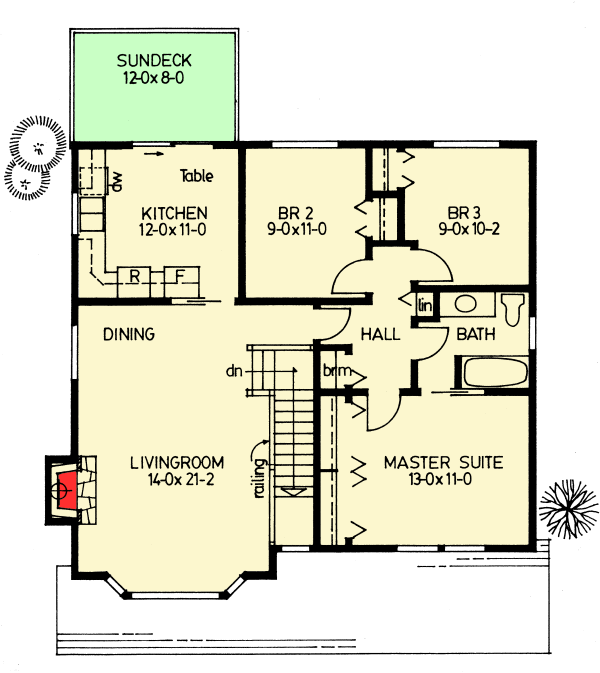

Second Floor
Second Floor

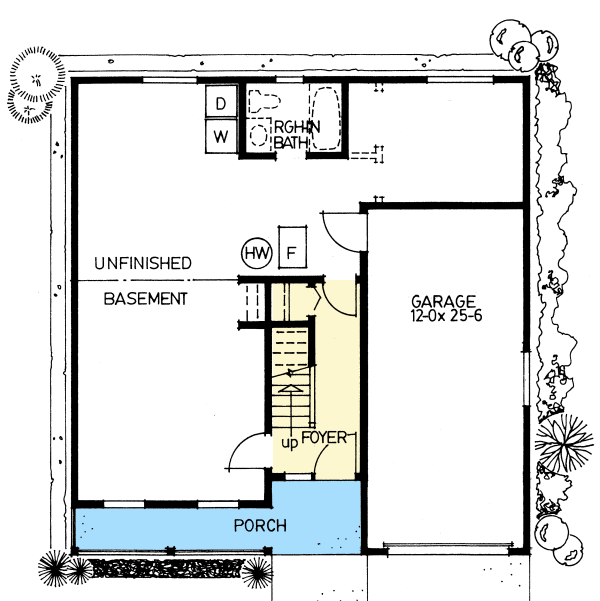

First Floor
First Floor

Plan 67730MG

M-F 9am-5pm EST |

1-203-761-8500

Second Floor

Plan 67730MG: Upstairs Living Area - Floor Plan - Second Floor - Country, Northwest

First Floor

Plan 67730MG: Upstairs Living Area - Floor Plan - First Floor - Country, Northwest

Plan Details

  • This Northwest house plan has all its living space up on the second floor.
  • The ground floor holds the garage and foyer plus lots of unfinished basement area for future expansion.
  • A bay window extends the living room while open railing on the right overlooks the stairs going down.
  • There's a sliding glass door in the kitchen so you can step out onto the rear sundeck.
  • The master suite faces the front and has a pocket door to the hall bathroom.
  • Two smaller bedrooms lie at the back of the house.
  • Related Plan: Get a larger version with a finished ground level with house plan 67732MG (2,057 sq. ft.) or a version without a finished lower level with 67735MG (1,132 sq. ft.)..

What's Included

  • Foundation plan
  • Electrical plan calling out locations,  not wiring
  • Fully dimensioned floor plans
  • Elevations
  • Cross section
  • Wall details, etc.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,063 sq. ft.

1st Floor

1,063 sq. ft.

Basement Unfinished

810 sq. ft.

Deck

96 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 0"

Depth

35' 6"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

306 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

2 on 12

Architectural Style

Country

Northwest

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

1,063 sq. ft.

1st Floor

1,063 sq. ft.

Basement Unfinished

810 sq. ft.

Deck

96 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 0"

Depth

35' 6"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

306 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

2 on 12

Architectural Style

Country

Northwest

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - Upstairs
