Plan 801016PM
Urban Bungalow Under 1700 Square Feet with 3 Bedrooms and 2 Baths
Heated S.F.
1,637
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • This beautiful urban bungalow is 45 feet 6 inches wide by 50 feet deep and provides 1,637 square feet of living space in addition to a 431 square-foot two-car garage.
  • The house plan features a sunken entrance hall, 9-foot ceilings and an open living area in the back of the house that includes a living room with a gas fireplace, a dining room with a triple patio door, a kitchen with an island and a large pantry.
  • The master bedroom has a walk-in closet and its own bathroom. The other two bedrooms share the other bathroom.
What's Included
Please note this plan is designed to the National Building Code of Canada.

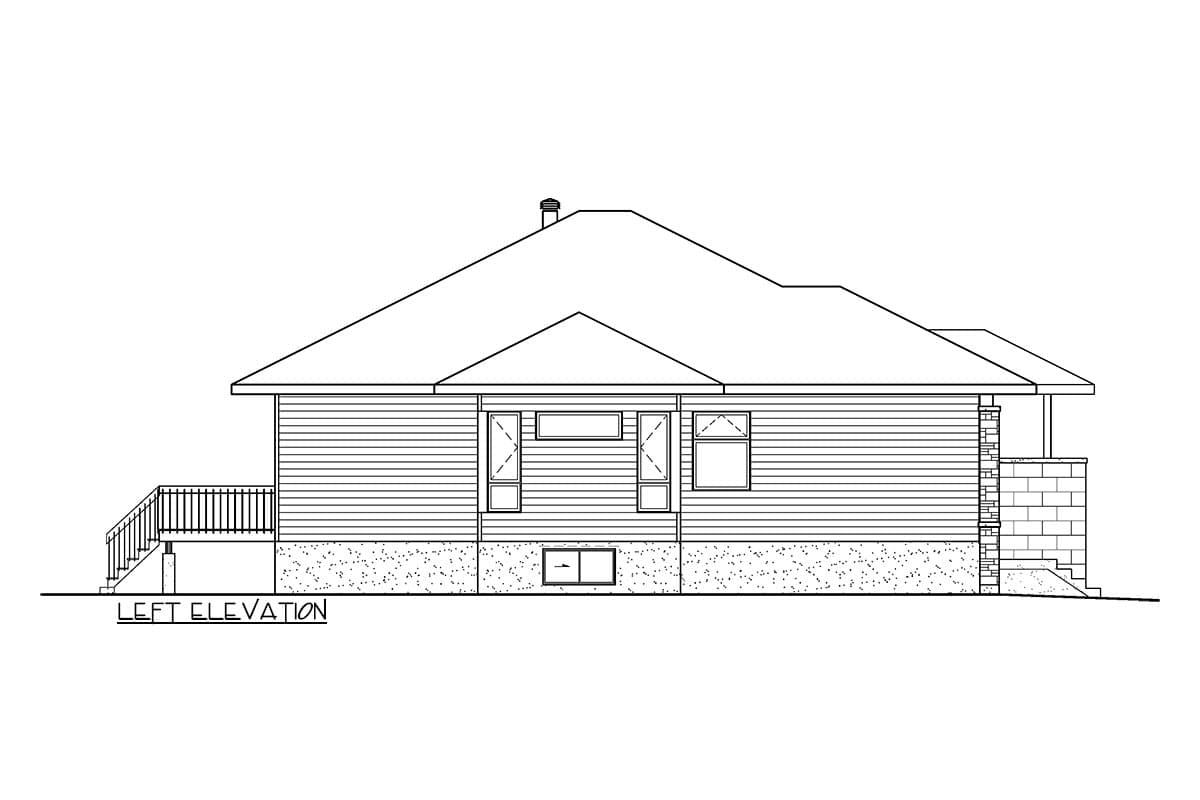

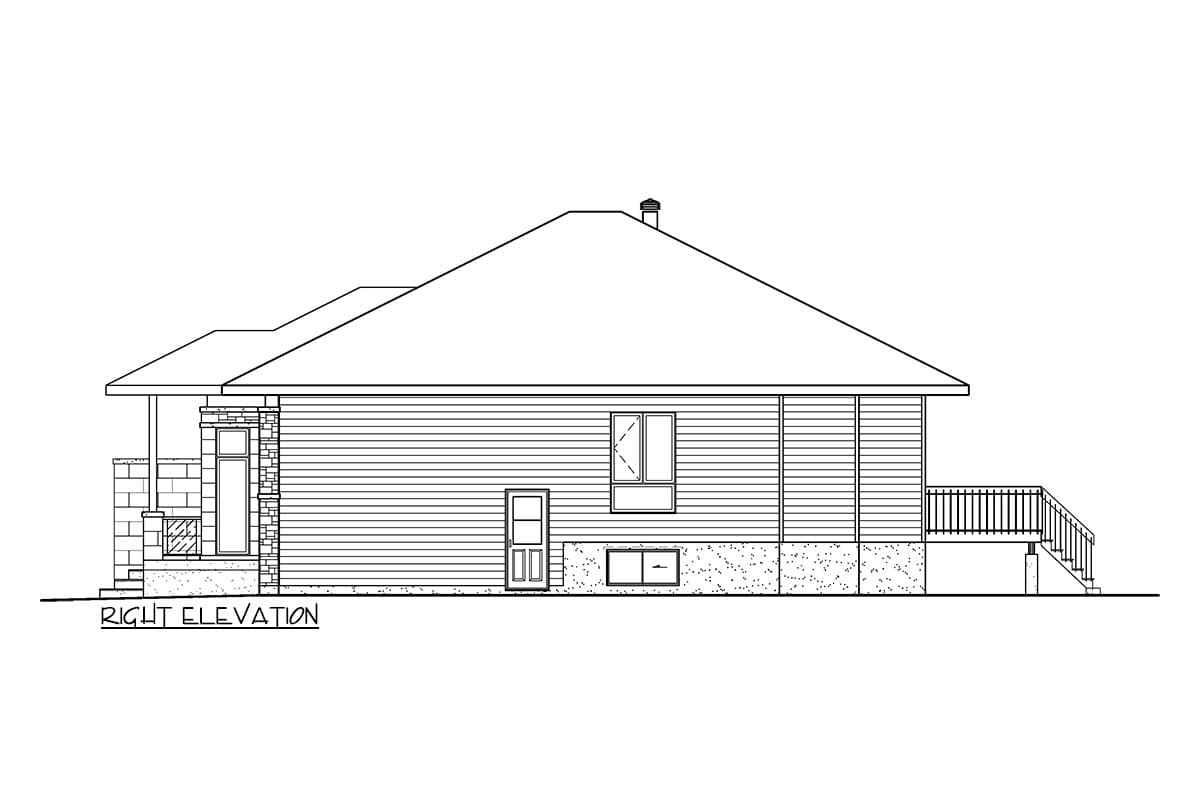

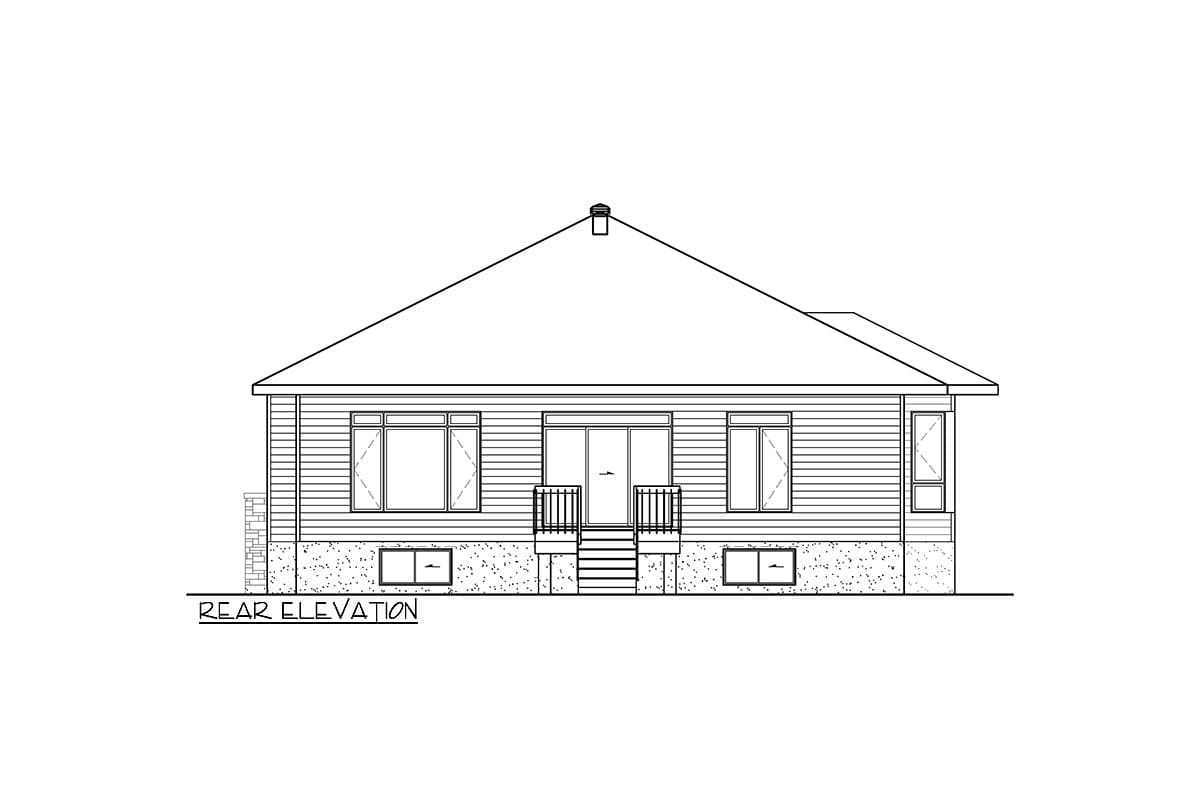

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Urban Bungalow Under 1700 Square Feet with 3 Bedrooms and 2 Baths

  • 1,637

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

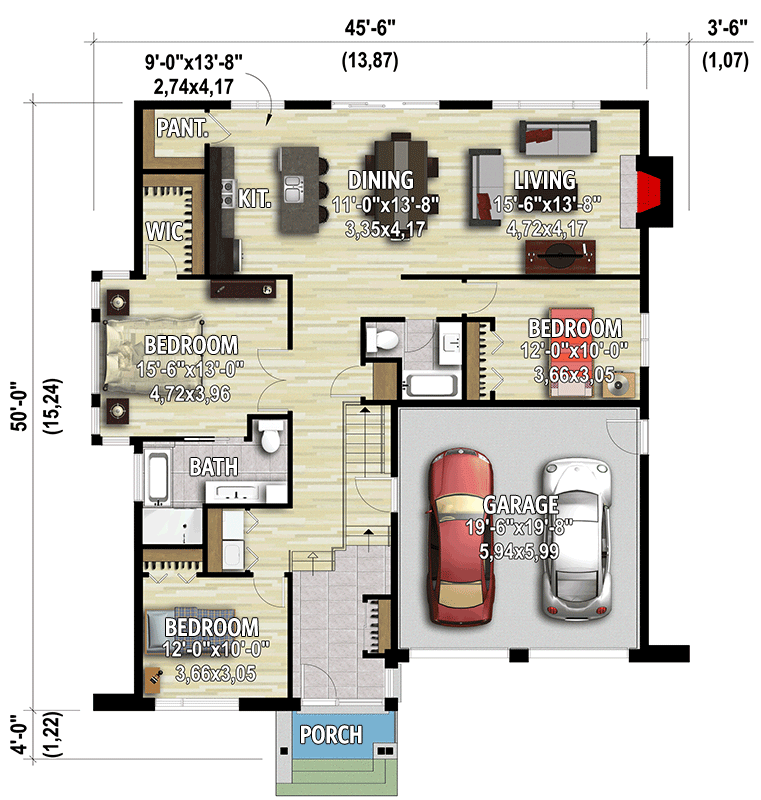

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,637 sq. ft.
  • 1st Floor: 1,637 sq. ft.

Dimensions

  • Width: 45' 6"
  • Depth: 50' 0"
  • Max ridge height: 26' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 431 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
All house plans are copyright ©2024 by the architects and designers represented on our web site

Urban Bungalow Under 1700 Square Feet with 3 Bedrooms and 2 Baths

  • 1,637

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Urban Bungalow Under 1700 Square Feet with 3 Bedrooms and 2 Baths

  • 1,637

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 1,637 sq. ft.
  • 1st Floor: 1,637 sq. ft.

Dimensions

  • Width: 45' 6"
  • Depth: 50' 0"
  • Max ridge height: 26' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 431 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12

    Main Level
